2012 AUDI A3 Engine

(D Note
- Never use chemical solvents (e.g . lighter
flu id, turpentine), waxes, shoe polish or
s imilar products on Alcantara ® surfaces.
- To avoid damage, have stubborn stains
removed by a commercia l cleaning spe­
cialist.
- Do not use brushes, stiff sponges or sim­
ilarly abrasive cleaning aids.
Safety belts
Only well-maintained safety belts work relia­
bly when needed.
.. Keep belts clean .
.. For cleaning, use a mi ld soap and water sol­
ution . Let be lts dry thoroughly and away
from direct sunlight.
.,. Do not allow inertia reel safety belts to re­
tract before they are completely dry.
.,. Check the condition of your safety belts
reg­
ularly .
Heavily soiled safety belts may not retract
properly .
A WARNING
Damaged safety belts can break in a crash.
- Anything that might damage your safety
belts could mean that you and your pas­
sengers wou ld not be adequately pro­
tected in an acc ident.
- Safety belt performance depends on cor­
rect installation. Never remove belts
from the vehicle to clean them.
- Do not use chemical cleaning agents,
bleach o r dyes. They have corros ive prop­
erties whi ch weaken the webbing.
- When cleaning your safety belts, inspect
them for damage.
If you discover dam­
age, see your a uthorized Audi dea ler.
- Always read and heed all WARN INGS and
other information
Q page 178.
l ) Use o nly the correct cleaning sol utions. Neve r use gas­
oline or d iese l fuel.
Cleaning and protec tion
Engine compartment
Be especially careful when cleaning the en­
gine compartment.
A lw ays switch o ff the ign it ion before cle an ­
i ng the eng ine
c> ,& .
Plenum pan el
Remove leaves from the plenum panel in front
of the windshield under the engine hood. This
prevents the water drain holes from becoming
blocked, and it prevents debris from enter ing
the vehicle interior through the heating and
vent ilat ion ducts.
Co rro sio n protect ion
The engine compartment and transmission
have been corrosion-protected at the factory.
Good anti -corrosion treatment is very impor­
tant, partic ularly in the winter.
If the vehicle
is frequently driven on salt treated roads, the
entire engine compartment and p lenum panel
should be thoroughly cleaned at the end of
winter and retreated to prevent salt damage.
At the same time, the underside of the vehicle
shou ld be washed as well.
If the engine compartment is cleaned at any
time with grease remov ing solutions
1> , or if
you have the engine washed, the anti-corro­
s ion treatment is almost always removed as
well.
It i s therefo re essentia l to have a long­
lasti ng cor rosion pro tect ion reapplied to all
surfaces, seams, joints and components in the
engine compartment .
A WARNING
Be aware: The engine compartment of any
motor vehicle is a potentially hazardous
area.
- Before work ing in the engine compart­
ment, be sure to read the information
c>page 194.
- Before reaching into the front plenum
panel, a lways remove the ignit ion key.
187
•
•

188 Cleaning and protection
Otherwise, the windshield wiper system
could unintentionally be switched on,
possibly causing personal injury from the
moving wiper linkage.
- Never reach into the area around or
touch the radiator fan. The auxiliary fan
is temperature controlled and can switch
on suddenly- even when the ignition is
off.
- Do not wash, wax or dry the engine with the engine running . Moving or hot parts
could injure you .
- Do not clean the underside of the chas­
sis, fenders, wheel covers, or other hard
to reach parts without protecting your
hands and arms. You may cut yourself on
sharp-edged metal parts.
- Always read and heed all WARNINGS and
other information
~ page 178.

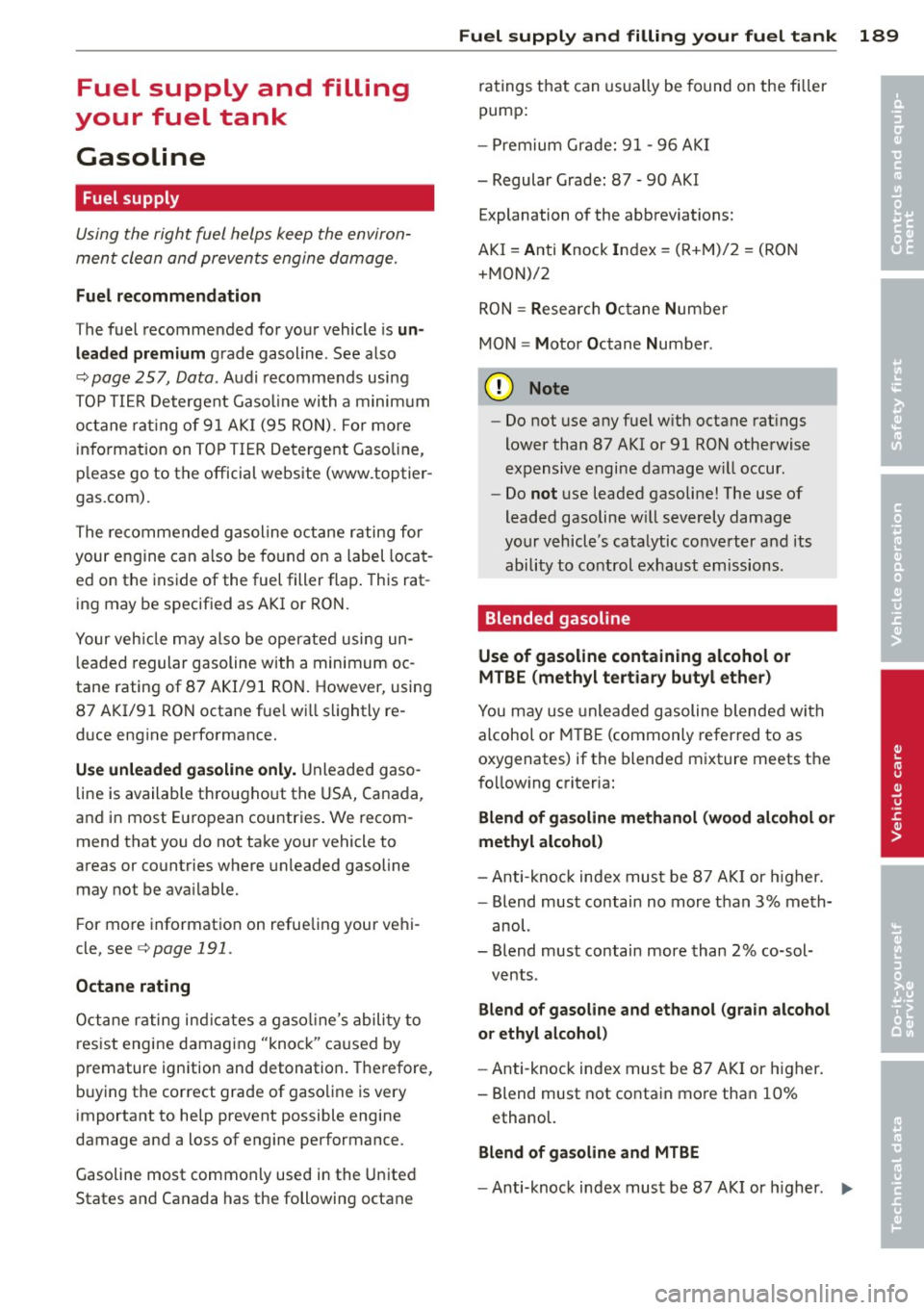

Fuel supply and filling
your f uel tank
Gasoline
Fuel supply
Using the right fuel helps keep the environ­
ment clean and prevents engine damage.
Fuel recommendation
The fuel recommended for you r vehicle is un­
leaded premium
g rade gasolin e. See also
¢ page 257, Data . Audi recommends usi ng
TO P TI ER Deterge nt Gaso line wi th a minim um
oc ta ne ra ti ng of 9 1 AK I (9 5 RON). For more
in fo rmation on TO P TI ER De tergent Gaso line,
p lease go to the official website (www.toptier ­
gas.com).
The re commended g asoline octane r ating for
your engine can a lso be fo und o n a label loca t­
e d on the ins ide of the fuel filler flap . This rat ­
ing may be specif ied as A KI or RO N.
Your veh icle m ay also be oper ated using un­
l e aded regular gasoline with a minimum oc ­
tane rating of 87 AKI/91 RON . However, using
87 AKI/9 1 RO N octa ne f ue l w ill sli ghtly re­
d uce eng ine perfo rmance .
Use unleaded gasoline only. Unleaded gaso ­
line is available th rougho ut the USA, Canada,
a nd in most E uropean cou ntries . We recom ­
mend that you do not ta ke yo ur vehicle to
areas or count ries where unleaded gasoline
may not be ava ilable.
F or mo re informat io n on refue ling your ve hi­
cle, see
¢ page 191.
Octane rating
Octane r ati ng in dicates a gaso line's abili ty to
r es ist engine damaging "knock" ca used by
p remature ign ition and detonation. Therefore,
buy ing the correct grade of gaso line is very
i mportant to help prevent possible engine
damage and a loss of engine performance.
Gasoline most common ly used in the Unite d
States and Canada has the followin g octane
Fuel supply and filling your fuel tank 189
ra tings that can usu a lly be found on the fi ller
p ump :
- Premium Gr ade: 9 1 -9 6 AKI
- Regular Grade : 87 -90 AKI
Explanation of the abbreviations:
AKI = Anti K nock In d ex = (R+M )/2 = (RO N
+M ON)/2
RON= Resear ch O ctane Num ber
MO N= Motor Octane Number.
(D Note
- Do not use a ny fue l w it h octane rat ings
lower than 87 A KI or 9 1 RO N othe rwise
e xpensive engi ne damage w ill occur.
- Do
not use leaded gasoli ne! The use of
leaded gasolin e w ill severely damage
yo ur vehicl e's cata lytic co nve rter and its
ability to control exh aust em iss ions.
Blended gasoline
U se of gasoline containing alcohol or
MTBE (methyl tertiary butyl ether)
You may use unleaded g asoline blende d with
a lcohol o r MTBE (commonly re fer red to as
oxygenates) if the blende d mixture meets the
fo llow ing criteria:
Blend of gasoline methanol (wood alcohol or
methyl alcohol)
- Anti -kno ck index mus t be 87 A KI or higher.
- Blend must contain no mor e than 3% meth-
anol.
- Blend must co ntain more than 2% co-sol-
vents .
Blend of gasoline and ethanol (grain alcohol
or ethyl alcohol)
- Anti -knoc k index must be 87 A KI or higher.
- Blend must not conta in mo re tha n 10%
ethanol.
Blend of gasoline and MTBE
- Anti -knoc k index must be 87 AKI or higher . ll>-
•
•

190 Fuel supply and filling your fuel tank
- Blend must contain not more than 1S%
MTBE.
Sea sonally adju sted ga soline
Many gaso line g rades are blended to perform
espec ia lly we ll for winte r or summe r d riv ing .
Du ring seasonal change-ove r, we suggest that
you fill u p at busy gas s tat ions where the sea­
sona l adjus tment is more likely to be made in
time .
(CT) Note
-Methanol fuels which do no t mee t these
r equirements may cause co rrosion and
damage to plastic and rubber compo ­
nents i n the fuel system .
- Do no t use fue ls that fai l to meet the
spec ified criteria in this chapter.
- If yo u are unable to de term ine whether
or not a particular fue l blend meets the
specifications, ask your service station or
i ts fuel s upplier.
- Do not use fue l for which the contents
cannot be identified.
- Fuel sys tem damage and performance
problems resulting from t he use of fuels
different from those specified a re not
the respons ibility of Audi and are not
covered under the New Vehicle or the Emission Control System Warranties.
- If you experience a loss of fue l economy
or driveability and performance prob­ l ems due to the use of one of these fuel
blends, we recomme nd that yo u sw itch
to unblended fuel.
Gasoline additives
A majo r concern among ma ny auto manufac ­
turers is carbon deposit build -up caused by
the type of gasoline you use .
A lthough gasoline grades differ from one
manuf acturer to anothe r, they h ave certa in
things in common. All gaso line g rades contain
substances that can cause deposits to co llect
on vital engine parts, such as fuel injectors
and intake valves. Although most gasoline
brands incl ude additives to keep engine and fuel systems clean, they a
re not equally effec­
tive .
A udi re commends using TOP TI ER De tergent
Gasoline. For mo re info rmat ion on TO P TI ER
Detergent Gasoline, please go to the official
website (www.toptiergas.com).
After an extended period of using inadeq uate
f uels, bui lt-up carbon deposi ts can rob yo ur
engine of peak performance.
(D Note
Dam age or ma lf u nction due to poor fuel
quality is not covered by the Au di New Ve­
hi cle Limited Warran ty.
Diesel fuel
Applies to veh icles: w ith diesel engine
Always use ULSD (Ultra Low Sulfur Diesel) sul­
fur content 15 ppm or less.
T he ULSD ( Ultra Low Sulfur Diese l) meets the
ASTM-D-97S (grade 2).
Die sel fu el with a higher c oncentration than
ULSD -Die sel No. 2 ASTM 0 975 and Bio-die­
sel with a higher c oncentration than S
% like
B11 , B20 or B100 are strictl y prohib ited.
Se rv ice stat io n fue l pumps a re labe led with
the cor rect fuel information fo r easy recogn i­
t ion by the use r. If the d iesel fue l pump is no t
l abeled ask the station operator what fue l is
being dispensed before filling up you r vehicle .
Serv ice stat ions offering d iesel fue l are gene r­
ally located on truck routes or major high­
ways . Directories of diesel fuel stations a re
u su a lly availab le at d iese l fue l stat ions .
Some sta tes in the USA req uire permi ts to
purchase diese l fue l. Check wi th your Sta te
Motor Vehicle Department.
Diesel fue l may no t be ava ilable outside t he
USA and Canada. Be s ure to che ck befo re trav -
eling to othe r countries . .,..

Winter operation
At temperatures below 20° F (-7° C), Diesel
fuel No.
2 loses its fluidity due to wax separa­
tion, which may clog the fuel filter or tank fil­
ter and keep the engine from running .
To help the filter from being clogged by wax,
the fuel filter in your vehicle is automatically
preheated. Preheating the fuel filter makes
operation of your vehicle possible with Diesel
fuel No . 2 down to -10° F (-24° C).
If you expect temperatures below
5° F
(-15° C)
ask your fuel dealer whether their
Diese l fuel No.
2 is sufficiently winterized for
the prevailing and expected temperatures.
If not winterized or insufficiently winterized
d iesel fue l has already thickened to the extent
that the engine will not start, warm the vehi­
cle up by leaving it in a heated garage.
It is normal that the engine noise leve l (die­
seling) is louder during the warm-up period in
winter.
It is also norma l when whitish-blue
smoke comes out of the tailpipe after start ing
and during warm-up . The amount of smoke
depends on the outs ide temperature.
Do not let your diesel engine idle unnecessari­
ly after a cold start. Driving off slowly will
shorten the warm-up period .
A WARNING
-Never use "starting assist fluids." They
may be potent ially explosive or cause a
"run-away" engine condition. This could
result in serious engine damage and per­
sonal injury.
- Never use fuel line anti-freeze offered for
gasoline engines .
0 Note
- Your diesel engine has been specifically
designed to operate only on Ultra Low
Sulfur Diesel fuel. Therefore, never use
home heating oil or regular gasol ine. Th e
properties of these fuels may cause seri­
ous damage to the fuel injection system
and to the engine. Using these fuels can
-
Fuel supply and filling your fuel tank 191
cause expensive engine repai rs and will
also adversely affect your New Vehicle
Limited Warranty.
- If diesel fuel should get on any rubber
hose, it must be wiped off immediately.
Then wash the contaminated hose por­
tion with soap and warm water. Do not
allow diesel fuel to remain on connecting
hoses. They may develop leaks and cause
ser ious damage.
Fuel tank
Fuel filler neck
The fuel filler neck is located on the right rear
side panel behind the fuel filler flap.
If the power locking system should fail, you
can still open the flap manually -for detailed
instructions see
¢ page 193.
You can find the fuel tank capacity of your ve­
hicle in
Technical Data ¢page 257 .
The labe l on the inside of the fuel fi ller flap
tells you the correct fuel for your vehicle. For
more information about fuel specifications,
see
¢ page 189.
Your vehicle fuel tank has an on-board refuel­
ling vapor recovery system. This feature helps
to prevent fuel vapors from escaping from the
tank and polluting the environment while you refue l your vehicle. In order to fi ll the tank
properly while protecting the environment,
please follow this refueling procedure careful­
ly.
A WARNING
Under normal operating conditions, never
carry addit ional fuel conta iners in your car .
Gas canisters and other containers used to
transport fuel can be dangerous. Such con­
tainers, full or empty, may leak and could
cause a fire in a collision. If you must
transport fuel to use for your lawn mower,
snow b lower, etc., be very careful and al­
ways observe loca l and state laws regard­
ing the use, transportation and storage of
such fuel containers. Make certain the
~
•
•

192 Fuel suppl y and filli ng your fuel t ank
container meets industry standards (ANSI/
ASTM F852 -86) .
(D Note
Never drive yo ur vehicle until the fuel tank
is completely dry . The irregular s upply of
fue l can cause misfiring. Gasoline cou ld
enter into the exhaust system and damage
the catalytic converter.
Refuelling
The fuel filler flap is unlocked from a button
in the driver 's door .
Fig. 152 Driver 's door: Un lock ing fuel filler flap
Fig. 153 F u el cap hooked on the opened fuel filler flap
When adding fuel, the ignition and any cellu ­
lar phones in the vehicle must be sw itched
off.
Tak ing th e fuel cap off
.. To open the fuel filler flap, pull the button
¢fig . 152 .
.. Unscrew fuel filler cap counter-clockwise
and hang it on the fuel filler flap¢
fig. 153 .
.. Check the label on the inside of the fuel fi ll­
er flap to determine if the vehicle must be
fueled with gasoline or diesel fuel.
Refuell ing proc edur e
.. Insert the f uel nozzle from the gasoline
pump into the fuel fi ller neck as far as it wi ll
go .
.. Select a medium refuelling rate
so that the
nozzle switches off automatically when the
tank is full.
Putting th e fu el cap ba ck on
.. After fi lling your tank, twist the fuel filler
cap clockwise until you hear a definite click.
.. Close the fue l filler flap.
T o avoid fuel spilling or evaporating from the
fuel tank always close fuel filler cap properly
and completely. An improperly closed fuel fill­
er cap may also cause a message in the driver
information system or cause the MIL lamp
¢page 24 to come on.
A WARNING
-Improper refue ling or handling of fuel can
cause fire, explosion and severe burns.
- Fue l is highly flammable and can cause
severe burns and other injur ies.
- Failure to shut the engine off while refu­
eling and/or to insert the pump nozzle
ful ly into the fuel filler neck could cause
fue l to spray out of filler neck or to ove r­
f low. Fue l spray and overflowing fue l can
cause a fire .
- Never use a ce ll ular telephone while re­
fue ling. The electromagnet ic rad iation
can cause sparks that can ignite fuel va­
pors and cause a fire.
- Never get back in to yo ur vehicle whi le re­
fue ling. If in exceptional circ umstances
you must get back in your vehicle while
ref ueling, make certain that you close
the door and touch metal to discharge
static electricity before touching the fill­
er nozzle again . Static e lectr icity can
cause sparks that can ignite fuel vapors
re leased du ring ref uel ing .
- Never smoke or have an open flame any­
where in or near your veh icle when refu-
eling or fi lling a portab le fue l conta iner . ..,_

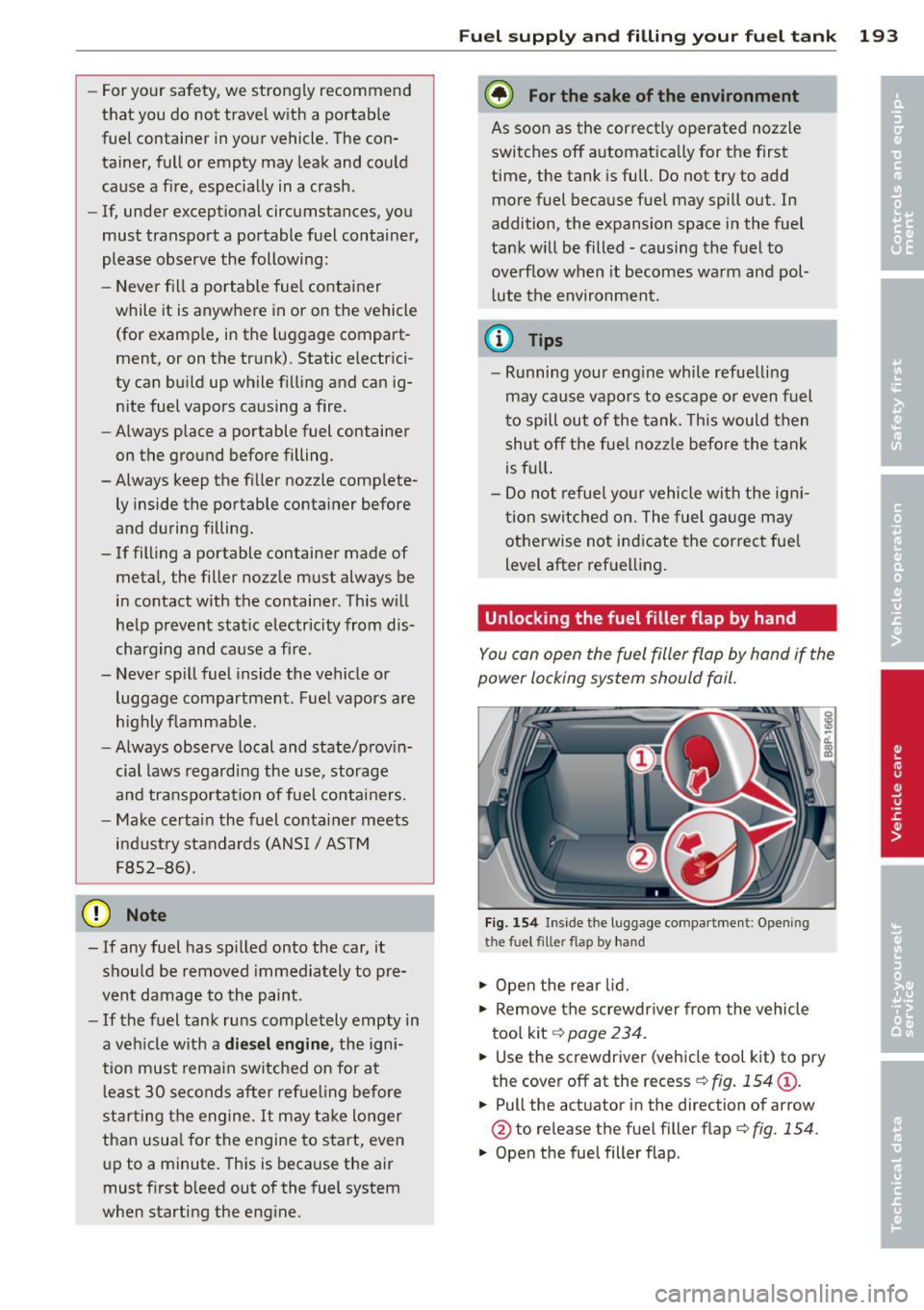

-For your safety, we strongly recommend
that you do not travel with a portable
fuel container in your vehicle. The con­
tainer, full or empty may leak and could
cause a fire, especially in a crash.
- If, under exceptional circumstances, you
must transport a portable fuel container
'
please observe the following:
- Never fill a portable fuel container
while it is anywhere in or on the vehicle (for example, in the luggage compart­
ment, or on the trunk) . Static electrici­
ty can build up while filling and can ig­
nite fuel vapors causing a fire.
- Always place a portable fuel container
on the ground before filling .
-Always keep the filler nozzle complete­ ly inside the portable container before
and during filling.
- If filling a portable container made of metal, the filler nozzle must always be
in contact with the container. This will
help prevent static electricity from dis­
charging and cause a fire.
- Never spill fuel inside the vehicle or
luggage compartment. Fuel vapors are
highly flammable.
- Always observe local and state/provin­
cial laws regarding the use, storage
and transportation of fuel containers.
- Make certain the fuel container meets
industry standards (ANSI/ ASTM
F852-86).
(D Note
- If any fuel has spilled onto the car, it should be removed immediately to pre­
vent damage to the paint.
- If the fuel tank runs completely empty in
a vehicle with a
diesel engine, the igni­
tion must remain switched on for at least 30 seconds after refueling before
starting the engine.
It may take longer
than usual for the engine to start, even
up to a minute. This is because the air
must first bleed out of the fuel system
when starting the engine.
Fuel supply and filling your fuel tank 193
@) For the sake of the environment
As soon as the correctly operated nozzle
switches off automatically for the first
time, the tank is full. Do not try to add
more fuel because fuel may spill out. In
addition, the expansion space in the fuel
tank will be filled -causing the fuel to
overflow when it becomes warm and pol­
lute the environment.
(0 Tips
-Running your engine while refuelling
may cause vapors to escape or even fuel
to spill out of the tank. This would then
shut off the fuel nozzle before the tank
is full.
- Do not refuel your vehicle with the igni­
tion switched on. The fuel gauge may
otherwise not indicate the correct fuel
level after refuelling.
Unlocking the fuel filler flap by hand
You can open the fuel filler flap by hand if the
power locking system should fail.
Fig. 154 Inside the luggage compartment : Openi ng
the fuel fi lier flap
by hand
.,. Open the rear lid.
.,. Remove the screwdriver from the vehicle
tool kit
¢ page 234.
.,. Use the screwdriver (vehicle tool kit) to pry
the cover off at the recess
¢ fig. 154 (D .
.,. Pull the actuator in the direction of arrow
@ to release the fuel filler flap¢
fig. 154.
.,. Open the fuel filler flap .

194 Checking and filling
Checking and filling
Engine hood
Releasing the engine hood
The engine hood is released from inside the
vehicle .
Fig. 155 Driver' s side footwe ll: e ngin e hood release
lever
.. Open the driver's door.
.. Pull the release lever on the left under the
instrument panel
c> fig . 155 in direction of
the a rrow .
The hood pops up slight ly under spring pres­
sure.
Opening the engine hood
Fig . 156 Engine hood releas e le ve r
Before opening the eng ine hood, make sure
that the windshie ld wipers are folded flat
against the windshield . Otherwise, they could
damage the paint on the hood.
.. Pull the release lever
r=;,fig . 156 in the direc­
tion indicated by the arrow . This release the
hook under the hood .
.. Open the hood all the way.
A WARNING
-Hot engine coolant can burn you!
- To reduce the risk of being burned, never
open the hood if you see or hear steam
or coo lant escaping from the eng ine
compartment . Wait unt il no steam or
coolant can be seen or heard before care­
fu lly opening the hood.
Closing the engine hood
.. Pull the hood down until the pressure from
the strut is reduced .
.. Let the hood
drop down and latch in p lace.
Do not try to push it shut; it may fail to en­
gage
c> .&, .
A WARNING
--
A hood that is not completely latched
could fly up and b lock your view while dr iv­
i ng.
- When you close the engine hood, check it
to make sure the safety catch has proper­ly engaged . The hood shou ld be flush
with the surrounding vehicle body parts.
- If you notice while dr iv ing that the hood
is not secured properly, stop at once and
close it .
Working in the engine compartment
Be especially careful whenever you work in
the engine compartment!
Whene ve r you must pe rform any wo rk in the
eng ine compartment, for e xample chec king
and filling differ ent fluid s, the re i s a risk of
injury , burns and accident s. T o pr event p er­
s onal injury alwa ys observe the foll owing
WARNING S. Th e engin e c ompartm ent of an y
v e hicl e is a hazardou s area!
r=;, .&.
A WARNING
To help avoid injury, before yo u check any­
thing under the hood:
- Turn off the engine .
- Remove the ignition key.
