2012 Acura MDX Navigation Manual

72
Navigation System
ACURA MDX KA 31STX850
Driving to Your DestinationPop-ups and DisclaimersWhen you say “OK” in the Calculate
route to screen, or if you change your
route, the system checks your route and
provides you with pop-up messages for
the following situations:
 Your route takes you into an area that you previously set as an “Avoid
Area” (see Edit Avoid Area on
page 110).  Your route includes traffic
restrictions in the vicinity of the
departure point or destination.
 Your route passes through unverified areas (see Unverified Area Routing
on page 106).  Your route includes unverified areas
(see Unverified Area Routing on
page 106).
 You are about to enter an unverified area (see Unverified Area Routing on
page 106).00 ACURA MDX_KA.book 72 ページ ２０１１年７月２７日　水曜日　午前１１時６分

Navigation System73
ACURA MDX KA 31STX850
Driving to Your Destination
 You actually entered an unverified
area (see Unverified Area Routing on
page 106).
Traffic ReroutingWhen driving en route to your
destination with Traffic Rerouting is
ON , the system can find a faster route
based on traffic flow information or
detect a Road Closed incident and find a
detour route. In either case, the system
automatically recalculates and displays
a pop-up box to signify that the route
has changed.
You can also calculate the detour route
manually by choosing to avoid specific
incidents and/or congestion on your
route. Say “Display traffic incidents” or
“Display traffic list,” and select the “On
Route” tab on the Traffic list screen. Select an incident from the list, and push
in on the
Interface Dial twice. The
system will display the confirmation
screen:
00 ACURA MDX_KA.book 73 ページ ２０１１年７月２７日　水曜日　午前１１時６分

74
Navigation System
ACURA MDX KA 31STX850
Driving to Your DestinationWhen you say or select Return, the
display returns to the list screen. When
you select Avoid, the system
recalculates a detour route avoiding the
road. You can choose to avoid up to 10
traffic incidents.
NOTE:
 When you select the “All” tab,
Avoid is not displayed.
 To activate this function, you need to set Traffic Rerouting to ON in the
Routing & Guidance settings (see
page 110).
 Because the criterion for whether the
traffic event is to be detoured or not is
included in the traffic event data
itself, the traffic rerouting is not
performed for all the traffic incidents
ahead on the route.
 Even when the rout e recalculation is
performed for a traffic event, if the
system cannot find any detour route
or a quicker detour route, the event
location is not always avoided.
 Traffic rerouting is available only if
you have a current traffic/weather
subscription with XM. See page 124.
Changing the RouteWhile en route, you may wish to alter
your route, add an interim “Waypoint”
(pit stop), choose a different destination,
or cancel your current destination. To
change your present route, you can do
any of the following:
Say “Menu,” or press the MENU button
to view the MENU screen ( Route):
 Cancel Route (page 75)
 Detour (page 75)
 Avoid Streets (page 75)
 Change Route Preference (page 75)
 Waypoint (page 76) Choose a different destination (other
methods) by:
 Saying, “Find nearest...” to find a POI
(page 78).
 Saying, “Go home” (page 78).
Using the Interface Dial to select a different POI or address on the map
(page 78).
 Pressing the MENU button and
selecting the “Dest. MENU 1 or 2”
tab on the MENU screen (page 79).
00 ACURA MDX_KA.book 74 ページ ２０１１年７月２７日　水曜日　午前１１時６分

Navigation System75
ACURA MDX KA 31STX850
Driving to Your Destination

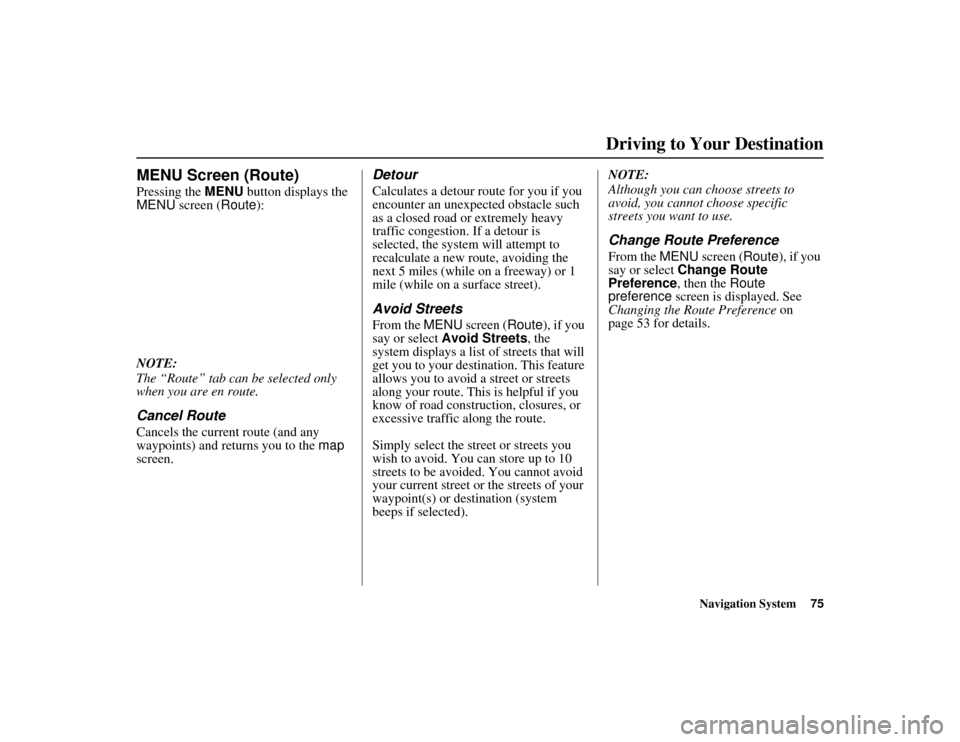

MENU Screen (Route)Pressing the MENU button displays the
MENU screen ( Route):
NOTE:
The “Route” tab can be selected only
when you are en route.Cancel RouteCancels the current route (and any
waypoints) and returns you to the map
screen.
DetourCalculates a detour route for you if you
encounter an unexpected obstacle such
as a closed road or extremely heavy
traffic congestion. If a detour is
selected, the system will attempt to
recalculate a new route, avoiding the
next 5 miles (while on a freeway) or 1
mile (while on a surface street).Avoid StreetsFrom the MENU screen ( Route), if you
say or select Avoid Streets , the
system displays a list of streets that will
get you to your destination. This feature
allows you to avoid a street or streets
along your route. This is helpful if you
know of road construction, closures, or
excessive traffic along the route.
Simply select the street or streets you
wish to avoid. You can store up to 10
streets to be avoided. You cannot avoid
your current street or the streets of your
waypoint(s) or destination (system
beeps if selected). NOTE:
Although you can choose streets to
avoid, you cannot choose specific
streets you want to use.
Change Route PreferenceFrom the
MENU screen ( Route), if you
say or select Change Route
Preference , then the Route
preference screen is displayed. See
Changing the Route Preference on
page 53 for details.
00 ACURA MDX_KA.book 75 ページ ２０１１年７月２７日　水曜日　午前１１時６分

76
Navigation System
ACURA MDX KA 31STX850
Driving to Your DestinationWaypointWaypoints allow you to add an interim
“pit stop” while traveling to a
destination. For instance, you may want
to stop for gas or food, and then
continue on to your destination.
Although you can enter up to five places
including the destination at a time,
typically you may never use more than
one at a time.
Waypoints are routed to in the order
they were entered (number 1 first, etc.),
with your final destination routed to last.
When you enter waypoints, they appear
on the map screen as small red flags
numbered 1-4.
Adding WaypointFrom the MENU screen ( Route), if you
say or select Waypoint, the Add
waypoint screen is displayed.
Select either SEARCH AROUND or
SEARCH ALONG by rotating
Interface Dial knob .Next, select the category from the
“Main” or “Fav. Subcategory” tab on
the
Category screen, then follow the
menu prompts to select a destination.
When the system performs a search
from SEARCH ALONG , it displays
matches that lie within a corridor on
either side and in front of your route.
From SEARCH AROUND , the system
displays matches that are a uniform
distance from the departure point/
waypoint/destination.
The search “corridor” distance value
can be changed in Edit Waypoint
Search Area in SETUP (see
page 112).
00 ACURA MDX_KA.book 76 ページ ２０１１年７月２７日　水曜日　午前１１時６分

Navigation System77
ACURA MDX KA 31STX850
Driving to Your Destination
If you add a waypoint, the Add to dest.
list screen will be displayed. If you push
in on the Interface Dial and select OK,
the addition is comp leted and rerouting
begins. Press the MAP/GUIDE button
to return to the map screen without
adding the waypoint.
To add another waypoint, press the
MENU button and repeat the procedure.
To delete waypoints or edit the order of
waypoints, select Edit on the Dest. list
screen. See Editing Destination Lists on
page 77.
NOTE:
 The maximum of five places
(including the destination) can be
entered.
 The system does not allow you to
select the roads you want to use to get
to a destination. However, after you
enter a destination, you can select
intersections or POI waypoints that
the system will use to tailor your
route.
Destination ListIf you select Destination List from
the MENU screen ( Route), you can
store four waypoints and one destination
simultaneously. If you cancel the route,
everything will be deleted.Verifying Destination ListIf you select Destination List from
the MENU screen ( Route), the display
will change to the Dest. list screen.
If you move the Interface Dial to the
left to select Map, you will be able to
see all the destinations on the map. NOTE:
Prior to departure, you can set areas to
avoid. The system then includes them in
its calculations for the destination you
have entered. See
Edit Avoid Area on
page 110.
Editing Destination ListsIf you move the Interface Dial to the
right to select Edit on the Dest. list
screen, the Select an edit menu screen
will appear. If you select Delete, you
can select which items to delete. If you
select Edit Order , you can change the
order of items in the list.
00 ACURA MDX_KA.book 77 ページ ２０１１年７月２７日　水曜日　午前１１時６分

78
Navigation System
ACURA MDX KA 31STX850
Driving to Your DestinationChanging Your DestinationThere are four methods by which you
can change or add a waypoint to your
route. These are:Find Nearest (Voice command)From the map screen, say one of the
“Find Nearest...” voice commands to
locate the nearest gas station, ATM,
restaurant or other point of interest. See
the “Find Nearest” voice commands
listing on page 165.Go Home (Voice command)From the map screen, say “Go Home 1”
or “Go Home 2.” If an address has been
entered in both Home Address 1 and
Home Address 2, say “Go Home”
and the system will give preference to
Home Address 1 and display the
confirmation screen.
Using Interface Dial to Change
DestinationWhile following a calculated route, you
can select a new de stination with the
map screen and the Interface Dial .
With the map screen displayed, use the
Interface Dial to move the cursor. It
will change to crosshairs.
Use the Interface Dial to position the
crosshairs on your desired new
destination, street, or icon, then push in
on the Interface Dial . The Select an
item screen or a pop-up menu may be
displayed if there are multiple POIs in
the vicinity.
NOTE:
The Select an item screen will be
displayed when the crosshairs are
positioned near multiple icons or
locations. A pop-up menu will be
displayed when the crosshairs are
positioned on a particular street. If this is not your desired new
destination, press the
CANCEL button
or the BACK button on the steering
wheel to return to the map screen.
Reposition the crosshairs with the
Interface Dial , then push in on the
Interface Dial again to see the new
address.
When the Select an item screen is
displayed, select an item from the list,
and the Calculate route to screen is
displayed. Then select OK and push in
on the Interface Dial .
00 ACURA MDX_KA.book 78 ページ ２０１１年７月２７日　水曜日　午前１１時６分

Navigation System79
ACURA MDX KA 31STX850
Driving to Your Destination
When the pop-up menu is displayed,
select Set as New Destination . to set
your location as a replacement
destination, or Add to Dest. List to set
as a waypoint.
The system will return to the map
screen and recalculate the route to your
new destination or waypoint.
Entering a Destination from the
Menu Screen (while en route)If you say “Menu”, or press the MENU
button and select the “Dest. MENU 1”
or “Dest. MENU 2” tab, the system
displays the MENU screen. Follow the
procedure described in Entering a
Destination, which begins on page 28.
When the Calculate route to screen is
displayed, select OK and push in on the
Interface Dial.
When the pop-up menu is displayed,
select Set as New Destination to set
your location as a replacement
destination, or Add to Dest. List to set
as a waypoint.
The system will return to the map
screen and recalculate the route to your
specified new destination or waypoint.
Continue Trip to ScreenIf you restart the vehicle without having
completed your prior trip, you will see
the following screen:
 To continue to your destination or other waypoints, say or select OK.
 To cancel your destination, press the CANCEL button or the BACK
button on the steering wheel, or using
the voice control system, say
“Cancel” or “Back.”
 If you wish to change the routing method, select Route Pref. by using
the Interface Dial .
 For additional information on changing the route preference, see
Changing the Route Preference on
page 53.
00 ACURA MDX_KA.book 79 ページ ２０１１年７月２７日　水曜日　午前１１時６分
