Stop & Start system
This system puts the engine temporarily into
standby during stops in the traffi c (red lights,
traffi c jams, etc....). The engine restarts
automatically as soon as you want to move
off. The Stop & Start system reduces fuel
consumption, exhaust emissions and the
noise level when stationary.



160


Directional lighting
This lighting automatically provides
additional visibility when cornering.



104

Panoramic sunroof
This roof provides incomparable
visibility and light in the passenger
compartment.



95


Temporary puncture repair kit
This kit is a complete system,
consisting of a compressor and a
sealant cartridge, for the temporary
repair of a tyre.



178

9
FAMILIARISATION

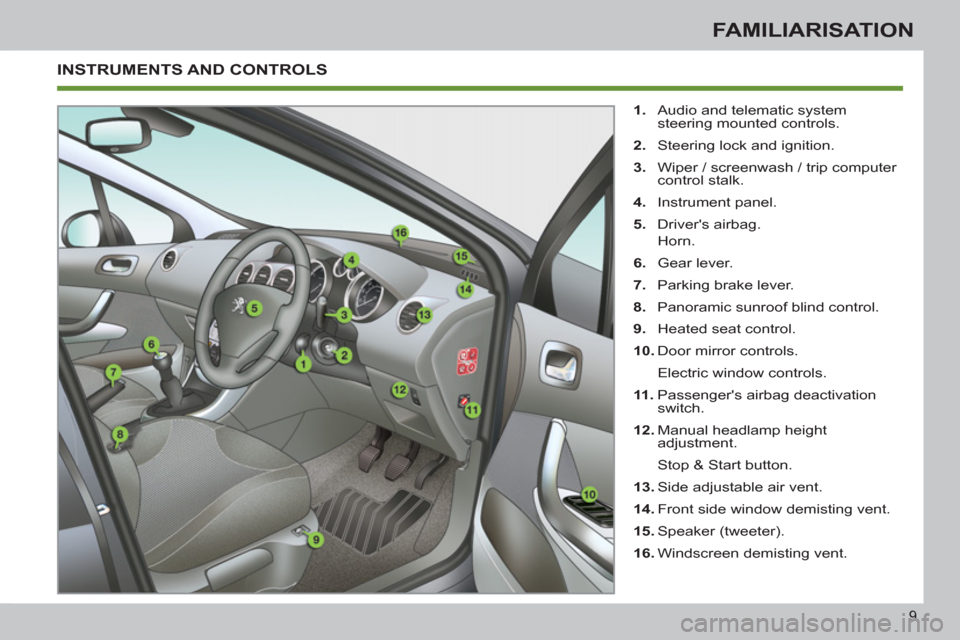

INSTRUMENTS AND CONTROLS



1.
Audio and telematic system
steering mounted controls.

2.
Steering lock and ignition.

3.
Wiper / screenwash / trip computer
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Parking brake lever.

8.
Panoramic sunroof blind control.

9.
Heated seat control.

10.
Door mirror controls.
Electric window controls.

11 .
Passenger's airbag deactivation
switch.

12.
Manual headlamp height
adjustment.
Stop & Start button.

13.
Side adjustable air vent.

14.
Front side window demisting vent.

15.
Speaker (tweeter).

16.
Windscreen demisting vent.

20
FAMILIARISATION

Stop & Start

Going into engine STOP mode
Going into engine START mode
Deactivation / Reactivation DRIVING
SAFELY




161
You can deactivate the system at
any time by pressing the "ECO OFF"

button; the warning lamp in the button
comes on.
The "ECO"
warning lamp comes on
in the instrument panel and the engine
automatically goes into standby: The "ECO"
warning lamp goes
off and the engine restarts
automatically:


- with a manual gearbox:
when you
fully
depress the clutch pedal,

- with a 6-speed electronic gear
control gearbox:



●
gear lever in position A
or M
, when
you release the brake pedal,

●
or gear lever in position N
and
brake pedal released, when you
change to position A
or M
,

●
or when you engage reverse.


- with a manual gearbox:
at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal,

- with a 6-speed electronic gear
control gearbox:
at speeds below
5 mph (8 km/h, when you press the
brake pedal or when you put the
gear lever in position N
.
In some circumstances, STOP mode
may not be available; the "ECO"

warning lamp fl ashes for few seconds,
then goes off.



160
If you engage a gear without fully
depressing the clutch pedal, the
engine will not restart automatically.
An alert message is displayed
asking you to fully depress the
clutch pedal.



161
The system is reactivated
automatically at every new start
using the key.
Before refuelling or doing anything
under the bonnet, you must switch
off the ignition using the key. In some circumstances START mode
may be invoked automatically; the
"ECO"
warning lamp fl ashes for a few
seconds, then goes off.

1INSTRUMENTS and CONTROLS

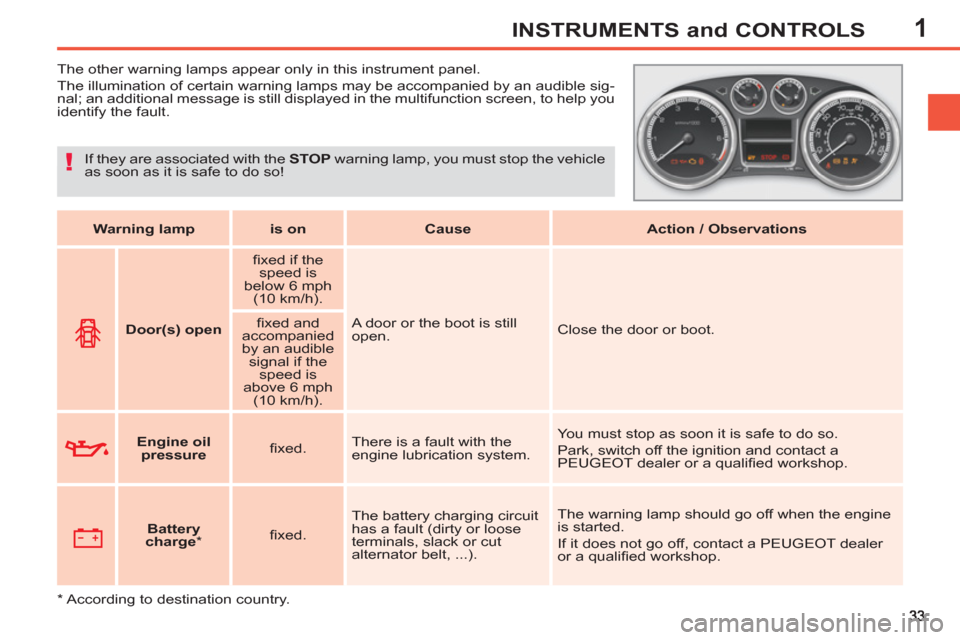

The other warning lamps appear only in this instrument panel.
The illumination of certain warning lamps may be accompanied by an audible sig-
nal; an additional message is still displayed in the multifunction screen, to help you
identify the fault.


Warning lamp



is on



Cause



Action / Observations






Door(s) open


fi xed if the
speed is
below 6 mph
(10 km/h).
A door or the boot is still
open. Close the door or boot.
fi xed and
accompanied
by an audible
signal if the
speed is
above 6 mph
(10 km/h).




Engine oil
pressure


fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.




Battery
charge

*

fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or a qualifi ed workshop. If they are associated with the STOP
warning lamp, you must stop the vehicle
as soon as it is safe to do so!

*
According to destination country.

1
37
INSTRUMENTS and CONTROLS


Stop & Start


fi xed. When the vehicle stops (red
lights, traffi c jams, ...) the
Stop & Start system has
put the engine into STOP
mode. The warning lamp goes off and the engine
restarts automatically in START mode, as soon
as you want to move off.

fl ashes for a
few seconds,
then goes off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. Refer to "Driving - § Stop & Start" for special
cases with STOP mode and START mode.

Warning lamp



is on



Cause



Action / Observations





Passenger's
front airbag
fi xed on the
seat belt and
passenger's
front airbag
warning lamps
display. The control switch, located
on the passenger's side of
the dashboard, has been
placed in the "ON"
position.
The passenger's front
airbag is activated.
In this case, do not install a
"rear facing" child seat. While you do not have a rear-facing child
seat fi tted to the front passenger seat, it is
recommended that the passenger's front airbag
be activated.
On the other hand, before fi tting a rear-facing
child seat, you must turn the control switch to the
"OFF"
position.

2
57
MULTIFUNCTION SCREENS






Monochrome screen A



)
Press the button, located at the
end of the wiper stalk
, to display
the various items of trip computer
information in succession. The trip computer provides the follow-
ing information:

Information displays

- range,

- current fuel consumption,

- Stop & Start time counter,

- distance travelled,

- average fuel consumption,
)
The next press then returns you to
the normal display.


- average speed.
Zero reset


)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.



TRIP COMPUTER


System that gives you information on
the journey in progress (range, fuel con-
sumption…).

2
59
MULTIFUNCTION SCREENS


- The trip "2"
tab with:


●
the distance travelled,

●

the average fuel consumption,

●
the average speed.



)
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.


- The current information tab,
for the trip in use, with:


●
the range,

●

the current fuel consumption,

●
the distance remaining to
be travelled or the Stop &
Start counter.



- The trip "1"
tab with:


●
the distance travelled,

●

the average fuel consumption,

●
the average speed.

Trip zero reset


)
When the trip required is displayed,
press the button on the end of
the wiper stalk
for more than
two seconds.

)
When the required trip is displayed,
press the "OK"
button on the instrument
panel navigator
, associated with
Peugeot Connect Media Navigation
NG4 3D), for more than two seconds.



With the instrument panel
large central
screen


Trips "1"
and "2"
are independent
but their use is identical.
For example, trip "1"
can be used
for daily fi gures, and trip "2"
for
monthly fi gures.
The trip computer can display:

With the monochrome screen C or
the instrument panel small screen
