2012.5 Peugeot 308 SW BL Owner's Manual - RHD (UK. Australia)

279
08
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK


Press the end of the steering mounted control to
accept the call or end the call in progress. Select the "Yes" tab to accept or "No"
to re
fuse and confi rm by pressing OK.

RECEIVING A CALL
MAKING A CALL


An incoming call is announced by a ring and a superimposed
display in the screen.
To han
g up, press the HANG UP
button or press OK and select "Endcall" then confi rm by pressing OK.
End call
Press the PICK UP button.

It is also possible to select a number
from the address book. Youcan select "Dial from address book". The Peugeot Connect Mediacan record up to 4096 entries.
Select "Dial number", then dial the
telephone number using the virtualkeypad.
Select the Phone menu function and press OK to confi rm.
Dial number
Phone menu
Th
e list of the last 20 calls made and received in the vehicle
appears under Phone menu. You can select a number and pressOK to make the call.
YesNo


The PICK UP button accepts, the HANG UP button rejects the
incoming call.
USING THE TELEPHONE


Press the end of the steering mounted control for more than two seconds to open the address book.

Operating the telephone while driving is prohibited. It is recommended
that you park safely or use in preference the steering mounted controls.


It is alwa
ys possible to start a call directly from the telephone; park
the vehicle as a safety measure.

280
09
MEDIA
TRAFFIC
SCREEN MENU MAP












MAIN FUNCTION


option A

o
ption B...

option A1
option A2
1
2
3
2
3


"Traffic" Menu
Messages on route


Select preferred list
1
2
3

Deactivate PIN 4
Only warnings on route3
All warning messages3
All messages3
Geo. Filter3

Within 2 miles (3 km) 4

Within 3 miles (5 km) 4

Within 6 miles (10 km) 4

Within 30 miles (50 km)4
On confi rmation Read out settin
gs2
3
Incoming messages3
TMC station information2

"Media" Menu
Audio CD / MP3-Disc//DVD-Audio//DVD-Video
Select media
1
2
3
Jukebox (Folders & Files)3
SD-Card3
USB3
External device (audio/AV)3
Add fi les
Jukebox management2
3

Folders & Files 4
Create folder3
Modify content3
Edit playlist3
Play options3

Playlists4
Memory capacity3
Refer to the "Sound settings"menu details of which are shown on the next page.


Sound settings 2
3
Aspect ratio

Video settings2
3
Menu language3
Display3
Brightness 4
Contrast4
Colour 4

281
NAV
RADIO
AUX standard3
Reset video settings3
Off / Audio / Audio and Video (AV)
Ext. Device (Aux) management2
3

"Radio" Menu


Waveband
1
2
Manual tune 2
Refer to the "Sound settings" menu below.
Sound settings2
3


"Sound settings" Menu


Balance / Fader
1
2
Bass / Treble2
Equalizer 2
Linear3
Classic3
Jazz3
Rock/Pop3
Techno3
Vocal3
Mute rear speakers2
Loudness 2
Speed dependent volume2
Reset sound settings
2


"Navigation" Menu
Abort guidance / Resume guidance
1
2
Destination input2
Address input3

Country4

City 4
Street4
House number 4
Start route guidance4
Postal code4
Save to address book4
Intersection4
City district4
Geo position4
Map4
Navigate HOME3
Choose from last destinations3
Choose from address book3


Stopovers 2
Add stopover3
Address input4

Navigate HOME 4
Choose from address book4
Choose from last destinations 4
Rearrange route3
Replace stopover3
Delete stopover3
FM3
AM3

282
ADDR
BOOK
Recalculate3
Fast route4
Short route 4
Optimized route 4
POI nearby
POI search2
3
POI near destination3
POI in city3
POI in country3
POI near route3
Route type
Route options2
3

POI near destination4
Short route 4
Optimized route 4
Subscr. service4
Route dynamics
Settings2
3

Traffi c independent4
Semi-dynamic4

Dynamic 4
Avoidance criteria3

Avoid motorways4

Avoid toll roads 4

Avoid tunnels4

Avoid ferries 4
Recalculate3


"Address book" Menu
Create new entry

1
2
Show memory status2
Export address book2
Delete all voice entries 2
Delete all entries 2
Delete folder "My Addresses"2


"Phone" menu


Dial number

1
2


Dial from address book2


Call lists2

Messages 2


Select phone2
Search phone4
Telephone off3
Use Bluetooth phone3
Use internal phone3
Connect Bluetooth phone3

Disconnect phone5
Rename phone 5

Delete pairing 5

Delete all pairings 5
Show details5

283
SETUP
Settings2
Automatic answering system3
Select ring tone3
Phone / Ring tone volume3
Enter mailbox number3
Internal phone settings3
Automatically accept call3
Signal waiting call (?)3
Show status3
Activate waiting call3
Deactivate waiting call3
Call forward (?)3
Show status3
Activate call forward3
Deactivate call forward3
Suppress own number3
Select network3
Set network automatically3
Set network manually3
Search for networks3
PIN settings3
Change PIN3
Activate PIN4

Deactivate PIN 4
Remember PIN3
SIM-card memory status3


"SETUP" Menu
Menu language


Language & Speech
1
2
3
Deutsch 4
English4
Español4
Français4
Italiano4
Nederlands 4

Polski4
Voice control3

Voice control active 4

Tutorial4

Portuguese 4

Basics5

Examples5

Tips5
Speaker adaptation 4

New speaker adaptation 5

Delete speaker adaptation 5
Voice output volume3


Date & Time2
Set date & time3
Date format3
Time format3

284
Display 2
Brightness3
Colour3
Steel4
blue light (only in day mode) 4
Orange Ray 4

Blue Flame4
Map colour3

Day mode for map4

Night mode for map4

Auto. Day/Night for map4


Units 2
Temperature3
Celsius 4

Fahrenheit 4
Metric / Imperial3
km4

Miles4


System 2
Factory reset3
Software version3
Automatic scrolling3

285

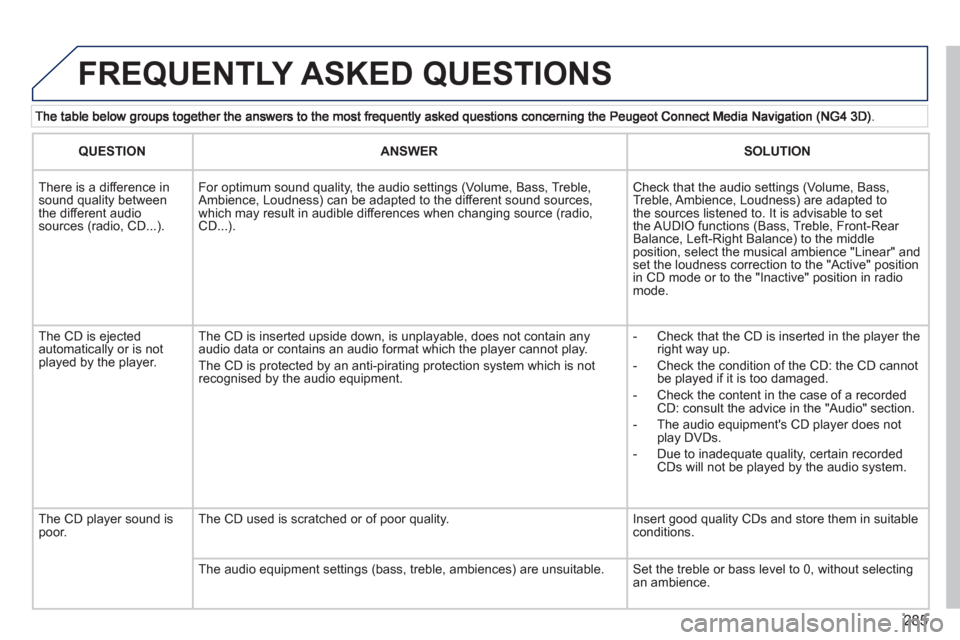

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION

There is a difference in sound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources,which may result in audible differences when changing source (radio,CD...).

Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted tothe sources listened to. It is advisable to setthe AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "Linear" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.


- Check that the CD is inserted in the player the right way up.


- Check the condition of the CD: the CD cannot be played if it is too damaged.


- Check the content in the case of a recordedCD: consult the advice in the "Audio" section.


- The audio equipment's CD player does notplay DVDs.


- Due to inadequate quality, certain recordedCDs will not be played by the audio system.

The CD player sound ispoor.The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.

286
QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press RADIO, select Radio Menu then"Waveband" to return to the waveband on which the stations are stored.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the "RDS" function by means of theshort-cut menu to enable the system to check whether there is a more powerful transmitter in thegeographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode.
This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the "RDS" function by means of the short-cut menu if the phenomenon is too frequentand always on the same route.

With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's operating time depends on the battery charge.
The switch-off is normal: the system switches to economy mode and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the batterycharge.
