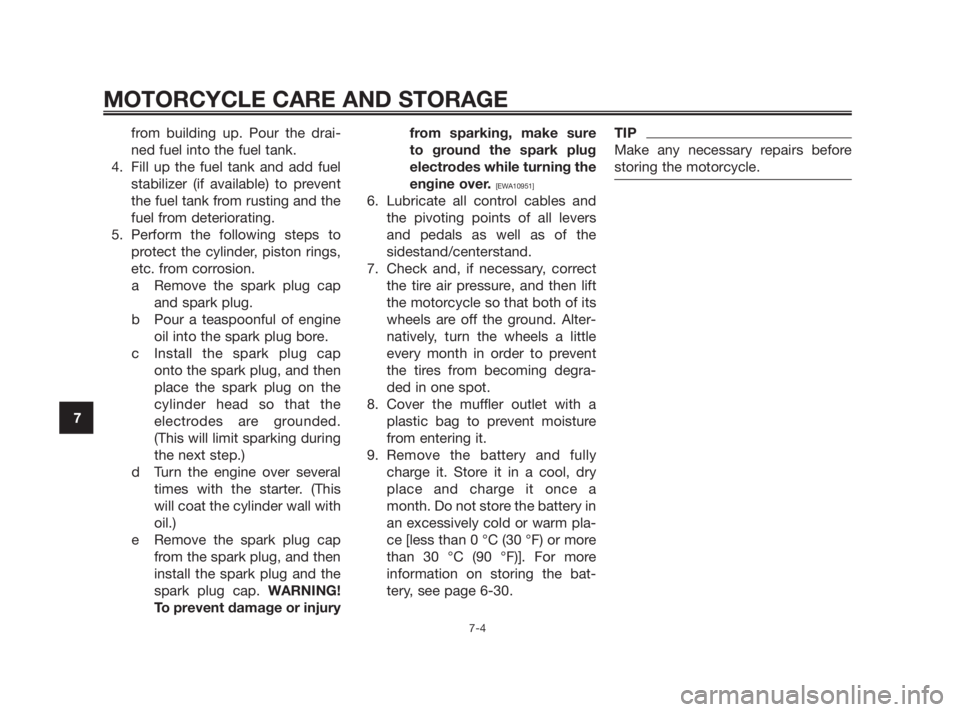

from building up. Pour the drai-
ned fuel into the fuel tank.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.
a Remove the spark plug cap
and spark plug.
b Pour a teaspoonful of engine
oil into the spark plug bore.
c Install the spark plug cap
onto the spark plug, and then
place the spark plug on the
cylinder head so that the
electrodes are grounded.
(This will limit sparking during
the next step.)
d Turn the engine over several
times with the starter. (This
will coat the cylinder wall with
oil.)
e Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING!
To prevent damage or injuryfrom sparking, make sure
to ground the spark plug
electrodes while turning the
engine over.
[EWA10951]
6. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
7. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alter-
natively, turn the wheels a little
every month in order to prevent
the tires from becoming degra-
ded in one spot.
8. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
9. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery in
an excessively cold or warm pla-
ce [less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For more
information on storing the bat-
tery, see page 6-30.
TIP
Make any necessary repairs before
storing the motorcycle.
MOTORCYCLE CARE AND STORAGE
7-4
7
5WX-F819D-E3 15/11/08 15:27 Página 78
AAir filter element .......................................6-15
Anti-theft device housing .........................3-12
Autolube pump, adjusting........................6-27
BBattery......................................................6-30
Brake and clutch levers, checking and
lubricating ..............................................6-27
Brake and shift pedals, checking and
lubricating ..............................................6-27
Brake fluid level, checking .......................6-22
Brake fluid, changing ...............................6-23
Brake lever .................................................3-6
Brake pedal ................................................3-6
Brake pedal free play, adjusting ..............6-20
CCables, checking and lubricating ............6-26
Carburetor, adjusting ...............................6-16
Care............................................................7-1
Catalytic converter .....................................3-9
Clutch lever ................................................3-5
Clutch lever free play, adjusting...............6-19
Coolant.....................................................6-13
Coolant temperature warning light ............3-3
Cowlings and panels, removing and
installing ...................................................6-8
DDimmer switch ...........................................3-4
Drive chain slack ......................................6-24
Drive chain, cleaning and lubricating.......6-25
EEngine break-in ..........................................5-3
Engine idling speed .................................6-16
Engine oil ...................................................3-9Engine stop switch ....................................3-5
Engine trouble warning light ......................3-3
Engine, starting a warm .............................5-2
FFront and rear brake pads, checking ......6-21
Front brake lever free play, checking.......6-20
Front fork, checking .................................6-28
Fuel ............................................................3-7
Fuel cock..................................................3-10
Fuel consumption, tips for reducing ..........5-3
Fuel tank breather/overflow hose ..............3-8
Fuel tank cap .............................................3-6
Fuse, replacing.........................................6-31
HHandlebar switches ...................................3-4
Headlight bulb, replacing .........................6-32
Horn switch ................................................3-4
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-13
Indicator and warning lights ......................3-2
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-35
MMain switch/steering lock ..........................3-1
Maintenance and lubrication, periodic ......6-4
Maintenance, emission control system .....6-3
Matte color, caution ...................................7-1
Model label ................................................9-2
NNeutral indicator light.................................3-2
OOil level warning light .................................3-2
PParking .......................................................5-4
Part locations .............................................2-1
Pass switch ................................................3-4
Pre-operation check list .............................4-2
RRear brake light switch, adjusting ...........6-21
Rear view mirrors .....................................3-12
SSafety information ......................................1-1
Seat ..........................................................3-11
Shift pedal ..................................................3-5
Shift pedal position, adjusting .................6-21
Shifting .......................................................5-2
Sidestand .................................................3-13
Sidestand, checking and lubricating .......6-28
Spark plug, checking ...............................6-10
Specifications.............................................8-1
Speedometer unit ......................................3-3
Start switch ................................................3-5
Starter (choke) lever .................................3-11
Starting a cold engine ................................5-1
Steering, checking ...................................6-29
Storage.......................................................7-3
TTachometer ................................................3-4
Tail/brake light bulb, replacing .................6-33
Throttle cable free play, adjusting ............6-17
Throttle grip and cable, checking and
lubricating ..............................................6-26
Tires .........................................................6-17
Tool kit ........................................................6-1
INDEX
5WX-F819D-E3 15/11/08 15:27 Página 84
