Page 97 of 104
SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2140 mm (84.3 in)
Overall width:
770 mm (30.3 in)
Overall height:
1060 mm (41.7 in)
Seat height:
815 mm (32.1 in)
Wheelbase:
1460 mm (57.5 in)
Ground clearance:
135 mm (5.31 in)
Minimum turning radius:
3000 mm (118.1 in)Weight:Curb weight:
FZ1-N 214 kg (472 lb)
FZ1-NA 221 kg (487 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Inline 4-cylinder
Displacement:
998 cm³
Bore × stroke:
77.0 × 53.6 mm (3.03 × 2.11 in)
Compression ratio:
11.50 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
2.90 L (3.07 US qt, 2.55 Imp.qt)
With oil filter cartridge replacement:
3.10 L (3.28 US qt, 2.73 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
2.25 L (2.38 US qt, 1.98 Imp.qt)Air filter:Air filter element:
Oil-coated paper element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
18.0 L (4.76 US gal, 3.96 Imp.gal)
Fuel reserve amount:
3.4 L (0.90 US gal, 0.75 Imp.gal)Fuel injection:Throttle body:
ID mark:
2D11 20Spark plug(s):Manufacturer/model:
NGK/CR9E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction ratio:
1.512 (65/43)
Final drive:
Chain
Secondary reduction ratio:
2.647 (45/17)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
Gear ratio:
1st:
2.533 (38/15)
–20 –10 0
1020 30 40 50 C 10 30 50 70 90 110 0 130 F
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U1ECE0E0.book Page 1 Friday, August 20, 2010 9:35 AM
Page 98 of 104
SPECIFICATIONS
8-2
8
2nd:
2.063 (33/16)
3rd:
1.762 (37/21)
4th:
1.522 (35/23)
5th:
1.350 (27/20)
6th:
1.208 (29/24)
Chassis:Frame type:
Diamond
Caster angle:
25.00 °
Trail:
109 mm (4.3 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
DUNLOP/D221FARear tire:Type:
Tubeless
Size:
190/50 ZR17M/C (73W)
Manufacturer/model:
DUNLOP/D221G
Loading:Maximum load:
FZ1-N 196 kg (432 lb)
FZ1-NA 189 kg (417 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
Loading condition:
FZ1-N 90–196 kg (198–432 lb)
FZ1-NA 90–189 kg (198–417 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
High-speed riding:
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50Rear wheel:Wheel type:
Cast wheelRim size:
17M/C x MT6.00
Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
130.0 mm (5.12 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
130.0 mm (5.12 in)Electrical system:Ignition system:
TCI
U1ECE0E0.book Page 2 Friday, August 20, 2010 9:35 AM
Page 99 of 104
SPECIFICATIONS
8-3
8
Charging system:
AC magnetoBattery:Model:
YTZ14S
Voltage, capacity:
12 V, 11.2 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LEDCoolant temperature warning light:
LED
Engine trouble warning light:
LED
ABS warning light:
FZ1-NA LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Taillight fuse:
10.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Radiator fan fuse:
10.0 A × 2
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
FZ1-NA 10.0 A
ABS motor fuse:
FZ1-NA 30.0 A
Backup fuse:
10.0 A
U1ECE0E0.book Page 3 Friday, August 20, 2010 9:35 AM

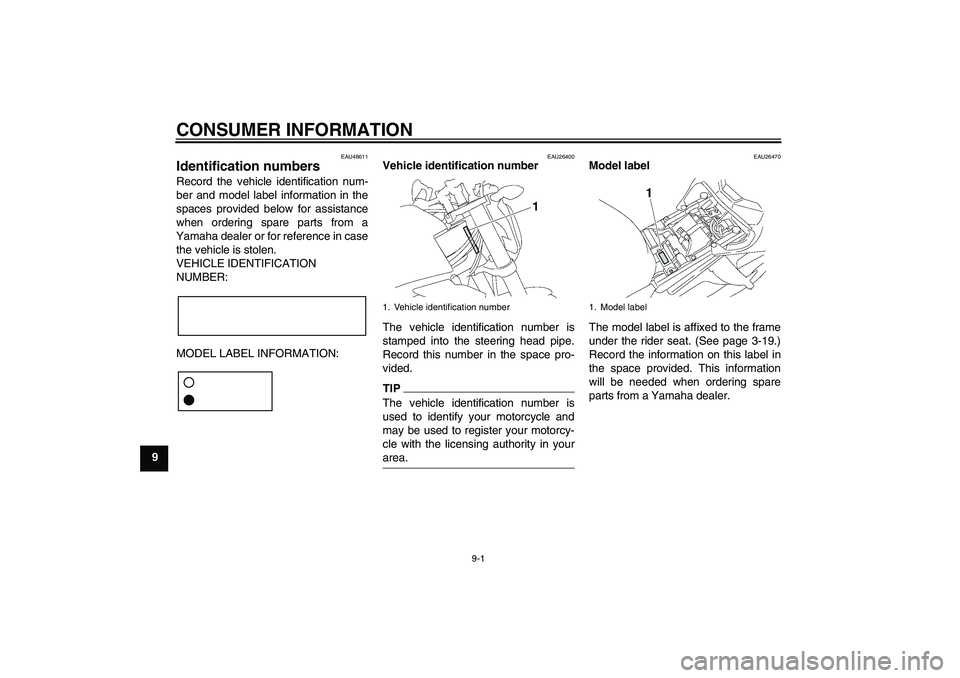

Page 100 of 104
CONSUMER INFORMATION
9-1
9
EAU48611
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26470
Model label
The model label is affixed to the frame
under the rider seat. (See page 3-19.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Vehicle identification number
1. Model label
U1ECE0E0.book Page 1 Friday, August 20, 2010 9:35 AM
Page 101 of 104
INDEX
AABS (for ABS models) .......................... 3-15
ABS warning light (for ABS models) ....... 3-7
Air filter element, replacing ................... 6-14
Anti-theft alarm (optional) ..................... 3-12
Auxiliary light bulb, replacing ................ 6-36BBattery .................................................. 6-30
Brake and clutch levers,
checking and lubricating ..................... 6-28
Brake and shift pedals,
checking and lubricating ..................... 6-27
Brake fluid, changing ............................ 6-24
Brake fluid level, checking .................... 6-23
Brake lever ........................................... 3-15
Brake lever free play, checking ............ 6-21
Brake light switches
(for ABS models) ................................ 6-21
Brake light switches
(for non-ABS models) ......................... 6-22
Brake pedal .......................................... 3-15CCables, checking and lubricating .......... 6-26
Care ........................................................ 7-1
Catalytic converters .............................. 3-18
Clutch lever........................................... 3-14
Clutch lever free play, adjusting ........... 6-20
Coolant ................................................. 6-12
Coolant temperature warning light.......... 3-4DDimmer switch ...................................... 3-13
Drive chain, cleaning and lubricating .... 6-26
Drive chain slack .................................. 6-24
EEngine break-in .......................................5-3
Engine idling speed ............................... 6-16
Engine oil and oil filter cartridge ............ 6-10
Engine stop switch ................................ 3-13
Engine trouble warning light .................... 3-7
EXUP system ........................................ 3-25FFront and rear brake pads, checking .... 6-22
Front fork, adjusting .............................. 3-21
Front fork, checking...............................6-29
Fuel ....................................................... 3-17
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather/overflow hose .......... 3-18
Fuel tank cap......................................... 3-16
Fuses, replacing .................................... 6-31HHandlebar switches ............................... 3-13
Hazard switch........................................ 3-14
Headlight bulb, replacing....................... 6-34
High beam indicator light......................... 3-4
Horn switch ........................................... 3-13IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-26
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-7
Indicator lights and warning lights ........... 3-4LLicense plate light bulb, replacing ......... 6-36
Luggage strap holders .......................... 3-25MMain switch/steering lock ........................ 3-2
Maintenance and lubrication, periodic..... 6-4Maintenance, emission control system ... 6-3
Matte color, caution ................................ 7-1
Model label ............................................. 9-1
Multi-function meter unit ......................... 3-8
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanel, removing and installing ................ 6-8
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-13SSafety information ................................... 1-1
Seats..................................................... 3-19
Shifting .................................................... 5-2
Shift pedal ............................................. 3-14
Shock absorber assembly, adjusting .... 3-23
Sidestand .............................................. 3-26
Sidestand, checking and lubricating ..... 6-28
Spark plugs, checking............................. 6-9
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-13
Steering, checking ................................ 6-29
Storage ................................................... 7-3
Storage compartment (FZ1-N).............. 3-20
Supporting the motorcycle .................... 6-37TTail/brake light bulb, replacing .............. 6-35
Throttle grip and cable,
checking and lubricating ..................... 6-27
Throttle grip free play, checking............ 6-17
U1ECE0E0.book Page 1 Friday, August 20, 2010 9:35 AM
Page 102 of 104
INDEXTires ...................................................... 6-17
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-41
Troubleshooting charts ......................... 6-42
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-35
Turn signal switch ................................. 3-13VValve clearance .................................... 6-17
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-30
Wheel, front (for non-ABS models) ....... 6-38
Wheel, rear (for non-ABS models) ........ 6-39
Wheels .................................................. 6-20
U1ECE0E0.book Page 2 Friday, August 20, 2010 9:35 AM
Page 103 of 104
U1ECE0E0.book Page 3 Friday, August 20, 2010 9:35 AM
Page 104 of 104
PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2010.09-0.3×1 CR
(E)
DIC183
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
