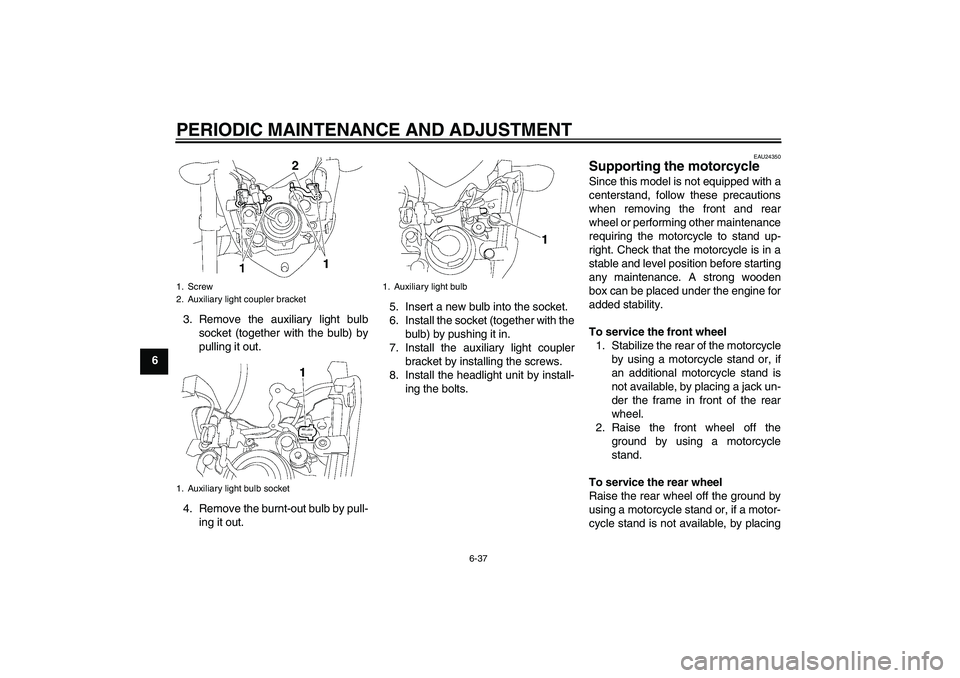

63. Remove the auxiliary light bulb
socket (together with the bulb) by
pulling it out.
4. Remove the burnt-out bulb by pull-
ing it out.5. Insert a new bulb into the socket.
6. Install the socket (together with the
bulb) by pushing it in.
7. Install the auxiliary light coupler
bracket by installing the screws.
8. Install the headlight unit by install-
ing the bolts.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
1. Screw
2. Auxiliary light coupler bracket
1. Auxiliary light bulb socket
1. Auxiliary light bulb
U1ECE0E0.book Page 37 Friday, August 20, 2010 9:35 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
6 a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU44791
Front wheel (for non-ABS
models)
WARNING
EWA14840
For the ABS model, have a Yamaha
dealer remove and install the wheel.
EAU39394

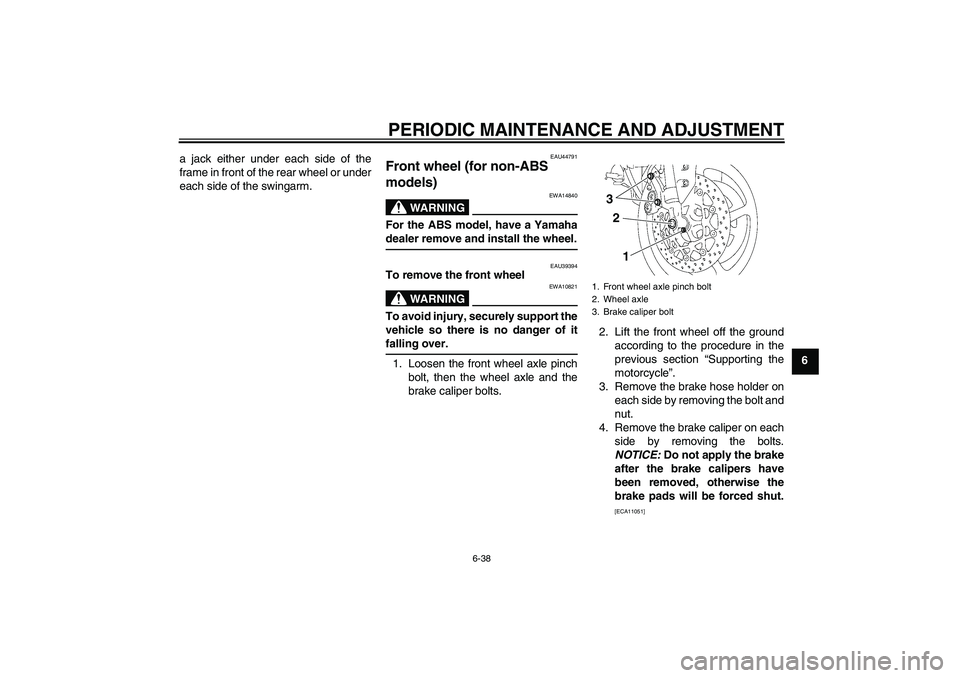

To remove the front wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.1. Loosen the front wheel axle pinch
bolt, then the wheel axle and the
brake caliper bolts.2. Lift the front wheel off the ground
according to the procedure in the
previous section “Supporting the
motorcycle”.
3. Remove the brake hose holder on
each side by removing the bolt and
nut.
4. Remove the brake caliper on each
side by removing the bolts.
NOTICE: Do not apply the brake
after the brake calipers have
been removed, otherwise the
brake pads will be forced shut.
[ECA11051]
1. Front wheel axle pinch bolt
2. Wheel axle
3. Brake caliper bolt
3
2
1
U1ECE0E0.book Page 38 Friday, August 20, 2010 9:35 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-39
65. Pull the wheel axle out, and then
remove the wheel.
EAU39402
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Lower the front wheel so that it is
on the ground, and then put the
sidestand down.
4. Install the brake calipers by install-
ing the bolts.
TIPMake sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brake
discs.5. Install the brake hose holders by
installing the bolt and nut.
6. Tighten the brake caliper bolts to
the specified torque.
7. Tighten the wheel axle, and then
the wheel axle pinch bolt to their
specified torque.
8. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU44801
Rear wheel (for non-ABS mod-
els)
WARNING
EWA14840
For the ABS model, have a Yamaha
dealer remove and install the wheel.
EAU25314
To remove the rear wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.1. Loosen the axle nut.
1. Brake hose holder
2. Bolt and nut
3. Brake caliper bolt
4. Brake caliper
Tightening torque:
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
Tightening torques:
Wheel axle:
72 Nm (7.2 m·kgf, 52 ft·lbf)
Front wheel axle pinch bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1. Axle nut
2. Brake caliper bracket
3. Brake caliper
321
U1ECE0E0.book Page 39 Friday, August 20, 2010 9:35 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-40

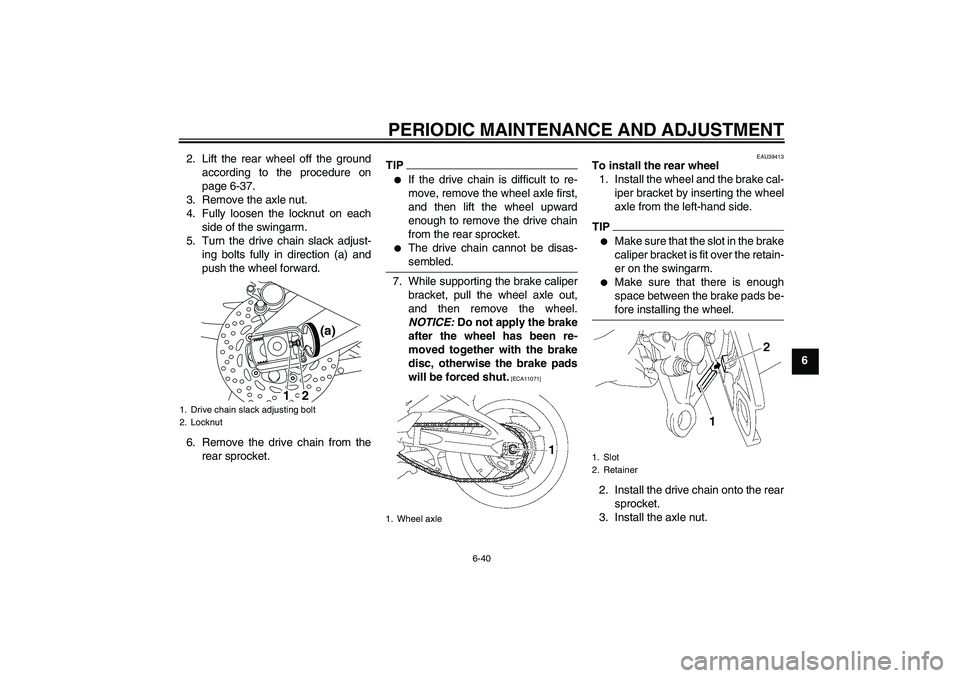

6 2. Lift the rear wheel off the ground
