Accessories and loading ........................... 6-6
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV.............. 7-2
RIDE WITH CARE AND GOOD
JUDGMENT .............................................7-2
BE CAREFUL WHERE YOU RIDE ............ 7-8
TURNING YOUR ATV ............................. 7-11
CLIMBING UPHILL .................................. 7-12
RIDING DOWNHILL................................. 7-15
CROSSING A SLOPE.............................. 7-16
CROSSING THROUGH SHALLOW
WATER .................................................. 7-17
RIDING OVER ROUGH TERRAIN .......... 7-18
SLIDING AND SKIDDING ........................ 7-19
WHAT TO DO IF... ................................... 7-20
WHAT TO DO... ....................................... 7-20
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1
Owner’s manual and tool kit ...................... 8-1
Periodic maintenance chart for the
emission control system .......................... 8-3
General maintenance and lubrication
chart ........................................................ 8-5
Checking the spark plugs .......................... 8-9
Transmission oil ...................................... 8-10
Coolant .................................................... 8-13
Cleaning the air filter element ................. 8-18Cleaning the spark arrester ..................... 8-22
Changing the carburetor settings ............. 8-23
Adjusting the engine idling speed ............ 8-32
Adjusting the throttle lever free play ........ 8-34
Brakes ...................................................... 8-34
Checking the front and rear brake
pads ....................................................... 8-35
Checking the brake fluid level .................. 8-36
Changing the brake fluid .......................... 8-37
Checking the front brake lever free
play ........................................................ 8-38
Checking the brake pedal height ............. 8-38
Adjusting the parking brake free play ...... 8-38
Brake light switches ................................. 8-41
Adjusting the clutch lever free play .......... 8-41
Drive chain slack ...................................... 8-43
Lubricating the drive chain ....................... 8-45
Checking and lubricating the cables ........ 8-45
Checking and lubricating the brake and
clutch levers ........................................... 8-46
Checking the shift pedal .......................... 8-46
Checking and lubricating the brake
pedal ...................................................... 8-46
Checking the wheel hub bearings ............ 8-47
Lubricating the rear suspension relay
arm and connecting arm pivoting
points ..................................................... 8-47
Lubricating the upper and lower arm
pivots ..................................................... 8-48

7-18
1
2
3
4
5
67
8
9
10
11

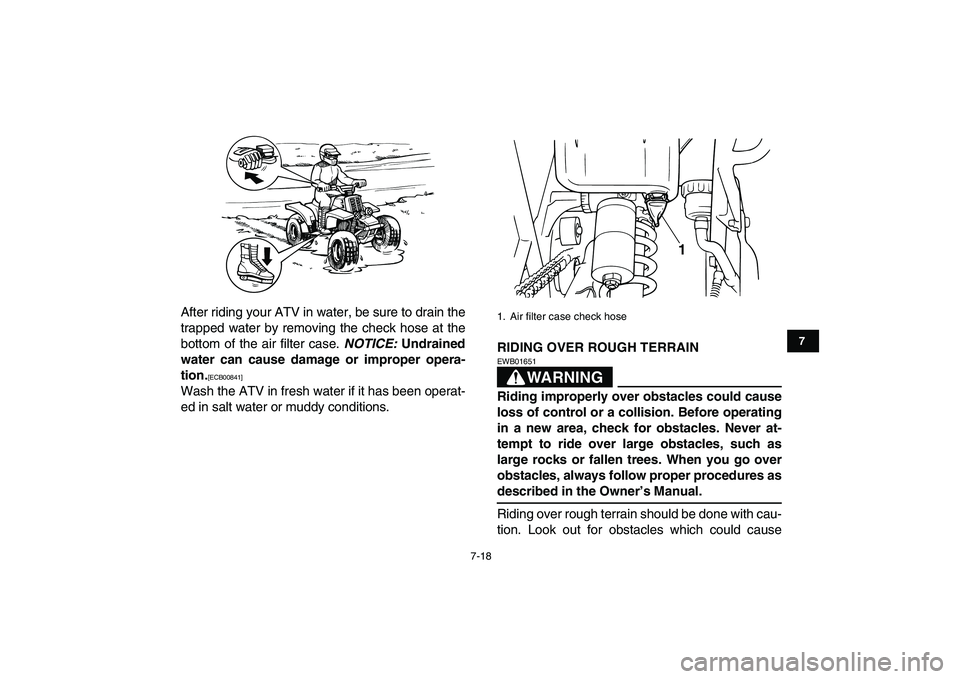

After riding your ATV in water, be sure to drain the
trapped water by removing the check hose at the
bottom of the air filter case.
NOTICE:
Undrained
water can cause damage or improper opera-
tion.
[ECB00841]

Wash the ATV in fresh water if it has been operat-
ed in salt water or muddy conditions.
RIDING OVER ROUGH TERRAIN
WARNING
EWB01651
Riding improperly over obstacles could cause
loss of control or a collision. Before operating
in a new area, check for obstacles. Never at-
tempt to ride over large obstacles, such as
large rocks or fallen trees. When you go over
obstacles, always follow proper procedures as
described in the Owner’s Manual.
Riding over rough terrain should be done with cau-
tion. Look out for obstacles which could cause
1. Air filter case check hose
1

8-18
1
2
3
4
5
6
78
9
10
11

voir to the maximum level mark, and then in-
stall the reservoir cap.
NOTICE:
Mix
antifreeze with distilled water only. Howev-
er, if distilled water is not available, soft
water may be used for refilling. Do not use
hard water or salt water since they are
harmful to the engine.
[ECB00991]

11. Pour the recommended coolant into the radia-
tor until it is full.
12. Install the radiator cap, start the engine, let it
idle for several minutes, and then turn it off.
13. Remove the radiator cap to check the coolant
level in the radiator. If it is low, add sufficientcoolant until it reaches the top of the radiator,
and then install the radiator cap.
14. Start the engine, and then check for coolant
leakage.
TIP

If any leakage is found, have a Yamaha dealer
check the cooling system.
15. Install the radiator cover by installing the
screws.
EBU23624
Cleaning the air filter element
The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are
riding in unusually wet or dusty areas.
TIP

There is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case. Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity:
Radiator capacity (including all routes):
1.50 L (1.59 US qt, 1.32 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.28 L (0.30 US qt, 0.25 Imp.qt)

8-19
1
2
3
4
5
6
78
9
10
11

1. Place the ATV on a level surface.
2. Remove the seat. (See page 4-11.)
3. Remove the air filter case cover by unhooking
the holders.4. Pull the air filter element out of the air filter
case.
5. Remove the lock plate by turning it, and then
remove the sponge material from the air filter
element frame.
1. Air filter case check hose
1

1. Air filter case cover
2. Air filter case cover holder
1 2 2

8-21
1
2
3
4
5
6
78
9
10
11

8. Check the sponge material and replace it if
damaged.
9. Apply Yamaha foam air filter oil or other qual-
ity foam air filter oil to the sponge material.
TIP

The sponge material should be wet but not drip-
ping.
10. Pull the sponge material over the air filter ele-
ment frame, and then install the lock plate by
turning it.
11. Insert the air filter element into the air filter
case, and then install the air filter case cover
by hooking the holders onto the air filter case.
NOTICE:
Make sure that the air filter ele-ment is properly seated in the air filter
case. Never operate the engine with the air
filter element removed. This will allow un-
filtered air to enter the engine, causing rap-
id engine wear and possible engine
damage. Additionally, operation without
the air filter element will affect carburetor
jetting with subsequent poor performance
and possible engine overheating.
[ECB00461]

12. Install the seat.
TIP

The air filter element should be cleaned every 20–
1. Air filter element
1

8-22
1
2
3
4
5
6
78
9
10
11

40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the carburetor fittings and the rubber joint
manifold fittings for an air-tight seal. Tighten all fit-
tings securely to avoid the possibility of unfiltered
air entering the engine.
EBU28311
Cleaning the spark arrester
Be sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
1. Remove the screws.2. Remove the tailpipe by pulling it out of the
muffler.
3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from the
spark arrester portion of the tailpipe and inside
of the tailpipe housing.
1. Screw
1

8-26
1
2
3
4
5
6
78
9
10
11

6. Remove the fuel tank by removing the bolts.
7. Remove the air filter case cover by unhooking
the holders.
1. Fuel hose
1

1. Fuel tank
2. Bolt
1
2
22
2

8-32
1
2
3
4
5
6
78
9
10
11

5. Move the throttle lever a few times and re-
check the position.
6. Install the fuel tank, side cover, radiator cover
and air filter case cover.
7. Connect the fuel hose to the fuel cock.
8. Install the seat.
EBU24020

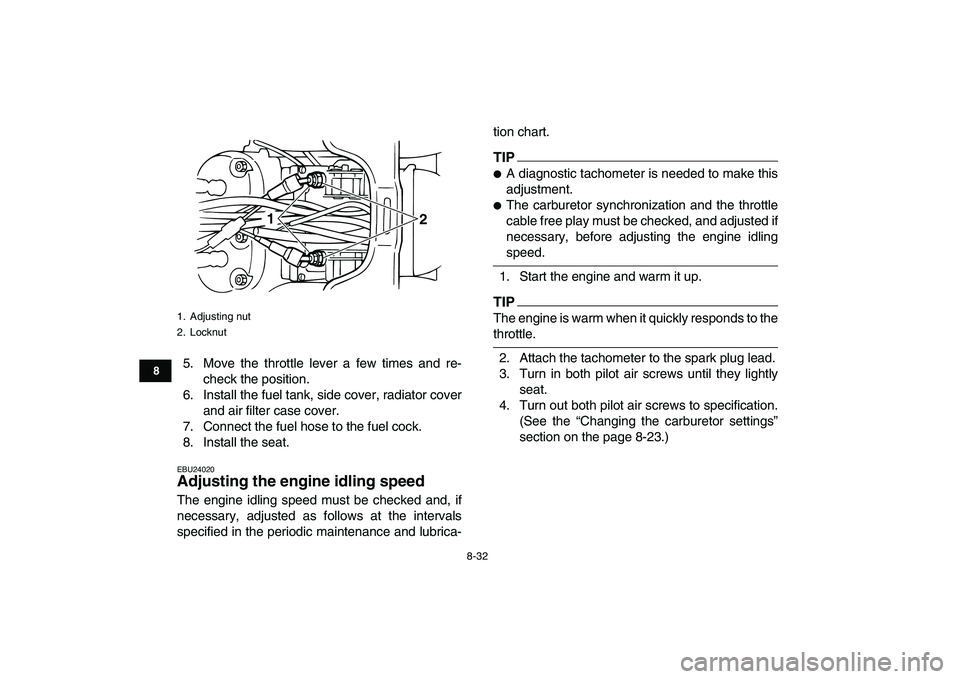

Adjusting the engine idling speed
The engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrica-tion chart.
TIP


A diagnostic tachometer is needed to make this
adjustment.

The carburetor synchronization and the throttle
cable free play must be checked, and adjusted if
necessary, before adjusting the engine idling
speed.
1. Start the engine and warm it up.
TIP

The engine is warm when it quickly responds to the
throttle.
2. Attach the tachometer to the spark plug lead.
3. Turn in both pilot air screws until they lightly
seat.
4. Turn out both pilot air screws to specification.
(See the “Changing the carburetor settings”
section on the page 8-23.)
1. Adjusting nut
2. Locknut
