03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.73
FunctionPage
Menus and messages,
direction indicators,
main/dipped beam, trip
computer89,
92, 140,
162
Cruise control167, 171
Horn, airbags22, 88
Combined instrument
panel75, 79
Menu, audio and phone
control142,
220, 247,
259
Start/stop button113
Ignition switch81
Display for infotainment
and menus142,
218, 259
Door handle–
Control panel61, 66,
101, 103
Hazard warning flashers92
FunctionPage
Control for infotainment
and menu control142,
219, 259
Control panel for climate
control151
Gear selector116
Controls for active chas-
sis (Four-C)*166
Wipers and washing98, 99
Steering wheel adjust-
ment88
Bonnet opener306
Parking brake131
Seat adjustment*84
Headlamp control,
opener for fuel filler flap
and tailgate63, 89,
269
ProCarManuals.com

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.75
FunctionPage
Display for infotainment
and menus142,
218, 259
Ignition switch81
Start/stop button113
Cruise control167, 171
Combined instrument
panel75, 79
Horn, airbags22, 88
Menu, audio and phone
control142,
220, 247,
259
Wipers and washing98, 99
Door handle–
Control panel61, 66,
101, 103
Headlamp control,
opener for fuel filler flap
and tailgate63, 89,
269
Seat adjustment*84
Parking brake131
FunctionPage
Steering wheel adjust-
ment88
Menus and messages,
direction indicators,
main/dipped beam, trip
computer89,
92, 140,
162
Gear selector116
Controls for active chas-
sis (Four-C)*166
Control panel for climate
control151
Control for infotainment
and menu control142,
219, 259
Hazard warning flashers92
Bonnet opener306

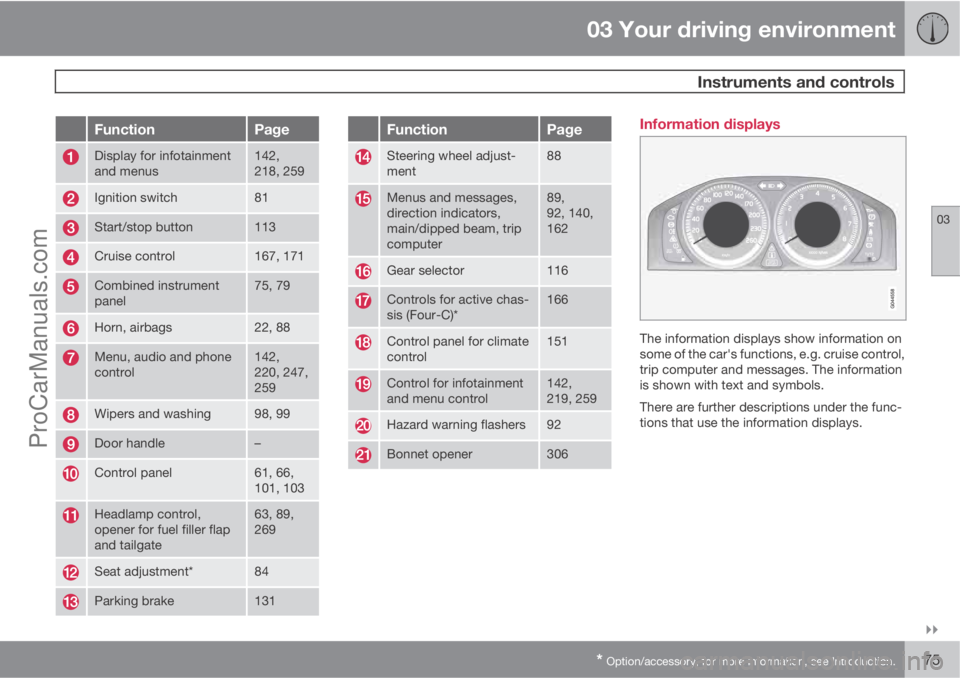

Information displays
The information displays show information on
some of the car's functions, e.g. cruise control,
trip computer and messages. The information
is shown with text and symbols.
There are further descriptions under the func-
tions that use the information displays.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03

77
Sym-
bolSpecification
Main beam On
Left-hand direction indicators
Right-hand direction indicators
DRIVe - Start/Stop
ABL faultThe symbol illuminates if a fault has arisen in
the ABL function (Active Bending Lights).
Emissions systemIf the symbol illuminates then it may be due to
a fault in the car's emissions system. Drive to
a workshop for checking. Volvo recommends
that you seek assistance from an authorised
Volvo workshop.
ABS faultIf this symbol illuminates then the system is not
working. The car's regular brake system con-
tinues to work, but without the ABS function.
1. Stop the car in a safe place and turn off the
engine.
2. Restart the engine.3. If the symbol remains illuminated, drive to
a workshop to have the ABS system
checked. Volvo recommends that you
seek assistance from an authorised Volvo
workshop.
Rear fog lamp onThis symbol illuminates when the rear fog lamp
is on. There is only one fog lamp. It is located
on the driver's side.
Stability systemA flashing symbol indicates that the stability
system is operating. If the symbol illuminates
with constant glow then there is a fault in the
system.
Engine preheater (diesel)This symbol illuminates during engine preheat-
ing. Preheating occurs when the temperature
is below 2 °C. The car can be started once the
symbol goes out.
Low level in fuel tankWhen the symbol illuminates the level in the
fuel tank is low, refuel as soon as possible.
Information, read display textWhen one of the car's systems does not
behave as intended, this information symbol
illuminates and a text appears on the informa-
tion display. The message text is cleared with
the READ button, see page 140, or it disap-
pears automatically after a time (time depend-ing on which function is indicated). The infor-
mation symbol can also illuminate in conjunc-
tion with other symbols.
NOTE
When a service message is shown, the sym-
bol and message are cleared using the
READ button, or clear automatically after a
while.
Main beam OnThe symbol illuminates when main beam is on
and with main beam flash
Left/right-hand direction indicatorsBoth direction indicator symbols flash when
the hazard warning flashers are used.
Indicator and warning symbols
SymbolSpecification
Low oil pressureA
Parking brake applied
Airbags – SRS
Seatbelt reminder
ProCarManuals.com

03 Your driving environment
Seats
03

85
door is opened, the driver's seat and also the
door mirrors automatically adopt the positions
stored in the key memory.
NOTE
The seat and the door mirrors do not move
if they are already set the relevant position.
It is also possible to use the key memory by
pressing the unlock button on the remote con-
trol key when the driver's door is open.
The key memory can be activated/deactivated
in the menu system MY CAR under Settings
Car settingsCar key memory
Position of door mirrors and driver's seat in
key. For a description of the menu system, see
page 142.
NOTE
The key memory in the two remote control
keys and the seat's three memories are
completely independent of each other.
Emergency stopIf the seat accidentally begins to move, press
one of the buttons to stop the seat.
Restarting to reach the seat position stored in
the key memory is performed by pressing theunlock button on the remote control key. The
driver's door must then be open.
WARNING
Risk of crushing! Make sure that children do
not play with the controls. Check that there
are no objects in front of, behind or under
the seat during adjustment. Ensure that
none of the backseat passengers will be
trapped.
Heated seatsFor heated seats, see page 153.
Rear seats
Head restraint, centre seat, rear
Adjust the head restraint according to passen-
ger height so that the whole of the back of the
head is covered if possible. Slide it up as
required.
To lower the head restraint again, the button
(located in the centre between the backrest
and head restraint, see illustration) must be
pressed in while the head restraint is pressed
down.
Manual lowering of the outer head
restraints, rear seat
Pull the locking handle closest to the head
restraint to fold the head restraint forward.
The head restraint is moved back manually
until a "click" can be heard.
ProCarManuals.com

03 Your driving environment
Compass*
03
106* Option/accessory, for more information, see Introduction.
Operation
Rearview mirror with compass.
The upper right-hand corner of the rearview
mirror has an integrated display that shows the
compass direction in which the front of the car
is pointing. Eight different directions are shown
with English abbreviations:
N (north), NE (north
east), E (east), SE (south east), S (south), SW(south west), W (west) and NW (north west).
The compass is activated automatically when
the car is started or in ignition position II, see
page 81. To deactivate/activate the compass -
press in the button on the underside of the mir-
ror using a paper clip for example.
CalibrationThe earth is divided into 15 magnetic zones.
The compass is set for the geographic area to
which the car was delivered. The compassshould be calibrated if the car is moved across
several magnetic zones.
1. Stop the car in a large open area free from
steel structures and high-voltage power
lines.
2. Start the car.
NOTE
For optimum calibration - switch off all elec-
trical equipment (climate control system,
wipers etc.) and make sure that all doors are
closed.
3. Hold the button on the underside of the
rearview mirror depressed
approx. 6 seconds (using a paper clip for
example) until the character
C is shown.
G030295
Magnetic zones.
4. Hold the button on the underside of the
rearview mirror depressed
approx. 3 seconds. The number of the cur-
rent magnetic zone is shown.
5. Press the button repeatedly until the
required magnetic zone (
1–15) is shown.
See the map of magnetic zones for the
compass.
6. Wait until the display resumes showing the
character
C.
7. Drive slowly in a circle at a speed of no
more than 10 km/h until a compass direc-
tion is shown in the display, indicating that
calibration is complete. Then drive a further
2 circles to fine-tune calibration.
8. Repeat the above procedure as necessary.
ProCarManuals.com

03 Your driving environment
Starting the engine
03

* Option/accessory, for more information, see Introduction.113 Petrol and diesel engines
Ignition switch with inserted remote control key
and START/STOP ENGINE button.
IMPORTANT
Do not press in the remote control key incor-
rectly turned - Hold the end with the detach-
able key blade, see page 52.
1. Insert the remote control key in the ignition
switch and press it in to its end position.
Note that if the car is equipped with an
alcolock then a breath test must first be
approved before the engine can be started,
see page 109.2.
Hold the clutch pedal fully depressed
1. (For
cars with automatic gearbox - Depress the
brake pedal.)
3.
Press the START/STOP ENGINE button
and then release it.
The starter motor works until the engine has
started, but for no longer than 10 seconds (die-
sel up to 60 seconds).
If the engine has not started - try again by hold-
ing in the START/STOP ENGINE button until
the engine starts.
WARNING
Always remove the remote control key from
the ignition switch when leaving the car -
especially if there are children in the car. For
information on how the key is removed from
the ignition switch, see page 81.
NOTE
The idling speed can be noticeably higher
than normal for certain engine types during
cold starting. This is so that the emissions
system can reach normal operating tem-
perature as quickly as possible, which min-
imises exhaust emissions and protects the
environment.
Keyless driveFollow steps 2–3 for starting petrol and diesel
engines. For more information on Keyless
drive, see page 57.
NOTE
One precondition for starting the car is that
one of the car's remote control keys with the
keyless drive* function is located inside the
passenger compartment or the cargo area.
WARNING
Never remove the remote control key with
the Keyless drive* function from the car
while driving or during towing.
Stop the engineTo switch off the engine - Press START/STOP
ENGINE.
If the car has an automatic gearbox and the
gear selector is not in a position P or if the car
is moving - Press twice or hold the button
depressed until the engine stops.
Steering lockThe steering lock opens when the START/
STOP ENGINE button is depressed after the
1If the car is moving then it is enough to press the START/STOP ENGINE button to start the car.
ProCarManuals.com

03 Your driving environment

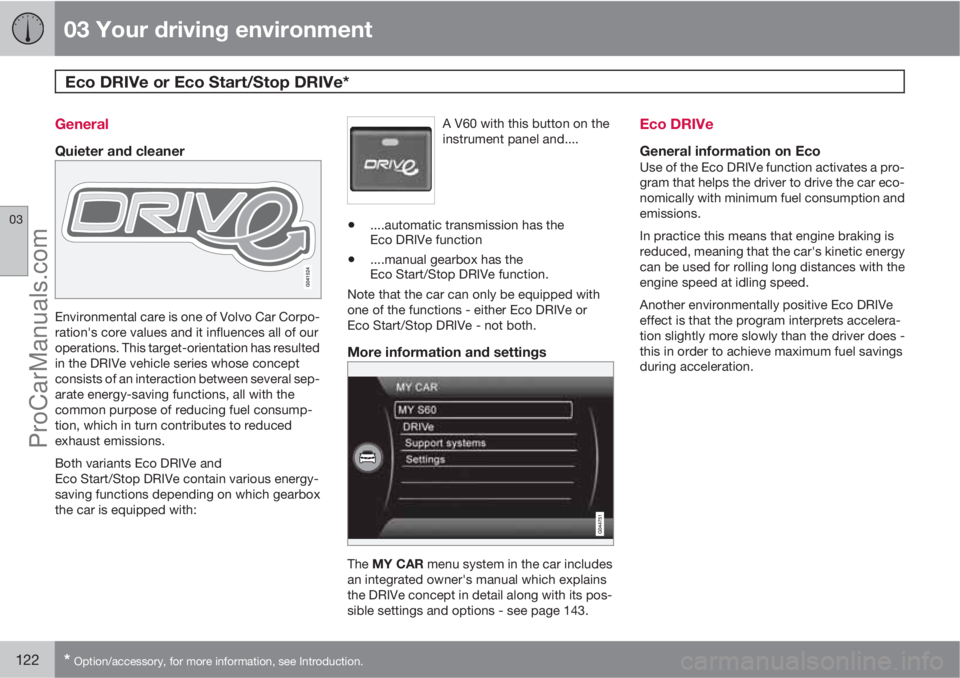

Eco DRIVe or Eco Start/Stop DRIVe*
03
122* Option/accessory, for more information, see Introduction.
General
Quieter and cleaner
Environmental care is one of Volvo Car Corpo-
ration's core values and it influences all of our
operations. This target-orientation has resulted
in the DRIVe vehicle series whose concept
consists of an interaction between several sep-
arate energy-saving functions, all with the
common purpose of reducing fuel consump-
tion, which in turn contributes to reduced
exhaust emissions.
Both variants Eco DRIVe and
Eco Start/Stop DRIVe contain various energy-
saving functions depending on which gearbox
the car is equipped with:A V60 with this button on the
instrument panel and....
•....automatic transmission has the
Eco DRIVe function
•....manual gearbox has the
Eco Start/Stop DRIVe function.
Note that the car can only be equipped with
one of the functions - either Eco DRIVe or
Eco Start/Stop DRIVe - not both.
More information and settings
The MY CAR menu system in the car includes
an integrated owner's manual which explains
the DRIVe concept in detail along with its pos-
sible settings and options - see page 143.
Eco DRIVe
General information on EcoUse of the Eco DRIVe function activates a pro-
gram that helps the driver to drive the car eco-
nomically with minimum fuel consumption and
emissions.
In practice this means that engine braking is
reduced, meaning that the car's kinetic energy
can be used for rolling long distances with the
engine speed at idling speed.
Another environmentally positive Eco DRIVe
effect is that the program interprets accelera-
tion slightly more slowly than the driver does -
this in order to achieve maximum fuel savings
during acceleration.
ProCarManuals.com

03 Your driving environment
Eco DRIVe or Eco Start/Stop DRIVe*
03

* Option/accessory, for more information, see Introduction.123
Function and operation
Eco DRIVe On/Off.
Illuminates briefly on activation and for text
messages.
(Only used by the Eco Start/Stop DRIVe
function).
Driving with cruise controlThe Eco DRIVe function with activated cruise
control makes driving slightly more flexible -
the set speed is not followed exactly in the
event of an increased load, but the function
allows a barely perceptible delay, e.g. at the
beginning of a steep hill.
The reason is that Eco DRIVe implements a
slower acceleration, e.g. for compensation due
to increased load, than the normal cruise con-
trol.The cruise control's environmentally positive
flexibility is within the range of +0/-2 km/h.
Deactivating the Eco DRIVe functionThe current setting is stored when the engine
is switched off - if Eco DRIVe is e.g. activated
at engine shutdown, the function will remain
activated the next time the engine is started.
In certain situations it is
advantageous to use engine
braking, e.g. on steep down-
hill slopes, and it may then be
appropriate to temporarily
disengage the Eco DRIVe
function - this is carried out by
pressing this button (1).
The disengaged function is confirmed with a
display text and with the button's light going
out.
Text messageIn combination with this indicator
lamp the Eco DRIVe function may
display text messages on the information dis-
play for certain situations. The following table
shows some examples.
Sym-
bolMessageInfo/Action
Eco DRIVe OnIlluminates for
about 5 seconds
after Eco
DRIVe has
been activated.
Eco DRIVe OffIlluminates for
about 5 seconds
after Eco
DRIVe has
been switched
off.
If a message does not go out following com-
pletion of the action then a workshop should
be contacted - an authorised Volvo workshop
is recommended.
ProCarManuals.com
