422 5-1. Essential information
URBAN CRUISER_EE (OM52C21E)
Using a flat bed truck
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
Before emergency towing
Vehicles without smart entry & start system
Put the shift lever in “N”.
Put the engine switch in the “ACC” (engine off) or “ON” position
(engine running).
Release the parking brake.
Vehicles with smart entry & start system
Put the shift lever in “N”.
The “ENGINE START STOP” switch must be in the ACCESSORY
mode (engine off) or IGNITION ON mode (engine running).
Release the parking brake.
Emergency towing eyelet location
P. 437, 453
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

5
423 5-1. Essential information
When trouble arises
URBAN CRUISER_EE (OM52C21E)
CAUTION
Caution while towing
Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelets and the cables or chains. Always
be cautious of the surroundings and other vehicles while towing.
If the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing. This
may lead to accidents that cause serious injury or even death.
NOTICE
To prevent causing serious damage to the transmission when towing
using a wheel-lift type truck (4WD models)
Never tow this vehicle with any of the wheels in contact with the ground.
To prevent damaging the vehicle
Vehicles without smart entry & start system: Do not tow the vehicle with
the engine switch to the “LOCK” position.
Vehicles with smart entry & start system: Do not tow the vehicle with the
“ENGINE START STOP” switch OFF.
The steering lock mechanism is not strong enough to hold the front wheel
straight. (2WD models)
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.

426
5-1. Essential information
URBAN CRUISER_EE (OM52C21E)
Fuel pump shut off system (gasoline engine)
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without smart entry & start system:
Turn the engine switch to the “ACC” or “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch to the ACCESSORY
mode or OFF.
Restart the engine.
NOTICE
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an air-
bag inflates upon collision, the fuel pump shut off system stops sup-
plying fuel to the engine.
STEP1
STEP2

432 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)
Warning lightWarning light/DetailsCorrection procedure
(Flashes)Engine oil change
reminder light
(diesel engine)
Check the engine oil, and
change if necessary. After
changing the engine oil, the
oil change system should
be reset. (P. 363) Indicates that the engine
oil is scheduled to be
changed.
Flashes approximately
14500 km (9000 miles)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance date has been
reset.)
Indicates that the engine
oil should be changed.
• Flashes while you are
driving.
• Vehicles without smart
entry & start system:
Flashes for about 12
seconds when the
engine switch turned to
the “ON” position.
• Vehicles with smart
entry & start system:
Flashes for about 12
seconds when the
“ENGINE START
STOP” switch turned to
the IGNITION ON
mode.

434 5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)
Follow the correction procedures. (vehicles with smart entry &
start system)
After taking the specified steps to correct the suspected problem,
check that the warning light turn off.
Interior
buzzerExterior
buzzerWarning lightWarning
light/DetailsCorrection
procedure
Once3 times
A passenger has
removed the smart
key from the vehi-
cle while the
engine is not OFF.
Check
whether the
passenger
leaving the
vehicle is car-
rying the smart
key
Once(Comes on for
5 seconds)
The vehicle’s ID
code detection
system has judged
that the smart key
is not present
when the
“ENGINE START
STOP” switch is
pressed.
Check that the
smart key is in
the vehicle
and within the
detection area.

5
449 5-2. Steps to take in an emergency
When trouble arises
URBAN CRUISER_EE (OM52C21E)
CAUTION
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Do not put any part of your body under the vehicle supported by a jack.
Do not start or run the engine while your vehicle is supported by the jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace
the tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle will be injured.

458 5-2. Steps to take in an emergency

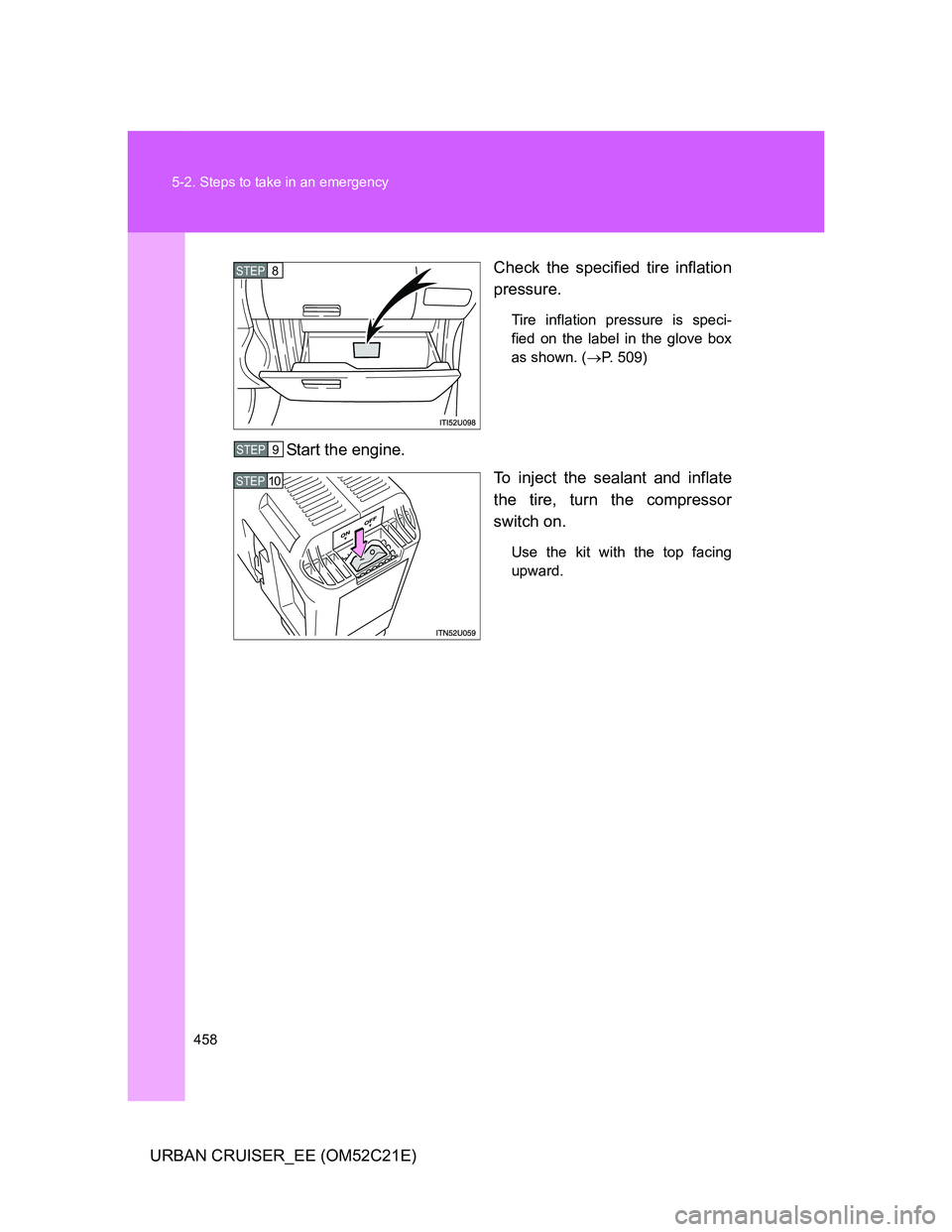

URBAN CRUISER_EE (OM52C21E)Check the specified tire inflation
pressure.
Tire inflation pressure is speci-
fied on the label in the glove box
as shown. (P. 509)
Start the engine.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
Use the kit with the top facing
upward.
STEP8
STEP9
STEP10

468
5-2. Steps to take in an emergency
URBAN CRUISER_EE (OM52C21E)
If the engine will not start
If the engine still does not start after following the correct starting
procedure (P. 179, 175), confirm the following points.
The engine will not start even though the starter motor
operates normally.
One of the following may be the cause of the problem.
There may not be sufficient fuel in the vehicle’s tank.
Gasoline engine: Refuel the vehicle.
Diesel engine: (P. 485)
The engine may be flooded. (gasoline engine)
Try to restart the engine again following correct starting proce-
dures. (P. 179, 175)
There may be a malfunction in the engine immobilizer system.
(P. 108)
The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume
One of the following may be the cause of the problem.
The battery may be discharged. (P. 475)
The battery terminal connections may be loose or corroded.
