2011 TOYOTA MATRIX display

252
3-4. Using the hands-free phone system (for cellular phone)
Using the hands-free phone system (for cellular phone)

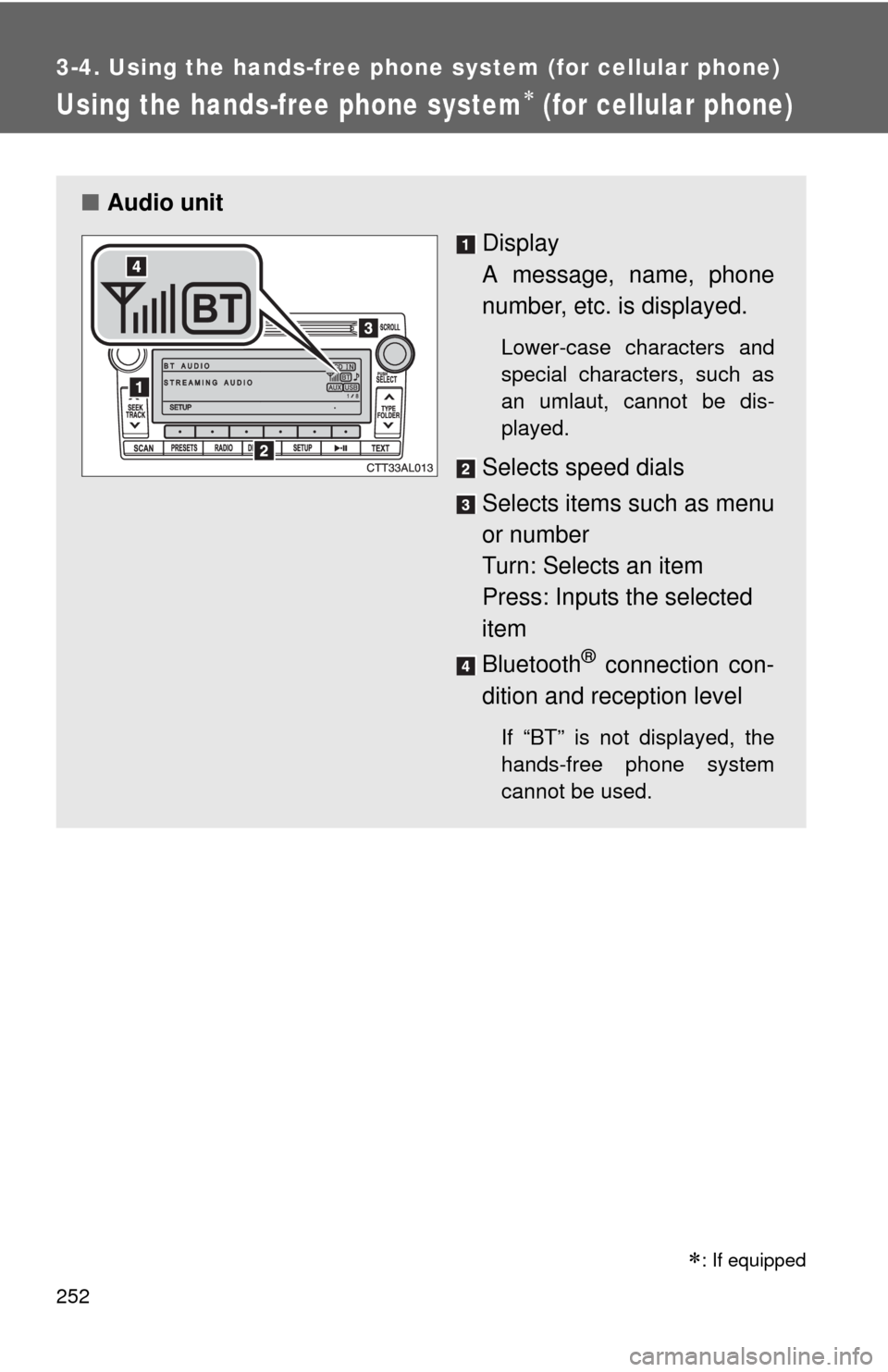

■Audio unit
Display
A message, name, phone
number, etc. is displayed.
Lower-case characters and
special characters, such as
an umlaut, cannot be dis-
played.
Selects speed dials
Selects items such as menu
or number
Turn: Selects an item
Press: Inputs the selected
item
Bluetooth
® connection con-
dition and reception level
If “BT” is not displayed, the
hands-free phone system
cannot be used.
: If equipped

255 3-4. Using the hands-free phone system (for cellular phone)
3
Interior features
Operating the system using a voice command
By following voice guidance instructions output from the speaker,
voice commands enable the operation of the hands-free phone sys-
tem without the need to check the display or operate .
■Operation procedure when using a voice command
Press the talk switch and follow voice guidance instructions.
■Auxiliary commands when using a voice command
The following auxiliary commands can be used when operating the
system using a voice command:
“Cancel”: Exits the hands-free phone system
“Repeat”: Repeats the previous voice guidance instruction
“Go back”: Returns to the previous procedure
“Help”: Reads aloud the function summary if a help comment is
registered for the selected function

257 3-4. Using the hands-free phone system (for cellular phone)
3
Interior features
Registration to the hands-free phone system only
Select “Phone Only” using a voice command or .
Registration to the hands-free phone system and Bluetooth
® audio
system at the same time
Select “Int. Audio (Internal audio)” using a voice command or
.
Select “Confirm” using a voice command or .
A passkey is displayed and heard, and a voice guidance instruction
for inputting the passkey into the cellular phone is heard.
Input the passkey into the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
Guidance for registration completion is heard.
STEP5
STEP5
STEP6
STEP7

259 3-4. Using the hands-free phone system (for cellular phone)
3
Interior features
Setup
(Setup)SecuritySet PIN Setting a PIN code
Phonebook Lock
(Phone book
lock)Locking the phone book
Phonebook
Unlock (Phone
book unlock)Unlocking the phone book
Phone
SetupPair PhoneRegistering the cellular
phone to be used
Change Phone
Name (Change
name)Changing a registered name
of a cellular phone
Delete PhoneDeleting a registered cellular
phone
List phonesListing the registered cellular
phones
Select phoneSelecting a cellular phone to
be used
Set Passkey Changing the passkey
Handsfree
PowerTurning the Hands-free
power on/off
System
SetupGuidance Vol-
umeSetting voice guidance vol-
ume
Device NameDisplaying a device’s infor-
mation
Reset Setting Initialization
First menuSecond
menuThird menuOperation detail

276 3-4. Using the hands-free phone system (for cellular phone)
■Adding procedure
Select “Add Entry” using a voice command or .
Use one of the following methods to input a telephone num-
ber:
Inputting a telephone number using a voice command
STEP2-1 Select “By Voice (By voice)” using a voice command
or .
STEP2-2 Press the talk switch, say the desired number, and
select “Confirm” using a voice command.
Transferring data from the cellular phone
STEP2-1 Select “By Phone” and then “Confirm” using a voice
command or .
STEP2-2 Transfer the data from the cellular phone.
Refer to the manual that comes with the cellular phone for
the details of transferring data.
STEP2-3 Select the data to be registered by either of the fol-
lowing methods:
a. Say “Previous” or “Next” until the desired data is
displayed, and select “Confirm” using a voice
command.
b. Select the desired data using .
STEP1
STEP2

277 3-4. Using the hands-free phone system (for cellular phone)
3
Interior features
Inputting a phone number using
STEP2-1 Select “Manual Input” using .
STEP2-2 Input a phone number using , and press
once again.
Input the phone number 1 digit at a time.
Selecting a phone number from outgoing or incoming call history
STEP2-1 Select “Call History” using a voice command or
.
STEP2-2 Select “Outgoing Call History (Outgoing)” or “Incom-
ing Call History (Incoming)” using a voice command
or .
STEP2-3 Select the data to be registered by either of the fol-
lowing methods:
a. Say “Previous” or “Go back” until the desired data
is displayed, and select “Confirm” using a voice
command.
b. Select the desired data using .

295
3-7. Other interior features
3
Interior features
Clock
■The clock is displayed when
The engine switch is in the “ACC” or “ON” position.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest
hour.*
*: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00

311
3-7. Other interior features
3
Interior features

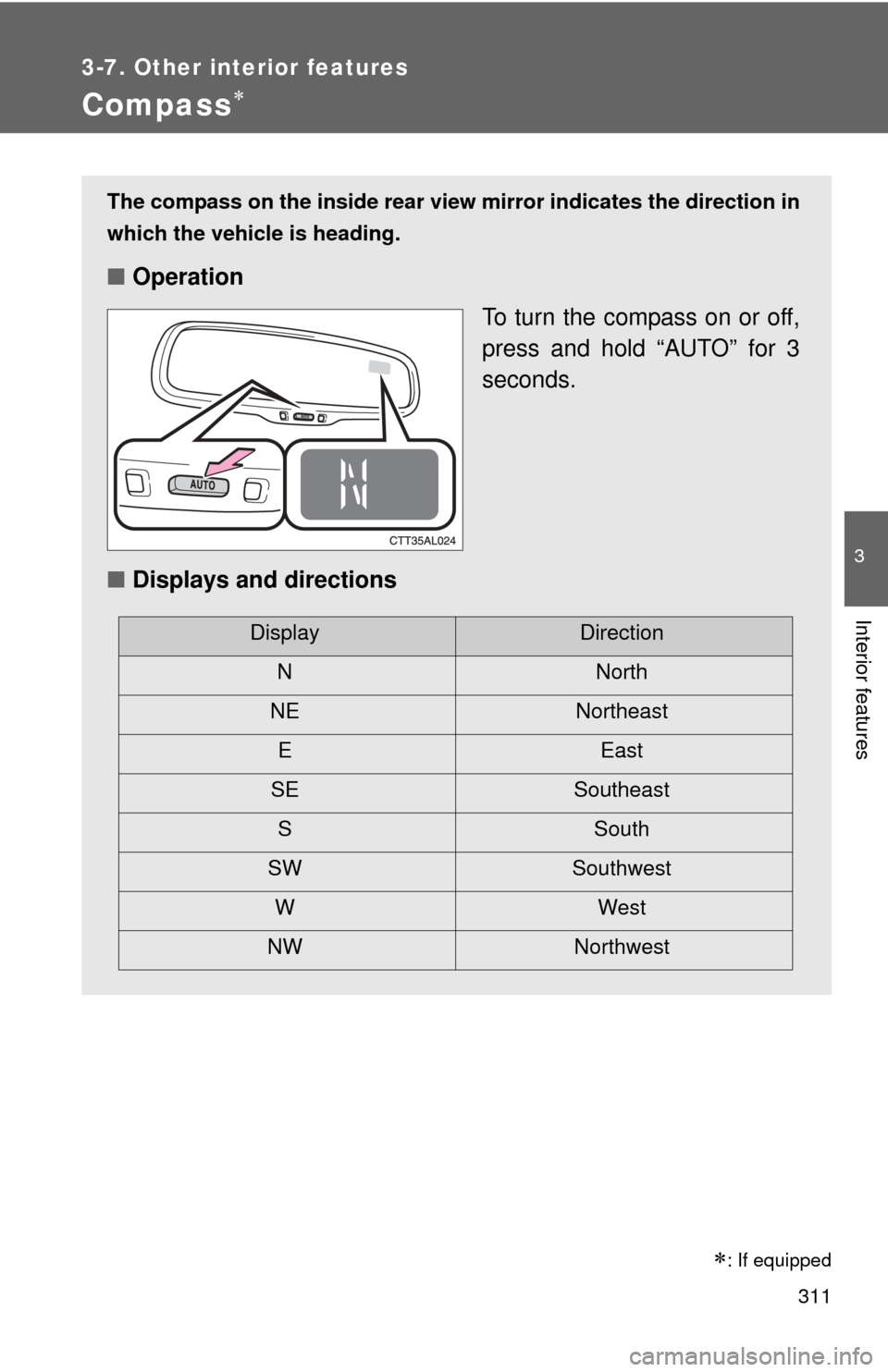

Compass
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
■Operation
To turn the compass on or off,
press and hold “AUTO” for 3
seconds.
■Displays and directions
DisplayDirection
NNorth
NE Northeast
EEast
SE Southeast
S South
SW Southwest
WWest
NW Northwest

: If equipped
