2011 TOYOTA MATRIX display

190
3-2. Using the audio system
Using the CD player
Ty p e A
Ty p e B
Vo lu m e
Random playback Selecting a trackRepeat play
Playback Power
CD eject
Displaying text
messages
Search playbackReverse
Fast-forward
Power Volume
Searching playbackCD eject
Selecting a
track/
fast-forwarding
and rewindingDisplaying text
messages Selector buttons
Playback
Playback/pauseSelecting a track

191 3-2. Using the audio system
3
Interior features
Loading CDs
■Loading a CD
Insert a CD.
Ejecting CDs
■Ejecting a CD
Press and remove the CD.
Selecting a track
Press “
” to move up or “” to move down using until the desired
track number is displayed.
Fast-forwarding and reversing tracks
Type A
Press (reverse) or
(fast-forward).
Type B
Press and hold “
” or “” on .
Scanning tracks
Press .
The first ten seconds of each track will be played.
To cancel, press again.
Press again when the desired track is reached.
STEP1
STEP2

193 3-2. Using the audio system
3
Interior features
Random playback
■Current CD
Press (RAND) or (RDM).
Songs are played in random order.
To cancel, press the button once more (without a CD changer), or twice
more (with a CD changer).
■All CDs (with a CD changer)
Type A
Press and hold (RAND) until you hear a beep.
Tracks on all loaded CDs are played in a random order.
To cancel, press the button again.
Type B
Press (RDM) twice.
Tracks on all loaded CDs are played in random order.
To cancel, press the button again.
Switching the display
Press .
Each time is pressed, the display changes in the following order:
Type A: Track no./Elapsed time CD title Track name.
Type B: Track title Track name/Artist name Track name/Elapsed
time.

194 3-2. Using the audio system
■Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding for 1 second
or more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed for
6 seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■Error messages
“CD CHECK”: This indicates a problem either in the CD or inside the player.
The CD may be dirty, damaged or inserted up-side down.
“WAIT” or “PLEASE WAIT”: Operation has stopped due to a high tempera-
ture inside the player. Wait for a while and then
press or . Contact your Toyota
dealer if the CD still cannot be played back.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on the recording format or disc
features, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
■CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.
■If CDs are left inside the CD player or in the ejected position for
extended periods
CDs may be damaged and may not play properly.
■Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.

197
3-2. Using the audio system
3
Interior features

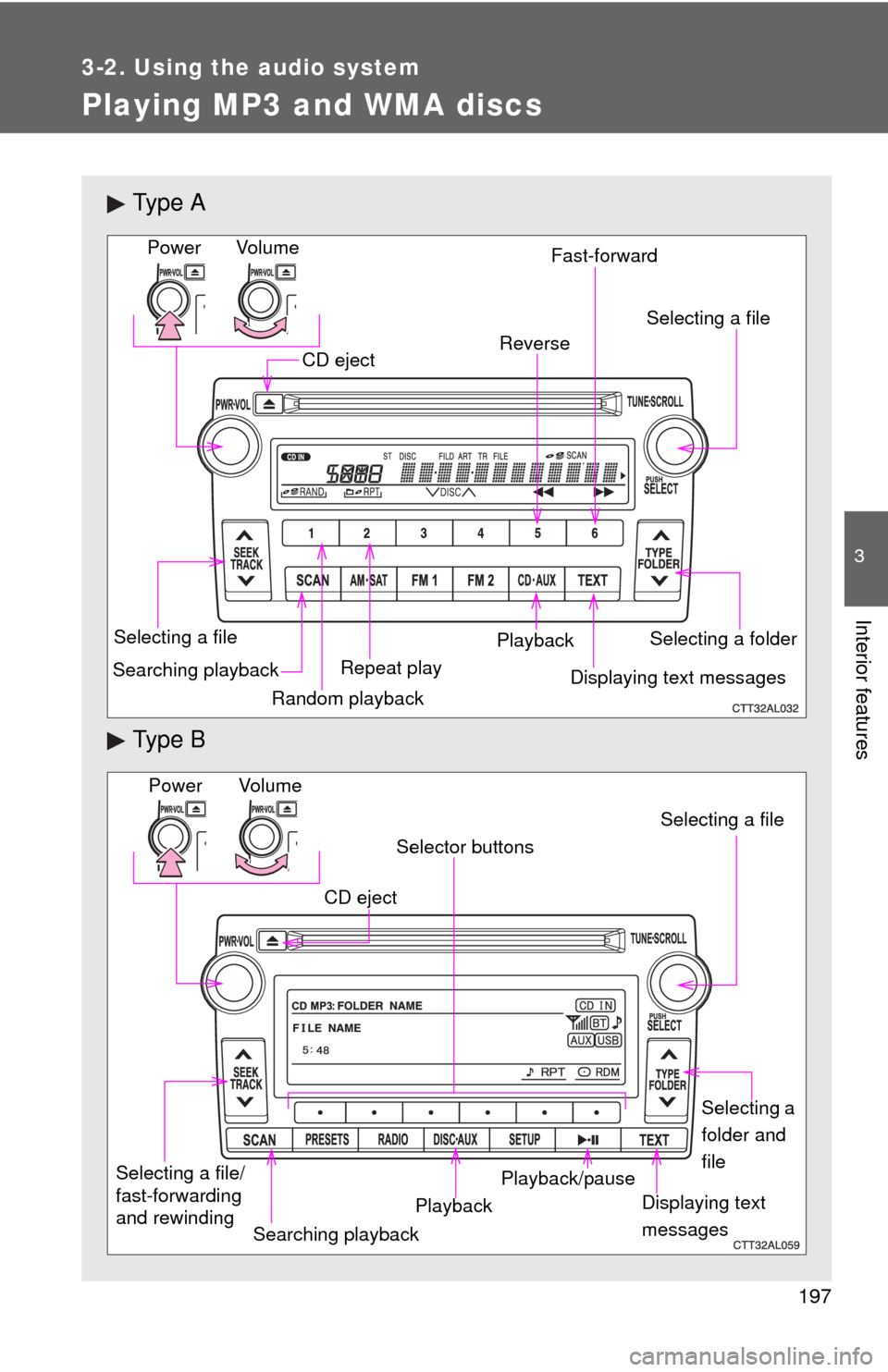

Playing MP3 and WMA discs
Ty p e A
Ty p e B
Vo lu m e
Random playback Selecting a file
Repeat playPlayback Power
CD eject
Displaying text messages Searching playbackSelecting a folder Selecting a file
ReverseFast-forward
Power Volume
Displaying text
messages CD eject
PlaybackPlayback/pauseSelecting a file
Selector buttons
Selecting a
folder and
file
Searching playback Selecting a file/
fast-forwarding
and rewinding

200 3-2. Using the audio system
Random playback
■Playing files from a particular folder in random order
Press (RAND) or (RDM).
To cancel, press the button once more (without a CD changer), or twice
more (with a CD changer).
■Playing all of the files on a disc in random order
Type A
Press and hold (RAND) until you hear a beep.
To cancel, press the button again.
Type B
Press (RDM) twice.
To cancel, press the button again.
Switching the display
Press .
Each time is pressed, the display changes in the following order:
Type A: Folder no./File no./Elapsed time Folder name File name 
Album title (MP3 only) Track title Artist name.
Type B: Track title Track title/Artist name Track title/Album name
(MP3 only) Track title/Elapsed time.

201 3-2. Using the audio system
3
Interior features
■Display
P. 194
■Error messages
“CD CHECK”: This indicates a problem either in the CD or inside the player.
The CD may be dirty, damaged or inserted up-side down.
“NO MUSIC”: This indicates that MP3/WMA files are not included in the CD.
“WAIT” or “PLEASE WAIT”: Operation has stopped due to a high tempera-
ture inside the player. Wait for a while and then
press or . Contact your Toyota
dealer if the CD still cannot be played.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
■CD player protection feature
P. 194
■If CDs are left inside the CD player or in the ejected position for
extended periods
P. 194
■Lens cleaners
P. 194

203 3-2. Using the audio system
3
Interior features
●Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-
RWs.
Playback in some instances may not be possible, depending on the status
of the CD-R or CD-RW. Playback may not be possible or the audio may
jump if the disc is scratched or marked with fingerprints.
●Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet)
MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not
be displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
●File names
The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.
●Multi-sessions
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3 and WMA files. However, only the first session can
be played.
