2011 TOYOTA FJ CRUISER Quick Reference Guide

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio OFF.>>
Steering wheel switches
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX
mode.
USB port
By connecting a USB-compatible portable audio device or USB memory to
the USB port, you can listen to music from the portable audio device or
USB memory through the vehicle’s speaker system while in USB mode.
AUX port/USB port
Volume control
Clock
H- Hour set
M- Minute set
Text_414844M2.qxd 11/2/10 4:11 PM Page 15

When vehicle is in reverse, a buzzer will sound to inform driver when
nearing an obstacle. The system can only be used when the transmission is
in the “R” position.
ON/OFF switch
Intuitive parking assist (if equipped)
16
FEATURES/OPERATIONS

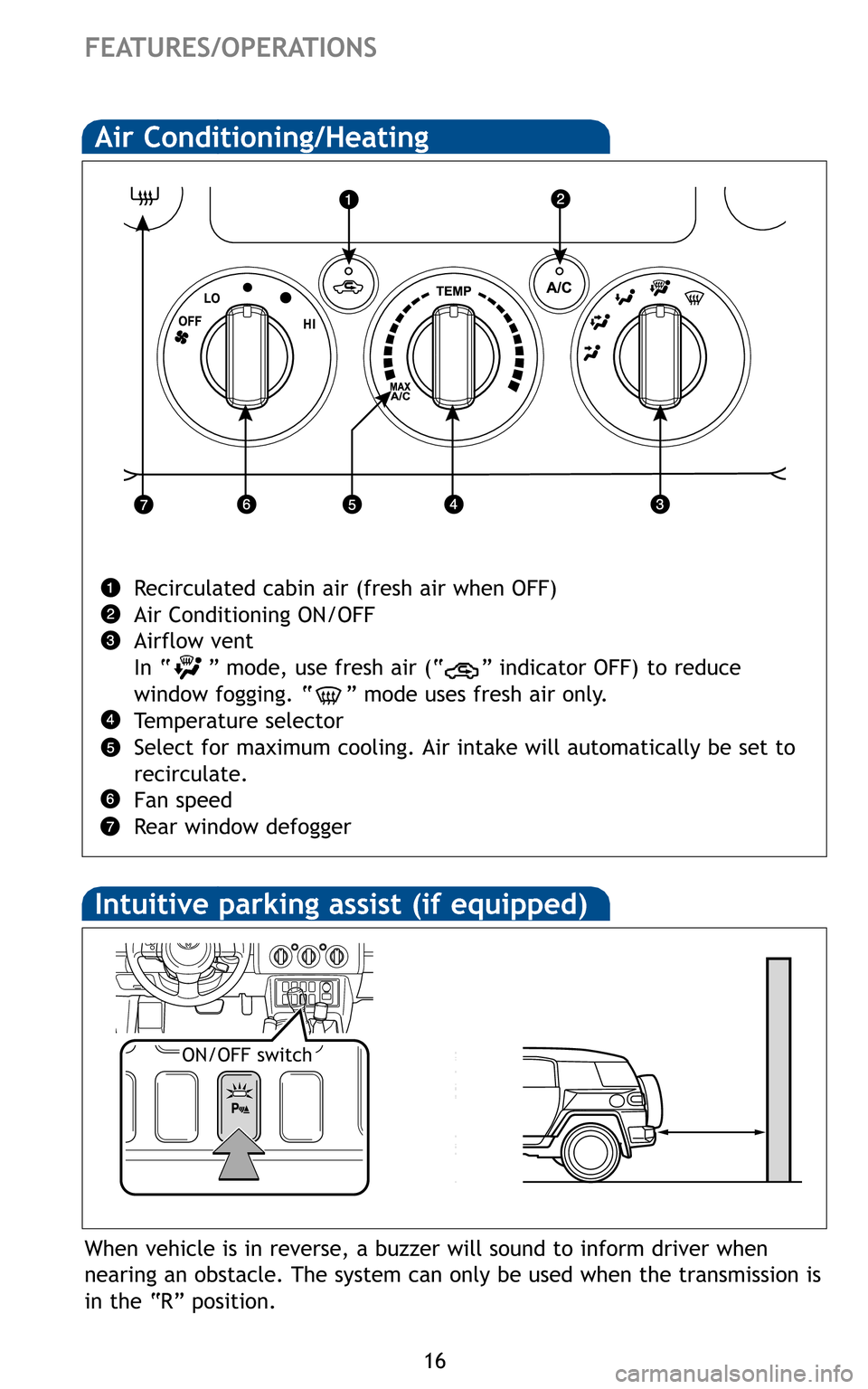

Air Conditioning/Heating
Recirculated cabin air (fresh air when OFF)
Air Conditioning ON/OFF
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only.
Temperature selector
Select for maximum cooling. Air intake will automatically be set to
recirculate.
Fan speed
Rear window defogger
Text_414844M2.qxd 11/2/10 4:11 PM Page 16

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to “Using the hands-free phone system (for cellular phones),”
Section 3-4 in the
Owner’s Manual , or go to Toyota.LetsTalk.com for more
information about phone connections and compatibility.
Microphone
Audio unit
Steering wheel telephone switches
VolumeEnd call
Start call
Voice command button
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFFFunctions
System ON/OFF
Resume2/Increase speed
Set/Decrease speed
Cancel1
Telephone controls (Bluetooth®)
Text_414844M2.qxd 11/2/10 4:11 PM Page 17

18
Power outlet-12V DC
ON/OFF switch Luggage compartment
Push
Instrument panel
The illumination changes according to the maximum available capacity.
•
Green and Yellow 115V AC/400W
• Yellow 115V AC/100W
Engine must be running in order to use the 115V AC power outlet.
Green light
Power outlet-115V AC (if equipped)
Key must be in the “ACC” or “ON” position to be used.
FEATURES/OPERATIONS
Yellow light
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manualfor more information.
VSC OFF button
VSC OFF button
Text_414844M2.qxd 11/2/10 4:11 PM Page 18

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bottle holders-Rear seat
Cup holders
Rear console
Manual
Transmission models
Automatic
Transmission models
Light control-Instrument panel
Brightness
control
+
Text_414844M2.qxd 11/2/10 4:11 PM Page 19

20
SAFETY AND EMERGENCY FEATURES
Seat belts
Seat belts-Shoulder belt anchor
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Push up, or squeeze
lock release to lower
Door locks
UnlockLock
Tire Pressure Monitoring (warning)
System
If the Tire Pressure Warning indicator “ ” illuminates without blinking,
adjust tire pressures to factory-specified levels.* The light will turn off
after a few minutes. The warning light may come on due to temperature
changes or changes in tire pressure from natural air leakage.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
Refer to the Owner’s Manual for more details.
* Refer to load label on door jamb or the Owner’s Manualfor tire inflation specifications.
Text_414844M2.qxd 11/2/10 4:11 PM Page 20

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21
Spare tire & tools
Tool location
Removing the spare tire
(vehicles without rear view monitor system)
(1) Remove the bolt cover.
(2) Remove the bolt that fixes the spare wheel cover in place.
(3) Remove the spare wheel cover.
(4) Turn the hold-down nuts counterclockwise and remove.
Refer to the Owner’s Manual for jack positioning and tire changing
procedures.
Tool bag
Jack
Turn the hold-down nuts counterclockwise and remove.
Removing the spare tire
(vehicles with rear view monitor system)
(1)
(3) (2)
(4)
Text_414844M2.qxd 11/2/10 4:14 PM Page 21

CUSTOMER EXPERIENCE CENTER 1- 8 0 0 - 3 31- 4 3 31
00505-QRG11-FJ
Printed in U.S.A. 11/10
10-TCS-03976
