2011
FJ Cruiser
!A word about safe vehicle operations
This
Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new FJ Cruiser.
This Quick Reference Guide is not a full description of FJ
Cruiser operations. Every FJ Cruiser owner should review the
Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
Text_414844M2.qxd 11/2/10 4:13 PM Page COV2
Page 3 of 24
1
INDEX
Engine maintenance7Fuel tank door release and cap6Hood release 7Indicator symbols4-5Instrument cluster 4Instrument panel2-3
Keyless entry16
Accessory meter 13Air Conditioning/Heating 16Audio14-15Automatic Transmission 8Bottle holders-Rear seat19Clock 15Cruise control17Cup holders19Door-Back 13Four-wheel drive 9Intuitive parking assist16Light control-Instrument panel19Lights1& turn signals 12Parking brake 10Power outlet-12V DC 18Power outlet-115V AC18Seat adjustments-Front10Seats-Folding rear seats11Seats-Head restraints 10Seats-Removing rear seats11Telephone controls (Bluetooth®)17Tilt steering wheel 8VSC OFF button 18Windows 13
Windshield wipers & washers 12

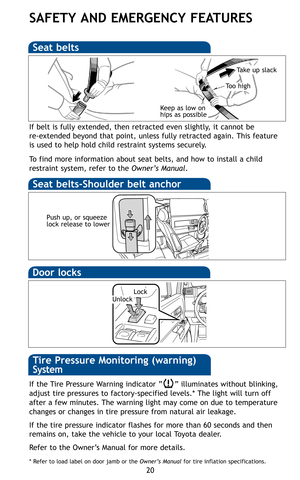

Door locks 20Seat belts20Seat belts-Shoulder belt anchor20Spare tire & tools21
Tire Pressure Monitoring (warning) System 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on this and other customizable
options.
Text_414844M2.qxd 11/2/10 4:11 PM Page 1
Page 4 of 24
OVERVIEW
Instrument panel
2
Instrument panel light control
Power outside rearview mirror controls
1
Clutch start cancel switch1
Roll Sensing of Curtain shield Airbag OFF switch
Tilt steering lock release
Headlight and turn signal control
Wiper and washer controls
Ignition switch
Emergency flasher button
Clock
Front passenger seat belt reminder light
Audio system
Engine immobilizer indicator
Air Conditioning controls
Rear window defogger button
VSC OFF switch
1
Steering wheel controls
Text_414844M2.qxd 11/2/10 4:11 PM Page 2
Page 5 of 24
3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Rear differential lock button1
Active traction control switch1
Power outlet
AUX or USB/AUX port
Intuitive parking assist switch
1
Power outlet main switch1
Cruise control1
Hood release
Volume control switch (for audio)
“ ” button (for audio)
“MODE” button (for audio)
Telephone controls
Voice command button
1 If equipped2For details, refer to the “Navigation System Owner’s Manual.”
>>
Text_414844M2.qxd 11/2/10 4:11 PM Page 3
Page 6 of 24
OVERVIEW
Indicator symbols
Instrument cluster
4
Tachometer
Service indicators
Speedometer
Voltmeter
Automatic Transmission indicator
Engine coolant temperature
Fuel gauge
Trip meter reset knob
Odometer and two trip meters
Battery warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Maintenance/Service required indicator1
Driver/Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)
Open door warning1
1For details, refer to “If a warning light turns on or a warning buzzer sounds” Section
5-2, 2011 Owner’s Manual.
2 For details, see “Rear differential lock system,” Section 2-4, 2011 Owner’s Manual.
Low fuel level warning1
Text_414844M2.qxd 11/2/10 4:11 PM Page 4
Page 7 of 24
5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

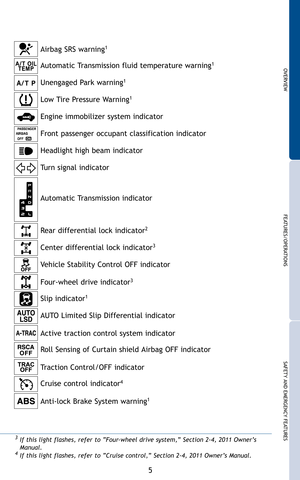

Automatic Transmission indicator
Front passenger occupant classification indicator
Turn signal indicator
Four-wheel drive indicator
3
Rear differential lock indicator2
Center differential lock indicator3
Slip indicator1
Vehicle Stability Control OFF indicator
Active traction control system indicator
AUTO Limited Slip Differential indicator
Cruise control indicator4
Automatic Transmission fluid temperature warning1
Unengaged Park warning1
Airbag SRS warning1
Headlight high beam indicator
Anti-lock Brake System warning
1
3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2011 Owner’s
Manual.
4If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.
Low Tire Pressure Warning1
Engine immobilizer system indicator
Roll Sensing of Curtain shield Airbag OFF indicator
Traction Control/OFF indicator
Text_414844M2.qxd 11/2/10 4:11 PM Page 5
Page 8 of 24
OVERVIEW
Fuel tank door release and cap
6
Pull
Turn to openNOTE:Tighten
until one click is
heard. If the cap is
not tightened
enough, Check
Engine “ ”
indicator may
illuminate.
Keyless entry (if equipped)
Beep sound can be switched ON or OFF. Refer to the Owner’s Manualfor
more details.
NOTE: If a door is not opened
within 60 seconds of unlocking, all
doors will relock for safety.
Panic button
N
U
K
C
O
L
K
C
O
LC
I
N
A
P
Locking operationUnlocking operation
Push
Push and hold
Push ONCE: Driver door
TWICE: All doors
Text_414844M2.qxd 11/2/10 4:11 PM Page 6
