2011 TOYOTA CAMRY Quick Reference Guide

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

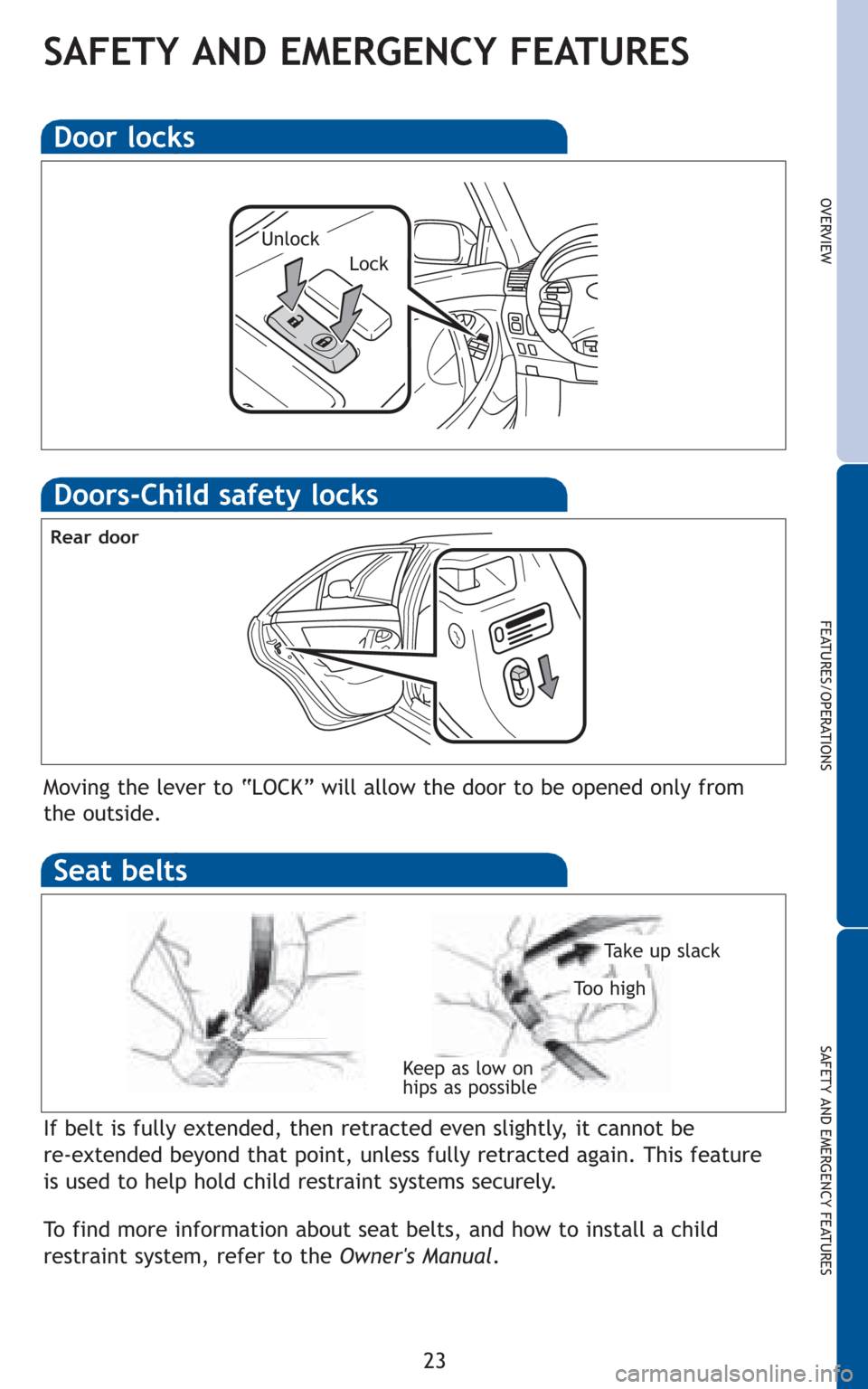

Door locks
Lock
Unlock
SAFETY AND EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Doors-Child safety locks
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts

24
Rear seat outside
position guides provide
added comfort for
children who have
outgrown child
restraints.
Child comfort guide
SAFETY AND EMERGENCY FEATURES
Push up, or
squeeze lock
release to lower
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks three
times.
2. Wait a few minutes to allow
initialization to complete.
Seat belts-Shoulder belt anchor
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Spare tire & tools
Tool location
Jack handle
Wheel nut wrench
Jack
Spare tire
With compact spare tire
Without compact spare tire
Removing the spare tire
(1) Loosen and remove the nut.
(2) Remove the spare tire cover.
(3) Loosen and remove the bolt.
(4) Remove the spacer (with aluminum
wheels).
Trunk-Internal release
Pull up
(1)
(2)
(3)
(4)Refer to the Owner’s Manualfor tire changing
and jack positioning procedures.
