2011 TOYOTA CAMRY Quick Reference Guide

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Power outlets-12V DC
Front console
The “ENGINE START STOP” switch/engine switch must be in the “ACC” or
“ON” position to be used.
Center console (if equipped)
Multi-information display (if equipped)
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Miles left on remaining fuel
(3) Current gas mileage
(4) Running distance from engine start
(5) Average vehicle speed from engine start
(6) Multi-information display OFF
(7) Zoom display of odometer and trip meter

16
FEATURES/OPERATIONS
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal or
clutch pedal (M anual Transmission only).
2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manualfor
more details.
For programming assistance, contact HomeLink
®at 1-800-355-3515, or
visit http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Set

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-4 in
the Owner’s Manualfor more details.
Telephone controls (Bluetooth®)
(if equipped)
MicrophoneAudio unit
Steering wheel telephone switches
SE modelXLE and LE models
Voice command
button Vo l u m e
Start call
End call
Vo l u m e
Start call
End call
Voice command
button
Sunshade-Rear (if equipped)

18
Automatic Air Conditioning
Temperature selector (driver side)
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passengers.
Indicator OFF:Synchronize temperature settings for driver and
passengers.
Fan speed
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Temperature selector (passenger side)
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Outside rearview mirror/Rear defogger
Windshield airflow/defogger
Climate control OFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
FEATURES/OPERATIONS
Air Conditioning/Heating
Clock
H-Hour set
M-Minute set

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Manual Air Conditioning
Fan speed
Temperature selector
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Outside rearview mirror*/Rear defogger
Air Conditioning ON/OFF
Use fresh air to quickly cool interior, then change to recirculate for
cooler air.
Select for maximum cooling. Air intake will automatically be set to
recirculate. It is not possible to change intake to fresh, or to turn A/C
OFF in this mode.
Fresh or recirculated cabin air
* If equipped
Seat heaters (if equipped)
Driver seatFront passenger seat

20
FEATURES/OPERATIONS
Audio
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Tu r n “ T U N E.
FILE” or “TUNE.
SCROLL.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”
Type 2 additional functions
Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track select
Station/CD
track scan Mode
Preset buttons - functions in other
modes indicated above number
Load CD(s)
View CD text
Ty p e 1
Push to skip
up/down folder
Mute/pause
Ty p e 3Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Seek station/
CD track selectMode
Preset buttons - functions in other modes
indicated above number
Push to skip
up/down folder
View CD textStation/CD track scan

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

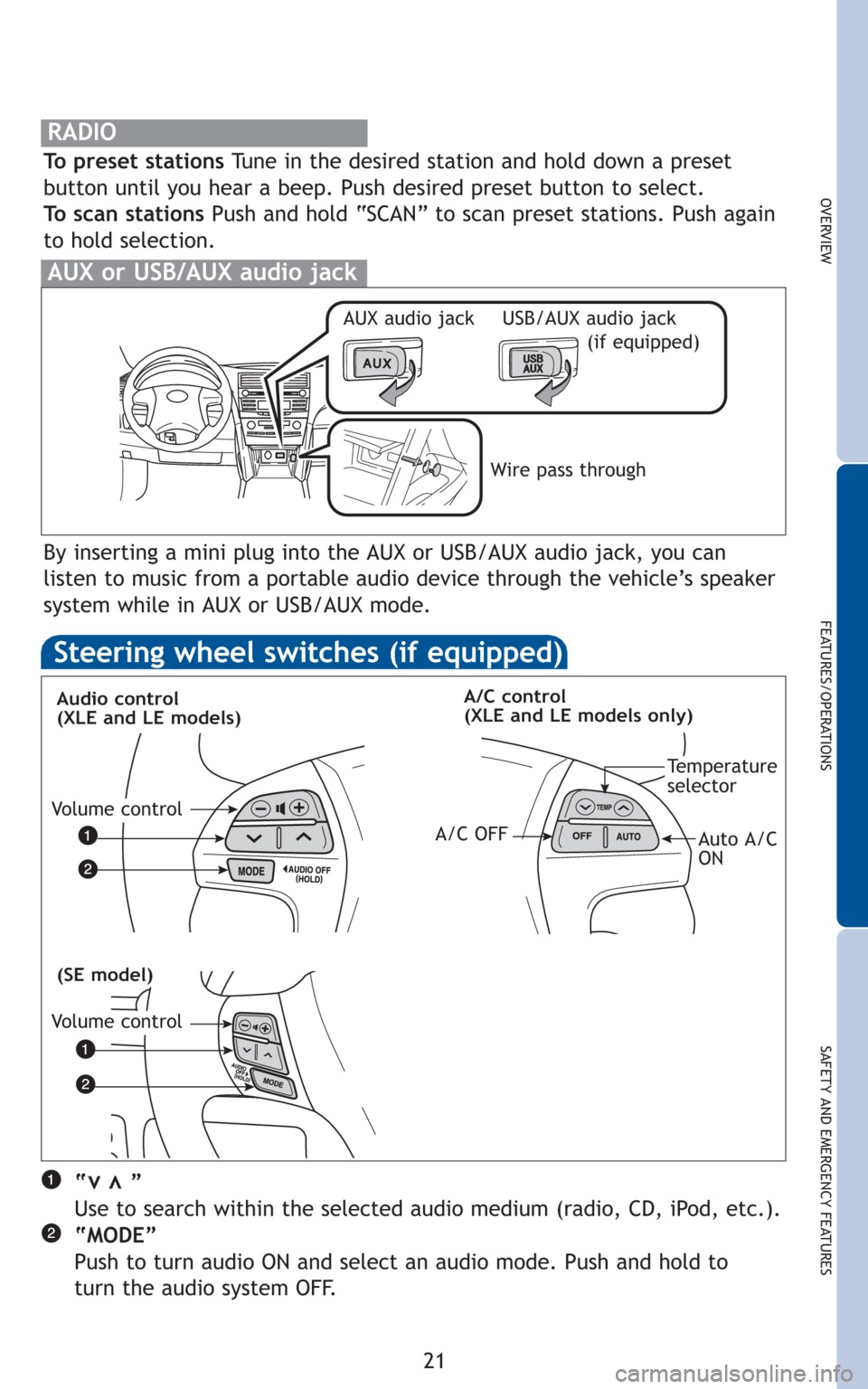

Steering wheel switches (if equipped)
Audio control
(XLE and LE models)A/C control
(XLE and LE models only)
“ ”
Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to
turn the audio system OFF.vv
Volume control
Temperature
selector
Auto A/C
ONA/C OFF
By inserting a mini plug into the AUX or USB/AUX audio jack, you can
listen to music from a portable audio device through the vehicle’s speaker
system while in AUX or USB/AUX mode.
AUX or USB/AUX audio jack
Volume control
(SE model)
Wire pass through AUX audio jack
RADIO
To preset stations Tune in the desired station and hold down a preset
button until you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
USB/AUX audio jack
(if equipped)

22
Rear
LE model XLE and SE models
FEATURES/OPERATIONS

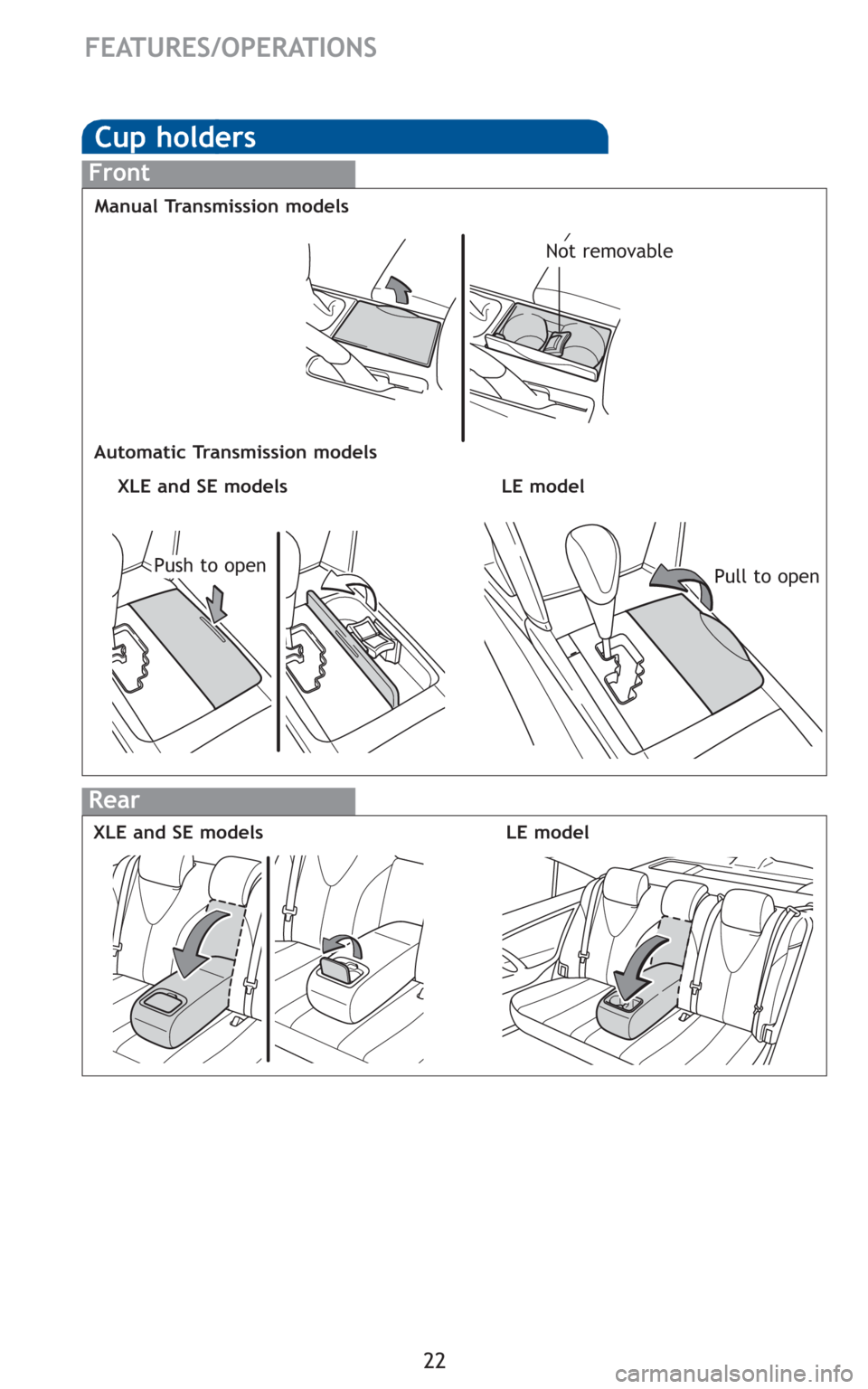

Cup holders
Front
Manual Transmission models
Not removable
Automatic Transmission models
LE model XLE and SE models
Pull to openPush to open
