2011 TOYOTA CAMRY HV Owners Manual

377
4-3. Do-it-yourself maintenance
4
Maintenance and care
Fuse layout and amperage ratings

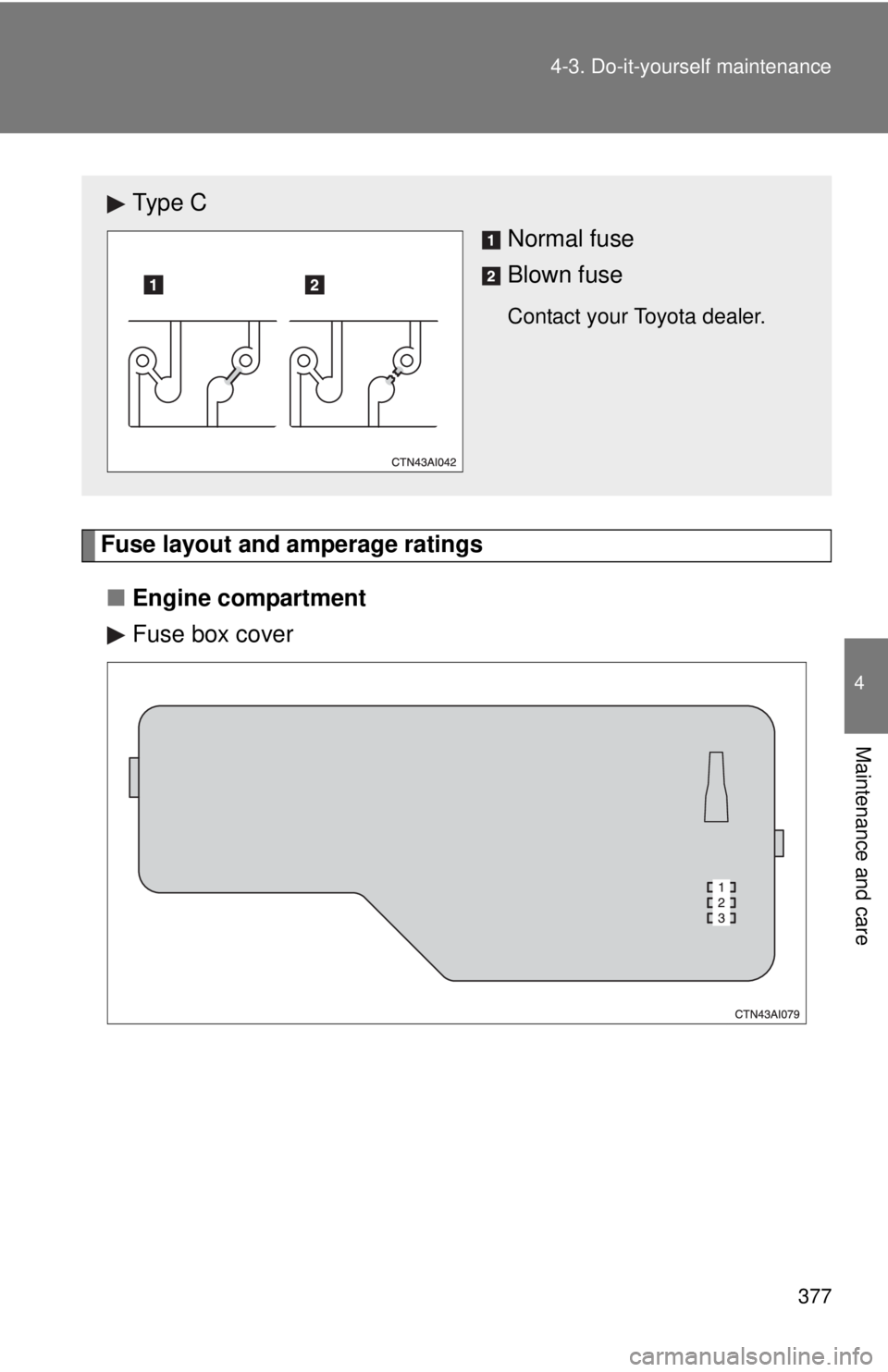

■ Engine compartment
Fuse box cover
Ty p e C
Normal fuse
Blown fuse
Contact your Toyota dealer.

378 4-3. Do-it-yourself maintenance
Fuse block
FuseAmpereCircuit
1 SPARE 30 A Spare fuse
2 SPARE 15 A Spare fuse
3 SPARE 10 A Spare fuse
4 RDI FAN 40 A Electric cooling fans
5 CDS FAN 40 A Electric cooling fans
6 RR DEF 50 A Rear window defogger, MIR HTR
7 HTR SUB1 50 A PTC heater
8 HTR SUB2 50 A PTC heater
9 HTR 50 A Air conditioning system
10 ABS MTR1 50 A Electronically controlled brake sys-
tem
11 ABS MTR2 40 A Electronically controlled brake sys-
tem
12 EPS 80 A Electric power steering system

379
4-3. Do-it-yourself maintenance
4
Maintenance and care
13 DC/DC
120 AHTR, RR DEF, HTR SUB1, HTR
SUB2, RDI FAN, CDS FAN, TAIL,
PANEL, FR FOG, CIG, RADIO
No.2, ECU-ACC, PWR OUTLET,
GAUGE No.1, ECU-IG No.1, ECU-
IG No.2, H-LP LVL, WASH, A/C
No.2, S-HTR, WIP, P/SEAT, DOOR
No.2, POWER, RR DOOR LH, RR
DOOR RH, ECU-B No.2, OBD,
FUEL OPN, PWR, STOP, S/ROOF,
TI&TE, A/C, AM1
14 STR LOCK 20 A Steering lock system
15 IG2 20 AMultiport fuel injection system/
sequential multiport fuel injection
system, starting system, GAUGE
NO.2, INJ, IGN
16 HAZ 15 A Emergency flashers
17 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, hybrid system
18 BATT FAN 10 A Hybrid battery fan
19 ABS MAIN
NO.3 10 AElectronically controlled brake sys-
tem
20 ABS MAIN
NO.1 10 AElectronically controlled brake sys-
tem
21 ABS MAIN
NO.2 10 AElectronically controlled brake sys-
tem
22 AM2 7.5 A Main body ECU
23 EFI MAIN 30 AMultiport fuel injection system/
sequential multiport fuel injection
system, electronic throttle control
system, EFI NO.3
24 AMP 25 A Audio system
FuseAmpereCircuit

380 4-3. Do-it-yourself maintenance
25 IGCT30 A Hybrid system ECU
26 DOOR NO.1 25 A Main body ECU, power door lock
27 RADIO NO.1 15 A Audio system, navigation system
28 ECU-B NO.1 10 A Front passenger occupant classifi-
cation system, main body ECU
29 DOME 10 AGauges and meters, vanity lights,
trunk light, “POWER” switch light,
door courtesy lights, interior light,
personal lights, clock, smart key
system
30 H-LP(LH) 15 A Left-hand headlight (high beam)
31 H-LP(RH) 15 A Right-hand headlight (high beam)
32 H-LP(LL) 15 A Left-hand headlight (low beam)
33 H-LP(RL) 15 A Right-hand headlight (low beam)
34 HORN 10 A Horns
35 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, smart key system
36 MPX-B 10 A Gauges and meters
37 A/F 20 A No circuit
38 S-HORN 7.5 A No circuit
39 INV W/P 15 AHybrid system ECU, hybrid battery
(traction battery), DC/DC converter,
multiport fuel injection system/
sequential multiport fuel injection
system
40 IGCT No.2 10 A Hybrid system ECU, motor genera-
tor ECU
41 EFI NO.3 10 AFuel tank system, multiport fuel
injection system/sequential multi-
port fuel injection system
FuseAmpereCircuit

381
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Under the instrument panel
FuseAmpereCircuit
1 RR DOOR RH 25 A Rear right power window
2 RR DOOR LH 25 A Rear left power window
3 FUEL OPN 7.5 A Fuel filter door opener, hybrid sys-
tem
4 FR FOG 15 A Front fog lights
5 OBD 7.5 A On-board diagnosis system
6 ECU-B NO.2 7.5 A Power windows
7 STOP 10 A Stop lights, high mounted stop-
light, shift lock control system, mul-
tiport fuel injection system/
sequential multiport fuel injection
system, main body ECU, electroni-
cally controlled brake system, elec-
tronic throttle control system
8 TI&TE 30 A No circuit
9 AM1 7.5 A Multiport fuel injection system/
sequential multiport fuel injection
system
10 A/C 7.5 A Air conditioning system

382 4-3. Do-it-yourself maintenance
11 PWR25 A Power windows
12 DOOR NO.2 25 A Main body ECU
13 S/ROOF 30 A Moon roof
14 TAIL 15 AFront side marker/parking lights,
stop/tail lights, rear side marker
lights, license plate lights, front turn
signal lights, main body ECU
15 PANEL 7.5 ANavigation system, seat heaters,
emergency flashers, air condition-
ing system, audio system, clock,
glove box light, instrument panel
lights, steering switches, rear win-
dow defogger
16 ECU IG NO.1 10 A Main body ECU, electric moon
roof, tire pressure warning system,
auto anti-glare inside rear view mir-
ror, starting system, navigation sys-
tem
17 ECU IG NO.2 7.5 A Electronically controlled brake sys-
tem, electric power steering sys-
tem, shift lock control system
18 A/C NO.2 10 AAir conditioning system, rear win-
dow defogger
19 WASH 10 A Windshield wipers and washer
20 S-HTR 20 A Seat heaters
21 GAUGE NO.1 10 A Emergency flashers, back-up lights
22 WIP 25 A Windshield wipers and washer
23 H-LP LVL 7.5 A No circuit
24 INJ 15 A No circuit
FuseAmpereCircuit

383
4-3. Do-it-yourself maintenance
4
Maintenance and care
25 IGN
10 AMultiport fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, steer-
ing lock system, front passenger
occupant classification system,
smart key system, electronic throt-
tle control system
26 GAUGE NO.2 7.5 A Gauges and meters, clock
27 ECU-ACC 7.5 A Clock, main body ECU, shift lock
control system, outside rear view
mirrors, smart key system
28 CIG 20 A No circuit
29 PWR OUTLET 20 A Power outlet
30 RADIO NO.2 7.5 A Audio system, navigation system
31 MIR HTR 10 A Outside rear view mirror defoggers
32 POWER 30 A Power windows
33 P/SEAT 30 A Power seat
■ After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacing. ( P. 385)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
FuseAmpereCircuit

384 4-3. Do-it-yourself maintenance
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer, as soon as possible.
