2011 TOYOTA CAMRY HV Owners Manual

177
2-5. Driving information
2
When driving

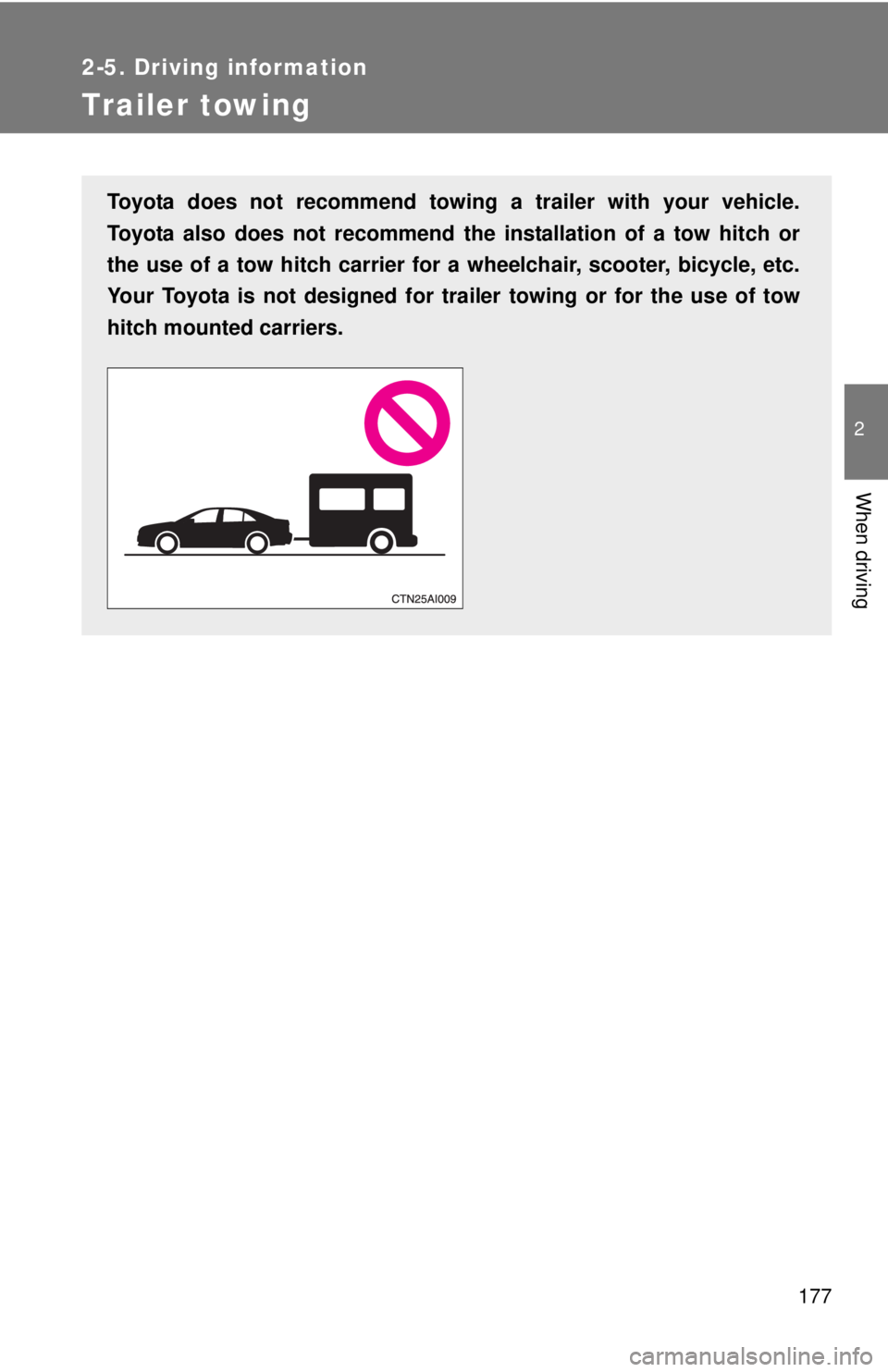

Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your Toyota is not designed for tr ailer towing or for the use of tow
hitch mounted carriers.

178
2-5. Driving information
Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

179
2-5. Driving information
2
When driving

180
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ....... 182
Rear window and outside rear view
mirror defoggers ............ 191
3-2. Using the audio system Audio system types .......... 192
Using the radio ................. 195
Using the CD player ......... 202
Playing MP3 and WMA discs............................... 210
Operating an iPod ............ 218
Operating a USB memory .......................... 225
Optimal use of the audio system.................. 232
Using the AUX port .......... 237
Using the steering wheel audio switches ..... 239
Interior features3

Interior features3
181
3-3. Using the Bluetooth®
audio system
Bluetooth
® audio
system ........................... 242
Using the Bluetooth
®
audio system.................. 245
Operating a Bluetooth
®
enabled portable
player ............................. 250
Setting up a Bluetooth
®
enabled portable
player ............................. 252
Bluetooth
® audio system
setup .............................. 257
3-4. Using the hands-free phone system
(for cellular phone)
Hands-free phone system (for cellular phone)
features .......................... 258
Using the hands-free phone system
(for cellular phone) ......... 262
Making a phone call ......... 270
Setting a cellular phone ... 274
Security and system setup .............................. 279
Using the phone book ...... 283 3-5. Using the interior lights
Interior lights list ............... 291
• Interior light ..................... 292
• Personal lights ................ 293
3-6. Using the storage features List of storage features .... 294
• Glove box........................ 295
• Console box .................... 295
• Cup holders .................... 297
• Auxiliary boxes................ 298
3-7. Other interior features Sun visors ........................ 301
Vanity mirrors ................... 302
Clock ................................ 303
Ashtray ............................. 304
Power outlet ..................... 305
Seat heaters..................... 307
Armrest ............................ 309
Floor mat .......................... 310
Trunk features .................. 311
Garage door opener......... 313
Compass .......................... 319

182
3-1. Using the air conditioning system and defogger

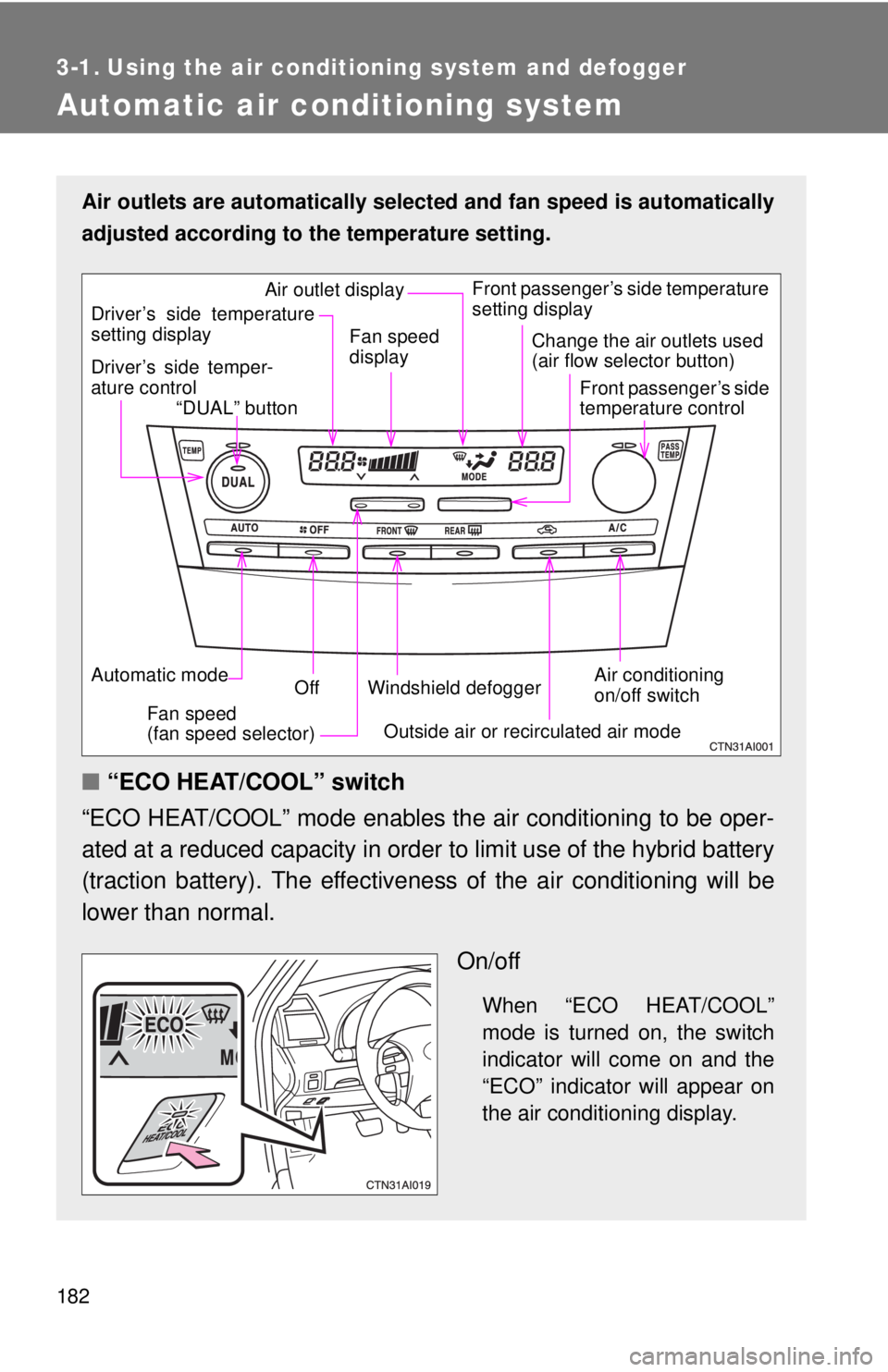

Automatic air conditioning system
Air outlets are automatically selected and fan speed is automatically
adjusted according to the temperature setting.
■ “ECO HEAT/COOL” switch
“ECO HEAT/COOL” mode enables the air conditioning to be oper-
ated at a reduced capacity in order to limit use of the hybrid battery
(traction battery). The effectivene ss of the air conditioning will be
lower than normal.
On/off
When “ECO HEAT/COOL”
mode is turned on, the switch
indicator will come on and the
“ECO” indicator will appear on
the air conditioning display.
Air conditioning
on/off switch
Front passenger’s side temperature
setting display
Driver’s side temper-
ature control “DUAL” button
Automatic mode Off
Driver’s side temperature
setting display
Fan speed
(fan speed selector) Outside air or recirculated air mode
Fan speed
display
Change the air outlets used
(air flow selector button)
Front passenger’s side
temperature control
Windshield defogger
Air outlet display

183
3-1. Using the air conditioning system
and defogger
3
Interior features
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets
and fan speed are automatically adjusted according to the
temperature setting.
Turning to the right increases the temperature and
turning to the left decreases the temperature on the
driver’s side.
The temperature for the driver and passenger seats can be set sep-
arately. ( P. 183)
Adjusting the settings
■ Adjusting the temperature setting
Turning to the right increases the temperature and turning
to the left decreases the temperature on the driver’s side.
Turning to the right (increase) or to the left (decrease) on
the passenger’s side to separately adjust the temperature for the pas-
senger’s and driver’s side (dual mode). Press to return the
driver's and passenger side temperatures to the same setting (simulta-
neous mode).
The air conditioning system switches between dual and simultaneous
mode each time is pressed.
STEP1
STEP2

184 3-1. Using the air conditioning system and defogger
■Adjusting the fan speed
Press “ ” (increase) or “ ” (decrease) on the fan speed selector.
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
■ Changing the air outlets
Press the air flow selector button.
The air outlets switch each time the button is pressed. The air flow
shown on the display indicates the following.
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
