61 1-3. Adjustable components (seats, steering wheel, mirrors)
1
Before driving
AVALON_U (OM41428U)■Canceling the linked door unlock operation
Close the driver’s door with the “ENGINE START STOP”
switch OFF.
Push the “SET” button and the button on the wireless
remote control at the same time for about 1 second until you
hear 2 beeps.
■Retained accessory power
Memorized positions can be activated up to 180 seconds after the driver’s
door is opened and another 60 seconds after it is closed again, even if the
“ENGINE START STOP” switch or the engine switch is OFF.
■If any position memory button is pushed while the adjustments are
being made
The operation will stop. To reactivate the system, push the desired button
(“1” or “2”) again.
■If the battery is disconnected
The memorized positions must be reset because the computer’s memory is
erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear pas-
senger.
If this happens, you can stop the movement by pressing another seat posi-
tion memory button.

62
1-3. Adjustable components (seats, steering wheel, mirrors)
AVALON_U (OM41428U)

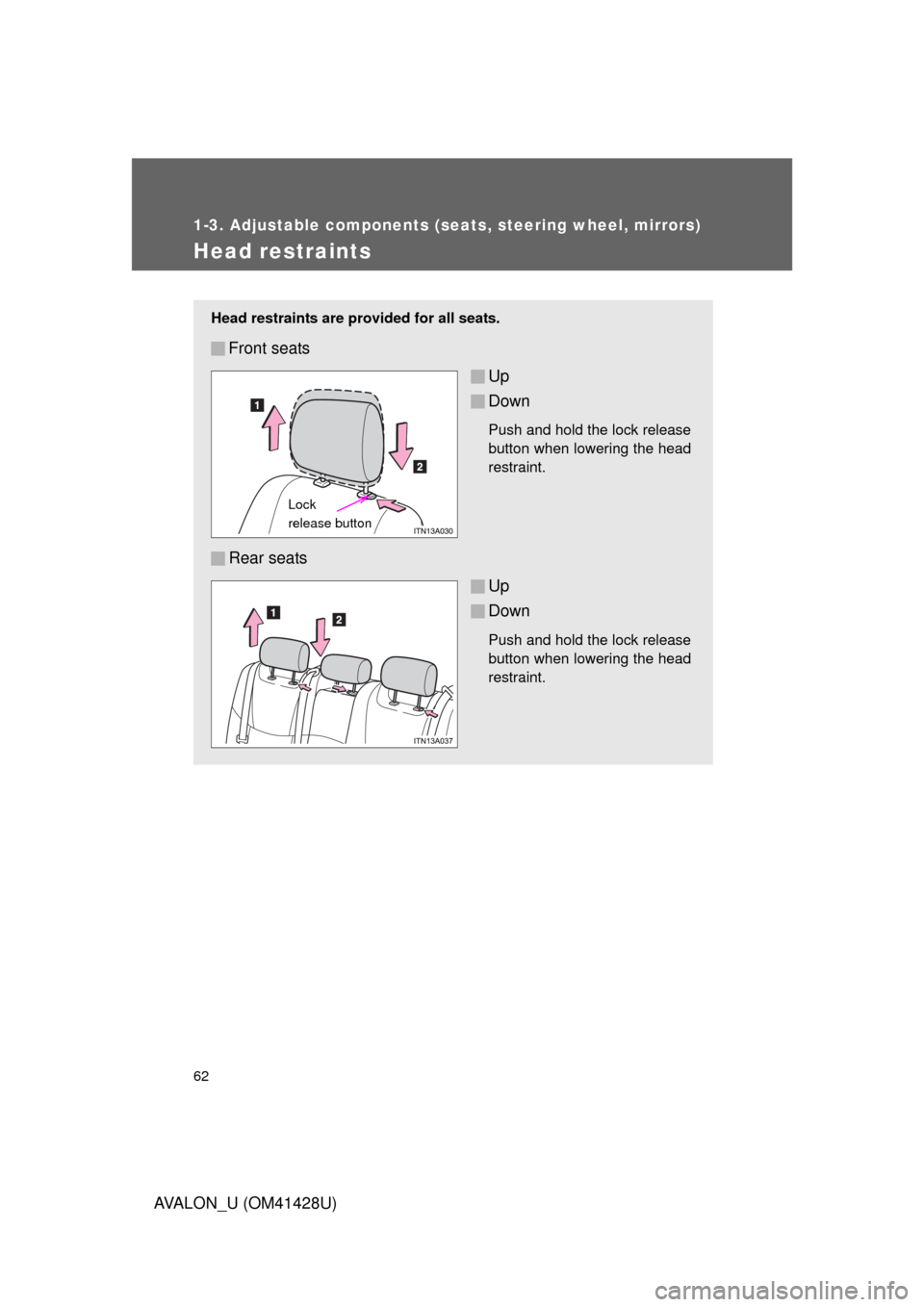

Head restraints
Head restraints are provided for all seats.
Front seats
Up
Down
Push and hold the lock release
button when lowering the head
restraint.
Rear seats
Up
Down
Push and hold the lock release
button when lowering the head
restraint.
Lock
release button

63 1-3. Adjustable components (seats, steering wheel, mirrors)
1
Before driving
AVALON_U (OM41428U)
■Removing the head restraints
■Installing the head restraints
■Adjusting the height of the head restraints
■Adjusting the center rear seat head restraint
Always raise the head restraint one level from the stowed position when
using.
Pull the head restraint up while pushing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

64 1-3. Adjustable components (seats, steering wheel, mirrors)
AVALON_U (OM41428U)
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure
they are locked in position.
●Do not drive with the head restraints removed.

65
1
1-3. Adjustable components (seats, steering wheel, mirrors)
Before driving
AVALON_U (OM41428U)
Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
■Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
■Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is heard.
Releasing the belt
Press the release button.
Release button

66 1-3. Adjustable components (seats, steering wheel, mirrors)
AVALON_U (OM41428U)
Seat belt comfort guide (outside rear seats)
If the shoulder belt sits close to a person’s neck, use the seat belt
comfort guide.
Pull the comfort guide from the
pocket.
Slide the belt past the slot of the
guide.
The elastic must be behind the
seat belt.
■Adjusting the height of the belt (front seats)
Down
Up
Move the height adjuster up
and down as needed until you
hear a click.

67 1-3. Adjustable components (seats, steering wheel, mirrors)
1
Before driving
AVALON_U (OM41428U)Buckle, position and release the
seat belt.
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.

68 1-3. Adjustable components (seats, steering wheel, mirrors)
AVALON_U (OM41428U)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend, and you can move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. (P. 128)
■Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. (P. 65)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only a pregnant woman, but also the fetus
could suffer death or serious injury as a
result of sudden braking or a collision.
