2011 SUBARU IMPREZA WRX STI engine

Black plate (426,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
12-10
Specifications
& Engine coolant
NOTEEach quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors.
Model Coolant capacity Coolant type
Non-turbo models MT models
7.2 US qt (6.8 liters, 6.0 Imp qt)
SUBARU Super Coolant
AT models
7.1 US qt (6.7 liters, 5.9 Imp qt)
Turbo models Except STI
7.8 US qt (7.4 liters, 6.5 Imp qt)
STI 8.1 US qt (7.7 liters, 6.8 Imp qt)
For the checking, adding and replacing procedure, or other details, refer to “Cooling system ”F 11-13.

Black plate (428,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
12-12
Specifications
Fuses and circuits& Fuse panel located in the passenger compartment
Fuse
panel Fuse
rating Circuit
1 Empty
2 Empty
3 15A .Door locking
4 10A .Front wiper deicer relay
5 10A .Combination meter
. Clock
6 7.5A .Remote control rear
view mirrors
. Seat heater relay
7 15A .Combination meter
. Integrated unit
8 20A .Stop light
9 15A .Front wiper deicer
10 7.5A .Power supply (battery)
11 7.5A .Turn signal unit
12 15A .Automatic transmission
unit
. Engine control unit
. Integrated unit
13 20A .Accessory power outlet
(center console)
14 15A .Position light
. Tail light
. Rear combination light
15 Empty (FWD connector for
AWD AT models)

Black plate (430,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
12-14
Specifications

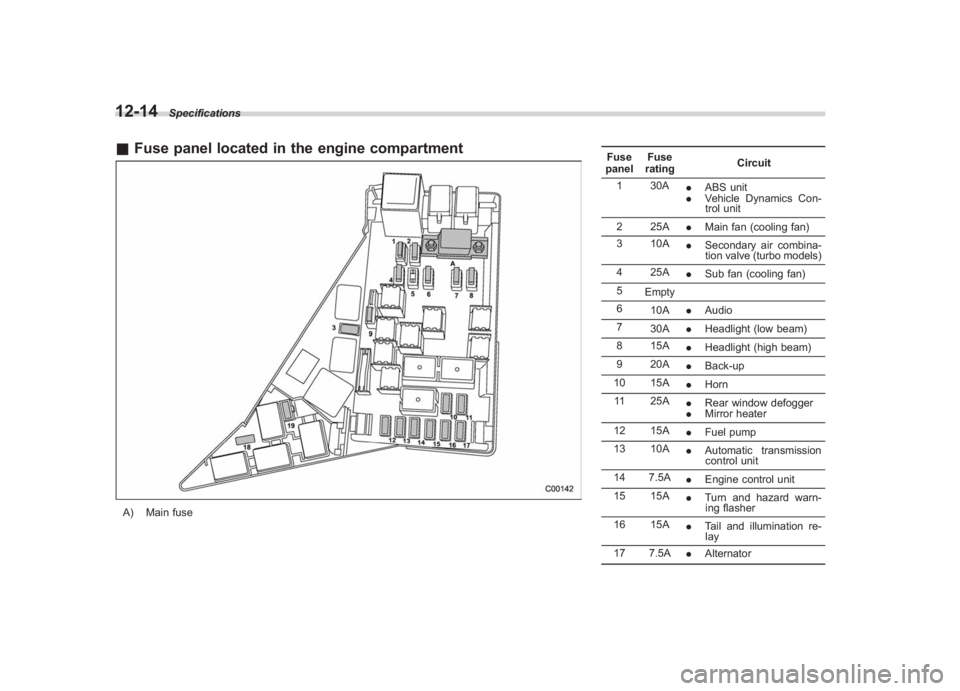

& Fuse panel located in the engine compartmentA) Main fuse Fuse
panel Fuse
rating Circuit
1 30A .ABS unit
. Vehicle Dynamics Con-
trol unit
2 25A .Main fan (cooling fan)
3 10A .Secondary air combina-
tion valve (turbo models)
4 25A .Sub fan (cooling fan)
5 Empty
6 10A .Audio
7 30A .Headlight (low beam)
8 15A .Headlight (high beam)
9 20A .Back-up
10 15A .Horn
11 25A .Rear window defogger
. Mirror heater
12 15A .Fuel pump
13 10A .Automatic transmission
control unit
14 7.5A .Engine control unit
15 15A .Turn and hazard warn-
ing flasher
16 15A .Tail and illumination re-
lay
17 7.5A .Alternator

Black plate (441,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
crease in temperature could cause
tread separation, and failure of the
tire(s). Possible resulting loss of
vehicle control could lead to an
accident.! Measuring and adjusting air
pressure to achieve proper in-
flationCheck and, if necessary, adjust the
pressure of each tire (including the
spare) at least once a month and
before any long journey. Check the
tire pressures when the tires are
cold. Use a pressure gauge to
adjust the tire pressures to the
specific values. Driving even a
short distance warms up the tires
and increases the tire pressures.
Also, the tire pressures are affected
by the outside temperature. It is
best to check tire pressure out-
doors before driving the vehicle.
When a tire becomes warm, the air
inside it expands, causing the tire
pressure to increase. Be careful not
to mistakenly release air from a
warm tire to reduce its pressure.
&Glossary of tire terminology.
Accessory weight
The combined weight (in excess of
those standard items which may be
replaced) of automatic transmis-
sion, power steering, power brakes,
power windows, power seats, radio,
and heater, to the extent that these
items are available as factory-in-
stalled equipment (whether in-
stalled or not)..
Bead
The part of the tire that is made of
steel wires, wrapped or reinforced
by ply cords and that is shaped to fit
the rim..
Bead separation
A breakdown of the bond between
components in the bead..
Bias ply tire
A pneumatic tire in which the ply
cords that extend to the beads are
laid at alternate angles substantially
less than 90 degrees to the center-
line of the tread..
Carcass
The tire structure, except tread and sidewall rubber which, when in-
flated, bears the load.
.
Chunking
The breaking away of pieces of the
tread or sidewall..
Cold tire pressure
The pressure in a tire that has been
driven less than 1 mile or has been
standing for three hours or more..
Cord
The strands forming the plies in the
tire..
Cord separation
The parting of cords from adjacent
rubber compounds..
Cracking
Any parting within the tread, side-
wall, or inner liner of the tire
extending to cord material..
Curb weight
The weight of a motor vehicle with
standard equipment including the
maximum capacity of fuel, oil and
coolant, and if so equipped, air
conditioning and additional weight
optional engine.
Consumer information and Reporting safety defects
13-5
–
CONTINUED –
13

Black plate (2,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
14-2
Index
A
ABS (Anti-lock Brake System) ..................................... 7-32
Warning light ......................................................... 3-21
Accessories ....................................................... 5-4, 11-46
Accessory power outlet ................................................. 6-8
Active head restraint ..................................................... 1-5
Air cleaner element ................................................... 11-17
Air conditioner Automatic climate control system ............................. 4-11
Manual climate control system ............................. 4-4, 4-7
Air filtration system ..................................................... 4-13
Airflow selection Automatic climate control system ......................... 4-2, 4-9
Manual climate control system ............................. 4-2, 4-4
Alarm system ............................................................ 2-16
All-Wheel Drive warning light ....................................... 3-23
Aluminum wheel ....................................................... 11-38
Cleaning ............................................................... 10-3
Antenna system ........................................................... 5-3
Anti-lock Brake System (ABS) ..................................... 7-32
Arming the system ..................................................... 2-17
Armrest ....................................................................... 1-8
Ashtray ..................................................................... 6-10
AT OIL TEMP warning light ......................................... 3-18
Audio Antenna system ....................................................... 5-3
Auxiliary input jack ................................................. 5-34
Bluetooth
®audio .................................................... 5-45
CD player operation ............................................... 5-23
Control button ........................................................ 5-42
FM/AM radio operation ........................................... 5-12 iPod
®operations
.................................................... 5-37
Power and sound controls ........................................ 5-8
Satellite radio operations ......................................... 5-17
Set ........................................................................\
5-4
USB storage device operations ................................ 5-37
Auto-dimming mirror/compass .............................. 3-40, 3-41
Automatic climate control system ................................... 4-8
Automatic transmission ............................................... 7-22
Fluid ........................................................... 11-22, 12-9
MANUAL mode ...................................................... 7-26
Oil temperature warning light (AT OIL TEMP) ............. 3-18
Select lever ........................................................... 7-23
Shift lock function ................................................... 7-24
SPORT mode ........................................................ 7-28
Automatic/Emergency Locking Retractor (A/ELR) ........... 1-12
Auxiliary input jack ...................................................... 5-34
B
Battery .................................................................... 11-44
Drainage prevention function ..................................... 2-5
Jump starting ......................................................... 9-11
Replacement (remote engine start transmitter) ........... 7-13
Replacement (remote keyless entry system) .............. 2-11
Bluetooth®audio ........................................................ 5-45
Booster seat .............................................................. 1-27
Bottle holder ............................................................... 6-7
Brake Assist .................................................................... 7-32
Booster ....................................................... 7-31, 11-27
Fluid ........................................................... 11-25, 12-9
Pad and lining ...................................................... 11-30

Black plate (3,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
Parking ........................................................ 7-40, 11-31
Pedal .................................................................. 11-28
System ................................................................. 7-31
Brake pedal Free play ............................................................. 11-28
Reserve distance .................................................. 11-28
Brake system ............................................................ 7-31
Warning light ......................................................... 3-21
Braking ..................................................................... 7-31
Tips...................................................................... 7-31
Breaking-in of new brake pads and linings ................... 11-30
Bulb Chart .................................................................. 12-16
Replacing ............................................................. 11-47
C
Cargo area Cover ................................................................... 6-12
Light ............................................................. 6-2, 11-54
Tie-down hooks ..................................................... 6-13
Catalytic converter ....................................................... 8-3
Center Console .................................................................. 6-5
Ventilators ............................................................... 4-3
Center and side ventilators ............................................ 4-3
Changing Coolant ................................................................ 11-15
Flat tire ................................................................... 9-6
Oil and oil filter ..................................................... 11-11
Charge warning light .................................................. 3-18 CHECK ENGINE warning light/Malfunction indicator
lamp ...................................................................... 3-16
Checking
Brake pedal free play ............................................ 11-28
Brake pedal reserve distance ................................. 11-28
Clutch function ..................................................... 11-29
Clutch pedal free play ........................................... 11-29
Coolant level ........................................................ 11-14
Fluid level (automatic transmission fluid) .................. 11-22
Fluid level (brake fluid) .......................................... 11-25
Fluid level (clutch fluid) .......................................... 11-26
Fluid level (power steering fluid) .. ........................... 11-24
Fluid level (washer fluid) ........................................ 11-38
Oil level (engine oil) .............................................. 11-10
Oil level (front differential gear oil) .......................... 11-23
Oil level (manual transmission oil) .......................... 11-21
Child restraint systems ................................................ 1-21
Installation of a booster seat .................................... 1-27
Installation with A/ELR seatbelt ... ............................. 1-24
Lower and tether anchorages ................................... 1-29
Top tether anchorages ............................................ 1-31
Child safety ................................................................... 5
Locks .................................................................... 2-21
Chime Key........................................................................\
3-5
Light ..................................................................... 3-31
Seatbelt. ................................................................ 3-14
Cleaning Aluminum wheels ................................................... 10-3
Interior .................................................................. 10-5
Ventilation grille ...................................................... 4-12
Index
14-3

Black plate (4,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
14-4
Index
Climate control system
Automatic ................................................................ 4-8
Manual ................................................................... 4-3
Clock ........................................................................\
3-28
Clutch Fluid ............................................................ 11-26, 12-9
Pedal .................................................................. 11-29
Coin tray ..................................................................... 6-5
Compass .......................................................... 3-40, 3-41
Continuously variable transmission Fluid ..................................................................... 12-9
Coolant .......................................................... 11-14, 12-10
Temperature high warning light ................................ 3-17
Temperature low indicator light. ................................ 3-17
Cooling system ......................................................... 11-13
Corrosion protection ................................................... 10-4
Cruise control ............................................................ 7-44
Indicator light ......................................................... 3-26
Set indicator light ................................................... 3-27
Cup holder .................................................................. 6-5
Front passenger ’s .................................................... 6-5
Rear passenger ’s..................................................... 6-7
D
Daytime running light system ....................................... 3-33
Defogger ................................................................... 3-48
Deicer ...................................................................... 3-48
Differential gear oil Front ........................................................... 11-23, 12-8
Rear ............................................................ 11-24, 12-8
Dimensions ............................................................... 12-2 Disarming the alarm system
......................................... 2-19
Disc brake pad wear warning indicators ........................ 7-32
Dome light ......................................................... 6-2, 11-54
Door Locks ..................................................................... 2-4
Open warning light. ................................................. 3-23
Drive belts ............................................................... 11-20
Driver ’s Control Center Differential ................................ 7-18
Auto indicator light .................................................. 3-27
Indicator light ......................................................... 3-27
Driving All-Wheel Drive warning light ................................... 3-23
AWD vehicles ......................................................... 8-5
Car phone/cell phone .................................................. 8
Drinking. .................................................................... 7
Drugs ........................................................................\
7
Foreign countries ..................................................... 8-4
Off road .................................................................. 8-6
Pets ........................................................................\
.. 8
Snowy and icy roads ............................................... 8-9
Tips ................................................. 7-16, 7-18, 8-2, 8-5
Tired or sleepy ........................................................... 8
Winter .................................................................... 8-8
E
Electrical system ........................................................ 12-3
Electronic Brake Force Distribution (EBD) system... 3-22, 7-33
Emergency Locking Retractor (ELR) ............................. 1-12
Engine Compartment overview ............................................ 11-7
Coolant ..................................................... 11-14, 12-10

Black plate (7,1)
北米Model "A1110BE-C" EDITED: 2010/ 12/ 17
Light
Back-up (4-door) ................................................... 11-51
Back-up (5-door) ................................................... 11-52
Brake/Tail and rear side marker (4-door) .................. 11-51
Cargo area .............................................................. 6-2
Control switch ........................................................ 3-31
Dome ..................................................................... 6-2
Front fog ...................................................... 3-36, 11-50
Front position ........................................................ 3-32
High mount stop ................................................... 11-55
Ignition switch .......................................................... 3-5
License plate ........................................................ 11-53
Map ............................................................. 6-3, 11-53
Rear combination .................................................. 11-51
Trunk ................................................................... 11-55
Turn signal ......................................... 3-33, 11-50, 11-51
Limited slip differential (LSD) ....................................... 7-30
Loading your vehicle .................................................. 8-12
Low fuel warning light ......................................... 3-10, 3-22
Low tire pressure warning light .................................... 3-19
Lower and tether anchorage ........................................ 1-29
LSD (Limited slip differential) ....................................... 7-30
M
Main fuse ................................................................. 11-46
Maintenance Precautions ........................................................... 11-3
Schedule .............................................................. 11-3
Seatbelt ................................................................ 1-19
Tools ...................................................................... 9-4 Malfunction indicator lamp (check engine warning
light) ...................................................................... 3-16
Manual
Climate control system ............................................. 4-3
Transmission oil ........................................... 11-21, 12-8
Transmission-5 speeds ........................................... 7-17
Transmission-6 speeds ........................................... 7-15
Map light ........................................................... 6-3, 11-53
Meters and gauges ...................................................... 3-6
Mirror defogger .......................................................... 3-48
Mirrors ...................................................................... 3-40
Moonroof ........................................................... 2-29, 9-19
N
New vehicle break-in driving ......................................... 8-2
O
Odometer/Trip meter .................................................... 3-8
Off road driving ........................................................... 8-6
Oil filter ................................................................... 11-11
Oil level Engine ................................................................ 11-10
Front differential gear ............................................ 11-23
Manual transmission ............................................. 11-21
Rear differential gear ............................................ 11-24
Oil pressure warning light ............................................ 3-18
Outside Mirror defogger ...................................................... 3-48
Mirrors .................................................................. 3-47
Temperature indicator .............................................. 3-29
Overheating engine .................................................... 9-13
Index
14-7
