2011 SUBARU IMPREZA Owners Manual

14 &Interior
! Passenger compartment area
1) Lower anchorages for child restraint
system (page 1-29)
2) Seatbelt (page 1-11)
3) Parking brake lever (page 7-40)
4) Front seat (page 1-2)
5) Rear seat (page 1-7)

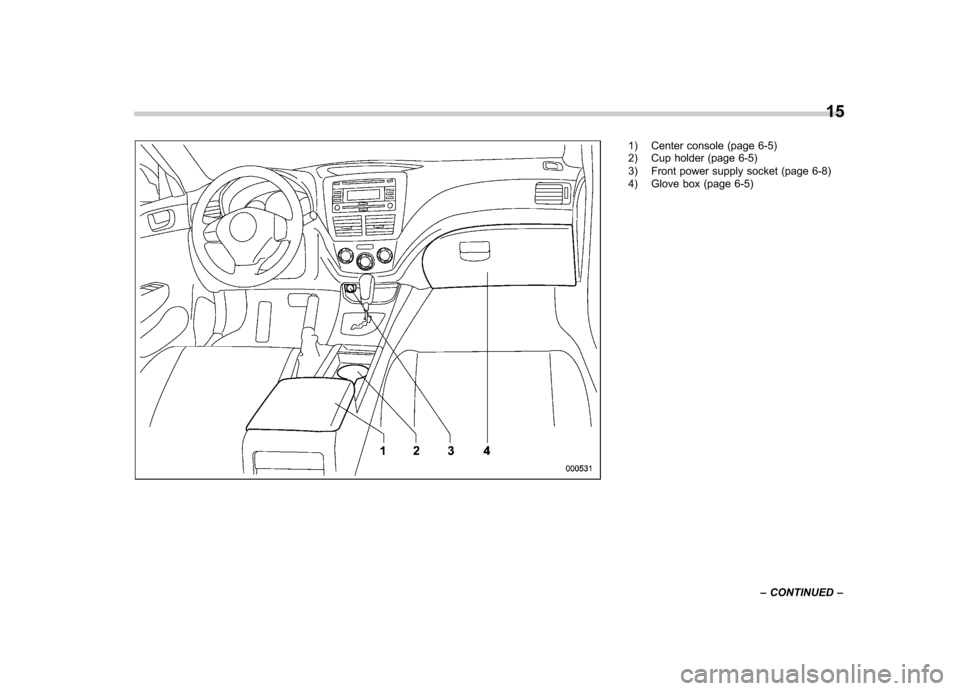

1) Center console (page 6-5)
2) Cup holder (page 6-5)
3) Front power supply socket (page 6-8)
4) Glove box (page 6-5)15
– CONTINUED –

16 &Instrument panel
1) Door locks (page 2-4)
2) Outside mirror switch (page 3-47)
3) Illumination brightness control
(page 3-33)
4) Headlight beam leveler (page 3-34)
5) Light control switch (page 3-31)
6) Combination meter (page 3-6)
7) Wiper control lever (page 3-36)
8) Hazard warning flasher switch (page 3-5)
9) Audio (page 5-1)
10) Shift lever (MT) (page 7-15/page 7-17)/ Select lever (AT) (page 7-22)
11) Climate control (page 4-1)
12) Cruise control (page 7-44)
13) Horn (page 3-51)
14) SRS airbag (page 1-35)
15) Tilt/telescopic steering (page 3-50)
16) Hands-free switches (page 5-46)
17) Audio control buttons (page 5-42)
18) Fuse box (page 11-45)
19) Vehicle Dynamics Control OFF switch (page 7-37)/Vehicle Dynamics Control
mode switch (page 7-36)
20) Hood lock release knob (page 11-5)
21) Power windows (page 2-21)

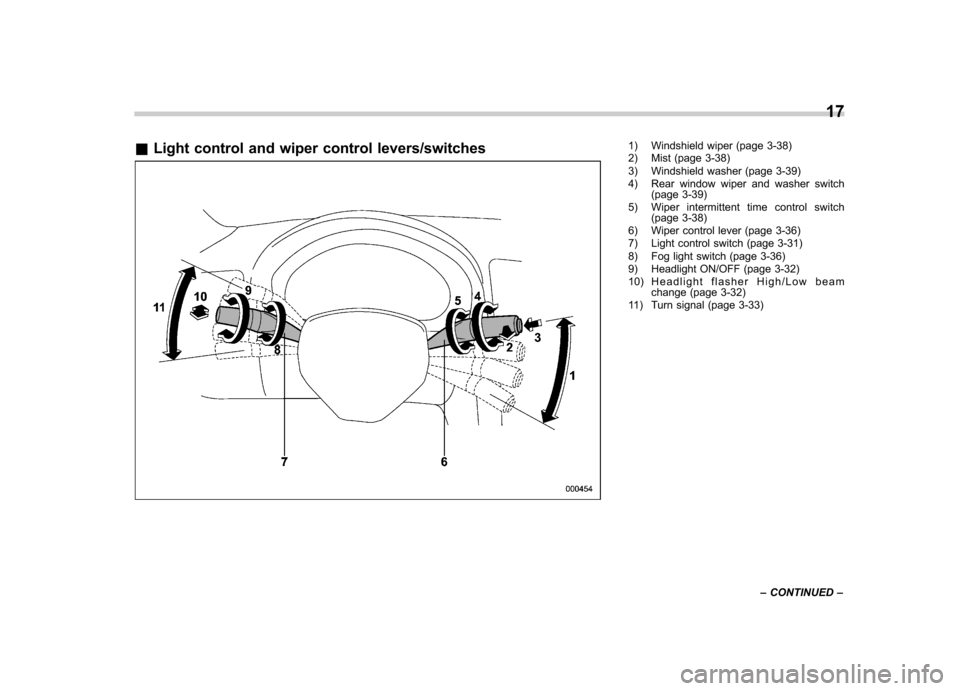

&Light control and wiper control levers/switches1) Windshield wiper (page 3-38)
2) Mist (page 3-38)
3) Windshield washer (page 3-39)
4) Rear window wiper and washer switch
(page 3-39)
5) Wiper intermittent time control switch (page 3-38)
6) Wiper control lever (page 3-36)
7) Light control switch (page 3-31)
8) Fog light switch (page 3-36)
9) Headlight ON/OFF (page 3-32)
10) Headlight flasher High/Low beam change (page 3-32)
11) Turn signal (page 3-33) 17
– CONTINUED –

18 &Combination meter
! U.S.-spec. models (STI)
1) Fuel gauge (page 3-10)
2) Tachometer (page 3-9)
3) Speedometer (page 3-8)
4) Trip meter A/B selection and trip meter
reset knob (page 3-8)
5) Odometer/Trip meter (page 3-8)
6) Temperature gauge (page 3-11)

!U.S.-spec. models (turbo models except STI)1) Fuel gauge (page 3-10)
2) Tachometer (page 3-9)
3) Speedometer (page 3-8)
4) Trip meter A/B selection and trip meter
reset knob (page 3-8)
5) Odometer/Trip meter (page 3-8)
6) Select lever/gear position indicator (AT models) (page 3-26)
7) Temperature gauge (page 3-11) 19
– CONTINUED –

20 !U.S.-spec. models (non-turbo models)
1) Tachometer (page 3-9)
2) Speedometer (page 3-8)
3) Fuel gauge (page 3-10)
4) Trip meter A/B selection and trip meter
reset knob (page 3-8)
5) Odometer/Trip meter (page 3-8)
6) Select lever/gear position indicator (AT models) (page 3-26)
7) Coolant temperature warning/indicator light (page 3-17)

!Except U.S.-spec. models (STI)1) Fuel gauge (page 3-10)
2) Tachometer (page 3-9)
3) Speedometer (page 3-8)
4) Trip meter A/B selection and trip meter
reset knob (page 3-8)
5) Odometer/Trip meter (page 3-8)
6) Temperature gauge (page 3-11) 21
– CONTINUED –
