Contents
4
Driving Tips
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Intelligent Technology
. . . . . . . . . . . . . . . . . . . . . . .
Electronic stability programme (ESP)* . . . . . . . . . .
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antilock brake system (ABS) . . . . . . . . . . . . . . . . . . .
Brake Assist* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electromechanical power steering . . . . . . . . . . . . .
Tyre inflation pressure-control system* . . . . . . . .
Driving and the Environment
. . . . . . . . . . . . . . . .
The first 1 500 kilometres and then afterwards .
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving in an economical and environmentally
conscious manner . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Environmental compatibility . . . . . . . . . . . . . . . . . . .
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Avoiding damage to your vehicle . . . . . . . . . . . . . .
Driving through bodies of water on roads . . . . . .
Towing a trailer
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Maintenance
. . . . . . . . . . . . . . . .
Taking care of your vehicle and cleaning the
vehicle
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Care of the exterior of vehicle . . . . . . . . . . . . . . . . .
Care of the interior of vehicle . . . . . . . . . . . . . . . . . .
Fuel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inspecting and replenishing
. . . . . . . . . . . . . . . . . .
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield washer system . . . . . . . . . . . . . . . . . . . .
Wheels and Tyres
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories, changing and replacing parts
. .
Accessories and replacement parts . . . . . . . . . . . .
Technical changes . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicles of category N1 . . . . . . . . . . . . . . . . . . . . . . .
Breakdown assistance
. . . . . . . . . . . . .
Breakdown assistance
. . . . . . . . . . . . . . . . . . . . . . .
First-aid box* and Warning triangle* (Octavia) . .
First-aid box* and warning triangle* (Estate car)
Fire extinguisher* . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spare wheel* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tyre repair kit* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tow-starting and towing vehicle . . . . . . . . . . . . . .
Fuses and light bulbs
. . . . . . . . . . . . . . . . . . . . . . . . .
Electric fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data
. . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General information . . . . . . . . . . . . . . . . . . . . . . . . . .
Used abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . .
Performances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identification details . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel consumption based on ECE regulations and EC
guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil specifications . . . . . . . . . . . . . . . . . . . . . .
1.4 ltr./59 kW - EU5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.6 ltr./75 kW - EU4, EU2 . . . . . . . . . . . . . . . . . . . . . .
2.0 l/81 kW TDI CR EU4 . . . . . . . . . . . . . . . . . . . . . . .
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
105105105107108108109109109111111111112115116116116118118121121121121125127127127128130130132133135
136140141141146146146146147147147147147147148148149153154156156159165165165165165165165166166166168
170172175
s2lk.2.book Page 4 Monday, April 18, 2011 7:41 AM

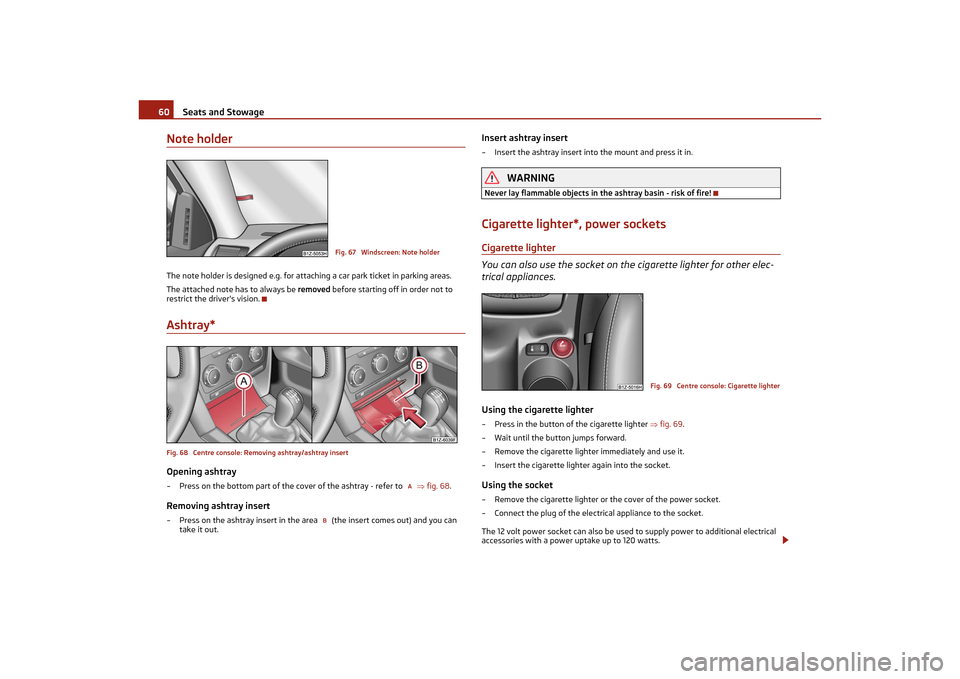

Seats and Stowage
60
Note holderThe note holder is designed e.g. for attaching a car park ticket in parking areas.
The attached note has to always be removed before starting off in order not to
restrict the driver's vision.Ashtray*Fig. 68 Centre console: Re moving ashtray/ashtray insertOpening ashtray– Press on the bottom part of the cover of the ashtray - refer to fig. 68 .Removing ashtray insert– Press on the ashtray insert in the area (the insert comes out) and you can
take it out.
Insert ashtray insert– Insert the ashtray insert into the mount and press it in.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!Cigarette lighter*, power socketsCigarette lighter
You can also use the socket on the cigarette lighter for other elec-
trical appliances.Using the cigarette lighter– Press in the button of the cigarette lighter fig. 69 .
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket.Using the socket– Remove the cigarette lighter or the cover of the power socket.
– Connect the plug of the electrical appliance to the socket.
The 12 volt power socket can also be used to supply power to additional electrical
accessories with a power uptake up to 120 watts.
Fig. 67 Windscreen: Note holder
A
B
Fig. 69 Centre console: Cigarette lighter
s2lk.2.book Page 60 Monday, April 18, 2011 7:41 AM

Starting-off and Driving
74
Applies to all models:
Position
To lock the steering , with the ignition key withdrawn, turn the steering wheel until
the steering locking pin is heard to engage. You should always lock the steering as
a general rule if you leave your vehicle. This acts as a deterrent against possible
theft of your vehicle .
Position
Move the steering wheel back and forward a little if the ignition key cannot, or
cannot easily be turned into this positi on, in order to release the steering lock.
Position
The engine is started in this position. At the same time any switched on low beam
or main beam or other electrical compon ents with major electrical consumers are
briefly switched off. The ignition key moves back into position after being
released.
The ignition key must be turned back into position each time before starting the
engine again. The starter repeat lock in the ignition lock prevents the starter being
engaged when the engine is running and thus getting damaged.
WARNING
•
When driving, the ignition key must al ways be in the position (ignition
switched on) without the engine running. This position is indicated by the
warning lights coming on. If this is not the case, it could result in unexpected
locking of the steering wheel - risk of accident!
•
Do not withdraw the ignition key from the lock until the vehicle has come to
a stop. The steering lock can engage immediately - risk of accident!
•
Always withdraw the ignition key if you are going to leave the vehicle, even
for a short time. This is particularly import ant if children are left in the vehicle.
Children might otherwise start the engine or switch on electrical equipment (e.g.
power windows) - risk of accident or injury!
Starting the engineGeneral
You can only start the engine only using an original ignition key.•
Place the gearshift lever into neutral an d put on the handbrake firmly before
starting the engine.
•
Before starting, it is necessary to depress the clutch pedal and to keep it pressed
down until the engine starts. If you try and start the engine without pressing the
clutch pedal, the engine will not start. A message in the information display of the
instrument cluster will also appear indicate the need to press the clutch pedal.
•
Let go of the ignition key as soon as the engine starts otherwise you may
damage the starter.
The engine running noises may louder at first be louder for a short time after
starting the cold engine until oil pressure can be built up in the hydraulic valve clear-
ance compensation. This is quite norm al and is not an operating problem.
If the engine does not start ...
You can use the battery of anothe r vehicle as a jump-start aid page 153.
It is only possible to tow-start vehicles fitted with a manual gearbox. The tow-
starting distance must not be more than 50 metres. Observe the following
guidelines page 154, “Tow-starting and towing vehicle”.
WARNING
•
Never run the engine in non ventilated or enclosed areas. The exhaust gases
of the engine contain besides the odourless and colourless carbon monoxide a
poisonous gas - hazard! Carbon mono xide can cause unconsciousness and
death.
•
Never leave your vehicle unattended with the engine running.Caution
•
The starter may only be operated (ignitio n key position ), if the engine is not
running. If the starter is immediately operated after switching off the engine, the
starter or the engine can be damaged.
•
Avoid high engine revolutions, full throttle and high engine loads as long as the
engine has not yet reached its normal operating temperature - risk of damaging the
engine!
•
Vehicles which are fitted with an exhaus t gas catalytic converter should not be
tow-started over a distance of more than 50 metres.For the sake of the environment
Never warm up the engine when the vehicle is standing. Drive off right away.
Through this the engine reaches its operating temperature more rapidly and the
pollutant emissions are lower.
123
2
1
2
3
s2lk.2.book Page 74 Monday, April 18, 2011 7:41 AM

Inspecting and replenishing137
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
skin diseases (inflammations, ulcers, sk
in cracks). Acids coming into contact
with water are diluted accompanied by significant development of heat.
•
Do not tilt the battery otherwise batt ery electrolyte may flow out of the
battery vent openings. Protect the eyes wi th safety glasses or a shield! There is
the danger of suffering blindness! If any battery electrolyte gets into your eye,
rinse out your eye immediately with clear water for several minutes. Contact a
doctor without delay.
•
Splashes of acid on your skin or clot hes should be neutralised as soon as
possible using soap suds and then rinsed with plenty of water. Contact a doctor
immediately if you swal low battery electrolyte.
•
Keep batteries out of the reach of children.
•
Hydrogen is released when you charge a battery and a highly explosive gas
mixture is produced. An explosion can be caused through sparkling over during
unclamping or loosening of the cable plug while the ignition is on.
•
Bridging of the poles will create a short circuit (e.g. through metal objects,
cables). Possible consequences of a short circuit: Melting of lead struts, explo-
sion and burning of the battery, jets of acid spurting out.
•
It is prohibited to work with a naked fl ame and light, to smoke or to carry out
any activities which produce sparks. Avoid creating sparks when working with
cables and electrical devices. Strong spar k build-up represents a risk of injury.
•
Before carrying out any work on the electrical system, switch off the engine,
the ignition as well as all electrical components and disconnect the negative
cable (-) on the battery. If you wish to repl ace a bulb it is sufficient to switch off
the appropriate light.
•
Never charge a frozen or thawed batt ery - risk of explosion and caustic
burns! Replace a frozen battery.
•
Never jump-start the batteries which have a too low electrolyte level - risk
of explosion and caustic burns!
•
Never use a battery which is damaged - risk of explosion! Immediately
replace a damaged battery.Caution
•
You must only disconnect the battery if the ignition is switched off, otherwise
the electrical system (electronic componen ts) of the vehicle may be damaged. When
disconnecting the battery from the electrical system of the vehicle, first disconnect
the negative terminal (-) of the battery. Then disconnect the positive terminal (+).
•
When reconnecting the battery, first connect the positive terminal (+) and only
then the negative terminal (-) of the batt ery. You must on no account connect the
cables wrongly - risk of a cable fire.
•
Ensure that battery acid does not come into contact with the vehicle body
otherwise damage could occur to the paintwork.
•
Do not place the battery in direct daylight in order to protect the battery housing
from the effects of ultra-violet light.For the sake of the environment
A removed battery is a special type of wa ste which is harmful to the environment -
contact your specialist garage regarding disposing of the battery.
Note
Please also refer to the guidelines page 139, also after connecting the battery.Battery with a two-tone indicatorAn indicator for the electrolyte level, the so-called magic eye fig. 127, is located
on the top of the battery. The indicator changes its colour in line with the electrolyte
level in the battery.
Air bubbles can influence the colour of the indicator. For this reason carefully knock
on the indicator before carrying out the check.•
Black colour - electrolyte level is correct.
•
Colourless or light yellow colour - electrolyte level too low, the battery must be
replaced.
Batteries, which are more than 5 years ol d, must be replaced. We recommend you
have the battery checked or replaced by a specialist garage.
WARNING (continued)
Fig. 127 The battery: Show
s2lk.2.book Page 137 Monday, April 18, 2011 7:41 AM

Breakdown assistance153
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Note
The set of safety wheel bolts can be obta ined from an authorised Škoda Service
Partner.Jump-startingInitial stepsYou can use the battery of another vehicl e for jump-starting yours if the engine
does not start because the battery on your ve hicle is flat. You will require jump-start
cables for this purpose.
Both batteries must have a rated voltage of 12 V. The capacity (Ah) of the battery
supplying the power must not be signific antly less than the capacity of the
discharged battery in your vehicle.
Jump-start cables
Only use jump-start cables which have an adequately large cross-section and insu-
lated terminal clamps. Please pay attent ion to the manufacturer's instructions.
Positive cable - colour coding in the majority of cases red.
Negative cable - colour coding in the majority of cases black.
WARNING
•
A discharged battery may already freeze at temperatures just below 0 °C. In
case of frozen battery carry out no jump-starting - risk of explosion!
•
Please pay attention to the warning instructions relating to working in the
engine compartment page 131, “Working in the engine compartment”.Note
•
There must not be any contact between the two vehicles otherwise current may
flow as soon as the negati ve terminals are connected.
•
The discharged battery must be properly connected to the system of the
vehicle.
•
Switch off any mobile phone, pay attention to the instructions for use of the
mobile phone in such a situation.
•
We recommend you buy jump-start cables from a car battery specialist.
Start engineIt is important to connect the jump -start cables in the correct order.Connecting positive terminals– Attach one end to the positive terminal fig. 140 of the discharged battery
.
– Attach the other end to the positive terminal of the battery supplying the
power .Connecting negative terminal and engine block– Attach one end to the negative termin al of the battery supplying the power
.
– Attach the other end to a solid metal part which is connected firmly to the engine block, or to the engine block itself.Starting the engine– Start the engine of the vehicle providing current and run the engine at idling
speed.
– Now start the engine of the vehicle with the discharged battery.
– Interrupt the attempt at starting an engine after 10 seconds if it does not start right away and wait for about 30 seconds before repeating the attempt.
– Disconnect the cables on the engine in exactly the reverse order they were
connected up.
Fig. 140 Jump-starting using the battery
from another vehicle: A - flat vehicle
battery, B - battery providing current
1
A
2
B
3
B
4
s2lk.2.book Page 153 Monday, April 18, 2011 7:41 AM

Breakdown assistance

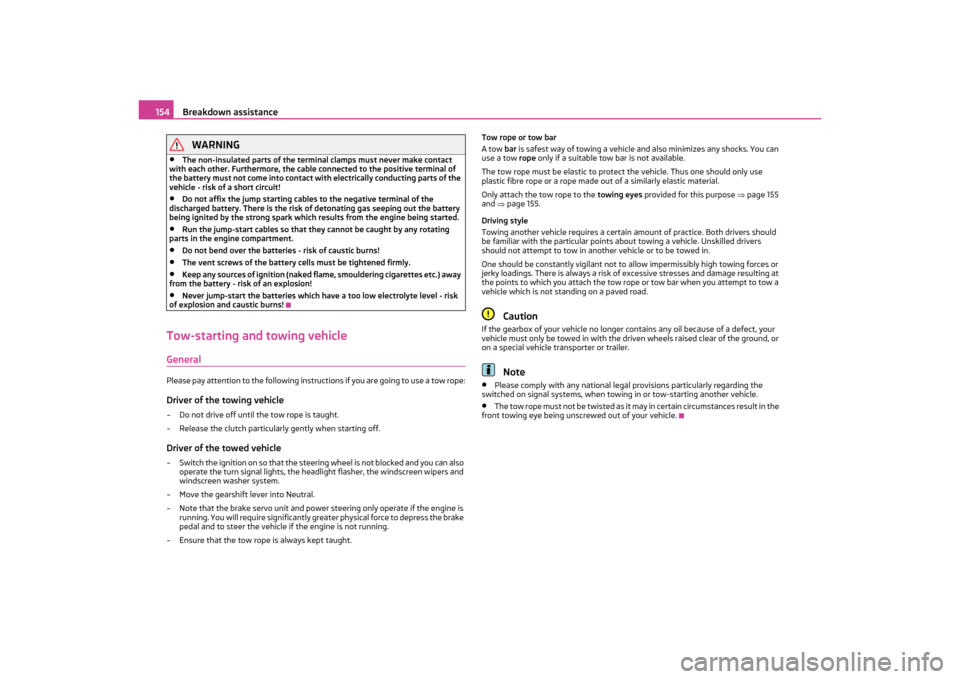

154WARNING
•
The non-insulated parts of the termi nal clamps must never make contact
with each other. Furthermore, the cable connected to the positive terminal of
the battery must not come into contact with electrically conducting parts of the
vehicle - risk of a short circuit!
•
Do not affix the jump starting cables to the negative terminal of the
discharged battery. There is the risk of detonating gas seeping out the battery
being ignited by the strong spark which results from the engine being started.
•
Run the jump-start cables so that they cannot be caught by any rotating
parts in the engine compartment.
•
Do not bend over the batteries - risk of caustic burns!
•
The vent screws of the battery cells must be tightened firmly.
•
Keep any sources of ignition (naked fl ame, smouldering cigarettes etc.) away
from the battery - risk of an explosion!
•
Never jump-start the batteries which have a too low electrolyte level - risk
of explosion and caustic burns!
Tow-starting and towing vehicleGeneralPlease pay attention to the following instru ctions if you are going to use a tow rope:Driver of the towing vehicle– Do not drive off until the tow rope is taught.
– Release the clutch particularly gently when starting off.Driver of the towed vehicle– Switch the ignition on so that the steering wheel is not blocked and you can also
operate the turn signal lights, the headli ght flasher, the windscreen wipers and
windscreen washer system.
–Move the gearshift lever into Neutral.
– Note that the brake servo unit and power steering only operate if the engine is running. You will require significantly greater physical force to depress the brake
pedal and to steer the vehicle if the engine is not running.
– Ensure that the tow rope is always kept taught. Tow rope or tow bar
A tow
bar is safest way of towing a vehicle and also minimizes any shocks. You can
use a tow rope only if a suitable tow bar is not available.
The tow rope must be elastic to protect the vehicle. Thus one should only use
plastic fibre rope or a rope made out of a similarly elastic material.
Only attach the tow rope to the towing eyes provided for this purpose page 155
and page 155.
Driving style
Towing another vehicle requires a certain amount of practice. Both drivers should
be familiar with the particular points about towing a vehicle. Unskilled drivers
should not attempt to tow in another vehicle or to be towed in.
One should be constantly vigilant not to allow impermissibly high towing forces or
jerky loadings. There is always a risk of excessive stresses and damage resulting at
the points to which you attach the tow rope or tow bar when you attempt to tow a
vehicle which is not standing on a paved road.
Caution
If the gearbox of your vehicle no longer contains any oil because of a defect, your
vehicle must only be towed in with the driven wheels raised clear of the ground, or
on a special vehicle tr ansporter or trailer.
Note
•
Please comply with any national legal provisions particularly regarding the
switched on signal systems, when towing in or tow-starting another vehicle.
•
The tow rope must not be twisted as it ma y in certain circumstances result in the
front towing eye being unsc rewed out of your vehicle.
s2lk.2.book Page 154 Monday, April 18, 2011 7:41 AM

Index177
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Interior light
Luggage compartment . . . . . . . . . . . . . . . . . . . . 44
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Interior monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . 45
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
JJacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153KKey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29LLashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Lifting jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147, 152
Lighting of the interior of the vehicle . . . . . . . . . . 43
Lights Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 159
converting/masking over . . . . . . . . . . . . . . . . . 116
Range adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 41
switching on and off . . . . . . . . . . . . . . . . . . . . . . 40
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Lights and Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Lock Central locking system . . . . . . . . . . . . . . . . . . . . 32
lock Central locking system . . . . . . . . . . . . . . . . . . . . 32
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Locking and unlocking from inside . . . . . . . . . . . . 32 Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Lugagge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Luggage compartment . . . . . . . . . . . . . . . . . . . . 33, 53 Folding hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Luggage rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 42 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Manual shifting of gears . . . . . . . . . . . . . . . . . . . . . 76
Memory for the on-board computer . . . . . . . . . . . 18
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Multi-functional indicator . . . . . . . . . . . . . . . . . . . . 18NNet partition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60OOil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Open door Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Opening a single door . . . . . . . . . . . . . . . . . . . . . . . . 30
Opening for skis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Operation in winter Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
De-icing windows . . . . . . . . . . . . . . . . . . . . . . . . 123
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Overview of the engine compartment . . . . . . . . . 131
PPaint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Paint damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Parking aid rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Parking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Petrol engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 75
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Power window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Power windows Button in front passenger door and in rear doors
38
Buttons on the driver's door . . . . . . . . . . . . . . 37
Central locking system . . . . . . . . . . . . . . . . . . . . 39RRadiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Rear armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 64
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . 44
Rear-view mirror Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Recharge battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Recommended gear . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Synchronisation process . . . . . . . . . . . . . . . . . . 35
s2lk.2.book Page 177 Monday, April 18, 2011 7:41 AM
