Instruments and Indicator/Warning Lights23
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Note
•
The arrangement of the indicator lights depends on the model version. The
symbols shown in the following functional description are to be found as indicator
lights in the instrument cluster.
•
Operational faults are shown in the instrument cluster as red symbols (priority 1
- danger) or yellow symbols (priority 2 - warning).
Turn signal system

Either the left
 or right
 indicator light flashes depending on the position of the
turn signal lever.
The indicator light flashes at twice its normal rate if a turn signal light fails.
Switching off the hazard warning light system is switched on will cause all of the
turn signal lights as well as both indicator lights to flash.
Further information about the turn signal system page 42.
Fog lights*

The warning light
 comes on when the fog lights are operating page 41.
Main beam

The indicator light
 comes on when the main beam is selected or also when the
headlight flasher is operated.
Further information about the main beam page 42.
Low beam

The warning light
 comes on when low beam is selected page 40.
Rear fog light

The warning light
 comes on when the rear fog lights are operating page 41.
Cruise control system*

The warning light
 lights up, when operating the speed regulating system.
Bulb failure

The warning light
 comes on if a bulb is faulty:
•
up to 2 seconds after the ignition is switched on,
•
when switching on the defective light bulb.
The rear side lights and the licence plate lighting require several light bulbs. The
indicator light
 only lights up if all light bulbs of the licence plate lighting or the
parking light (in one rear light unit) are defective. Check regularly the function of the
light bulbs.
Airbag system

Monitoring the airbag system
The warning light
 comes on for a few seconds when the ignition is switched on.
There is a fault in the system if the warning light does not go out or flashes while
driving . This also applies if the warning light does not come on when the igni-
tion is switched on.
The functionality of the airbag system is also monitored electronically when one
airbag has been switched off.
Front, side and head airbags or belt te nsioner which have been switched off using
the vehicle system tester:
•
The warning light
 lights up for 4 seconds after switching on the ignition and
then flashes again for 12 seco nds in intervals of 2 seconds.
Front passenger airbags switched off using the switch for front passenger
airbags* in storage compartment on the front passenger side:
•
the warning light
 comes on for 4 seconds after the ignition has been
switched on,
•
switching off the airbag is indicated in the middle of the dash panel by the
lighting up of the indicator light

 (airbag switched off)  page 96.
s2lk.2.book Page 23 Monday, April 18, 2011 7:41 AM

Lights and Visibility43
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Parking light

– Switch off the ignition.
– Push the lever up or down - the right-hand or left-hand parking light is switched
on.
Information concerning the function of the lights.•
The turn signal system only operates when the ig nition is switched on. The
corresponding indicator light
 or  in the instrument cluster also flashes.
•
The turn signal is automatically cancelled after negotiating a curve.
•
The indicator light flashes at twice its normal rate if a bulb of the turn signal light
fails.
•
The side light and rear light on the appropriate side of the vehicle are switched
on when the parking light is selected. The parking light only operates if the ignition
is switched off.Caution
Use main beam or the headlight flasher only if this does not risk dazzling other road
users.
Note
•
If you have switched on the right or left turn signal light and you switch off the
ignition, the parking light is not automatically switched on.
•
Use only in accordance with the legal requirements the described lighting and
signal systems.
Interior lightingLighting of the interior of the vehicle - Version 1Switching on the interior lighting– Press the switch in the direction of the edge of the light, the symbol

 fig. 39 appears.
Switching off the interior lighting– Press the switch into the middle position O .Operation of the lamp using the door switch– Press the switch in the direction of the centre of the light, the symbol

appears.
Reading lights– The reading lights are switched on or off with the switch .
If the lights are controlled via the door switch (switch in position
), the lighting
is switched on when:
•
Unlocking the vehicle
•
Opening doors
•
Withdrawing the ignition key.
If the lights are controlled via the door switch (switch in position
), the lighting
is switched off when:
•
the vehicle is locked,
Fig. 39 Interior lighting with reading
lights
AAA
B
AA
s2lk.2.book Page 43 Monday, April 18, 2011 7:41 AM

Fuses and light bulbs
158
Fuse assignment in the dash panelCertain electrical components are only st andard on certain vehicle model versions
or only suppliable as optional equipment for certain models.
F15
Lambda probe
glow plug system relay
10
5
F16
Central control unit, right main headlight, right rear light
unit
30
F17
Horn
15
F18
Amplifier for digital sound processor
30
F19
Front window wiper
30
F20
Water pump
valve for fuel dosing
High-pressure pump
10
20
15
F21
Lambda probe
Vacuum pump
10/15 20
F22
Clutch pedal switch, brake pedal switch
5
F23
Secondary air pump
Air mass meter
Fuel high pressure pump
5
10
15
F24
Activated charcoal filter, exha ust gas recirculation valve,
radiator fan
10
F25
Pump for ABS
30/40
F26
Central control unit, left main headlight, left rear light
unit
30
F27
Secondary air pump
Glow plug system
40 50
F28
Not assigned
F29
Power supply terminal 30 (continuous current supply
from the battery)
50
F30
Terminal X
a)
50
a)In order not to drain the battery unnecessarily when starting the engine, the electrical com-
ponents of this terminal are automatically switched off.No.
Power consumer
Amperes
No.
Power consumer
Amperes
1
Diagnostic socket, Engine control unit, Electrical fuel
pump
10
2
Control unit for ABS, ESP
5
3
Airbag
5
4
Heating, air conditioning, reversing lights, interior rear
view mirror dimming, telephone preinstallation
5
5
Control unit for headlamp beam adjustment
5
6
Instrument cluster, Control unit for automatic gearbox,
Control unit for electromechanical power steering, Park-
ing aid; Haldex clutch
5
7
Not assigned
8
Not assigned
9
Not assigned
10
Not assigned
11
Not assigned
12
Central locking control unit
10
13
Diagnostic socket, light switch, rain sensor
10
Fig. 146 Schematic representation of the
fuse carrier in the dash panel
s2lk.2.book Page 158 Monday, April 18, 2011 7:41 AM

Fuses and light bulbs159
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
BulbsChanging bulbsThe relevant lamp must always be switched off before a light bulb is replaced.
Defect light bulbs should only be replaced with light bulbs of the same type. The
designation is located on the light socket or the glass bulb.
Changing certain bulbs is not something which you can do yourself, but requires to
be done by a specialist. Other parts of the vehicle must be removed in order to
change the light bulbs. This applies, in particular, to bulbs which can only be reached
from the engine compartment.
We therefore recommend that you have an y bulbs changed by an authorised Škoda
Service Partner or, in exceptional cases, by calling on other professional assistance.
Please note that the engine compartment is a hazardous area page 131, “Working
in the engine compartment”.
We recommend that you always have a sm all box of replacement bulbs in your
vehicle. You can obtain replacement bulbs from Škoda original accessories or from
a specialist garage
9).
14
Control unit for automatic gearbox, Selector lever lock
5
15
Central control unit - interior lights
5
16
Heating, air conditioning, Climatronic
10
17
Park Assist
5
18
Not assigned
19
Control unit for trailer detection
5
20
Not assigned
21
Cornering lights for the left and right side
10
22
Air blower for Climatronic
40
23
Front power window
30
24
Cigarette lighter
25
25
Rear window heater
Rear window heater, Auxiliary heating (auxiliary heating
and ventilation)
25
30
26
Power socket in the luggage compartment
20
27
Fuel pump relay, Injection valves (diesel engine)
15
28
Not assigned
29
Engine control unit, Crankcase ventilation heater
10
30
Control unit for automatic gearbox
20
31
Vacuum pump
20
32
Rear power window
30
33
Electric sliding/tilting roof
25
34
Control unit for convenience functions
20
35
Anti-theft alarm system
5
36
Headlight cleaning system
20
37
Front seat heating
30
38
Heated rear seats
30
No.
Power consumer
Amperes
39
Not assigned
40
Air blower for heating and air conditioning
40
41
Rear window wiper
15
42
Not assigned
43
Towing device
15
44
Towing device
20
45
Towing device
15
46
Controlling the seat heating, heated windscreen washer
nozzles
5
47
Relay for auxiliary heating
5
48
Not assigned
49
Light switch
5
No.
Power consumer
Amperes
s2lk.2.book Page 159 Monday, April 18, 2011 7:41 AM

Fuses and light bulbs
160
A stowage place for the bulbs is located in the box in the spare wheel.
Bulb - Overview
WARNING
•
Bulbs H7 and H1 are pressurised and ma y burst when changing the bulb - risk
of injury!
•
It is recommended to wear gloves and safety glasses when changing a bulb.Caution
Do not take hold of the glass bulb with naked fingers (even the smallest amount of
dirt reduces the working life of the light bu lb). Use a clean cloth, serviette or some-
thing similar.
Note
This Owner's Manual only describes the replacement of bulbs where it is assumed
that no major complications will arise. Other light bulbs should be replaced by your
specialist garage.
9)The small box with replacement bulbs is part of the basic equipping of the vehicle in some
countries.Front headlight
Halogen headlight
Low beam light
H7
Main beam light
H1
Parking lights
W5W
Turn signals
PY21W
Fog lights*
H8
Light unit (Octavia)
Bulb
Reversing light
P21W
Turn signals
PY21W
Twin filament light bulb for the brake lights and tail
lights
P21/4W
Twin filament light bulb for the rear fog lights and tail
lights
P21/4W
Parking lights
W3W
Rear light unit (Combi)
Bulb
Reversing lights, brake lights, tail lights and rear fog
light
P21W
Turn signals
PY21W
Parking lights
W3W
Others
Bulb
Side turn signal lights
LED
Licence plate light
C5W
3. Brake light
LED
Interior lighting
C10W
Reading lights
W5W
Luggage compartment light
W5W
s2lk.2.book Page 160 Monday, April 18, 2011 7:41 AM

Fuses and light bulbs161
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Removing the headlightThe headlight must be removed in order to change the light bulb of the parking
lights, low beam lights and main beam ligh ts as well as the turn signal lights.Removing the headlight– Switch the ignition and all lights off.
–Open the bonnet page 130.
– Unscrew the plastic nut fig. 147 .
– Pull the fuse in upward direction.
– Pull the locking lever of the headlight as far as the stop in the direction of arrow .
– Unplug the plug connector and carefully take out the headlight in the direction
of arrow .
Installation takes place in the reverse order.
Note
After installing the headlight, the headlight setting must be checked by a specialist
garage.
Parking light at the frontFig. 148 Replacing the cover for the lamps of th e parking- and low-beam light / removing the
bulb for the parking lightChange the light bulb for the parking light– Switch the ignition and all lights off.
– Remove the headlight page 161.
– Press the wire clamps in the direction of arrow to the side and remove the cover fig. 148 - left.
– Press the contact studs in the direction of arrow and remove the holder with the light bulb of the parking light fig. 148 - right.
– Take the faulty bulb out of the fixture and insert a new one.
Installation takes plac e in the reverse order.
Note
After installing the headlight, the headlight setting must be checked by a specialist
garage.
Fig. 147 Removing the headlight
A
B
1
2
s2lk.2.book Page 161 Monday, April 18, 2011 7:41 AM

Fuses and light bulbs
162

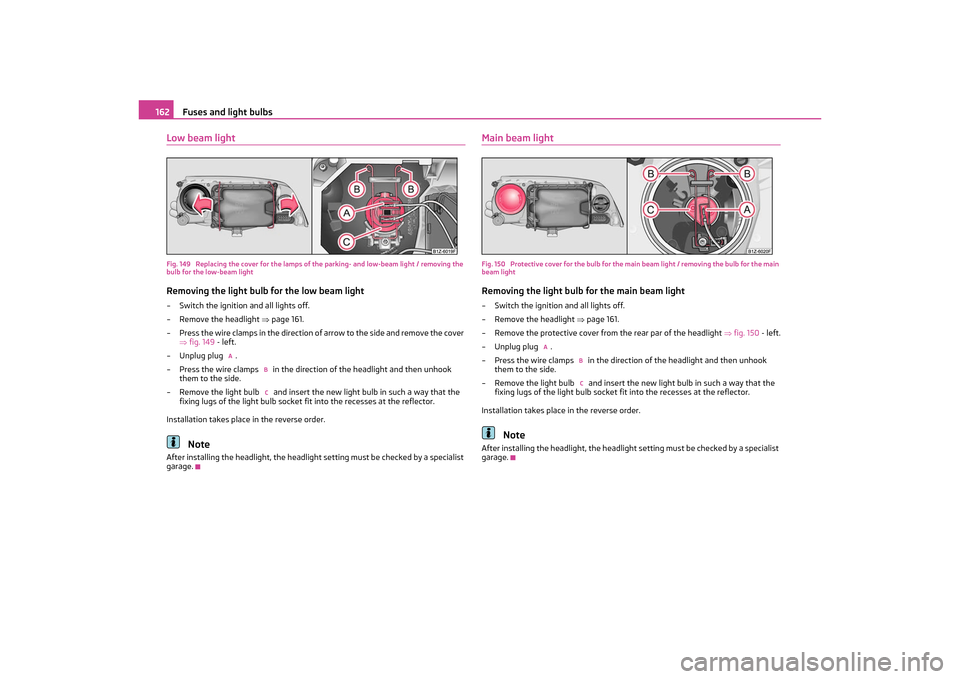

Low beam lightFig. 149 Replacing the cover for the lamps of the parking- and low-beam light / removing the
bulb for the low-beam lightRemoving the light bulb for the low beam light– Switch the ignition and all lights off.
– Remove the headlight page 161.
– Press the wire clamps in the direction of arrow to the side and remove the cover
 fig. 149 - left.
–Unplug plug .
– Press the wire clamps in the direction of the headlight and then unhook them to the side.
– Remove the light bulb and insert the new light bulb in such a way that the
fixing lugs of the light bulb socket fit into the recesses at the reflector.
Installation takes place in the reverse order.
Note
After installing the headlight, the headlight setting must be checked by a specialist
garage.
Main beam lightFig. 150 Protective cover for the bulb for the main beam light / removing the bulb for the main
beam lightRemoving the light bulb for the main beam light– Switch the ignition and all lights off.
– Remove the headlight page 161.
– Remove the protective cover from the rear par of the headlight fig. 150 - left.
– Unplug plug .
– Press the wire clamps in the direct ion of the headlight and then unhook
them to the side.
– Remove the light bulb and insert the new light bulb in such a way that the fixing lugs of the light bulb socket fit into the recesses at the reflector.
Installation takes place in the reverse order.
Note
After installing the headlight, the headligh t setting must be checked by a specialist
garage.
A
BC
A
BC
s2lk.2.book Page 162 Monday, April 18, 2011 7:41 AM

Fuses and light bulbs163
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Turn signal light at the frontChanging light bulb for turn signal light (at the front)– Switch the ignition and all lights off.
– Remove the headlight page 161.
– Turn the socket in the direction of arrow OPEN and take it out together with the
light bulb for the turn signal light  fig. 151.
– Press the defective light bulb into th e socket, turn to the left and remove.
– Press a new light bulb into the socket and turn the light bulb to the right as far as the stop.
– Insert the socket with the changed light bu lb into the headlight and secure it by
turning in the direction of arrow CLOSE to the right.
Note
After installing the headlight, the headlight setting must be checked by a specialist
garage.
Light unit (Octavia)Fig. 152 Luggage compartment: Cover for th e lamp holder / removing lamp holdersChanging light bulbs in the lamp holder– Switch the ignition and all lights off.
– Unlock the locking button and open the cover of the lamp holder fig. 152 - left.
– Press the catches in the direction of arrow and take out the lamp holder
 fig. 152 - right.
– Press the defective light bulb into the socket, turn to the left and remove.
– Press a new light bulb into the socket and turn the light bulb to the right as far as the stop.
– Insert the lamp holder in such a way that the catches lock in place in the
housing.
– Close and lock the cover of the lamp holder.Change the light bulb for the parking light– Switch the ignition and all lights off.
– Unlock the locking button and open the cover of the lamp holder fig. 152 - left.
– Take the defective light bulb (arrow or ) out of the light housing and replace it with a new one of the same type.
– Close and lock the cover of the lamp holder.
Fig. 151 Removing the light bulb for the
turn signal light
1
2
s2lk.2.book Page 163 Monday, April 18, 2011 7:41 AM
