2011 SKODA OCTAVIA TOUR fuse

Fuses and light bulbs159
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
BulbsChanging bulbsThe relevant lamp must always be switched off before a light bulb is replaced.
Defect light bulbs should only be replaced with light bulbs of the same type. The
designation is located on the light socket or the glass bulb.
Changing certain bulbs is not something which you can do yourself, but requires to
be done by a specialist. Other parts of the vehicle must be removed in order to
change the light bulbs. This applies, in particular, to bulbs which can only be reached
from the engine compartment.
We therefore recommend that you have an y bulbs changed by an authorised Škoda
Service Partner or, in exceptional cases, by calling on other professional assistance.
Please note that the engine compartment is a hazardous area page 131, “Working
in the engine compartment”.
We recommend that you always have a sm all box of replacement bulbs in your
vehicle. You can obtain replacement bulbs from Škoda original accessories or from
a specialist garage
9).
14
Control unit for automatic gearbox, Selector lever lock
5
15
Central control unit - interior lights
5
16
Heating, air conditioning, Climatronic
10
17
Park Assist
5
18
Not assigned
19
Control unit for trailer detection
5
20
Not assigned
21
Cornering lights for the left and right side
10
22
Air blower for Climatronic
40
23
Front power window
30
24
Cigarette lighter
25
25
Rear window heater
Rear window heater, Auxiliary heating (auxiliary heating
and ventilation)
25
30
26
Power socket in the luggage compartment
20
27
Fuel pump relay, Injection valves (diesel engine)
15
28
Not assigned
29
Engine control unit, Crankcase ventilation heater
10
30
Control unit for automatic gearbox
20
31
Vacuum pump
20
32
Rear power window
30
33
Electric sliding/tilting roof
25
34
Control unit for convenience functions
20
35
Anti-theft alarm system
5
36
Headlight cleaning system
20
37
Front seat heating
30
38
Heated rear seats
30
No.
Power consumer
Amperes
39
Not assigned
40
Air blower for heating and air conditioning
40
41
Rear window wiper
15
42
Not assigned
43
Towing device
15
44
Towing device
20
45
Towing device
15
46
Controlling the seat heating, heated windscreen washer
nozzles
5
47
Relay for auxiliary heating
5
48
Not assigned
49
Light switch
5
No.
Power consumer
Amperes
s2lk.2.book Page 159 Monday, April 18, 2011 7:41 AM

Fuses and light bulbs
160
A stowage place for the bulbs is located in the box in the spare wheel.
Bulb - Overview
WARNING
•
Bulbs H7 and H1 are pressurised and ma y burst when changing the bulb - risk
of injury!
•
It is recommended to wear gloves and safety glasses when changing a bulb.Caution
Do not take hold of the glass bulb with naked fingers (even the smallest amount of
dirt reduces the working life of the light bu lb). Use a clean cloth, serviette or some-
thing similar.
Note
This Owner's Manual only describes the replacement of bulbs where it is assumed
that no major complications will arise. Other light bulbs should be replaced by your
specialist garage.
9)The small box with replacement bulbs is part of the basic equipping of the vehicle in some
countries.Front headlight
Halogen headlight
Low beam light
H7
Main beam light
H1
Parking lights
W5W
Turn signals
PY21W
Fog lights*
H8
Light unit (Octavia)
Bulb
Reversing light
P21W
Turn signals
PY21W
Twin filament light bulb for the brake lights and tail
lights
P21/4W
Twin filament light bulb for the rear fog lights and tail
lights
P21/4W
Parking lights
W3W
Rear light unit (Combi)
Bulb
Reversing lights, brake lights, tail lights and rear fog
light
P21W
Turn signals
PY21W
Parking lights
W3W
Others
Bulb
Side turn signal lights
LED
Licence plate light
C5W
3. Brake light
LED
Interior lighting
C10W
Reading lights
W5W
Luggage compartment light
W5W
s2lk.2.book Page 160 Monday, April 18, 2011 7:41 AM

Fuses and light bulbs161
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Removing the headlightThe headlight must be removed in order to change the light bulb of the parking
lights, low beam lights and main beam ligh ts as well as the turn signal lights.Removing the headlight– Switch the ignition and all lights off.
–Open the bonnet page 130.
– Unscrew the plastic nut fig. 147 .
– Pull the fuse in upward direction.
– Pull the locking lever of the headlight as far as the stop in the direction of arrow .
– Unplug the plug connector and carefully take out the headlight in the direction
of arrow .
Installation takes place in the reverse order.
Note
After installing the headlight, the headlight setting must be checked by a specialist
garage.
Parking light at the frontFig. 148 Replacing the cover for the lamps of th e parking- and low-beam light / removing the
bulb for the parking lightChange the light bulb for the parking light– Switch the ignition and all lights off.
– Remove the headlight page 161.
– Press the wire clamps in the direction of arrow to the side and remove the cover fig. 148 - left.
– Press the contact studs in the direction of arrow and remove the holder with the light bulb of the parking light fig. 148 - right.
– Take the faulty bulb out of the fixture and insert a new one.
Installation takes plac e in the reverse order.
Note
After installing the headlight, the headlight setting must be checked by a specialist
garage.
Fig. 147 Removing the headlight
A
B
1
2
s2lk.2.book Page 161 Monday, April 18, 2011 7:41 AM

Fuses and light bulbs
162
Low beam lightFig. 149 Replacing the cover for the lamps of the parking- and low-beam light / removing the
bulb for the low-beam lightRemoving the light bulb for the low beam light– Switch the ignition and all lights off.
– Remove the headlight page 161.
– Press the wire clamps in the direction of arrow to the side and remove the cover
 fig. 149 - left.
–Unplug plug .
– Press the wire clamps in the direction of the headlight and then unhook them to the side.
– Remove the light bulb and insert the new light bulb in such a way that the
fixing lugs of the light bulb socket fit into the recesses at the reflector.
Installation takes place in the reverse order.
Note
After installing the headlight, the headlight setting must be checked by a specialist
garage.
Main beam lightFig. 150 Protective cover for the bulb for the main beam light / removing the bulb for the main
beam lightRemoving the light bulb for the main beam light– Switch the ignition and all lights off.
– Remove the headlight page 161.
– Remove the protective cover from the rear par of the headlight fig. 150 - left.
– Unplug plug .
– Press the wire clamps in the direct ion of the headlight and then unhook
them to the side.
– Remove the light bulb and insert the new light bulb in such a way that the fixing lugs of the light bulb socket fit into the recesses at the reflector.
Installation takes place in the reverse order.
Note
After installing the headlight, the headligh t setting must be checked by a specialist
garage.
A
BC
A
BC
s2lk.2.book Page 162 Monday, April 18, 2011 7:41 AM

Fuses and light bulbs163
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Turn signal light at the frontChanging light bulb for turn signal light (at the front)– Switch the ignition and all lights off.
– Remove the headlight page 161.
– Turn the socket in the direction of arrow OPEN and take it out together with the
light bulb for the turn signal light  fig. 151.
– Press the defective light bulb into th e socket, turn to the left and remove.
– Press a new light bulb into the socket and turn the light bulb to the right as far as the stop.
– Insert the socket with the changed light bu lb into the headlight and secure it by
turning in the direction of arrow CLOSE to the right.
Note
After installing the headlight, the headlight setting must be checked by a specialist
garage.
Light unit (Octavia)Fig. 152 Luggage compartment: Cover for th e lamp holder / removing lamp holdersChanging light bulbs in the lamp holder– Switch the ignition and all lights off.
– Unlock the locking button and open the cover of the lamp holder fig. 152 - left.
– Press the catches in the direction of arrow and take out the lamp holder
 fig. 152 - right.
– Press the defective light bulb into the socket, turn to the left and remove.
– Press a new light bulb into the socket and turn the light bulb to the right as far as the stop.
– Insert the lamp holder in such a way that the catches lock in place in the
housing.
– Close and lock the cover of the lamp holder.Change the light bulb for the parking light– Switch the ignition and all lights off.
– Unlock the locking button and open the cover of the lamp holder fig. 152 - left.
– Take the defective light bulb (arrow or ) out of the light housing and replace it with a new one of the same type.
– Close and lock the cover of the lamp holder.
Fig. 151 Removing the light bulb for the
turn signal light
1
2
s2lk.2.book Page 163 Monday, April 18, 2011 7:41 AM

Fuses and light bulbs
164

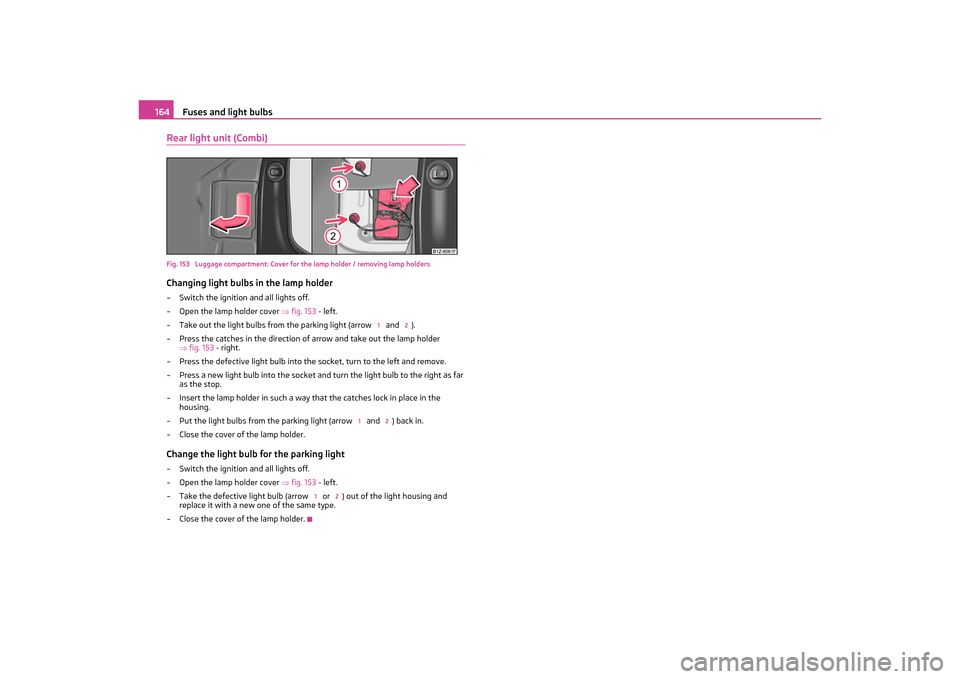

Rear light unit (Combi)Fig. 153 Luggage compartment: Cover for the lamp holder / removing lamp holdersChanging light bulbs in the lamp holder– Switch the ignition and all lights off.
–Open the lamp holder cover fig. 153 - left.
– Take out the light bulbs from th e parking light (arrow and ).
– Press the catches in the direction of arrow and take out the lamp holder
 fig. 153 - right.
– Press the defective light bulb into the socket, turn to the left and remove.
– Press a new light bulb into the socket and turn the light bulb to the right as far as the stop.
– Insert the lamp holder in such a way that the catches lock in place in the housing.
– Put the light bulbs from the parking light (arrow and ) back in.
– Close the cover of the lamp holder.Change the light bulb for the parking light– Switch the ignition and all lights off.
–Open the lamp holder cover fig. 153 - left.
– Take the defective light bulb (arrow or ) out of the light housing and
replace it with a new one of the same type.
– Close the cover of the lamp holder.
1
2
1
2
1
2
s2lk.2.book Page 164 Monday, April 18, 2011 7:41 AM

Index
176
Correct seated position . . . . . . . . . . . . . . . . . . . . . . . 82
Counter for distance driven . . . . . . . . . . . . . . . . . . . 16
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . 77
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cup holder front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59DDaylight driving lights . . . . . . . . . . . . . . . . . . . . . . . . 40
Deactivatingan airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . . 95
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . 44
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . 123
Detachable towing device . . . . . . . . . . . . . . . . . . . 119
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Diesel engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 75
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Door Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Driving economically . . . . . . . . . . . . . . . . . . . . . . . . 112EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Electric power-operated window Operational faults . . . . . . . . . . . . . . . . . . . . . . . . 39
Electrically adjustable exterior mirror . . . . . . . . . . 48
Electronic Differential Lock . . . . . . . . . . . . . . . . . . 106
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . . 30
Electronic stability programme . . . . . . . . . . . . . . . 105
Electronic stability programme (ESP) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Emergency wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 Engine
starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Engine compartment Safety information . . . . . . . . . . . . . . . . . . . . . . . 131
Engine coolant temperature display . . . . . . . . . . . 16
Engine electronics Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Engine oil level Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Engine revolutions counter . . . . . . . . . . . . . . . . . . . 15
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Environmental compatibility . . . . . . . . . . . . . . 112, 115
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Exhaust gas Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Exhaust gas inspection Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . 48
FFirst-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Fixing net Combi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Octavia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fuel reserve Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
GGauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
General view Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Hazard warning light system . . . . . . . . . . . . . . . . . . 42Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Headlights Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Heated windscreen washer nozzles . . . . . . . . . . . 45
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Defrosting windows . . . . . . . . . . . . . . . . . . . . . . 68
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 69
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9IIgnition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
s2lk.2.book Page 176 Monday, April 18, 2011 7:41 AM

Index
178
Replacing fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Replacing the wiper blades . . . . . . . . . . . . . . . . . . . 47
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Running in the car . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111SSafe securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Safety information
Engine compartment . . . . . . . . . . . . . . . . . . . . . 131
Safety wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Saving electrical energy . . . . . . . . . . . . . . . . . . . . . 112
Seat belt height adjuster . . . . . . . . . . . . . . . . . . . . . 87
Seat belt warning light . . . . . . . . . . . . . . . . . . . . . . . 87
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85, 88 Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
fastening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . . 87
Safety information . . . . . . . . . . . . . . . . . . . . . . . . 86
taking off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Seat heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Service Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . . 17
Setting temperature Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Stability system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 after fuel tank has run empty . . . . . . . . . . . . . . 75
Diesel engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Petrol engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 Steering
active driver-steering recommendation . . . 107
Steering force assistance . . . . . . . . . . . . . . . . . . . . 109
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . 61
Storage facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Switching lights on and off . . . . . . . . . . . . . . . . . . . 40
Switching off the engine . . . . . . . . . . . . . . . . . . . . . 75
TTaking care of your vehicle . . . . . . . . . . . . . . . . . . 121
TCS Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Temperature outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
the first 1 500 kilometres . . . . . . . . . . . . . . . . . . . . . 111
The roof luggage rack system . . . . . . . . . . . . . . . . . 58
Thickness of brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Top Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Towing device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
towing vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Traction control system . . . . . . . . . . . . . . . . . . . . . 106
Traction control system (TCS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 General Maintenance . . . . . . . . . . . . . . . . . . . . 118
Transporting children . . . . . . . . . . . . . . . . . . . . . . . . . 97
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Two-way radio systems . . . . . . . . . . . . . . . . . . . . . . 80
Tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Tyre inflation pressure Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148 Tyres
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
UUnderbody protection . . . . . . . . . . . . . . . . . . . . . . . 124
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . 35VVehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45WWarning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Warning symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121with a high-pressure cleaner . . . . . . . . . . . . . 122
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Washing vehicle by hand . . . . . . . . . . . . . . . . . . . . 122
Wax treatment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Wheel Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Spare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141, 150
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Windows de-icing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Windscreen washer nozzles . . . . . . . . . . . . . . . . . . 45
Windshield washer fluid reservoir . . . . . . . . . . . . 140
Windshield washer system . . . . . . . . . . . . . . . . . . 140
Windshield wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Wiper blades Replacing the wiper blades . . . . . . . . . . . . . . . . 47
s2lk.2.book Page 178 Monday, April 18, 2011 7:41 AM
