2011 SKODA FABIA technical data

Front headlight Halogen headlight Halogen projector head-
lights Fog lights H8/HB4
b) Daylight driving lights P21W, LED
a)
c) a)
Valid for RS vehicles with separate lights for daylight driving lights.
b) Valid for vehicles Scout.
c) Valid for Scout vehicles with separate lights for daylight driving lights. Rear light unit Bulb
Reversing light P21W
Turn signals PY21W
Brake lights P21W
Rear fog light P21W
Parking lights 2x W5W
Others Bulb
Side turn signal lights WY5W
Licence plate light C5W/T4W (5W)
3. Brake light LED
Interior lighting front / rear C10W
Reading lights W5W
Luggage compartment light W5W
Lighting in storage compartment W5W
WARNING
● Read and observe the warning notes ⇒  page 153, Working in the engine
compartment before working in the engine compartment.
● Bulbs H7 LL and H4 LL are pressurised and may burst when changing the
bulb - risk of injury!
● It is recommended to wear gloves and safety glasses when changing a
bulb. Note
This Owner's Manual only describes the replacement of bulbs where it is assumed
that no major complications will arise. Other light bulbs should be changed by your
specialist garage. Front headlight
Fig. 157 Fitting position of the bulbs: Halogen headlights/halogen projector headlights
Positions of the bulbs in the halogen headlamp
A - low beam, main beam and side lights
B - front turn signal light
Positions of the bulbs in the halogen projector headlight 1 - low beam/low and main beam
2 - Parking light/parking and main beam lights
3 - front turn signal light
WARNING
Read and observe the warning notes ⇒ page 153,
Working in the engine com-
partment before working in the engine compartment. 187
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

–
Insert the lamp holder with light bulb into the headlight. Secure the lamp hold-
er by turning it to the right until it locks in place. 
Parking light at the front –
Remove the protective cap A or
2 ⇒
 fig. 157 .
– Grasp the light bulb holder and pull it out of the headlight.
– Replace the light bulb in the light bulb holder and re-insert into the headlight. 
Daylight driving lights and fog lights Fig. 161 Front bumper: Protective grille/removing the fog light
–
Switch the ignition and all lights off.
– Grasp the grille at the points marked with the arrows ⇒ fig. 161 - left and take
it out.
– Guide your hand into the opening in which the grille was located and press the
spring bolt ⇒ 
fig. 161 - right.
– Take out the fog light.
– Turn the socket A with the bulb for daylight driving light or the socket
Bwith the bulb of the fog light to the left up to stop and take it out.
– Replace the lamp, insert the connector with the new lamp and turn to the
right up to the stop.
– For the installation, first of all insert the fog light with the interlock to the side
far away from the marking of the vehicle.
– Press into place the headlight onto the side facing the marking. –
First of all put the grille with the latch in place on the side opposite the mark-
ing.
– Press into place the protective grille onto the side facing the marking. 
Cover of fog lights - Fabia Scout, Fabia RS Fig. 162 Front bumper: Fabia Scout/Fabia RS
Removing the cover - Fabia Scout
–
Switch the ignition and all lights off.
– Guide the wire clamp from the vehicle tool kit into the opening above the fog
light ⇒ fig. 162 - left and remove the cover.
Removing the cover - Fabia RS
– Switch the ignition and all lights off.
– Guide one finger into the opening next to the fog light ⇒ fig. 162
- right and
remove the cover.
– In order to reinstall the cover, first of all insert one part of the cover starting
on the side opposite the marking. Then press the cover closed on the side fac-
ing the marking.  189
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

–
Grip the rear light unit and remove it carefully with loosening movements at an
angle to the rear. Do not pull the grommet with the cables out of the body.
– Replace the defective light bulb ⇒ page 191.
– When re-installing, first insert the rear light unit with the screw A into the
opening of the body ⇒ fig. 165 .
– Carefully press the rear light unit into the body in such a way that the pins Bengage into the supports of the body.
– Hold the rear light unit tight with one hand, screw on the nut with the other
hand and tighten it ⇒ 
fig. 165. CAUTION
When removing and installing the rear light unit make sure not to damage the
paintwork of the vehicle and the rear light unit. Note
For slackening and tightening the plastic nut use a coin. 
Changing light bulbs in the rear light unit Fig. 166 Rear light unit: Fitting position
of the bulbs
– To replace a light bulb, turn the bulb connector of the light bulb to the left (in
the direction of the arrows on the housing) and take it out of the housing
⇒ fig. 166 right.
– Replace the light bulb, put the bulb connector back into the housing and turn
it to the right up to the stop (in the opposite direction of the arrows on the
housing).
Fitting position of the light bulbs in the rear light unit ⇒ fig. 1661 - Rear fog light/Reversing light
2 - Turn signal lights
3 - Brake lights
4 - parking lights
 191
Fuses and light bulbs Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

Technical data
Technical data General information The details given in the official vehicle registration documents always take prece-
dence over the details in the Owner's Manual. Please refer to the official vehicle
registration documents or consult a specialist garage concerning the engine with
which your vehicle is equipped.

Used abbreviations Abbreviation Importance
kW Kilowatt, measuring unit for the engine output
rpm Engine revolutions per minute
Nm Newton meter, measuring unit for the engine torque
g/km discharged quantity of carbon dioxide in grams per driven
kilometre
TSI Petrol engine with a turbocharger and a direct fuel injec-
tion system
TDI CR Diesel engine with turbocharger and injection system
Common Rail
M5 5-speed manual gearbox
AQ6 6-speed automatic gearbox
DQ7 7-speed automatic gearbox DSG
N1 The vehicles of this category are designed and construc-
ted for conveying goods with a maximum weight of
3.5
tons DPF Diesel particle filter Performances The listed performance values were determined without performance-reducing
equipment, e.g. air conditioning system.

Weight Fig. 167 Type plate
The indicated unloaded weight is for orientation purposes only. It is for the basic
equipment variant of the vehicle not including special features or accessories.
The unloaden weight contains a fuel tank topped up to 90 % and a driver weight
of 75 kg.
It is possible to calculate the approximate loading capacity from the difference be-
tween the permissible total weight and the unloaded weight.
You need to include the following into the loading capacity:
● passengers,
● all items of luggage and other loads,
● roof loads incl. the roof rack,
● when using a trailer hitch, the corresponding trailer nose weight (max. 50 kg). £192
Technical data

The following specifications are listed on the type plate
⇒ fig. 167 :
Permissible gross weight
The permissible overall weight of the vehicle/trailer combination when the
vehicle is being operated with a trailer
Maximum permissible front axle load
Maximum permissible rear axle load
The identification plate is affixed to the lower part of the column between the
front and rear doors on the front passenger side. WARNING
Do not exceed the permissible overall weight - risk of accident and damage to
the vehicle. 
Identification details Fig. 168 Vehicle data sticker
Vehicle data sticker
The vehicle data sticker ⇒ fig. 168 is located on the floor of the luggage compart-
ment and is also stated in the Service schedule.
The vehicle data sticker contains the following data:
Vehicle identification number (VIN)
Vehicle type
Gearbox code, paint number, interior equipment number, engine output, en-
gine code
Partial description of the vehicle
7GG, 7MB, 7MG - vehicles with DPF ⇒ page 134
1 2
3
4
1
2
3
4
5 Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into the
engine compartment on the right hand shock absorber dome. This number is also
located on a sign on the lower left hand edge below the windscreen (together
with a VIN bar code).
Engine number
The engine number is stamped into the engine block.
Sticker on inside of fuel filler flap
The sticker is affixed to the inside of the fuel filler flap. They contain the following
data:
●
the prescribed type of fuel;
● tyre size;
● Tyre pressure. 
Fuel consumption according to the ECE standards
and EU guidelines Depending on the range of the special equipment, style of driving, traffic situa-
tion, weather influences and vehicle condition, the consumption values which in
practice result when using the vehicle can deviate from the indicated values.
Urban traffic
The consumption measurement in urban traffic begins with starting of the cold
engine. Afterwards the normal urban traffic is simulated.
Non-urban traffic
For the consumption measurement in non-urban traffic the vehicle, as in daily mo-
toring, is accelerated and braked several times in all gears. The vehicle speed
changes within the range from 0 to 120 km/h.
Combined traffic
The consumption value in the combined traffic consists of 37% from the value for
the urban traffic and of 63% from the value for the non-urban traffic.
 193
Technical data Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

Dimensions
Dimensions (mm)
FABIA FABIA
GreenLine FABIA SCOUT FABIA RS ESTATE CAR COMBI
GreenLine COMBI SCOUT COMBI RS
Length 4000 4000 4032 4029 4247 4247 4275 4276
Width 1642 1642 1658 1642 1642 1642 1658 1642
Width including exterior
mirror
1886 1886 1886 1886 1886 1886 1886 1886
Height 1498/1513
a)
1484 b) 1484 1498/1513
a)
1484 b) 1492 1498/1513
a)
1484 b) 1484 1498/1513
a)
1484 b) 1494
Clearance 134/149
a)
/119 b) 119 134 129 135/149
a)
/119 b) 119 135 129
Wheel base 2465 2465 2465 2464 2465 2465 2465 2464
Track gauge front / rear 1433/1426 1417/1410 1433/1426 1423/1415 1433/1426 1417/1410 1433/1426 1423/1415
a)
The value corresponds to the status with rough road package.
b) The value corresponds to the status with sport chassis. 194
Technical data

Engine oil specifications
The grade of engine oil should be selected in accordance with pre-
cise specifications.
The engine of your vehicle has been factory-filled with a high-grade oil which you
can use throughout the year - except in extreme climatic regions.
You can mix various oils together with each other when refilling with oil. This does
not, however, apply for models with flexible service intervals (QG1).
Engine oils are, of course, undergoing continuous further development. Thus the
information stated in this Owner's Manual is only correct at the time of publica-
tion.
Specialist garages are informed by ŠKODA about the latest changes. We recom-
mend having this oil change undertaken by a specialist garage.
The specifications (VW standards) stated in the following must be indicated sepa-
rately or together with other specifications on the bottle.
Engine oil specifications for models with flexible service intervals (QG1) Petrol engines Specification Content
a) 1.2 ltr./44 kW - EU5 VW 503 00, VW 504 00 2,8
1.2 l/51 kW - EU5 / EU2 DDK VW 503 00, VW 504 00 2,8
1.4 ltr./63 kW - EU5 VW 503 00, VW 504 00 3,2
1.4 ltr./132 kW TSI - EU5 VW 504 00 3,6
1.2 ltr./63 kW TSI - EU5 VW 504 00 3,6
1.2 ltr./77 kW TSI - EU5 VW 504 00 3,6
a)
Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level
must be between the markings ⇒ page 155, Check engine oil level .Diesel engines Specification Content
a) 1.2 ltr./55 kW TDI CR DPF - EU5 VW 507 00 4,3
1.6 ltr./55 kW TDI CR DPF - EU5 VW 507 00 4,3
1.6 ltr./66 kW TDI CR DPF - EU5 VW 507 00 4,3
1.6 ltr./77 kW TDI CR DPF - EU5 VW 507 00 4,3
a)
Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level
must be between the markings ⇒ page 155, Check engine oil level . Engine oil specifications for vehicles with fixed service intervals (QG2) Petrol engines Specification Content
a) 1.2 ltr./44 kW - EU5 VW 501 01, VW 502 00 2,8
1.2 l/51 kW - EU5 / EU2 DDK VW 501 01, VW 502 00 2,8
1.4 ltr./63 kW - EU5 VW 501 01, VW 502 00 3,2
1.6 ltr./77 kW - EU4/EU2 DDK VW 501 01, VW 502 00 3,6
1.4 ltr./132 kW TSI - EU5 VW 502 00 3,6
1.2 ltr./63 kW TSI - EU5 VW 502 00 3,6
1.2 ltr./77 kW TSI - EU5 VW 502 00 3,6
a)
Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level
must be between the markings ⇒ page 155, Check engine oil level .
If the oils specified above are not available, oils according to ACEA A2 or ACEA A3
can be used once for refilling. Diesel engines Specification Content
a) 1.2 l/55 kW TDI CR DPF - EU4/
EU5
VW 507 00 4,3
1.6 ltr./55 kW TDI CR DPF - EU5 VW 507 00 4,3
1.6 ltr./66 kW TDI CR DPF - EU5 VW 507 00 4,3
1.6 ltr./77 kW TDI CR DPF - EU5 VW 507 00 4,3
a)
Oil capacity with oil filter change. Inspect oil level when filling; do not fill up too much. The oil level
must be between the markings ⇒ page 155, Check engine oil level .
If the oils specified above are not available, oils according to ACEA B3 or ACEA B4
can be used once for refilling. CAUTION
Only the above-mentioned oils may be used on vehicles with flexible service inter-
vals (QG1). We recommend always refilling with oil of the same specification since
this will maintain the properties of the oil. In exceptional cases, you must top up
only once engine oil complying with Specification VW 502 00 (only for petrol en-
gines) or Specification VW 505 01 (only for diesel engines) to maximum 0.5 litres.
You must not use other engine oils - risk of engine damage! £ 195
Technical data Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data

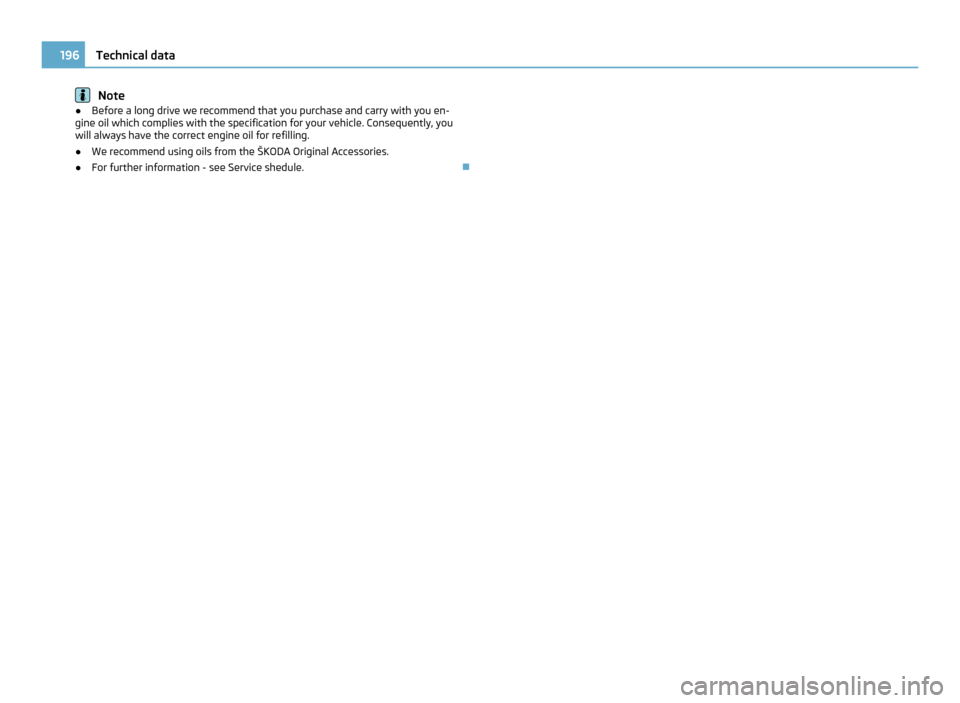

Note
● Before a long drive we recommend that you purchase and carry with you en-
gine oil which complies with the specification for your vehicle. Consequently, you
will always have the correct engine oil for refilling.
● We recommend using oils from the ŠKODA Original Accessories.
● For further information - see Service shedule. 196
Technical data
