Page 263 of 278
261
Technical specifications
Weights Gross vehicle weight in kg 1601
Weight in running order (with driver) in kg 1150
Gross front axle weight in kg 900
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 570
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.1 litres
Diesel engine 1.2 TDI CR 55 kW (75 PS) DPF
Engine specifications Power output in kW (PS) rpm 55 (75)/ 4200
Maximum torque in Nm at rpm 180/ 2000
No. of cylinders/capacity in cm3
3/ 1199
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h 168
Acceleration from 0-80 km/h in sec. 9,1
Acceleration from 0-100 km/h in sec. 13,9
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

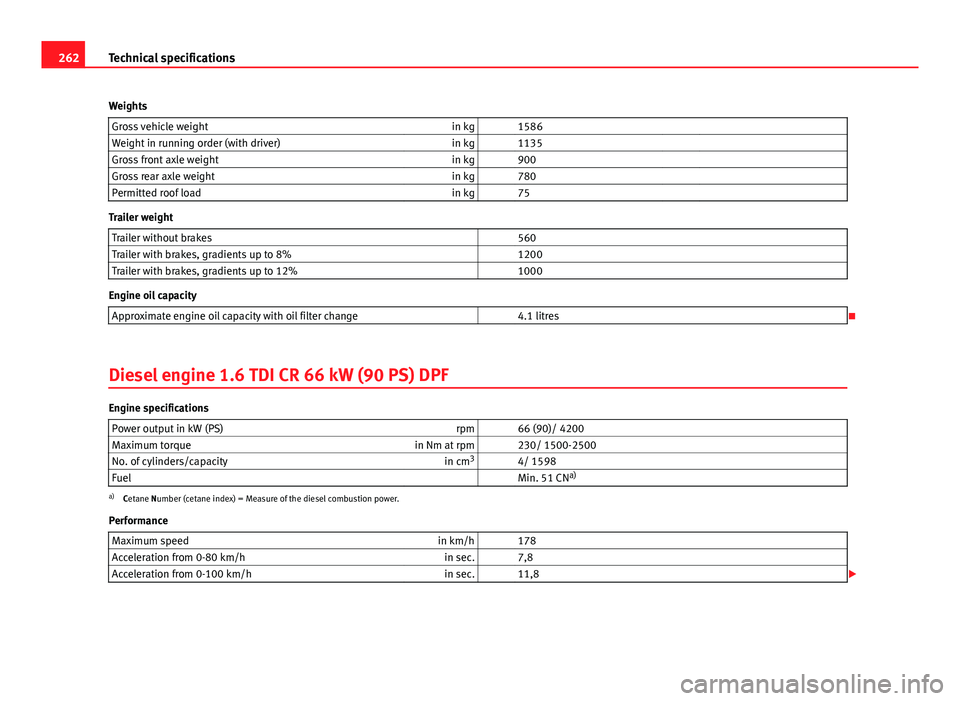

Page 264 of 278
262Technical specifications
Weights Gross vehicle weight in kg 1586
Weight in running order (with driver) in kg 1135
Gross front axle weight in kg 900
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 560
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.1 litres
Diesel engine 1.6 TDI CR 66 kW (90 PS) DPF
Engine specifications Power output in kW (PS) rpm 66 (90)/ 4200
Maximum torque in Nm at rpm 230/ 1500-2500
No. of cylinders/capacity in cm3
4/ 1598
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h 178
Acceleration from 0-80 km/h in sec. 7,8
Acceleration from 0-100 km/h in sec. 11,8
Page 265 of 278
263
Technical specifications
Weights Gross vehicle weight in kg 1621
Weight in running order (with driver) in kg 1170
Gross front axle weight in kg 930
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.3 litres
Diesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPF
Engine specifications Power output in kW (PS) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/ 1500-2500
No. of cylinders/capacity in cm3
4/ 1598
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h 188
Acceleration from 0-80 km/h in sec. 6,9
Acceleration from 0-100 km/h in sec. 10,5
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 266 of 278
264Technical specifications
Weights Gross vehicle weight in kg 1621
Weight in running order (with driver) in kg 1170
Gross front axle weight in kg 930
Gross rear axle weight in kg 780
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 580
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.3 litres
Diesel engine 2.0 TDI CR 105 kW (143 PS) DPF
Engine specifications Power output in kW (PS) rpm 105 (143)/ 4200
Maximum torque in Nm at rpm 320/ 1750-2500
No. of cylinders/capacity in cm3
4/ 1968
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h 210
Acceleration from 0-80 km/h in sec. 5,7
Acceleration from 0-100 km/h in sec. 8,2
Page 267 of 278
265
Technical specifications
Weights Gross vehicle weight in kg 1696
Weight in running order (with driver) in kg 1245
Gross front axle weight in kg 950
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes, gradients up to 12% 620
Trailer with brakes, gradients up to 8% 1300
Trailer with brakes, gradients up to 12% 1200
Engine oil capacity
Approximate engine oil capacity with oil filter change 4.8 litres
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 268 of 278
266Technical specifications
Dimensions and capacities
Dimensions
Length, width 4043 mm/ 1693 mm
Height at kerb weight 1428 mm
Front and rear projection 857 mm/ 717 mm
Wheelbase 2469 mm
Turning circle 10.7 m
Track width a) Front
Rear
1465 mm 1457 mm
Capacities
Fuel tank 45 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 2 l/4.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
a) This data will change depending on the type of wheel rim.
