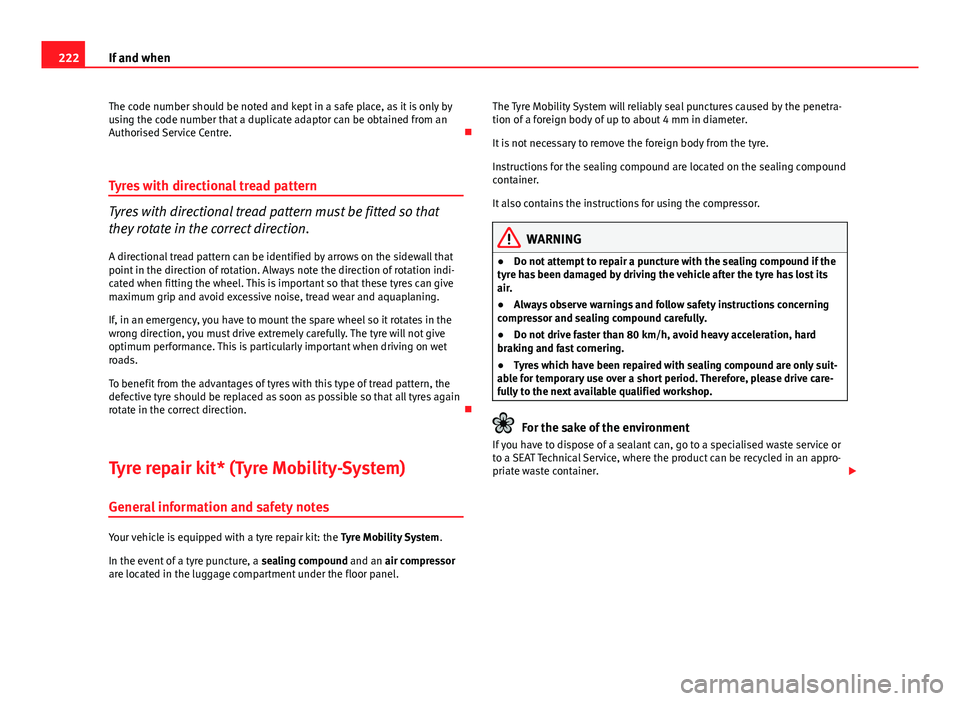

222If and when
The code number should be noted and kept in a safe place, as it is only by
using the code number that a duplicate adaptor can be obtained from an
Authorised Service Centre. 
Tyres with directional tread pattern
Tyres with directional tread pattern must be fitted so that
they rotate in the correct direction. A directional tread pattern can be identified by arrows on the sidewall that
point in the direction of rotation. Always note the direction of rotation indi-
cated when fitting the wheel. This is important so that these tyres can give
maximum grip and avoid excessive noise, tread wear and aquaplaning.
If, in an emergency, you have to mount the spare wheel so it rotates in the
wrong direction, you must drive extremely carefully. The tyre will not give
optimum performance. This is particularly important when driving on wet
roads.
To benefit from the advantages of tyres with this type of tread pattern, the
defective tyre should be replaced as soon as possible so that all tyres again
rotate in the correct direction. 
Tyre repair kit* (Tyre Mobility-System) General information and safety notes
Your vehicle is equipped with a tyre repair kit: the Tyre Mobility System.
In the event of a tyre puncture, a sealing compound and an air compressor
are located in the luggage compartment under the floor panel. The Tyre Mobility System will reliably seal punctures caused by the penetra-
tion of a foreign body of up to about 4 mm in diameter.
It is not necessary to remove the foreign body from the tyre.
Instructions for the sealing compound are located on the sealing compound
container.
It also contains the instructions for using the compressor.
WARNING
● Do not attempt to repair a puncture with the sealing compound if the
tyre has been damaged by driving the vehicle after the tyre has lost its
air.
● Always observe warnings and follow safety instructions concerning
compressor and sealing compound carefully.
● Do not drive faster than 80 km/h, avoid heavy acceleration, hard
braking and fast cornering.
● Tyres which have been repaired with sealing compound are only suit-
able for temporary use over a short period. Therefore, please drive care-
fully to the next available qualified workshop.
For the sake of the environment
If you have to dispose of a sealant can, go to a specialised waste service or
to a SEAT Technical Service, where the product can be recycled in an appro-
priate waste container. 

Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Fog lights bulb . . . . . . . . . . . . . . . . . . . . . . . . . 236
Fog lights with cornering function . . . . . . . . . . 98
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Description . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 36
Front ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Front cup holder . . . . . . . . . . . . . . . . . . . . . . . . 120
Front interior light . . . . . . . . . . . . . . . . . . . . . . 102
Front passenger airbag deactivation . . . . . . . . 40
Front reading light . . . . . . . . . . . . . . . . . . . . . . 103
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . 114
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . 247
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Fuel tank see Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 70
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 188
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
G G 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201 Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 145
General overview of the engine compartment 250
Glove compartment . . . . . . . . . . . . . . . . . . . . . 118
Glove compartment light . . . . . . . . . . . . . . . . . 103
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 140
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 66
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 154
Hazard warning lights . . . . . . . . . . . . . . . . . . . 100
HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . 101
Headlight range control . . . . . . . . . . . . . . . . . . . 97
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . 172
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Headlight washer . . . . . . . . . . . . . . . . . . . . 107
Head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . 112, 113
Adjustment of the head restraint angle . . 113
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Heated exterior mirrors . . . . . . . . . . . . . . . . . . 109
Heated front seats . . . . . . . . . . . . . . . . . . . . . . 115
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . 127
High pressure cleaners . . . . . . . . . . . . . . . . . . 177
Hill-start aid . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
How to jump start description . . . . . . . . . . . . . 240 Hydraulic Brake Assist
Automatic hazard warning lights activa-tion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
I
Identification number . . . . . . . . . . . . . . . . . . . 247
Identification plate . . . . . . . . . . . . . . . . . . . . . . 247
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Information in the multifunction display Memory displays . . . . . . . . . . . . . . . . . . . . . 57
Instrument and switch lighting . . . . . . . . . . . . . 97
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . 51
Instrument panel Service interval display . . . . . . . . . . . . . . . . 59
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Interior monitoring and anti-towing alarm Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Intermittent wipe, windscreen . . . . . . . . . . . . . 104
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
J Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
270 Index
