2011 Seat Altea technical specifications

Technical Specifications
298Weights
Trailer weight
Engine oil capacityDiesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPFEngine specifications Manual
Automatic
Gross vehicle weight in kg 19952015
Weight in running order (with driver) in kg 14751495
Gross front axle weight in kg 10621062
Gross rear axle weight in kg 994994
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes 730740
Trailer with brakes, gradients up to 8% 15001500
Trailer with brakes, gradients up to 12% 14001400
Approximate engine oil capacity with oil filter change 4.6 litres
Power output in kW (PS) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/1500-2500
No. of cylinders/ capacity in cm
3
4/1598
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel
Altea_EN.book Seite 298 Donnerstag, 2. September 2010 2:00 14

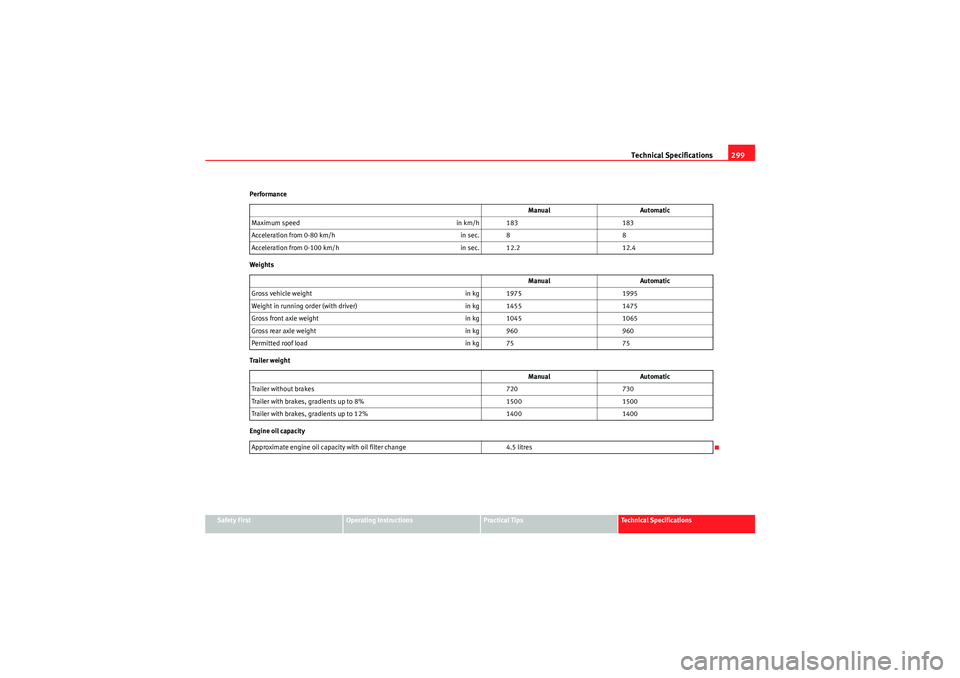

Technical Specifications299
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Performance
Weights
Trailer weight
Engine oil capacity
Manual
Automatic
Maximum speed in km/h 183183
Acceleration from 0-80 km/h in sec. 88
Acceleration from 0-100 km/h in sec. 12.212.4
Manual Automatic
Gross vehicle weight in kg 19751995
Weight in running order (with driver) in kg 14551475
Gross front axle weight in kg 10451065
Gross rear axle weight in kg 960960
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes 720730
Trailer with brakes, gradients up to 8% 15001500
Trailer with brakes, gradients up to 12% 14001400
Approximate engine oil capacity with oil filter change 4.5 litres
Altea_EN.book Seite 299 Donnerstag, 2. September 2010 2:00 14

Technical Specifications
300Diesel engine 1.6 TDI CR 77 kW (105 PS) DPF Start&StopEngine specifications
Performance
Weights
Trailer weight Power output in kW (PS)
rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/1500-2500
No. of cylinders/ capacity in cm
3
4/1598
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 183
Acceleration from 0-80 km/h in sec. 8
Acceleration from 0-100 km/h in sec. 12.2
Gross vehicle weight in kg 1970
Weight in running order (with driver) in kg 1450
Gross front axle weight in kg 1045
Gross rear axle weight in kg 960
Permitted roof load in kg 75
Trailer without brakes 720
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Altea_EN.book Seite 300 Donnerstag, 2. September 2010 2:00 14

Technical Specifications301
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Engine oil capacity
Diesel engine 2.0 TDI CR 103 kW (140 PS) DPFEngine specifications
Performance
Approximate engine oil capacity with oil filter change
4.5 litres
Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders/ capacity in cm
3
4/ 1968
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.
Manual Automatic
Maximum speed in km/h 201201
Acceleration from 0-80 km/h in sec. 6.96.7
Acceleration from 0-100 km/h in sec. 9.99.8
Altea_EN.book Seite 301 Donnerstag, 2. September 2010 2:00 14

Technical Specifications
302Weights
Trailer weight
Engine oil capacityDiesel engine 2.0 TDI PD 103 kW (140 PS) without DPFEngine specifications Manual
Automatic
Gross vehicle weight in kg 19852000
Weight in running order (with driver) in kg 14651480
Gross front axle weight in kg 10651080
Gross rear axle weight in kg 955955
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes in kg 730740
Trailer with brakes, gradients up to 8% in kg 15001500
Trailer with brakes, gradients up to 12% in kg 14001400
Approximate engine oil capacity with oil filter change 4.5 litres
Power output in kW (PS) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders/ capacity in cm
3
4/ 1968
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.
Altea_EN.book Seite 302 Donnerstag, 2. September 2010 2:00 14

Technical Specifications303
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Performance
Weights
Trailer weight
Engine oil capacity
Manual
Automatic
Maximum speed in km/h 201201
Acceleration from 0-80 km/h in sec. 6.96.7
Acceleration from 0-100 km/h in sec. 9.99.8
Manual Automatic
Gross vehicle weight in kg 20252060
Weight in running order (with driver) in kg 15051540
Gross front axle weight in kg 10701105
Gross rear axle weight in kg 975980
Permitted roof load in kg 7575
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Altea_EN.book Seite 303 Donnerstag, 2. September 2010 2:00 14

Technical Specifications
304Dimensions and capacities
Dimensions
Length, width 4282 mm/ 1768 mm
Height at kerb weight 1546 mm
Front and rear projection 916 mm/ 788 mm
Wheelbase 2578 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1525 mm 1509 mm
1539 mm 1523 mm
Capacities
Fuel tank 55 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Ty re p re ss u re
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
Altea_EN.book Seite 304 Donnerstag, 2. September 2010 2:00 14
