Page 176 of 329

13B-176
MR-372-J84-13B050$624.mif
V17
13B
DIESEL INJECTION
Fault finding – Interpretation of statuses
*elec: electric
**circ: circuitET701
PARTICLE FILTER PRESSURE SENSOR
STATUS DEFINITIONACTIVE: This status indicates that the particle filter electric fuel pump is active.
INACTIVE: This status indicates that the particle filter electric fuel pump is not active.
NOTESSpecial notes:
Only perform these tests if the status does not correspond with the system
programming functions.
Only for vehicles equipped with a particle filter.
Conformity check with the engine stopped and the ignition on, or engine running, and engine coolant
temperature > 80°C
ACTIVE
INACTIVE
The status is ACTIVE during the particle filter regeneration phase.
If there is a fault, consult the interpretation of fault DF1004 Electric fuel pump control
relay circ**.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
SID304_V4D_ET701/SID304_V45_ET701/SID304_V49_ET701/SID301_V44_ET701/SID301_V4C_ET701
Siemens Injection
SID304
Vdiag No.: 44-45-49-4D-4C
Program No.: B2
Page 183 of 329

13B-183
MR-372-J84-13B050$624.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B2DIESEL INJECTION
Fault finding – Interpretation of statuses13B
ET706
ET707
ET708
ET709
ET710
ET711
ET712
ET713
ET714
ET715STORED ENGINE STATUS NO. 1
STORED ENGINE STATUS NO. 2
STORED ENGINE STATUS NO. 3
STORED ENGINE STATUS NO. 4
STORED ENGINE STATUS NO. 5
STORED ENGINE STATUS NO. 6
STORED ENGINE STATUS NO. 7
STORED ENGINE STATUS NO. 8
STORED ENGINE STATUS NO. 9
STORED ENGINE STATUS NO. 10
STATUS DEFINITIONRUNNING: This status indicates that the stored engine status is engine running.
STOPPED: This status indicates that the stored engine status is engine stopped.
NOTESSpecial note:
Check the interpretation of these parameters only on ALP21 Particle filter warning
light illuminated.
Vdiag 4D and 49 only.
Each STATUS between ET706 and ET715 corresponds to regeneration failures for which the mileage is recorded
by the parameters PR794 Regeneration failure record No. 1 to PR803 Regeneration failure record No. 10
(for example: PR797 Regeneration failure record No. 4 is linked to ET709 Stored engine status no. 4).
"RUNNING"
The status is ACTIVE as soon as the ignition is switched on.
"STOPPED"If the status is STOPPED, regeneration failure due to the engine being switched off.
+ APCDo not interpret this engine status.
"NONE"Do not interpret this engine status.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
SID304_V4D_ET706/SID304_V4D_ET707/SID304_V4D_ET708/SID304_V4D_ET709/SID304_V4D_ET710/SID304_V4D_ET711/
SID304_V4D_ET712/SID304_V4D_ET713/SID304_V4D_ET714/SID304_V4D_ET715/SID304_V49_ET706/SID304_V49_ET707/
SID304_V49_ET708/SID304_V49_ET709/SID304_V49_ET710/SID304_V49_ET711/SID304_V49_ET712/SID304_V49_ET713/
SID304_V49_ET714/SID304_V49_ET715/SID301_V4C_ET707/SID301_V4C_ET708/SID301_V4C_ET709/SID301_V4C_ET710/
SID301_V4C_ET711/SID301_V4C_ET712/SID301_V4C_ET713/SID301_V4C_ET714/SID301_V4C_ET715
Page 187 of 329

13B-187
MR-372-J84-13B050$663.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2DIESEL INJECTION
Fault finding – Parameter summary table13B
Tool parameter Diagnostic tool title
PR125Power absorbed by the AC* compressor Vdiag 44 and 48 only
PR128First EGR valve offset
PR129Last EGR valve offset
PR130Cruise control setpoint
PR132Air flow
PR171Air flow setpoint for EGR Vdiag 44 and 48 only
PR190Engine idle speed setpoint.
PR224Turbocharging pressure sensor voltage Vdiag 44 and 48 only
PR228Injector control capacitor voltage
PR364Cylinder no. 1 fuel flow correction
PR365Cylinder no. 4 fuel flow correction
PR381Particle filter downstream temperature
Vdiag 4D, 45 and 49 only PR382Particle filter upstream temperature
PR383Weight of soot in the particle filter
PR391Mileage since particle filter replacement
PR400New EGR valve offset
PR405Cylinder no. 2 fuel flow correction
PR406Cylinder no. 3 fuel flow correction
PR412Mileage at last successful regeneration
Vdiag 4D, 45 and 49 only PR414Particle filter diff* pressure
PR415Time since last regeneration
PR513Mileage counter for level 1 warning light
PR514Mileage counter for level 2 warning light
PR634Air flow request
PR667Turbine upstream temperature
Vdiag 4D, 45 and 49 only PR668Turbine upstream temperature sensor voltage
PR669Particle filter diff* press* sens* voltage
PR670Particle filter upstream temp* sens* voltage
PR671Particle filter downstream temp* sens* voltage
PR672Damper valve position setpoint Vdiag 44 and 48 only
*AC: air conditioning system
*diff: differential*sens: sensor
*temp: temperature*press: pressure
Page 224 of 329

13B-224
MR-372-J84-13B050$741.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR132
AIR FLOW
PARAMETER
DEFINITIONThis parameter indicates the inlet air flow in mg/st.
NOTESSpecial notes:
Only perform these tests if the parameters do not correspond with the system
operation programming.
No faults must be present.
Perform this fault finding procedure:
– after finding an inconsistency in the parameter,
– or after a customer complaint (lack of power, smoke etc.).
Use CLIO III, MODUS, MEGANE II ph2, SCENIC II ph2 and KANGOO II Wiring
Diagrams Technical Notes.
Sensor electrical conformity
Check the air inlet circuit (from the air filter inlet to the inlet manifold, run test 10 Air line at the turbocharger):
– air filter unit inlet not blocked and filter not clogged,
–visual inspection only, use ALP2 The engine does not start or starts with difficulty,
– oil vapour recirculation circuit connected correctly,
–absence of leaks or blockages in the low and high pressure air circuits: ducts, presence and tightness
of the mounting clips, mounting of the turbocharging pressure sensor, exchanger, etc.
– check that the damper valve is not jammed shut (except Vdiag 4C).
Carry out the necessary repairs.
Check the electrical conformity of the air flow sensor:
Check the + 5 V supply to the air flowmeter.
– connection 3KJ of component 799.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID301_V44_PR132 / SID304_V45_PR132 / SID301_V48_PR132 / SID304_V49_PR132 / SID304_V4D_PR132 / SID301_V4C_PR132
Page 231 of 329

13B-231
MR-372-J84-13B050$780.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR381
PARTICLE FILTER DOWNSTREAM TEMPERATURE
PARAMETER
DEFINITIONThis parameter indicates the particle filter downstream temperature in °C.
NOTESSpecial notes:
Only apply the checks if the parameter is inconsistent.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
The particle filter downstream temperature sensor only measures temperatures above 50°C.
The measurement ranges are between 150°C and 1000°C.
Measure the resistance of the particle filter downstream temperature sensor, component code 1288, between
connections 3TG and 3XU.
If the resistance of the particle filter downstream temperature sensor is not:
6886Ω
2565Ω
1192Ω
replace the particle filter downstream temperature sensor (see MR 385, 364, 370
and 417 Mechanical, 19B,
Exhaust, Particle filter temperature sensors: Removal - Refitting).
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID304_V4D_PR381/SID304_V45_PR381/SID304_V49_PR381/SID301_V4C_PR381
Page 232 of 329

13B-232
MR-372-J84-13B050$780.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR382
PARTICLE FILTER UPSTREAM TEMPERATURE
PARAMETER
DEFINITIONThis parameter indicates the particle filter upstream temperature in °C.
NOTESSpecial notes:
Only apply the checks if the parameter is inconsistent.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
The particle filter upstream temperature sensor only measures temperatures above 50°C.
The measurement ranges are between 150°C and 1000°C.
Measure the resistance of the particle filter upstream temperature sensor, component code 1287, between
connections 3TD and3XT.
If the resistance of the particle filter upstream temperature sensor is not:
6886Ω
2565Ω
1192Ω
replace the particle filter downstream temperature sensor (see MR 385, 364, 370
and 417 Mechanical, 19B,
Exhaust, Particle filter temperature sensors: Removal - Refitting).
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID304_V4D_PR382/SID304_V45_PR382/SID304_V49_PR382/SID301_V4C_PR382
Page 233 of 329

13B-233
MR-372-J84-13B050$780.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR383
WEIGHT OF SOOT IN PARTICLE FILTER
PARAMETER
DEFINITIONThis parameter indicates the weight of soot in the particle filter in grams.
NOTESSpecial notes:
Only apply the checks if the parameter is inconsistent.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
The weight of the soot contained in the filter must not be greater than 31 g.
If the particle filter warning light is illuminated or if the message Regenerate catalytic converter is displayed,
carry out a special type of driving (see Technical Note 6507, Particle filter fault finding).
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID304_V4D_PR383/SID304_V45_PR383/SID304_V49_PR383/SID301_V4C_PR383

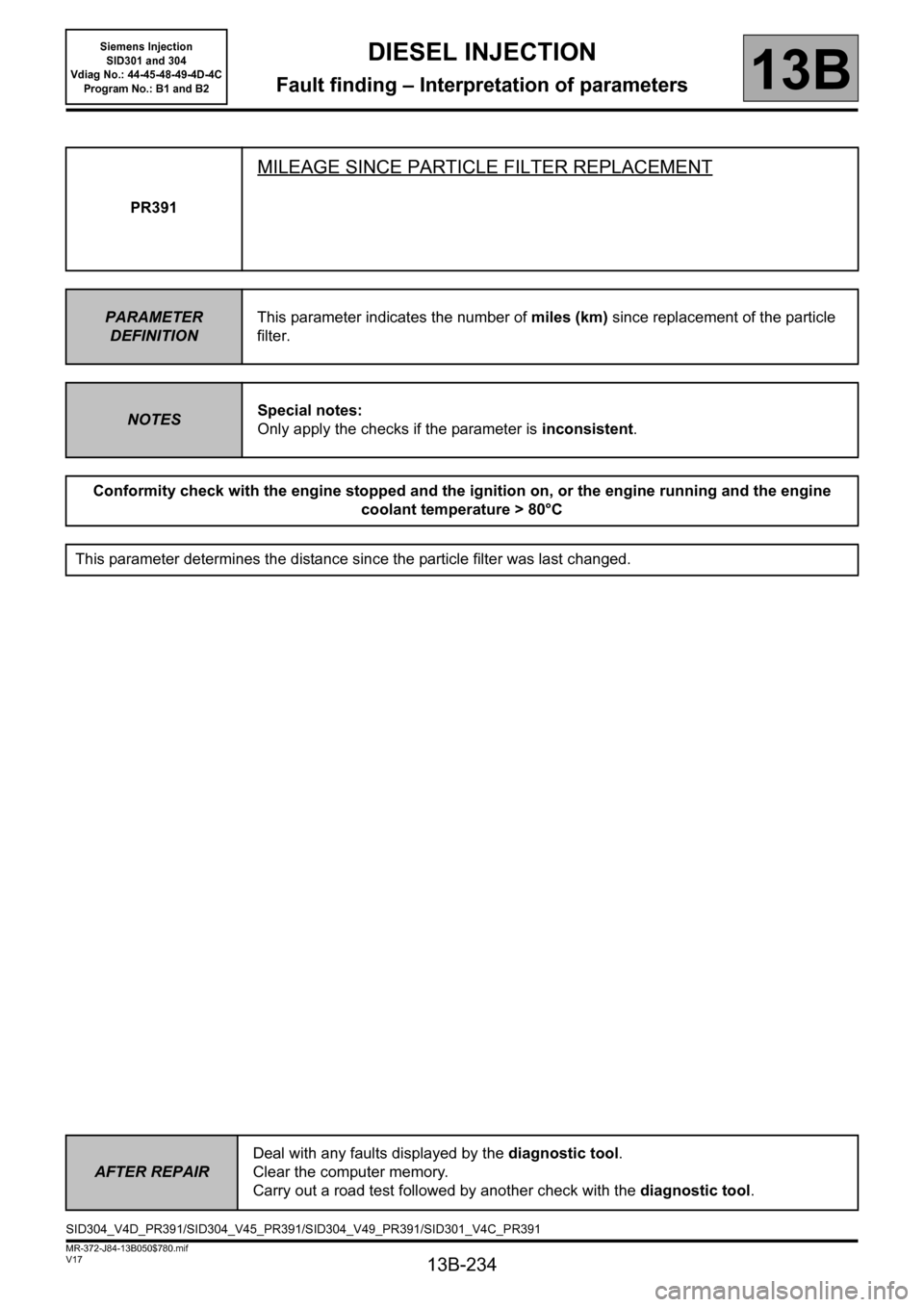

Page 234 of 329
13B-234
MR-372-J84-13B050$780.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR391
MILEAGE SINCE PARTICLE FILTER REPLACEMENT
PARAMETER
DEFINITIONThis parameter indicates the number of miles (km) since replacement of the particle
filter.
NOTESSpecial notes:
Only apply the checks if the parameter is inconsistent.
Conformity check with the engine stopped and the ignition on, or the engine running and the engine
coolant temperature > 80°C
This parameter determines the distance since the particle filter was last changed.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
SID304_V4D_PR391/SID304_V45_PR391/SID304_V49_PR391/SID301_V4C_PR391
