13B-176
MR-372-J84-13B050$624.mif
V17
13B
DIESEL INJECTION
Fault finding – Interpretation of statuses
*elec: electric
**circ: circuitET701
PARTICLE FILTER PRESSURE SENSOR
STATUS DEFINITIONACTIVE: This status indicates that the particle filter electric fuel pump is active.
INACTIVE: This status indicates that the particle filter electric fuel pump is not active.
NOTESSpecial notes:
Only perform these tests if the status does not correspond with the system
programming functions.
Only for vehicles equipped with a particle filter.
Conformity check with the engine stopped and the ignition on, or engine running, and engine coolant
temperature > 80°C
ACTIVE
INACTIVE
The status is ACTIVE during the particle filter regeneration phase.
If there is a fault, consult the interpretation of fault DF1004 Electric fuel pump control
relay circ**.
AFTER REPAIRCarry out a road test, then check with the diagnostic tool.
SID304_V4D_ET701/SID304_V45_ET701/SID304_V49_ET701/SID301_V44_ET701/SID301_V4C_ET701
Siemens Injection
SID304
Vdiag No.: 44-45-49-4D-4C
Program No.: B2

13B-225
MR-372-J84-13B050$741.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of parameters
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
PR132
CONTINUED
Check the + 12 V after relay supply to the air flowmeter.
– connection 3FB (3FB3 for Kangoo II) of component 799.
Check for continuity and absence of interference resistance of the following connections:
– connection code3DV,
– connection code3DW,
between components 120 and 799.
With the flow sensor connected, the vehicle ignition on and engine stopped:
Measure the voltage between connections 3DW and 3DV of component 799.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
– If the voltage is not between 0.3 V and 0.7 V, replace the air flowmeter (see MR 392, 385, 364, 370 and 417,
Mechanical, 12A, Fuel mixture, Air flowmeter: Removal - Refitting).
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.

13B-259
MR-372-J84-13B050$819.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of commands
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
AC037: Preheating relay.
Activating this lets you listen to the operation of the preheating relay and enables the warning light in the
instrument panel to be illuminated.
AC079: Static actuator test.
Activating this allows you to activate the injection system actuators (simultaneously runs commands
AC003, AC005 to AC008, AC012, AC037, AC213, and AC214).
Run this command with the engine stopped and the engine coolant temperature below 40°C.
AC099: Inhibition of electrical consumers.
AC100: Cancel inhibition of electrical consumers.
AC213: Fuel flow solenoid valve.
AC214: Turbocharger control solenoid valve.
Activating this allows you to listen to the operation of the turbocharger control solenoid valve.
AC233: Thermoplungers no. 1 and no. 2 (Vdiag 45, 49 and 4D only).
AC234: Thermoplunger no. 3 (Vdiag 45, 49 and 4D only).
AC235: Thermoplunger no. 4 (Vdiag 45, 49 and 4D only).
AC236: Coolant pump relay (only for vehicles equipped with a particle filter, except KANGOO II).
AC237: Fuel pump relay (only for vehicles equipped with a particle filter).
Activating this allows you to check the sealing on the 5
th particle filter injector circuit.
AC238: Particle filter injector (Only for vehicles equipped with a particle filter).
AC239: Particle filter temperature sensor fault finding (only for vehicles equipped with a particle filter).
Run this command with the engine stopped and the engine coolant temperature below 40°C.
AC260: Thermoplunger relay.
Activating this allows you to check the three thermoplunger relays.

13B-262
MR-372-J84-13B050$819.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of commands
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
SC017
PARTICLE FILTER REGENERATION
NOTESCarry out this command only under the following conditions:
– DF308 Clogged particle filter present.
Ignition on and engine stopped.
Vdiag 45, 49 and 4D only.
WARNING:
–It is essential to carry out the next procedure in accordance with the safety and cleanliness guidelines,
(see MR 364 (Mégane II), 370 (Scénic II), 417 (Kangoo II), 385 (Modus), 392 (Clio III), Mechanical, 19B,
Exhaust, Particle filter: Cleaning).
– do not run command AC029 High pressure circuit seal test until regeneration has finished.
– before each regeneration, check the fuel level,
– before and after each regeneration, check the oil level.
With the engine running and the vehicle stopped, this function allows the particle filter to be regenerated.
Safety instructions to be followed:
The regeneration causes exhaust fumes and high temperatures.
The vehicle must be outside during regeneration.
If it is not possible to carry out regeneration outside, check that the extractor fan can withstand the very high
regeneration temperatures.
Perform regeneration on a surface free from fire risks (oil, dry leaves, etc.).
Nothing should be left in the vicinity of the exhaust pipe.
Before regeneration:
– Respect After-Sales recommendations for particle filter regeneration.
– Check the oil level to prevent the engine from racing.
– Check the fuel level.
– Check the sealing on the 5th particle filter injector circuit using actuator AC237 Fuel pump relay.
– Check that there are no leaks or blockages in the exhaust pipe,
To perform regeneration:
– Vehicle stopped and in neutral.
– Engine running and warm.
– No pedal depressed (accelerator and clutch).
– No faults present preventing regeneration from being carried out on the system.
– No leak in the 5th particle filter injector circuit.
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
SID304_V45_SC017 / SID304_V49_SC017 / SID304_V4D_SC017 / SID301_V4C_SC017

13B-269
MR-372-J84-13B050$819.mif
V17
DIESEL INJECTION
Fault finding – Interpretation of commands
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B

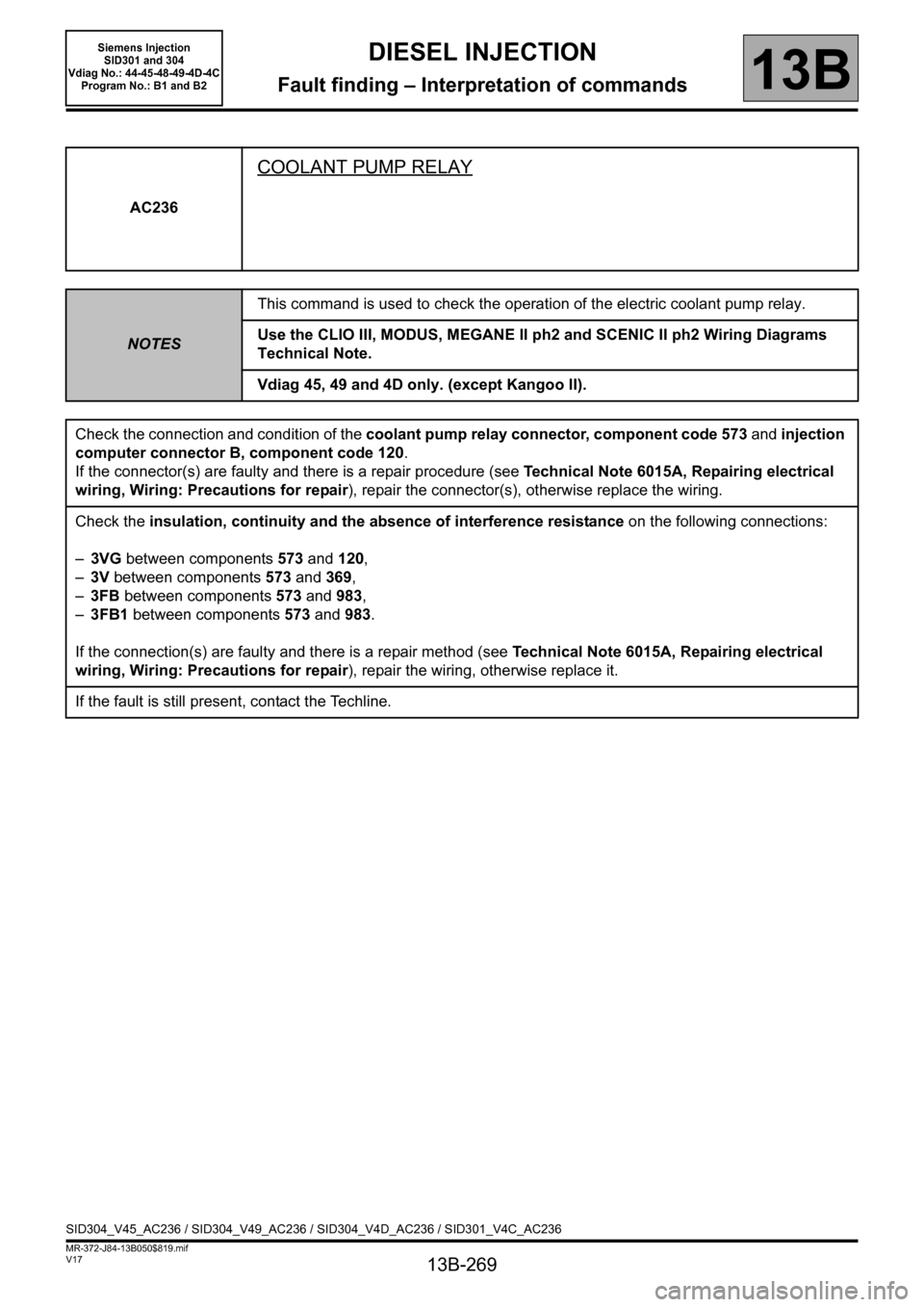

AC236
COOLANT PUMP RELAY
NOTESThis command is used to check the operation of the electric coolant pump relay.
Use the CLIO III, MODUS, MEGANE II ph2 and SCENIC II ph2 Wiring Diagrams
Technical Note.
Vdiag 45, 49 and 4D only. (except Kangoo II).
Check the connection and condition of the coolant pump relay connector, component code 573 and injection
computer connector B, component code 120.
If the connector(s) are faulty and there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector(s), otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance on the following connections:
–3VG between components 573 and 120,
–3V between components 573 and 369,
–3FB between components 573 and 983,
–3FB1 between components 573 and 983.
If the connection(s) are faulty and there is a repair method (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
SID304_V45_AC236 / SID304_V49_AC236 / SID304_V4D_AC236 / SID301_V4C_AC236

13B-274
MR-372-J84-13B050$897.mif
V17
DIESEL INJECTION
Fault finding – Fault Finding Chart
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
ALP 2 The engine does not start or starts with difficulty
NOTESOnly address this customer complaint after a complete check with the diagnostic
tool.
Check the presence and conformity of the fuel by running Test 13 Diesel fuel conformity check.
Carry out fault finding on the charge circuit (See Technical Note 6014A, Checking the charging circuit or 87G,
Engine compartment connection unit).
Check the starter and the starter relay (see Technical Note 3632A, Starter fault finding).
Check the injection computer main relay (refer to the interpretation of fault DF015 Main relay control circuit).
Check the injection computer: that the connections and wiring are in good condition, that earths and feeds are
present.
If the wiring is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check the camshaft sensor and TDC sensor, as well as their wiring (refer to the interpretation of faults DF005
Engine speed sensor circuit and DF097 Camshaft sensor circuit).
If there is a repair procedure (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair), repair the wiring, if not replace it.
Check the air inlet circuit (refer to the interpretation of fault DF301 Air inlet circuit).
Check that the damper valve operates correctly (refer to the interpretation of fault DF641 Damper valve circuit).
Check the low pressure fuel supply system by performing test 1 Low pressure supply check and test 2
Internal fuel transfer pump (ITP) check.
Check the high pressure fuel supply system by performing test 3 High pressure fuel pressure solenoid valve
check, test 4 High pressure pump (HPP) and fuel flow solenoid valve check and test 5 Rail high pressure
regulation circuit check.
Check the injectors by performing test 6 Major leak in injectors/injectors open and test 7 Incorrect injection
amount.
AFTER REPAIRCarry out a road test followed by a complete check with the diagnostic tool.
SID301_V44_ALP2 / SID304_V45_ALP2 / SID301_V48_ALP2 / SID304_V49_ALP2 / SID304_V4D_ALP2 / SID301_V4C_ALP2

13B-289
MR-372-J84-13B050$897.mif
V17
DIESEL INJECTION
Fault finding – Fault Finding Chart
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
ALP 16 Engine overheating
NOTESOnly address this customer complaint after a complete check with the diagnostic
tool.
Check the cooling system (refer to MR 385 392 364 370 or 417, Mechanical, 19A, Cooling).
Check the injection computer: that the connections and wiring are in good condition, that earths and feeds are
present.
If the wiring is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check the coolant temperature sensor (refer to the interpretation of faults DF001 Coolant temperature sensor
circuit).
Check the condition and connection of the relay/fuse box.
If the wiring is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring,
Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
Check that the fan assemblies operate correctly (refer to MR 385 392 364, 370 or 417, Mechanical, 19A,
Cooling).
AFTER REPAIRCarry out a road test followed by a complete check with the diagnostic tool.
SID301_V44_ALP16 / SID304_V45_ALP16 / SID301_V48_ALP16 / SID304_V49_ALP16 / SID304_V4D_ALP16 / SID301_V4C_ALP16

13B-296
MR-372-J84-13B050$897.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2DIESEL INJECTION
Fault finding – Fault Finding Chart13B
ALP 20 Exhaust fumes
NOTESOnly address this customer complaint after a complete check with the diagnostic
tool.
Is the vehicle equipped with a particle filter?
(Vdiag 45, 49 and 4D only)
NO
Check the engine oil grade and level.
Check the presence and conformity of the fuel, by running Test 13 Diesel fuel conformity check, and its circuit
(see MR 385, 392, 364, 370 or 417, Mechanical, 13A, Fuel supply).
Check the cooling system (see MR 385 392 364, 370 or 417 Mechanics, 19A, Cooling, Engine cooling system:
Specifications).
Check the fuel temperature sensor (refer to the interpretation of Fuel temperature sensor circuit faults DF098).
Check the coolant temperature sensor (refer to the interpretation of faults DF001 Coolant temperature sensor
circuit).
Check the air inlet circuit (refer to the interpretation of fault DF301 Air inlet circuit).
Check that the damper valve operates correctly (refer to the interpretation of fault DF641 Damper valve circuit).
Check the air flowmeter (refer to the interpretation of faults DF039 Inlet air temperature sensor circuit, DF129 Air
flow requested and DF056 Air flow sensor circuit).
Check the turbocharging pressure (consult the interpretation of fault DF004 Turbocharging pressure sensor circuit).
Check the preheating system (refer to the interpretation of fault DF025 Preheating unit diagnostic line).
Check the injection computer: that the connections and wiring are in good condition, that earths and feeds are present.
If the wiring is faulty and there is a repair method (see Technical Note 6015A, Repairing electrical wiring, Wiring:
Precautions for repair), repair the wiring, otherwise replace it.
YES
Deal with the following faults first: DF238
Thermoplunger no. 3 relay circuit, DF239
Thermoplunger no. 2 relay circuit, DF240
Thermoplunger no. 1 relay circuit and DF1005
Thermoplunger control unit fault finding 1
connection. Check the particle filter injector supply
circuit, by running Test 8 Checking the particle filter
injector supply circuit.
AFTER REPAIRCarry out a road test followed by a complete check with the diagnostic tool.
SID301_V44_ALP20 / SID304_V45_ALP20 / SID301_V48_ALP20 / SID304_V49_ALP20 / SID304_V4D_ALP20 / SID301_V4C_ALP20
A
