Technical data - Maintenance

VISUAL SEARCH
10

TECHNICAL DATA - MAINTENANCE

Identifi cation markingss, serial number,
paint code, tyres  142
  Engine fuses  129
  Windscreen/headlamp wash, levels  106
  Bulbs, lighting,
changing bulbs  121-125
  Opening the bonnet, stay  102    Warning lamps  28-33
  Changing a wiper blade  131
  Under the bonnet


-  Diesel  103

-  petrol  104
  Fuel cut-off, Diesel priming  111-112
  Engine technical data  141
  Van dimensions  134-137
  Platform cab dimensions  138-139
  Weights 140
  Model code  148   Checks 107-108


-  battery,

-  gearbox,

-  carbon/passenger compartment fi lter,

-  oil fi lter,

-  particle emission fi lter,

-  parking brake,

-  brake pads,

-   brake drums, discs.
  Emissions controls (EOBD)  35    Water bleeding, Diesel fi lter  108    Levels 105-106


-  Diesel additive,

-  dipstick,

-  power steering fl uid,

-  brake fl uid,

-  coolant,

-   screen and headlamp wash
fl uid.
  Towing, lifting  132-133
  Towed loads  140


        148

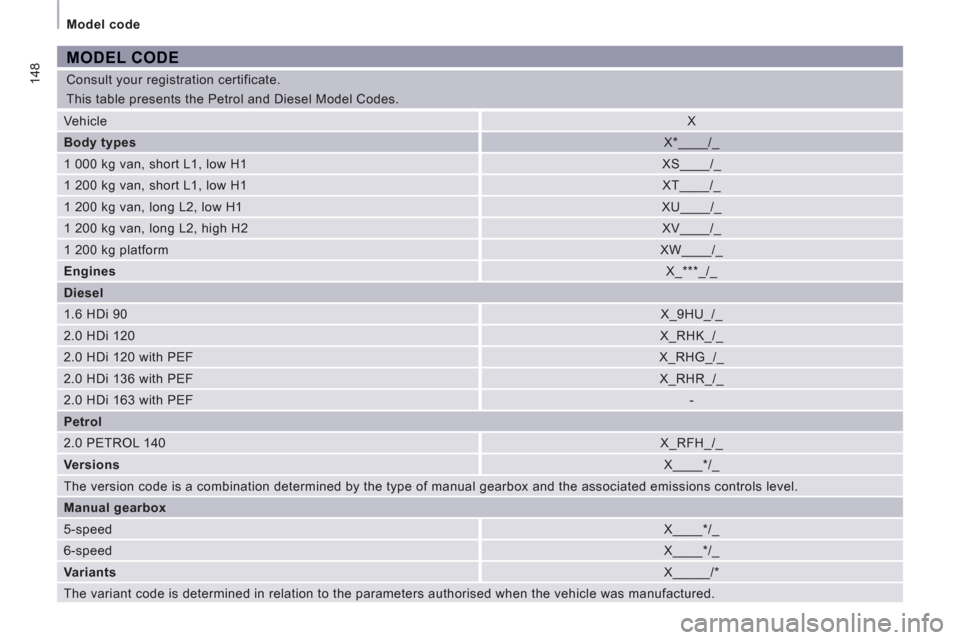

  Model code
  Consult your registration certificate.
  This table presents the Petrol and Diesel Model Codes.
MODEL CODE

Vehicle

X

Body types

X*____/_
  1 000 kg van, short L1, low H1
XS____/_
  1 200 kg van, short L1, low H1
XT____/_
  1 200 kg van, long L2, low H1

XU____/_
  1 200 kg van, long L2, high H2
XV____/_
  1 200 kg platform

XW____/_

Engines

X_***_/_

Diesel





1.6 HDi 90

X_9HU_/_
  2.0 HDi 120

X_RHK_/_
  2.0 HDi 120 with PEF

X_RHG_/_
  2.0 HDi 136 with PEF

X_RHR_/_
  2.0 HDi 163 with PEF

-

Petrol





2.0 PETROL 140

X_RFH_/_

Versions

X____*/_
  The version code is a combination determined by the type of manual gearbox and the associated emissions controls level.

Manual gearbox





5-speed

X____*/_
  6-speed

X____*/_

Variants

X_____/*
  The variant code is determined in relation to the parameters authorised when the vehicle was manufactured.
