2011 Peugeot Expert VU seats

2

Contents
Remote control 19Key 20Alarm 21Doors 23Instrument panel 26Adjusting the time 27Warning lamps 28Fuel gauge 34Coolant 34Service indicator 35Lighting rheostat 36Gearboxes 37Gear shift indicator 37Automatic gearbox 38Steering wheel adjustment 41Starting and stopping 41
Lighting 42controls 42wipers 45Cruise control 47Fixed speed limiter 49Speed limiter 50Manual heating/air conditioning53automatic 55De-icing and demisting 59Additional heating 61Seats 642-seat front bench 66Cab fittings 68Courtesy lights 71Toll cards/car park tickets 71Crew cab 72Load space fittings 73Rear suspension 76Mirrors 79Electric windows 81
2. READY TO
SET OFF 19-414. SAFETY 82-97
Presentation 4Communication4Exterior 5Sitting comfortably 10Seeing clearly 12Driving safely 13Cab layout 14Load space 15Ventilation 16Eco-driving 17
1. FAMILIARISATION 4-18
Parking brake 82Hazard warning lamps 82Parking sensors 83Horn 84Anti-lock braking system (ABS) 84Emergency braking assistance 84Traction control (ASR) andstability control (ESP) 85Seat belts 86Airbags 89Lateral airbags 91Front airbags 92Deactivating the passenger'sairbag 92Child seats 93Recommended seats 95
3. EASE OF USE and COMFORT 42-81

18

Limit the causes of
excess consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom of
the boot, as close as possible to the rear
seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof
rack, bicycle carrier, trailer...). Use a roof
box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow tyres
and refit your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres
on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil filter, air filter...) and observe
the schedule of operations recommended
by the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid any
overflow.

At the wheel of your new vehicle, it is only
after the first 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

25


Access

READY to SET OFF
2

HINGED REAR DOORS

When parked with the rear
doors open to 90°, the doors
mask the rear lights.

To signal your position to
road users travelling in the
same direction who may
not have noticed that you
have stopped, use a warning
triangle or any other device
stipulated by the legislation
and regulations of your
country.

TAILGATE


From the outside

The two hinged doors open to 90°.
To open, pull the handle towards you then
pull the lever to open the left-hand door.
To close, start with the left-hand door then
close the right-hand door.


Opening to 180°

A retractable check strap system permits
extension of the opening from 90° to 180°.
Disengage the check strap towards you
when the door is partially open.
The check strap will re-attach automatically
on closing.

From the outside

If fitted on your vehicle, locking/unlocking is
via the remote control.
To open, press the control then raise the
tailgate.
A strap is provided to secure the tailgate in
the upper position.


From inside


Emergency control
In the event of a central unlocking operating
fault, this permits unlocking of the tailgate
from the inside.
Fold the rear seats to gain access to the
lock.
Insert a small screwdriver in this opening to
unlock the tailgate.

26


Instruments and controls


INSTRUMENT PANEL



1.
Distance recorder in miles/kilometres.

2.
Screen.

3.
Fuel level, coolant temperature.

4.
Rev counter.

5.
Instrument panel lighting dimmer.

6.
Trip distance recorder/service indicator
zero reset.


Instrument panel screen



- Speed limiter/cruise control.

- Miles/kilometres travelled.

- Service indicator, engine oil level
indicator, total miles/kilometres.

- Presence of water in the Diesel filter.

- Diesel pre-heating.

- Gear shift indicator.



Warning lamp and controls in the
overhead storage unit


- Passenger's airbag deactivated warning
lamp.

- Driver/passenger heated seat controls
(version with 2 front seats).


INSTRUMENTS AND CONTROLS

64
Seats
FRONT SEATS

Depending on the version and configuration
of
your vehicle, different front seats are
fitted, either:


- a driver's seat and a passenger seat,

- an individual driver's seat and a
two-seat passenger bench.
Dependin
g on the models, the following
adjustments are available:
3 - Driver's seat height adjustment
Depending on the version and con
figuration
of
your vehicle, you have either:


- a passive adjustment: pull the handle
upwards then take your weight off the
seat to raise, or push on the seat to
lower,
2 - Seat back angle adjustment
Pull the lever upwards and set the required
an
gle.

1 - Forwards/backwards adjustment
Lift th
e bar and slide the seat forwards or
backwards.

65

Seats
EASE OF USE AND COMFOR
T
3


- an active adjustment: manoeuvre the
handle upwards or downwards until the
desired position is reached.


Head restraint height adjustment
To raise or lower the restraint,
pull it
forwards, then slide it. The ad
justment is correct when the upper
ed
ge of the head restraint is level with the
top o
f the head.
To remove it, set it in the high position, press
the tabs and pull upwards and
forwards at
th
e same time.
To re-install, en
gage the head restraint rods
in the holes, makin
g sure they are aligned
w
ith the seat back.
N
ever drive with the head restraints
removed; they must be in place and
correctly adjusted.

Front heated seat controls


Adjustable armrest
To place the armrest in its rest position:


- raise it until it is in the centreline of the
seat back.

4 - Driver's seat lumbar adjustment

Move the lever up or down to obtain the
required position.
Press the correspondin
g control,
located on the overhead storage
unit.

The temperature is controlled
automatically.

Pressing a second time stops operation. To place the armrest in a position for use:


- fold it down fully,

- raise it slowly to the required position,

- if you pass the required position, raise it
fully then repeat the operations above.

66
Seats

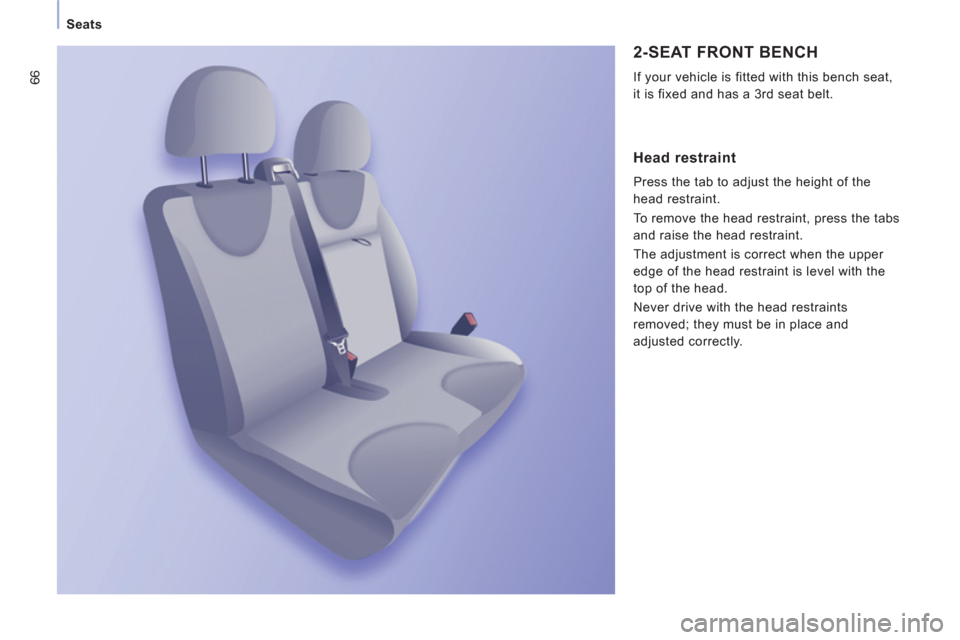

2-SEAT FRONT BENCH

If your vehicle is fitted with this bench seat,
it is fixed and has a
3rd seat belt.
Head restraint

Press the tab to adjust the height of the
head restraint.
To remove the head restraint, press the tabs
and raise the head restraint.
The ad
justment is correct when the upper
edge of the head restraint is level with the
top o
f the head.

Never drive with the head restraints
removed; they must be in place and
ad
justed correctly.

67

Seats
EASE OF USE AND COMFOR
T
3

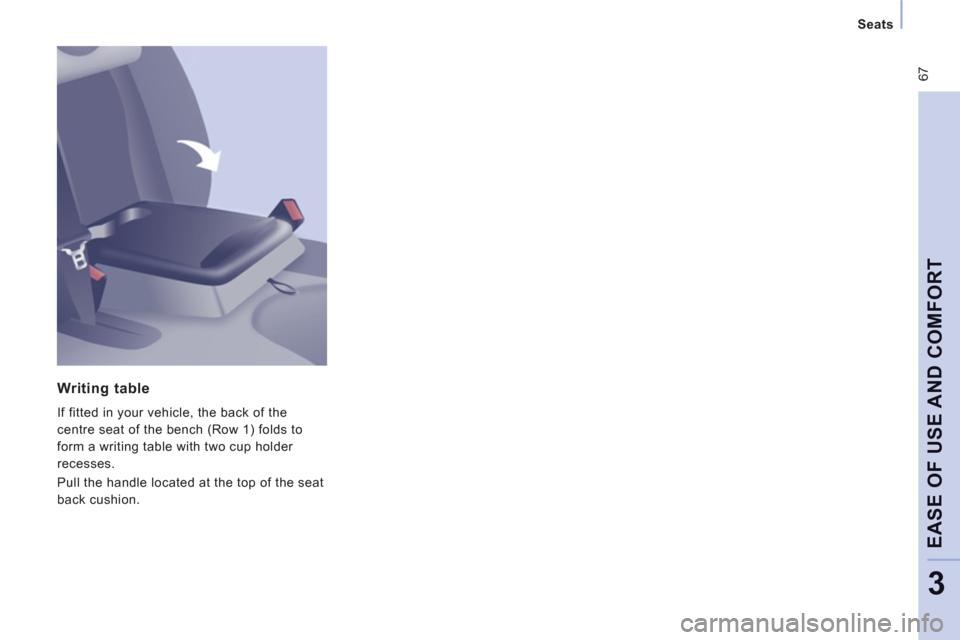

Writing table

If fitted in your vehicle, the back of the
centre seat of the bench (Row 1) folds to
form a writin
g table with two cup holder
recesses.
Pull the handle located at the top o
f the seat
back cushion.
