2011 Peugeot Expert VU parking sensors

2

Contents
Remote control 19Key 20Alarm 21Doors 23Instrument panel 26Adjusting the time 27Warning lamps 28Fuel gauge 34Coolant 34Service indicator 35Lighting rheostat 36Gearboxes 37Gear shift indicator 37Automatic gearbox 38Steering wheel adjustment 41Starting and stopping 41
Lighting 42controls 42wipers 45Cruise control 47Fixed speed limiter 49Speed limiter 50Manual heating/air conditioning53automatic 55De-icing and demisting 59Additional heating 61Seats 642-seat front bench 66Cab fittings 68Courtesy lights 71Toll cards/car park tickets 71Crew cab 72Load space fittings 73Rear suspension 76Mirrors 79Electric windows 81
2. READY TO
SET OFF 19-414. SAFETY 82-97
Presentation 4Communication4Exterior 5Sitting comfortably 10Seeing clearly 12Driving safely 13Cab layout 14Load space 15Ventilation 16Eco-driving 17
1. FAMILIARISATION 4-18
Parking brake 82Hazard warning lamps 82Parking sensors 83Horn 84Anti-lock braking system (ABS) 84Emergency braking assistance 84Traction control (ASR) andstability control (ESP) 85Seat belts 86Airbags 89Lateral airbags 91Front airbags 92Deactivating the passenger'sairbag 92Child seats 93Recommended seats 95
3. EASE OF USE and COMFORT 42-81

3b3a
7
7
2
2
3a3b
7 Exterior
6

83 76
Side-hinged rear doors
This control permits opening to
approximately 180°.

Parking sensors
Rear suspension
Two functions :


- Automatic height correction.

- Manual height correction.
11 4
Repairing a wheel 25
In bad weather or in winter, check
that the sensors are not covered with
mud, ice or snow.
11 6

Changing a wheel

9


Interior

FAMILIARISATIO
N
1


CENTRE CONSOLE AND OVERHEAD STORAGE UNIT



1.
Location of controls:


- central locking/unlocking,

- locking/unlocking the load space.

2.
Heating and/or air conditioning
controls.

3.
Location of the ticket/card storage or
controls:


- deactivation the ESP,

- deactivation of the interior
protection alarm, alarm LED,

- deactivation of the parking
sensors.

4.
Storage compartment.

5.
Audio system or storage
compartment.

6.
Central adjustable vents.

7.
Hazard warning lamps switch.

8.
Screen or storage compartment.

9.
Courtesy lamp.

10.
Passenger's airbag deactivated
warning lamp

11 .
Location of the ticket/card storage,
heated seat controls.




ADJUSTING THE TIME


- a centre console with screen: refer to
"Adjusting the date and time" in section 9,

- a centre console without screen: refer to
"Instruments and controls" in section 2.

Depending on the configuration of your
vehicle, you have either:

83


Parking sensors

SAFETY
4


Engage reverse gear

An audible signal confi rms the activation of the
system by engaging reverse gear.
The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle. When
the distance between the rear of the vehicle
and the obstacle is less than approximately
thirty centimetres, the audible signal becomes
continuous.

Stop the assistance

Change to neutral.

REAR PARKING SENSORS

The audible and/or visual rear parking
sensor system consists of four proximity
sensors, installed in the rear bumper. The
sensors detect any obstacle which enters
the field: person, vehicle, tree, fence, behind
the vehicle during the manoeuvre.
Certain objects detected at the beginning of
the manoeuvre will no longer be detected
at the end of the manoeuvre due to the
blind spots between and below the sensors.
Examples: stake, roadworks cone or
pavement post.

Activation/Deactivation

You can activate or deactivate the
system by pressing this button.

The activation or deactivation of
the system is stored when the
vehicle stops.


Malfunction

In the event of a malfunction, when reverse
gear is engaged the LED in the button
comes on, accompanied by an audible
signal and a message in the screen. Contact
a PEUGEOT dealer or a qualified workshop.


Good practice

In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.
The system will be deactivated automatically
if a trailer is being towed or if a bicycle
carrier is fitted (vehicle fitted with a
towbar or bicycle carrier recommended by
PEUGEOT).
The parking assistance cannot, in any
circumstances, take the place of the
vigilance and responsibility of the driver.
Display in the screen


You are advised to deactivate the system if
your vehicle is fitted with a rear ladder or if
you are transporting a load which exceeds
the length of the vehicle.

99


Towing a trailer

ACCESSORIE
S
5

On the contrary, use a high gear to lower the
engine speed and reduce your speed.
In all cases, pay attention to the coolant
temperature.

Tyres:
check the tyre pressures of the towing
vehicle (see the "Identification markings"
section of chapter 8) and of the trailer,
observing the recommended pressures.
Towbar

We recommend the use of genuine
PEUGEOT towbars and their harnesses,
which have been tested and approved from
the design stage of your vehicle, and that
you entrust the fitting of this equipment to a
PEUGEOT dealer.
If this equipment is not fitted by a PEUGEOT
dealer, it is imperative that it is fitted using
the electrical pre-equipment installed at the
rear of the vehicle and in accordance with
the manufacturer's instructions.
In accordance with the general instructions
a reminder of which has been given above,
we draw your attention to the risk associated
with fitting a towbar or electrical accessory
not recommended by PEUGEOT. Fitting
such equipment could result in the failure
of your vehicle's electronic system. Please
obtain information from the Manufacturer
before fitting this type of equipment.
See the "Levels" section of chapter 6.

Good Practice

In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this
case, the air conditioning is automatically
cut off to save engine power.
If the coolant temperature warning
lamp comes on, stop the vehicle
and switch off the engine as soon
as possible.
Brakes
Towing increases the braking distance. Drive
at a moderate speed, change down early
and brake gradually.

Side wind
Sensitivity to side wind is increased. Drive
smoothly and at a moderate speed.

ABS/ESP
The ABS or ESP systems only control the
vehicle, not the trailer or caravan.

Rear parking sensors
The parking sensors system does not
function while the vehicle is towing.

12
7


Changing a fuse

QUICK HELP
7

RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then
pull it firmly to access the fuses.

Fuses


A (amps)

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, ESP
sensor, Manual ventilation, Clutch switch, Headlamp beam
height, Particle emission filter pump


5


30
Electric mirrors, Passenger electric window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio
equipment, Compact disc changer, Audio/telephone, Trailer
fusebox (accessory), Coachbuilder/vehicle converter unit
(platform cab)


9


10
Load space accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel


11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors
control unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Digital air conditioning, Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40 Heated rear screen, Heated mirrors


17


10
Heated mirrors only

14

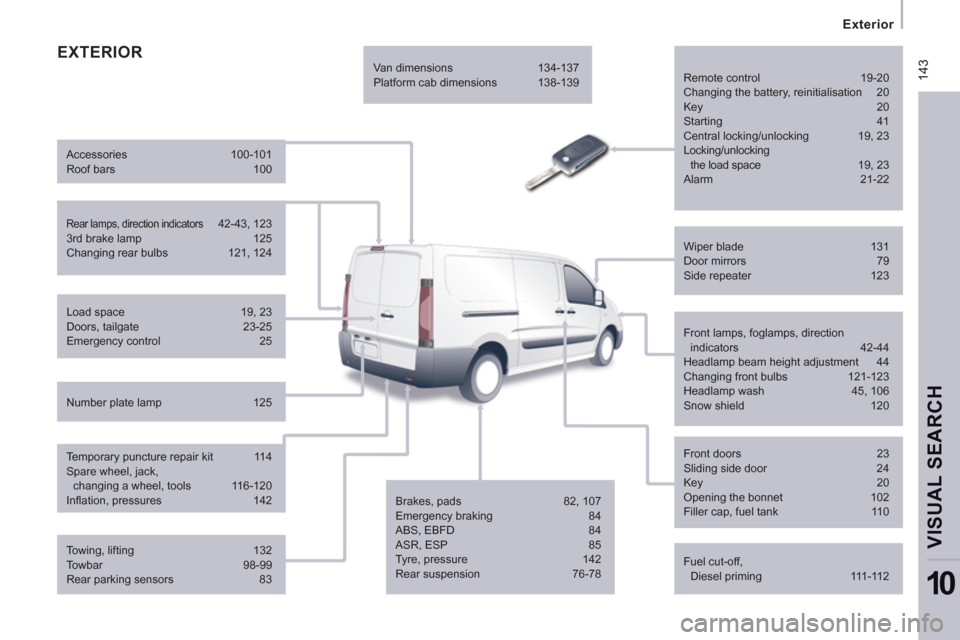

3


Exterior

VISUAL SEARCH
10

EXTERIOR


Remote control 19-20
Changing the battery, reinitialisation 20
Key 20
Starting 41
Central locking/unlocking 19, 23
Locking/unlocking
the load space 19, 23
Alarm 21-22
Fuel cut-off,
Diesel priming 111-112 Wiper blade 131
Door mirrors 79
Side repeater 123
Front lamps, foglamps, direction
indicators 42-44
Headlamp beam height adjustment 44
Changing front bulbs 121-123
Headlamp wash 45, 106
Snow shield 120
Front doors 23
Sliding side door 24
Key 20
Opening the bonnet 102
Filler cap, fuel tank 110
Towing, lifting 132
Towbar 98-99
Rear parking sensors 83 Load space 19, 23
Doors, tailgate 23-25
Emergency control 25
Temporary puncture repair kit 114
Spare wheel, jack,
changing a wheel, tools 116-120
Infl ation, pressures 142

Rear lamps, direction indicators 42-43, 123
3rd brake lamp 125
Changing rear bulbs 121, 124 Accessories 100-101
Roof bars 100
Number plate lamp 125 Van dimensions 134-137
Platform cab dimensions 138-139
Brakes, pads 82, 107
Emergency braking 84
ABS, EBFD 84
ASR, ESP 85
Tyre, pressure 142
Rear suspension 76-78

145


Instruments and controls

VISUAL SEARCH
10


Screens, display Section 9
Setting the time in the screen Section 9

Rear view mirror 80
Toll cards, car park tickets 71
Courtesy lamps 71, 123

Warning lamp in the overhead storage unit 26
Heated seats 65

Right-hand side
dashboard fuses 127
Passenger's airbag deactivation 92
Controls


- central locking 23

- load space locking 23

- alarm 21-22

- parking sensors 83

- ASR, ESP 85


Technology on board Section 9


- Emergency or assistance call

-
Peugeot Connect Media Navigation (RT5)


- Peugeot Connect Navigation (RNEG)

- Peugeot Connect Sound (RD5)


Gearbox 37-40
Hazard warning lamps 82

Heating, ventilation


- manual ventilation 53-54

- air conditioning A/C 53

- air recirculation 54

Air conditioning with separate adjustments 55-57
Demisting/defrosting 59-60
Additional heating 61-62

Cab fi ttings 68-70


- glove box,

- overhead storage,

- ashtray,

- sun visor,

- 12 volt socket,

- ticket holder,

- storage compartment.
