JBL EQUIPMENT

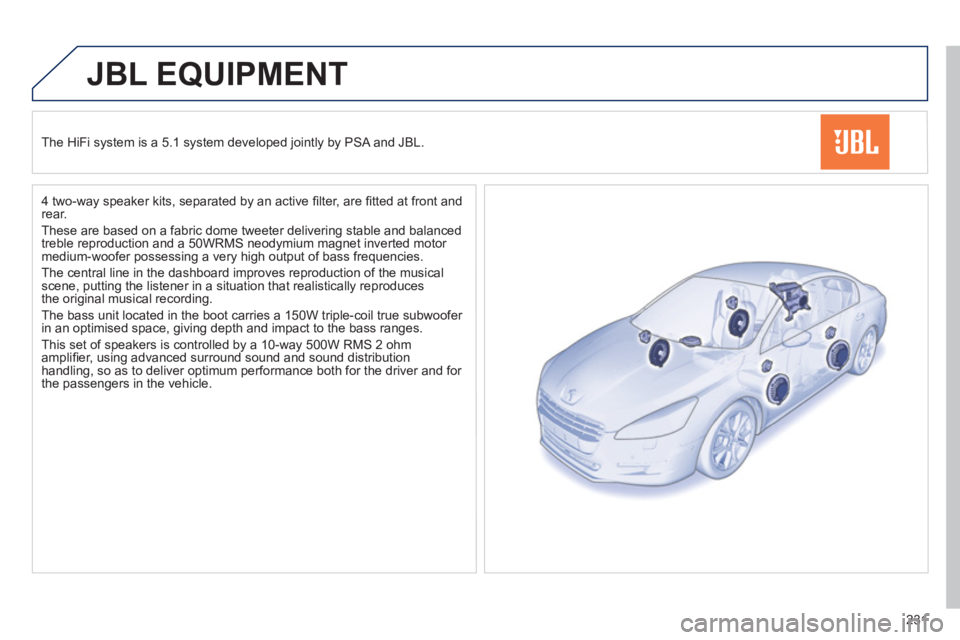

The HiFi system is a 5.1 system developed jointly by PSA and JBL.

4 two-way speaker kits, separated by an active fi lter, are fi tted at front and
rear.
These are based on a fabric dome tweeter delivering stable and balanced
treble reproduction and a 50WRMS neodymium magnet inverted motor
medium-woofer possessing a very high output of bass frequencies.
The central line in the dashboard improves reproduction of the musical
scene, putting the listener in a situation that realistically reproduces
the original musical recording.
The bass unit located in the boot carries a 150W triple-coil true subwoofer
in an optimised space, giving depth and impact to the bass ranges.
This set of speakers is controlled by a 10-way 500W RMS 2 ohm
amplifi er, using advanced surround sound and sound distribution
handling, so as to deliver optimum performance both for the driver and for
the passengers in the vehicle.

232

233

The system is protected in such a way that it will only
operate in your vehicle. If it is to be installed in another
vehicle, contact a PEUGEOT dealer for confi guration of
the system.






PEUGEOT CONNECT NAVIGATION (RT6)


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Contacts - ADDR BOOK

08 Radio

09 Music media players

10 Audio settings

11 Configuration

12 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
234
236
237
239
253
256
264
267
270
276
277
278

Frequently asked questions p. 281


SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM

234
1
6
2
9
3
20
912
13
8
10
14
22
17
721
451119
15
18
16
01 FIRST STEPS

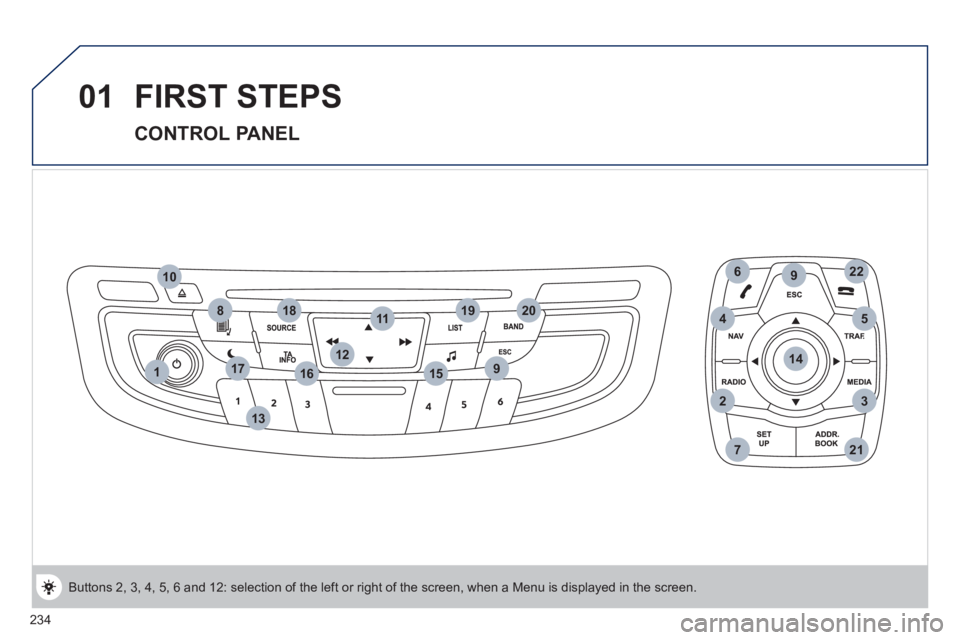

CONTROL PANEL

Buttons 2, 3, 4, 5, 6 and 12: selection of the left or right of the screen, when a Menu is displayed in the screen.

235
01

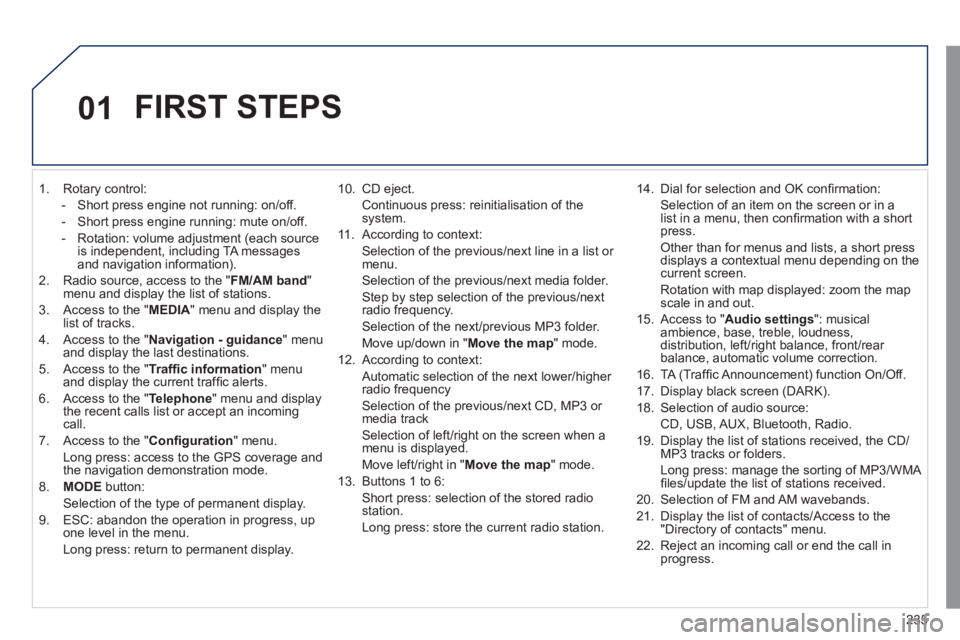

1. Rotary control:


- Short press engine not running: on/off.

- Short press engine running: mute on/off.

- Rotation: volume adjustment (each source
is independent, including TA messages
and navigation information).

2. Radio source, access to the " FM/AM band
"
menu and display the list of stations.

3. Access to the " MEDIA
" menu and display the
list of tracks.

4. Access to the " Navigation - guidance
" menu
and display the last destinations.

5. Access to the " Traffi c information
" menu
and display the current traffi c alerts.

6. Access to the " Telephone
" menu and display
the recent calls list or accept an incoming
call.

7. Access to the " Confi guration
" menu.
Long press: access to the GPS coverage and
the navigation demonstration mode.

8. MODE
button:
Selection of the type of permanent display.

9. ESC: abandon the operation in progress, up
one level in the menu.
Long press: return to permanent display.
10. CD eject.
Continuous press: reinitialisation of the
system.

11. According to context:
Selection of the previous/next line in a list or
menu.
Selection of the previous/next media folder.
Step by step selection of the previous/next
radio frequency.
Selection of the next/previous MP3 folder.
Move up/down in " Move the map
" mode.

12. According to context:
Automatic selection of the next lower/higher
radio frequency
Selection of the previous/next CD, MP3 or
media track
Selection of left/right on the screen when a
menu is displayed.
Move left/right in " Move the map
" mode.

13. Buttons 1 to 6:
Short press: selection of the stored radio
station.
Long press: store the current radio station.
14. Dial for selection and OK confi rmation:
Selection of an item on the screen or in a
list in a menu, then confi rmation with a short
press.
Other than for menus and lists, a short press
displays a contextual menu depending on the
current screen.
Rotation with map displayed: zoom the map
scale in and out.

15. Access to " Audio settings
": musical
ambience, base, treble, loudness,
distribution, left/right balance, front/rear
balance, automatic volume correction.

16. TA (Traffi c Announcement) function On/Off.

17. Display black screen (DARK).

18. Selection of audio source:
CD, USB, AUX, Bluetooth, Radio.

19. Display the list of stations received, the CD/
MP3 tracks or folders.
Long press: manage the sorting of MP3/WMA
fi les/update the list of stations received.

20. Selection of FM and AM wavebands.

21. Display the list of contacts/Access to the
"Directory of contacts" menu.

22. Reject an incoming call or end the call in
progress.

FIRST STEPS

236

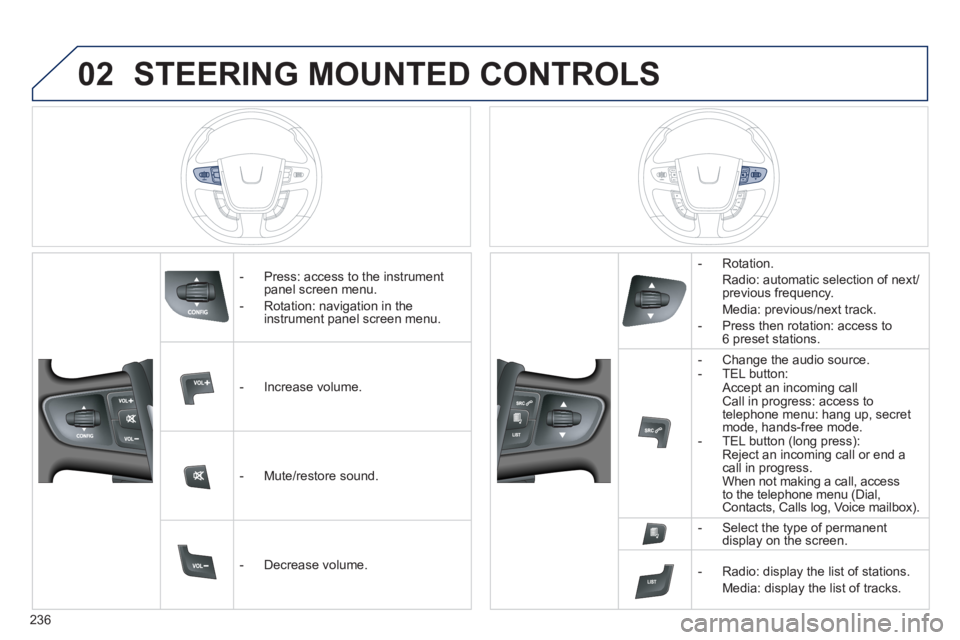

02 STEERING MOUNTED CONTROLS



- Press: access to the instrument
panel screen menu.

- Rotation: navigation in the
instrument panel screen menu.


- Increase volume.


- Mute/restore sound.


- Decrease volume.





- Rotation.
Radio: automatic selection of next/
previous frequency.
Media: previous/next track.

- Press then rotation: access to
6 preset stations.


- Change the audio source.


- TEL button:
Accept an incoming call
Call in progress: access to
telephone menu: hang up, secret
mode, hands-free mode.


- TEL button (long press):
Reject an incoming call or end a
call in progress.
When not making a call, access
to the telephone menu (Dial,
Contacts, Calls log, Voice mailbox).


- Select the type of permanent
display on the screen.


- Radio: display the list of stations.
Media: display the list of tracks.

237
03

For a detailed global view of the menus available, refer to the
"Screen menu map" section.

For cleaning the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, with no additional product.
" RADIO
/ MEDIA
"

" TELEPHONE
"
(If conversation in progress)


SETUP
:
PARAMETERS




date and time, display parameters, sound.
Changing the audio source:
RADIO
:
radio broadcasts.

MUSIC
: playing MEDIA.

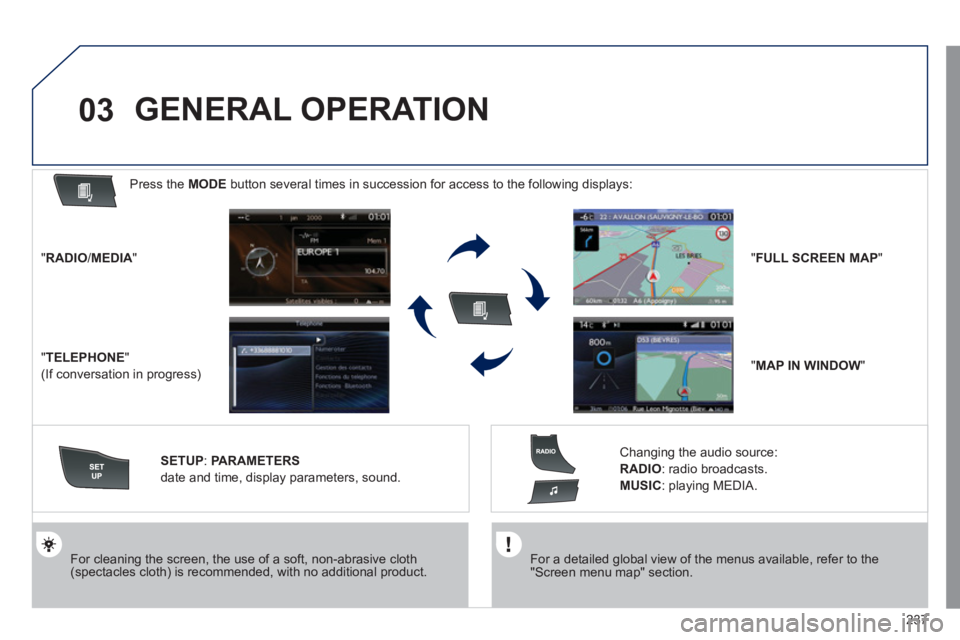

Press the MODE
button several times in succession for access to the following displays:

GENERAL OPERATION


" FULL SCREEN MAP
"

" MAP IN WINDOW
"

238
03
A press on the OK dial gives access to
short-cut menus according to the display
in the screen.


RADIO:


Activate/Deactivate TA

Activate/Deactivate RDS


GENERAL OPERATION

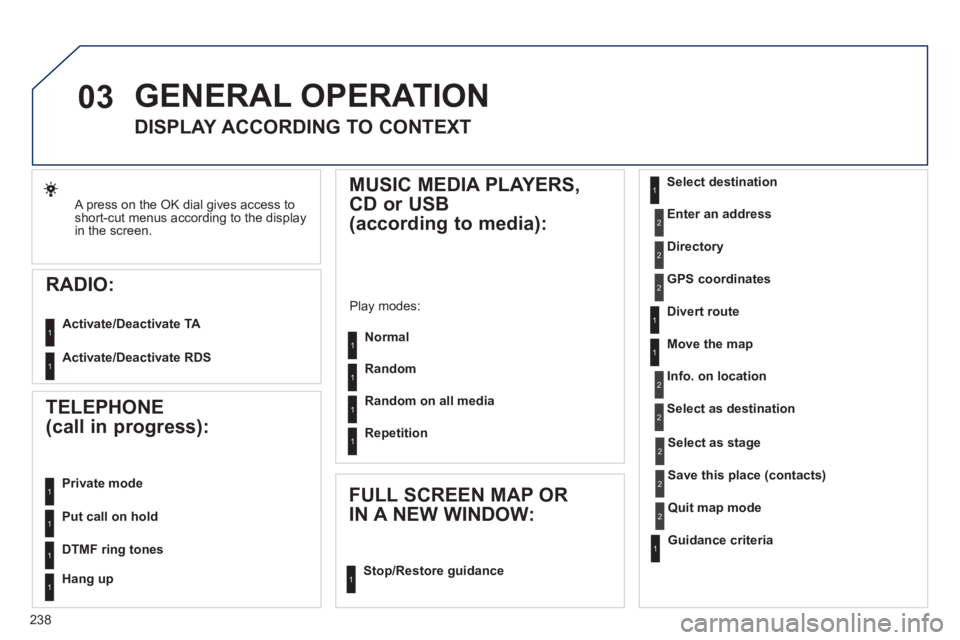

DISPLAY ACCORDING TO CONTEXT

MUSIC MEDIA PLAYERS,
CD or USB
(according to media):
Play modes:

Normal

Random

Random on all media

Repetition



TELEPHONE
(call in progress):

Private mode

FULL SCREEN MAP OR
IN A NEW WINDOW:

Stop/Restore guidance
Select destination

Enter an address


Directory


GPS coordinates



Divert route


Move the map

Info. on location


Select as destination


Select as stage


Save this place (contacts)


Quit map mode




Guidance criteria


Put call on hold

DTMF ring tones

Hang up

1
11
1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
