2011 Peugeot 508 Owner's Manual - RHD (UK, Australia)

10
223

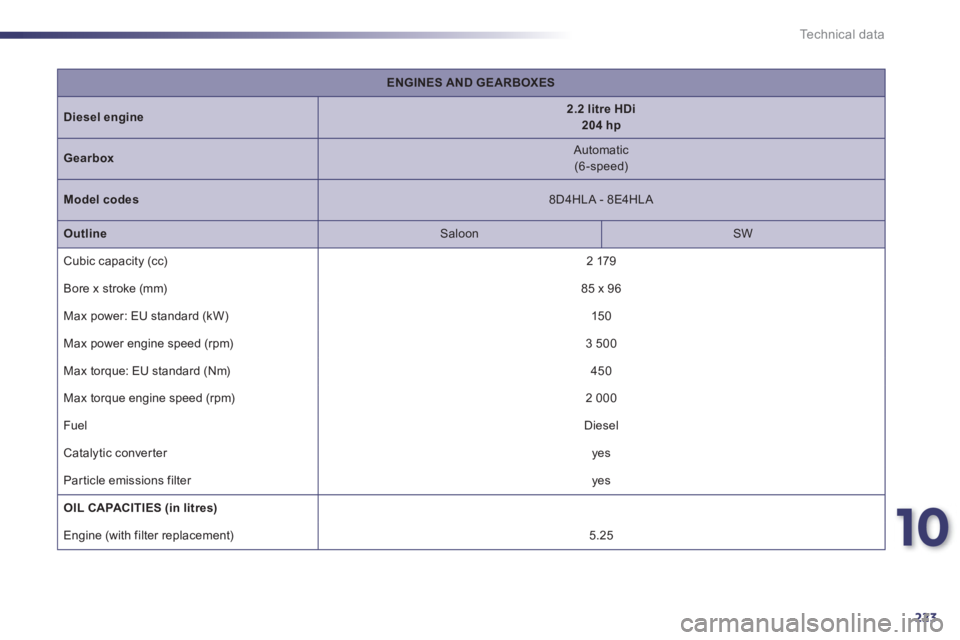

Technical data


ENGINES AND GEARBOXES



Diesel
engine


2.2 litre HDi
204 hp



Gearbox

Automatic
(6 -speed)

Model codes


8D4HLA - 8E4HLA

Outline

Saloon
SW
Cubic capacity (cc)

2 179
Bore x stroke (mm)

85 x 96
Max power: EU standard (kW)
15 0
Max power engine speed (rpm)
3 500
Max torque: EU standard (Nm)
450
Max torque engine speed (rpm)
2 000
Fuel

Diesel
Catalytic conver ter

yes
Particle emissions filter

yes

OIL
CAPACITIES (in litres)



Engine (with filter replacement)
5.25

224

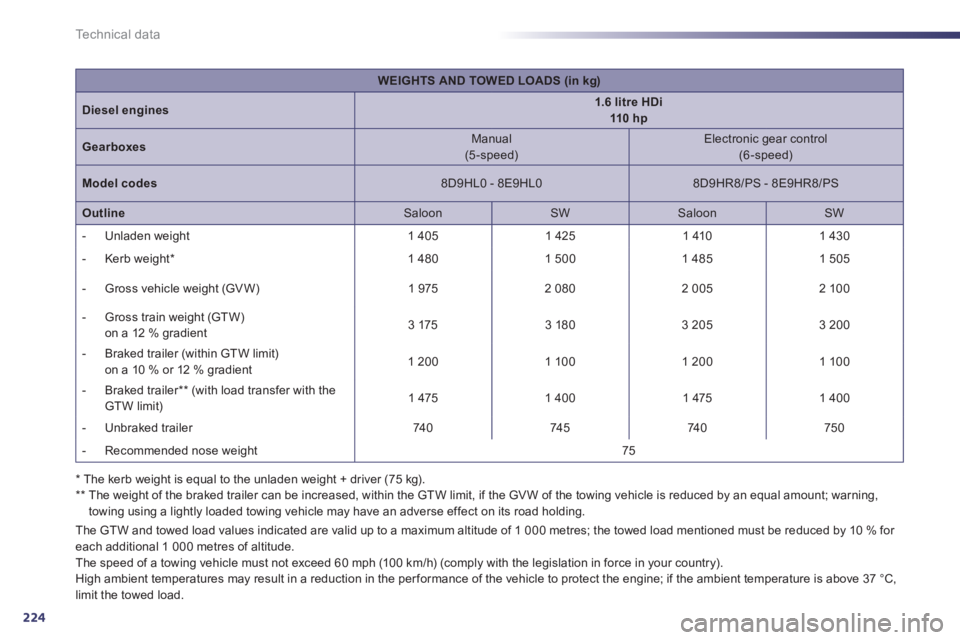

Technical data

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.


*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre HDi
110 h p



Gearbox

es

Manual
(5 -speed)
Electronic gear control
(6 -speed)

Model codes

8D9HL0 - 8E9HL0
8D9HR8/PS - 8E9HR8/PS

Outline

Saloon
SW
Saloon
SW


- Unladen weight
1 405
1 425
1 410
1 430


- Kerb weight *

1 480
1 500
1 485
1 505


- Gross vehicle weight (GV W)
1 975
2 080
2 005
2 100



- Gross train weight (GTW)
on a 12 % gradient
3 175
3 180
3 205
3 200


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 200
1 100
1 200
1 100


- Braked trailer ** (with load transfer with the
GTW limit)
1 475
1 400
1 475
1 400


- Unbraked trailer
74 0
74 5
74 0
750


- Recommended nose weight
75

10
225

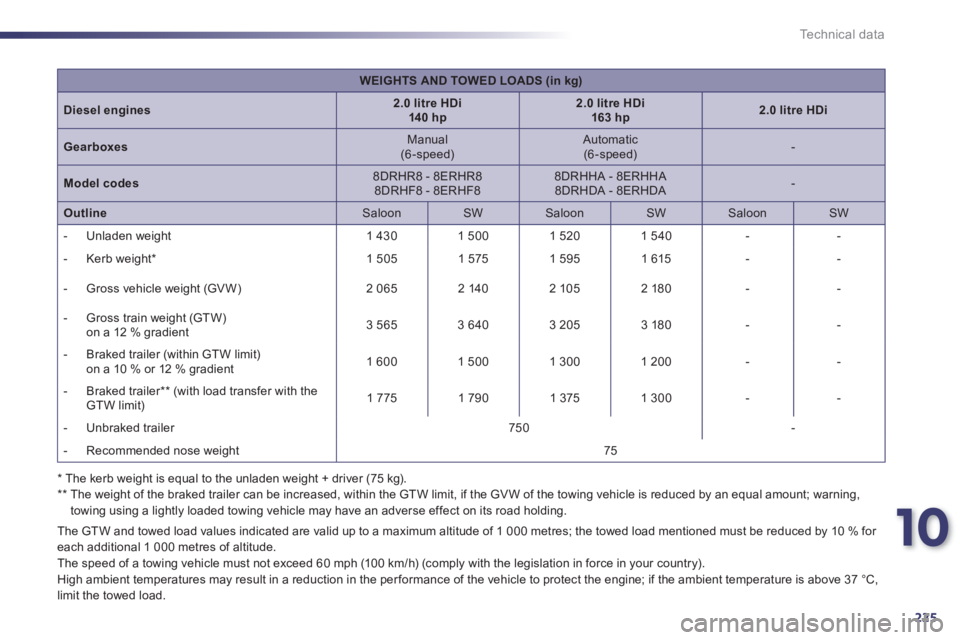

Technical data

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.


* The kerb weight is equal to the unladen weight + driver (75 kg).

** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


2.0 litre HDi
14 0 hp



2.0 litre HDi
163 hp



2.0 litre HDi




Gearboxes

Manual
(6 -speed)
Automatic
(6 -speed)
-

Model codes

8DRHR8 - 8ERHR8
8DRHF8 - 8ERHF8
8DRHHA - 8ERHHA
8DRHDA - 8ERHDA
-

Outline

Saloon
SW
Saloon
SW
Saloon
SW


- Unladen weight
1 430
1 500
1 520
1 540
-
-



- Kerb weight *

1 505
1 575
1 595
1 615
-
-


- Gross vehicle weight (GV W)
2 065
2 140
2 105
2 180
-
-


- Gross train weight (GTW)
on a 12 % gradient
3 565
3 640
3 205
3 180
-
-


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 600
1 500
1 300
1 200
-
-


- Braked trailer ** (with load transfer with the
GTW limit)
1 775
1 790
1 375
1 300
-
-


- Unbraked trailer
750
-


- Recommended nose weight

75

226

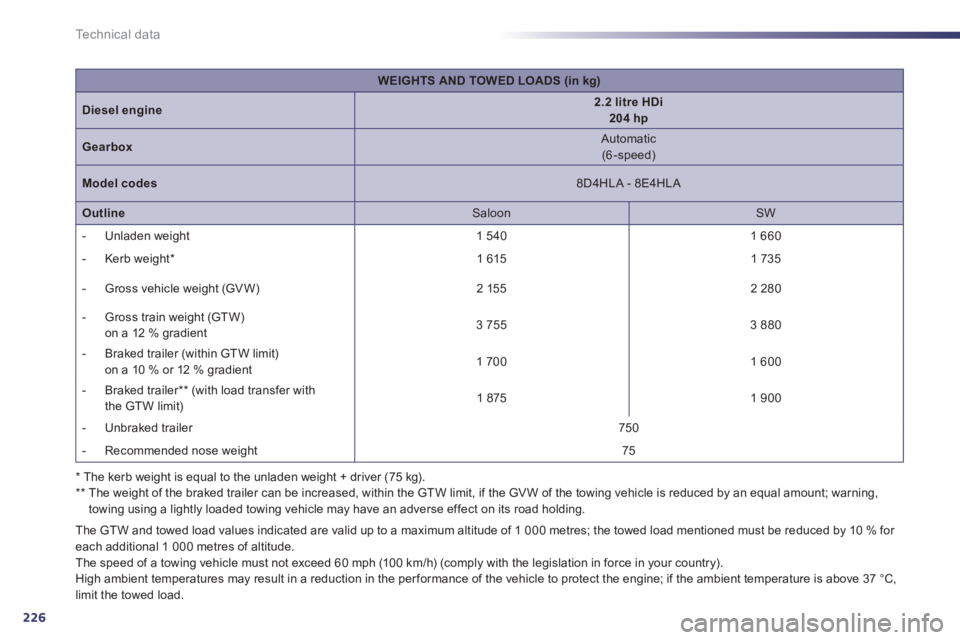

Technical data

* The kerb weight is equal to the unladen weight + driver (75 kg).

** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.


WEIGHTS AND TOWED LOADS (in kg)



Diesel engine


2.2 litre HDi
204 hp



Gearbox

Automatic
(6 -speed)

Model codes


8D4HLA - 8E4HLA

Outline

Saloon
SW


- Unladen weight
1 540
1 660


- Kerb weight *

1 615
1 735


- Gross vehicle weight (GV W)
2 155
2 280


- Gross train weight (GTW)
on a 12 % gradient
3 755
3 880


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 700
1 600


- Braked trailer **
(with load transfer with
the GTW limit)
1 875
1 900


- Unbraked trailer

750


- Recommended nose weight
75

10
227
Technical data







Berline


SW

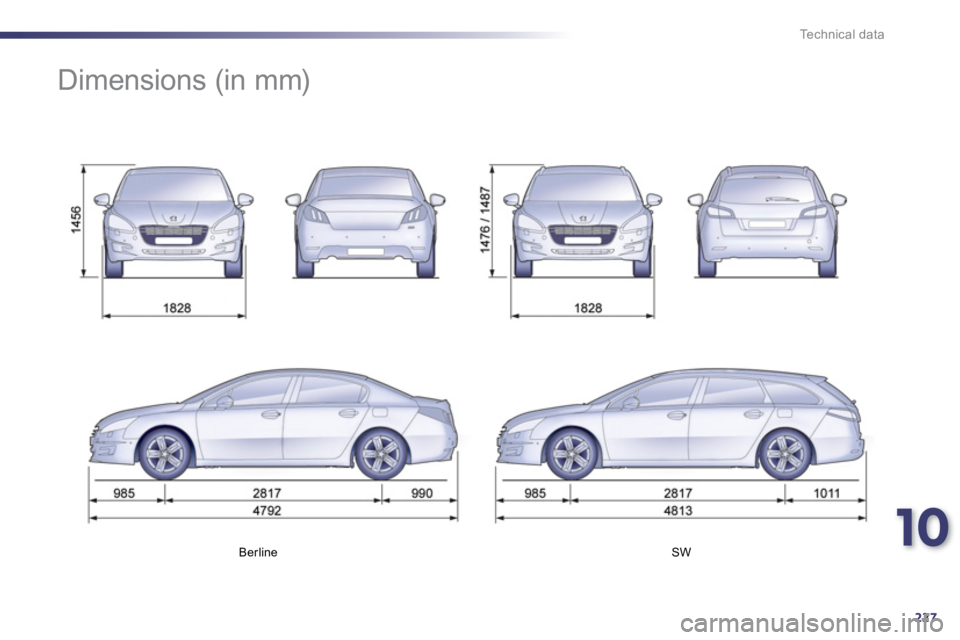

Dimensions (in mm)

228
i
Technical data

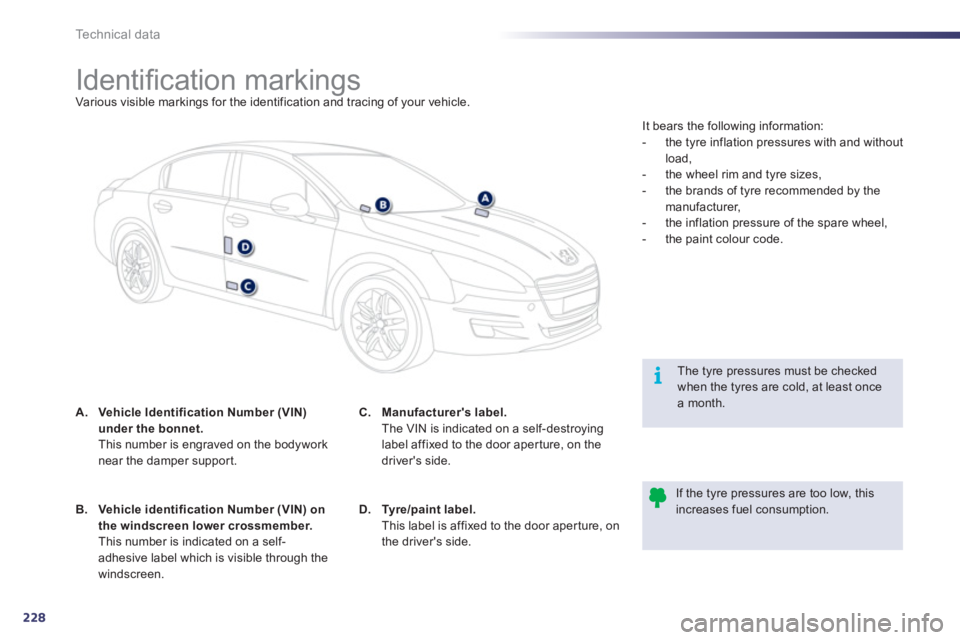

Identifi cation markings
Various visible markings for the identification and tracing of your vehicle.



A.
Vehicle Identification Number (VIN)
under the bonnet.

This number is engraved on the bodywork
near the damper suppor t.
The tyre pressures must be checked
when the tyres are cold, at least once
a month.

If the tyre pressures are too low, this
increases fuel consumption.


B.
Vehicle identification Number (VIN) on
the windscreen lower crossmember.

This number is indicated on a self-
adhesive label which is visible through the
windscreen.
C.
Manufacturer's label.

The VIN is indicated on a self-destroying
label affixed to the door aper ture, on the
driver's side.

D.
Ty r e / p a i n t l a b e l .

This label is affixed to the door aper ture, on
the driver's side. It bears the following information:


- the tyre inflation pressures with and without
load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by the
manufacturer,

- the inflation pressure of the spare wheel,

- the paint colour code.

229
EMERGENCY OR ASSISTANCE CALL

230

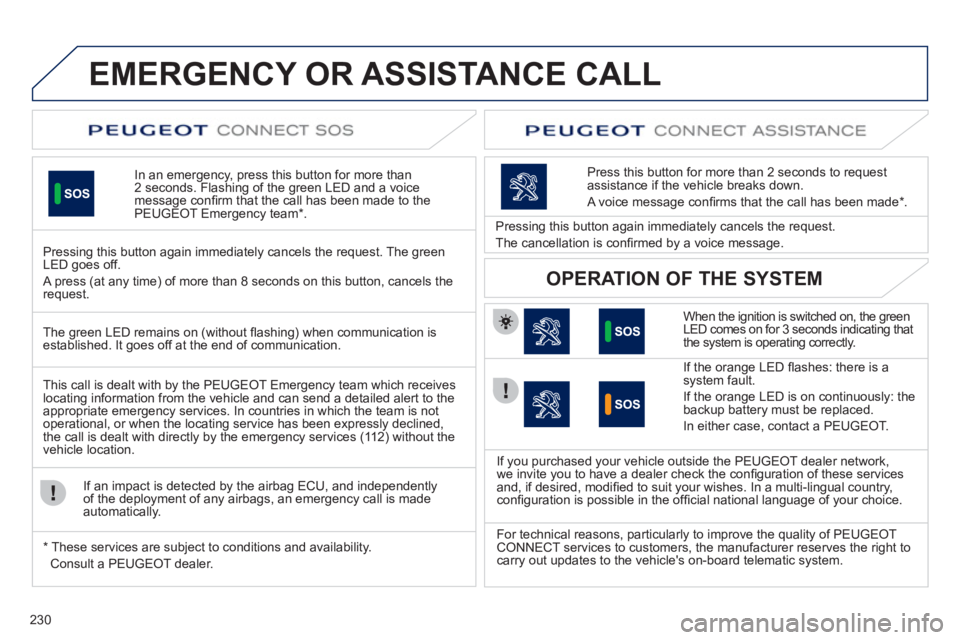

EMERGENCY OR ASSISTANCE CALL


In an emergency, press this button for more than
2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
PEUGEOT Emergency team * .

Pressing this button again immediately cancels the request. The green
LED goes off.
A press (at any time) of more than 8 seconds on this button, cancels the
request.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly.

If the orange LED fl ashes: there is a
system fault.
If the orange LED is on continuously: the
backup battery must be replaced.
In either case, contact a PEUGEOT.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.

Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .


OPERATION OF THE SYSTEM


The green LED remains on (without fl ashing) when communication is
established. It goes off at the end of communication.

This call is dealt with by the PEUGEOT Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (112) without the
vehicle location.

If an impact is detected by the airbag ECU, and independently
of the deployment of any airbags, an emergency call is made
automatically.



*
These services are subject to conditions and availability.
Consult a PEUGEOT dealer.
If you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,
confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularly to improve the quality of PEUGEOT
CONNECT services to customers, the manufacturer reserves the right to
carry out updates to the vehicle's on-board telematic system.
