36
INSTRUMENTS and CONTROLS

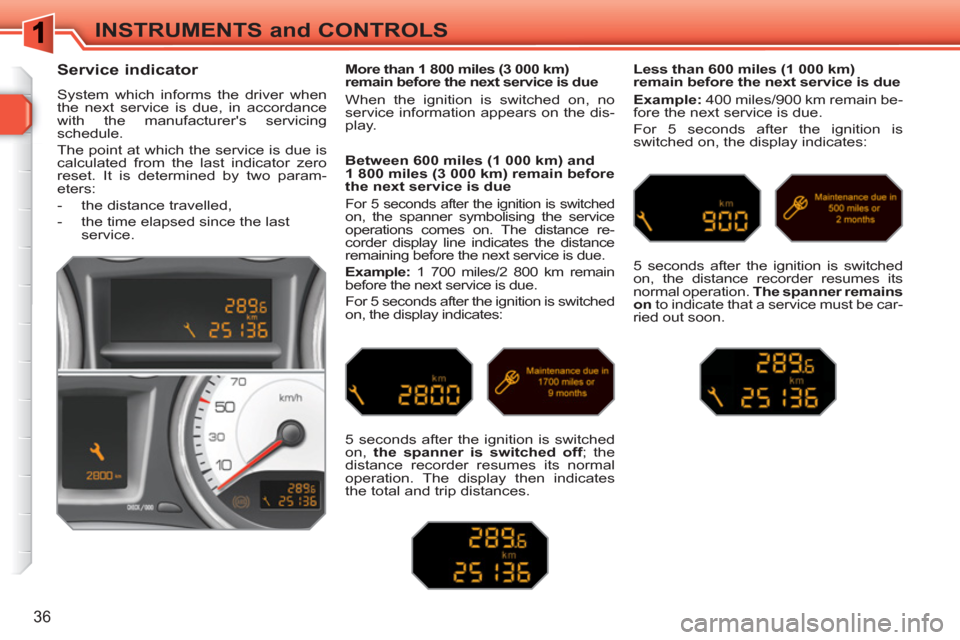

Service indicator
System which informs the driver when
the next service is due, in accordance
with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two param-
eters:
- the distance travelled,
- the time elapsed since the last
service.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is switched on, the spanner symbolising the service
operations comes on. The distance re-
corder display line indicates the distance
remaining before the next service is due.
Example:
1 700 miles/2 800 km remain
before the next service is due.
For 5 seconds after the ignition is switched
on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off
; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances.
Less than 600 miles (1 000 km)
remain before the next service is due
Example:
400 miles/900 km remain be-
fore the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner remains
on
to indicate that a service must be car-
ried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears on the dis-
play.
