Page 82 of 336
i
!
80
ACCESS
Starting the vehicle
)
Insert the key in the ignition switch.
The system recognises the starting
code.
)
Turn the key fully towards the
dashboard to position 3 (Starting)
.
)
When the engine starts, release the
key.
Switching the vehicle off
)
Immobilise the vehicle.
)
Turn the key fully towards you to
position 1 (Stop)
.
)
Remove the key from the ignition
switch.
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition)
.
)
Press the closed padlock immedi-
ately for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. If the battery is fl at, you are in-
formed by lighting of this warn-
ing lamp, an audible signal and
a message on the multifunction
screen. This replacement battery is available
from PEUGEOT dealers.
Key left in the "Ignition"
position
If the key has been left in the ig-
nition switch, the ignition will be
switched off automatically after
one hour.
To switch the ignition back on, turn
the key to position 1 (Stop)
, then
back to position 2 (Ignition)
.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its
location.
)
Slide the new battery into its location
observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Page 119 of 336
!i
11 7
FITTINGS

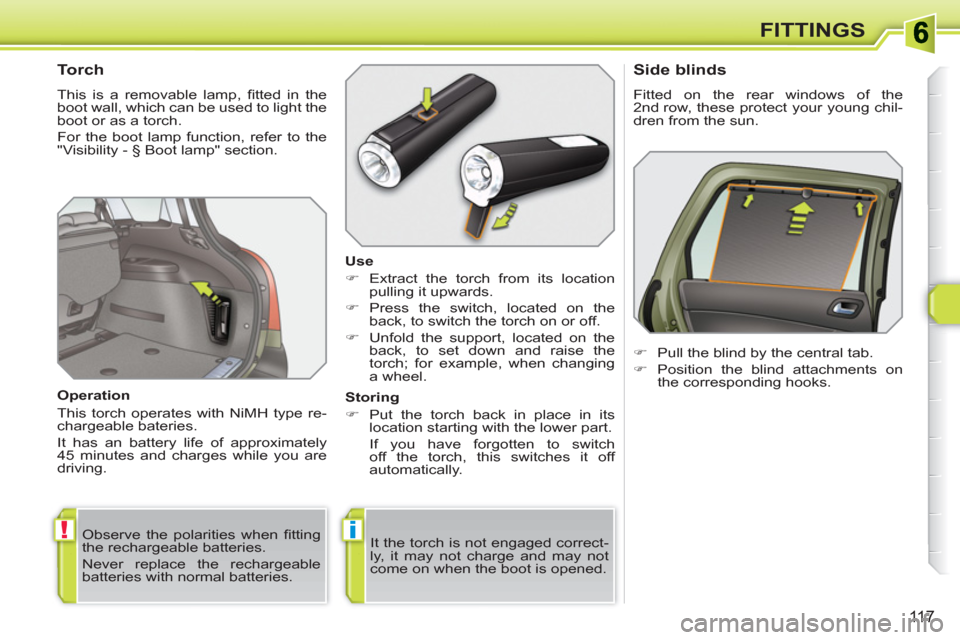

Torch
This is a removable lamp, fi tted in the
boot wall, which can be used to light the
boot or as a torch.
For the boot lamp function, refer to the
"Visibility - § Boot lamp" section.
Operation
This torch operates with NiMH type re-
chargeable bateries.
It has an battery life of approximately
45 minutes and charges while you are
driving.
Use
)
Extract the torch from its location
pulling it upwards.
)
Press the switch, located on the
back, to switch the torch on or off.
)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
)
Put the torch back in place in its
location starting with the lower part.
If you have forgotten to switch
off the torch, this switches it off
automatically.
Side blinds
Fitted on the rear windows of the
2nd row, these protect your young chil-
dren from the sun.
)
Pull the blind by the central tab.
)
Position the blind attachments on
the corresponding hooks.
Observe the polarities when fi tting
the rechargeable batteries.
Never replace the rechargeable
batteries with normal batteries. It the torch is not engaged correct-
ly, it may not charge and may not
come on when the boot is opened.
Page 232 of 336
230

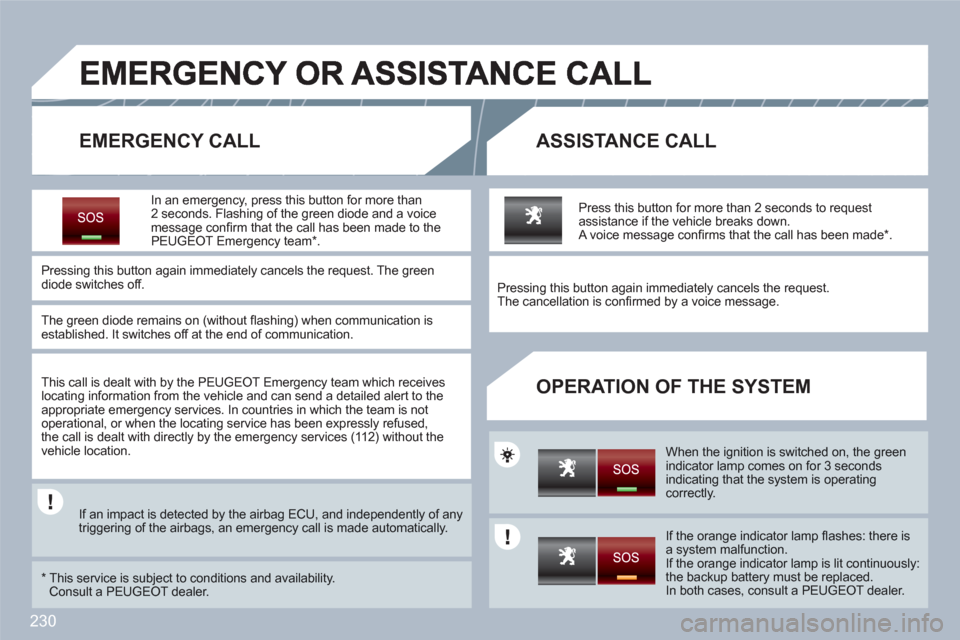

EMERGENCY CALLASSISTANCE CALL
OPERATION OF THE SYSTEM
In an emergency, press this button for more than 2 seconds. Flashing of the green diode and a voice message confi rm that the call has been made to the PEUGEOT Emergency team *
.
Pressing this button again immediately cancels the request. The greendiode switches off.
The green diode remains on (without fl ashing) when communication is established. It switches off at the end of communication.
This call is dealt with by the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which the team is not operational, or when the locating service has been expressly refused,the call is dealt with directly by the emergency services (11 2) without thevehicle location.
If an impact is detected by the airbag ECU, and independently of any triggering of the airbags, an emergency call is made automatically.
*
This service is subject to conditions and availability. Consult a PEUGEOT dealer.
Press this button for more than 2 seconds to requestassistance if the vehicle breaks down. A voice message confi rms that the call has been made * .
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
When the ignition is switched on, the greenindicator lamp comes on for 3 seconds indicating that the system is operating correctly.
If the orange indicator lamp fl ashes: there isa system malfunction.
If the orange indicator lamp is lit continuously:the backup battery must be replaced.
In both cases, consult a PEUGEOT dealer.
