2011 Peugeot 308 SW BL child lock

Instrument panels 22
Indicator and warning lamps 26
Indicators 34
Instrument panel buttons 38„
„
„
„
Ventilation 56
Heating 58
Manual air conditioning 58
Rear screen demist - defrost 60
Dual-zone digital
air conditioning 61
Front seats 63
Rear seats 67
Seat modularity 73
Mirrors 75
Steering wheel adjustment 77„
„
„
„
„
„
„
„
„
„
COMFORT 56 Î 77
Remote control key 78
Alarm 82
Electric windows 84
Doors 86
Boot 88
Opening rear screen 89
Panoramic sunroof 90
Fuel tank 91„
„
„
„
„
„
„
„
ACCESS 78 Î 92
Lighting controls 93Automatic illumination of headlamps 95
Headlamp adjustment 96
Directional lighting 97
Wiper controls 98
Automatic rain sensitive wipers 100
Courtesy lamps 101
Interior mood lighting 102
Boot lamp 102
„
„
„
„
„
„
„
„
„
VISIBILITY 93 Î 102
Child seats 118
ISOFIX child seats 123
Child lock 127„
„
„
CHILD
SAFETY 118 Î 127 FAMILIARISATION 4 Î 21
INSTRUMENTS and
CONTROLS 22 Î 39
Screens without
audio equipment 40
Screens with audio equipment 42
16/9 retractable colour screen
(Peugeot Connect Navigation) 47
16/9 high defi nition
retractable colour screen
(Peugeot Connect Media) 49
Trip computer 52„
„
„
„
„
MULTIFUNCTION
SCREENS 40 Î 55
Interior fi ttings 103
Front armrest 106
Mats 107
Boot fi ttings 109„
„
„
„
FITTINGS
103 Î 11 7

Passenger's front airbag
Electric child lock



1.
Insert the key.

2.
Select the position:
"OFF"
(deactivation), with "rear
facing" child seat,
"ON"
(activation), with front
passenger or "forwards facing"
child seat.

3.
Remove the key keeping the switch
in the new position. Lighting of the indicator lamp indicates
the status of the corresponding function.


A.
Activation of the electric child lock.

A.
Front and/or rear seat belts not
fastened/unfastened warning lamp.

B.
Front left seat belt warning lamp.

C.
Front right seat belt warning lamp.

D.
Rear right seat belt warning lamp * .

E.
Rear centre seat belt warning
lamp * .

F.
Rear left seat belt warning lamp * .

G.
Passenger's front airbag
deactivated warning lamp.

H.
Passenger's front airbag activated
warning lamp.


Seat belts and passenger's
front airbag



133, 138




137




127

*
Only on SW individual rear seats.

!
81
ACCESS














Lost keys

Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder
code required to order a replacement key.







Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.

Remote control

The high frequency remote control is a sensitive system; do not operate it
while it is in your pocket as there is a possibility that it may unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compartment
by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.


Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.


When purchasing a second-hand vehicle

Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.

!
i
!

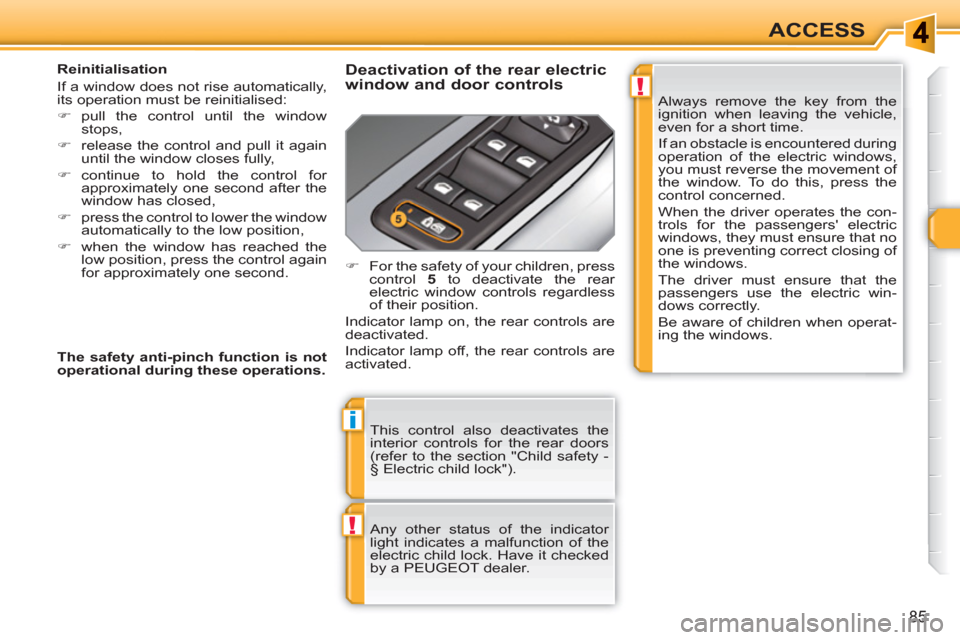

85
ACCESS
This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety -
§ Electric child lock").
Any other status of the indicator
light indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer.
Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:


)
pull the control until the window
stops,

)
release the control and pull it again
until the window closes fully,

)
continue to hold the control for
approximately one second after the
window has closed,

)
press the control to lower the window
automatically to the low position,

)
when the window has reached the
low position, press the control again
for approximately one second. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.


Deactivation of the rear electric
window and door controls


)
For the safety of your children, press
control 5
to deactivate the rear
electric window controls regardless
of their position.
Indicator lamp on, the rear controls are
deactivated.
Indicator lamp off, the rear controls are
activated.
The safety anti-pinch function is not
operational during these operations.

88
ACCESS






Emergency control

To lock or unlock the doors manually in
the event of a malfunction of the central
locking system or battery failure.


)
On the rear doors, check that the
child lock is not activated.

)
Remove the black cap, located on
the edge of the door, using the key.

)
Insert the key in the socket without
forcing it, then without turning it,
move the latch sideways towards
the inside of the door

)
Remove the key and refi t the cap.



Opening



)
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.

BOOT



- when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,

- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by
an audible signal and a message
on the multifunction screen for a
few seconds.








Tailgate release

System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.

Unlocking


)
Fold back the rear seats to gain
access to the lock from inside the
boot.

)

Insert a small screwdriver into hole A

of the lock to unlock the tailgate.


Locking the driver's door


)
Insert the key in the lock, then turn it
to the rear.


Unlocking the driver's door


)
Insert the key in the lock, then turn it
to the front.


Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors


)
Pull the interior door opening
control.




Closing



)
Lower the tailgate using the interior
grab handle. If the tailgate is not closed correctly:

!
122
CHILD SAFETY

Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:


- a child or children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the "Child
lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat and
that it secures the child seat fi rmly on the
seat of your vehicle.
For optimum installation of the "forwards-
facing" child seat, ensure that the back of
the child seat is in contact with the back
of the vehicle's seat and that the head re-
straint does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking. Children under the age of 10 must not
travel in the "forwards-facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.

i
!
i
124
CHILD SAFETY
This child seat can also be used on seats which are not fi tted with ISOFIX
mountings. In this case, it must be attached to the vehicle seat using the
three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manu-
facturer's installation guide.

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT ANDAPPROVED FOR YOUR VEHICLE



RÖMER Duo Plus ISOFIX
(size category B1
)


Group 1: from 9 to 18 kg





Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the up-
per ring B
, referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying. This ISOFIX mounting system ensures
fast, reliable and safe fi tting of the child
seat in your vehicle.
The ISOFIX child seats
are fi tted with
two locks which are secured easily on
the two rings A
.
Some also have an upper strap
(or top
tether) which is attached to ring B
.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the
ISOFIX child seats which can be
installed in your vehicle, consult
the summary table for the location
of the ISOFIX child seats. To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B
and tighten the upper strap.

!
!
127
CHILD SAFETY
This system is independent and in
no circumstances does it take the
place of the central locking control.
Check the status of the child lock each
time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact,
the electric child lock is deactivated
automatically to permit the exit of
the rear passengers.

MANUAL CHILD LOCK

Mechanical system to prevent opening
of the rear door using its interior control.
The control is located on the edge of
each rear door.


)
Using the ignition key, turn the red
control as far as it will go:


- to the left on the left-hand rear
door,

- to the right on the right-hand rear
door.


ELECTRIC CHILD LOCK

Remote control system to prevent open-
ing of the rear doors using their interior
controls and use of the rear electric win-
dows.
The control is located on the driver's
door, with the electric window controls.


)
Press this button.
The indicator lamp on the button comes
on, accompanied by a message on the
multifunction screen.
This indicator lamp remains on until the
child lock is deactivated.
Locking

Unlocking


)
Using the ignition key, turn the red
control as far as it will go:


- to the right on the left-hand rear
door,

- to the left on the right-hand rear
door.



Activation
Deactivation


)
Press the button again.
The indicator lamp on the button switch-
es off, accompanied by a message on
the multifunction screen.
This indicator lamp remains off until the
child lock is activated.
Any other status of the indicator
lamp indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer.
