1
!
i
194
PRACTICAL INFORMATION
A fl at battery prevents the engine
from starting (refer to the corre-
sponding paragraph). If the telephone is being used at
this time:
- it will be maintained for 10 minutes
with the hands-free kit of your
Peugeot Connect Sound,
- it will be maintained for 10 minutes
with the Peugeot Connect
Navigation or the Peugeot
Connect Media, then it will transfer
to your telephone depending on
the telephone model.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
lamps, etc. for a maximum combined
duration of thirty minutes.
Exiting economy mode
These functions are reactivated auto-
matically next time the vehicle is driven.
)
In order to resume the use of these
functions immediately, start the
engine and let it run:
- for less than ten minutes, to use
the equipment for approximately
fi ve minutes,
- for more than ten minutes, to
use the equipment for up to
approximately thirty minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A WIPER BLADE
Removing
)
Raise the corresponding wiper arm.
)
Unclip the wiper blade and remove it.
Fitting
)
Put the corresponding new wiper
blade in place and clip it.
)
Fold down the wiper arm carefully.
Before removing a front wiper
blade
)
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades vertically
on the windscreen.
After fitting a front wiper blade
)
Switch on the ignition.
)
Operate the wiper stalk again to
park the wiper blades.
LOAD REDUCTION MODE
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condition-
ing, the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
Page 197 of 336
1
!i
195
PRACTICAL INFORMATION

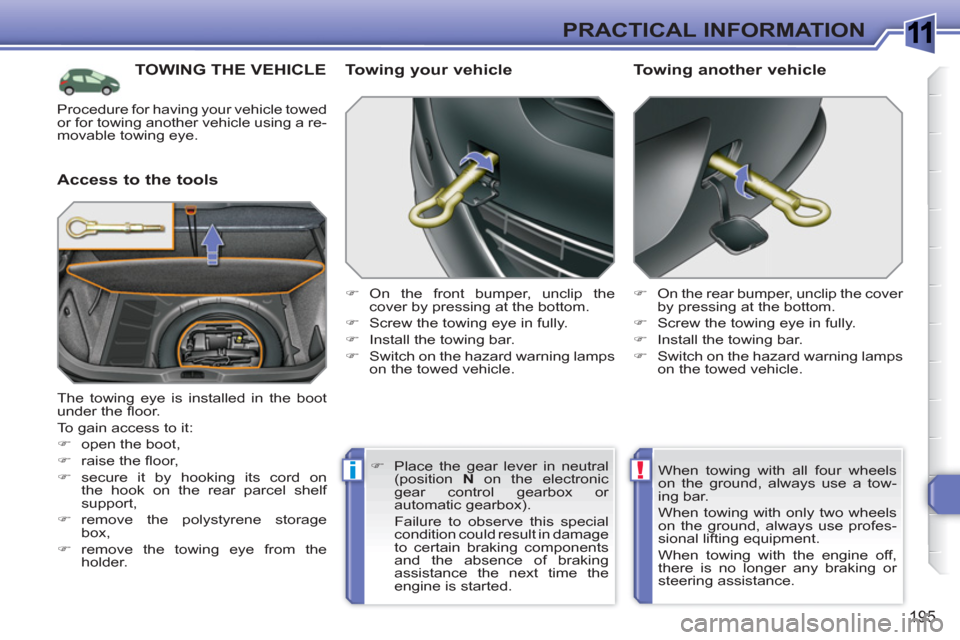

TOWING THE VEHICLE
Access to the tools
Towing your vehicle
)
On the front bumper, unclip the
cover by pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps
on the towed vehicle.
)
On the rear bumper, unclip the cover
by pressing at the bottom.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the boot
under the fl oor.
To gain access to it:
)
open the boot,
)
raise the fl oor,
)
secure it by hooking its cord on
the hook on the rear parcel shelf
support,
)
remove the polystyrene storage
box,
)
remove the towing eye from the
holder.
When towing with all four wheels
on the ground, always use a tow-
ing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
)
Place the gear lever in neutral
(position N
on the electronic
gear control gearbox or
automatic gearbox).
Failure to observe this special
condition could result in damage
to certain braking components
and the absence of braking
assistance the next time the
engine is started.
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Page 198 of 336
1
!i
196
PRACTICAL INFORMATION

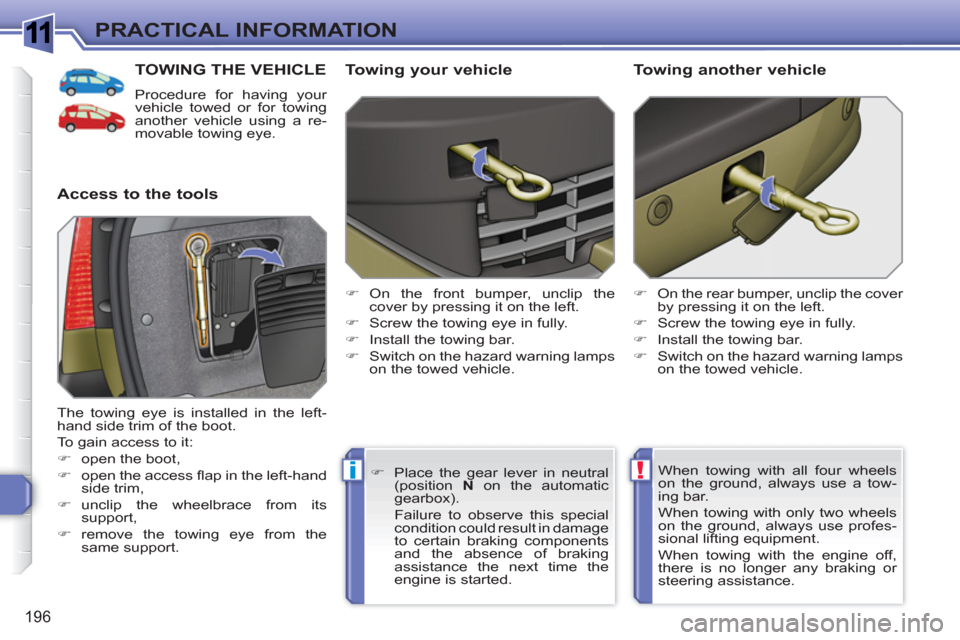

TOWING THE VEHICLE
Procedure for having your
vehicle towed or for towing
another vehicle using a re-
movable towing eye.
Access to the tools
Towing your vehicle
)
On the front bumper, unclip the
cover by pressing it on the left.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps
on the towed vehicle.
)
On the rear bumper, unclip the cover
by pressing it on the left.
)
Screw the towing eye in fully.
)
Install the towing bar.
)
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the left-
hand side trim of the boot.
To gain access to it:
)
open the boot,
)
open the access fl ap in the left-hand
side trim,
)
unclip the wheelbrace from its
support,
)
remove the towing eye from the
same support.
When towing with all four wheels
on the ground, always use a tow-
ing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
)
Place the gear lever in neutral
(position N
on the automatic
gearbox).
Failure to observe this special
condition could result in damage
to certain braking components
and the absence of braking
assistance the next time the
engine is started.
Page 199 of 336
1
i
i
!
197
PRACTICAL INFORMATION
TOWING A TRAILER, A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.
Driving advice
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
)
To lower the engine speed, reduce
your speed.
The maximum towing load on a long
slope depends on the gradient and the
ambient temperature.
In all cases, pay attention to the coolant
temperature.
Side wind
)
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
Braking
Towing a trailer increases the braking
distance.
Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
)
Check the electrical lighting and
signalling on the trailer.
The rear parking sensors will be de-
activated automatically if a genuine
PEUGEOT towbar is used.
)
If the warning lamp and the
STOP
warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Distribution of loads
)
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing load
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle. Driving with a trailer subjects the towing
vehicle to more signifi cant stress and its
driver must be particularly careful.
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
of your vehicle, and that the fi t-
ting of the towbar is entrusted to a
PEUGEOT dealer.
If the trailer is not fi tted by a
PEUGEOT dealer, it is imperative
that it is fi tted using the electrical
pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer's instructions.
If your vehicle is fi tted with the
1.6 THP 200 hp engine, you can-
not fi t a towbar. The space occu-
pied by the sport exhaust system
prevents this.
Page 200 of 336
1
ii
PRACTICAL INFORMATION

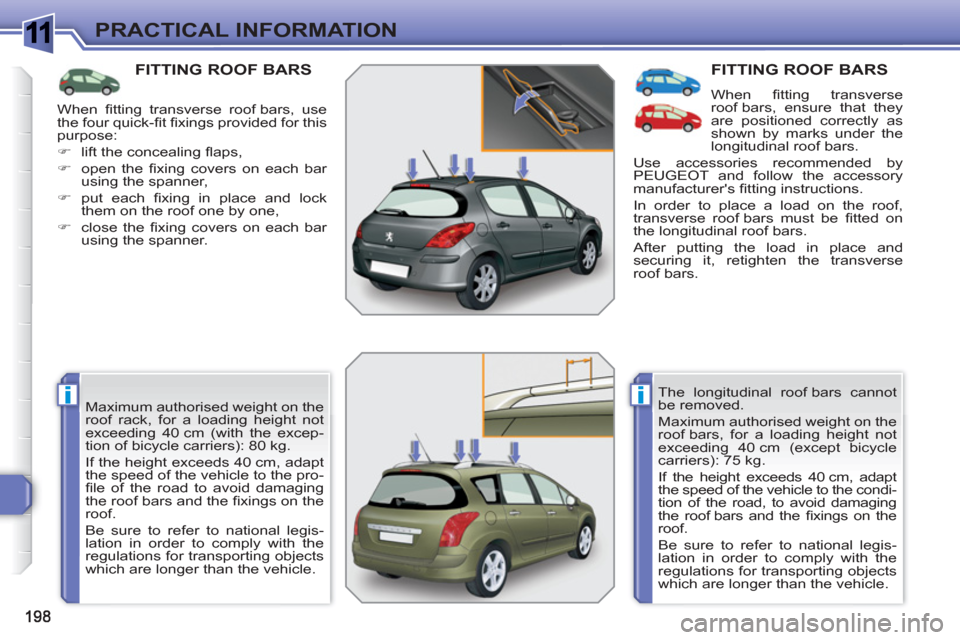

FITTING ROOF BARS
Maximum authorised weight on the
roof rack, for a loading height not
exceeding 40 cm (with the excep-
tion of bicycle carriers): 80 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi le of the road to avoid damaging
the roof bars and the fi xings on the
roof.
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle.
FITTING ROOF BARS
When fi tting transverse
roof bars, ensure that they
are positioned correctly as
shown by marks under the
longitudinal roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
manufacturer's fi tting instructions.
In order to place a load on the roof,
transverse roof bars must be fi tted on
the longitudinal roof bars.
After putting the load in place and
securing it, retighten the transverse
roof bars.
The longitudinal roof bars cannot
be removed.
Maximum authorised weight on the
roof bars, for a loading height not
exceeding 40 cm (except bicycle
carriers): 75 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the condi-
tion of the road, to avoid damaging
the roof bars and the fi xings on the
roof.
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle. When fi tting transverse roof bars, use
the four quick-fi t fi xings provided for this
purpose:
)
lift the concealing fl aps,
)
open the fi xing covers on each bar
using the spanner,
)
put each fi xing in place and lock
them on the roof one by one,
)
close the fi xing covers on each bar
using the spanner.
Page 201 of 336
1
i
199
PRACTICAL INFORMATION
ACCESSORIES
A wide range of accessories and genu-
ine parts is offered by the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
"Comfort":
parking sensors, side and rear blinds,
door defl ectors, isotherm module, head
restraint-mounted coat hanger, front
centre armrest, reading lamp, scented
air freshener...
**
Sunroof which must be fi tted by a
PEUGEOT dealer.
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Fitting
)
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.
)
Press around its edge to engage its
fi xing clips one by one.
Do not forget to remove the very
cold climate screen:
- when the ambient temperature
exceeds 10 °C,
- when towing,
- at speeds above 75 mph (120 km/h).
Removal
)
Use a screwdriver as a lever to
release each fi xing clip in turn.
*
According to country.
Conversion kits
You can obtain an "Enterprise" kit to
convert a trade vehicle to a private car
and vice-versa.
"Transport solutions":
boot liner, boot mat, boot spacers,
storage under parcel shelf, transverse
roof bars, bicycle carrier, ski carrier, roof
box, towbars, wiring harnesses...
The towbar and its wiring harness must
be fi tted by a PEUGEOT dealer.
"Style":
leather steering wheel, aluminium gear
lever knob, sunroof ** , alloy wheels, wheel
trims, sport exhaust, body styling kit.
"Security and safety":
anti-theft alarm, wheel security locks,
vehicle tracking system, child seats and
booster cushions, breathalyser, fi rst aid
kit, warning triangle, high visibility jack-
et, dog guard, front foglamp kit, tempo-
rary puncture repair kit, snow chains,
anti-skid covers.
Page 202 of 336
1
!
i
i
200
PRACTICAL INFORMATION
The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this specifi c warn-
ing. You are advised to contact a
PEUGEOT representative to be
shown the range of recommended
equipment and accessories.
Depending on the country in which
the vehicle is sold, it may be compul-
sory to have a high visibility safety
jacket, warning triangle and spare
bulbs available in the vehicle.
"Protection":
mats *** , mud fl aps, seat covers com-
patible with lateral airbags, vehicle cov-
ers, door sill protectors, transluscent
bumper protectors.
"Mulitmedia":
audio systems, amplifi ers, satellite
navigation systems, Bluetooth system,
speakers, DVD player, USB Box, WiFi
on board...
***
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned
and secured correctly,
- never fi t one mat on top of
another.
Installation of radio
communication transmitters
Before installing on your vehicle
any after-market radio communica-
tion transmitter with external aerial,
we recommend that you contact
a PEUGEOT dealer.
The PEUGEOT dealer network
will give you the specifi cation
for transmitters which can be fi t-
ted (frequency, maximum power,
aerial position, specifi c installation
requirements), in line with the Ve-
hicle Electromagnetic Compatibility
Directive (2004/104/EC).
You can also obtain products for cleaning
and maintenance (exterior and interior),
topping up (screenwash...) and refi lls
(fragrance cartridges, sealant cartridge
for the temporary puncture repair kit...)
from PEUGEOT dealers.
