Page 180 of 336
1
i
178
PRACTICAL INFORMATION
After changing a wheel
To store the punctured wheel in the
boot correctly, fi rst remove the cen-
tral cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.
Fitting the wheel
List of operations
)
Put the wheel in place on the hub.
)
Screw in the bolts by hand to the
stop.
)
Pre-tighten the security bolt using
the wheelbrace 1
fi tted with the
security socket 3
.
)
Pre-tighten the other bolts using the
wheelbrace 1
only.
)
Lower the vehicle fully.
)
Fold the jack 2
and detach it.
)
Tighten the security bolt using the
wheelbrace 1
fi tted with the security
socket 3
.
)
Tighten the other bolts using the
wheelbrace 1
only.
)
Store the tools in the box.
Page 181 of 336
1
!
!
!
179
PRACTICAL INFORMATION
Risk of electrocution
Xenon bulbs (D1S-35W) must be
replaced by a PEUGEOT dealer.
CHANGING A BULB
Procedure for replacing a faulty bulb with a
new bulb without the use of tools.
Model with halogen headlamps
1.
Direction indicators
(PY
21W
amber).
2.
Dipped
beam
headlamps
(H7
-
55W).
3.
Main beam headlamps (H1
-
55W).
4.
Daytime
running lamps/
sidelamps
(P21/
5W
).
5.
Foglamps
(H8
-
35W).
1.
Direction indicators
(PY 21W SV silver).
2.
Directional dipped/main beam
headlamps (D1S-35W).
3.
Additional main beam headlamps
(H1-55W).
4.
Daytime running lamps/
sidelamps (P21/5W).
5.
Foglamps (H8-35W).
Model with xenon and directional
headlamps
The headlamps are fi tted with poly-
carbonate glass with a protective
coating:
)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
)
use a sponge and soapy water,
)
when using a high pressure
washer on persistent marks,
do not direct at the lamps or
their outlines for too long, so as
not to damage their protective
coating and seals.
)
Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a halogen bulb should
only be done after the headlamp
has been switched off for a few min-
utes (risk of serious burns).
It is imperative to use only anti-ul-
traviolet (UV) type bulbs in order
not to damage the headlamp.
Front lamps
Page 182 of 336
1
i
!
180
PRACTICAL INFORMATION
Changing main beam headlamp
bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Compress the springs to release the
bulb.
)
Remove the bulb and change it
To r efi t, carry out these operations in re-
verse order.
Changing daytime running lamp/
sidelamp bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Changing dipped beam headlamp
bulbs
)
Remove the protective cover by
pulling on the tab.
)
Disconnect the bulb connector.
)
Spread the springs to release the
bulb.
)
Extract the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Changing direction indicator bulbs
)
Turn the bulb holder a quarter of a
turn and extract it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Amber or silver coloured bulbs,
such as the direction indicators,
must be replaced with bulbs of
identical specifi cations and colour.
When refi tting, close the protective
cover carefully to assure the seal-
ing of the headlamp.
Page 183 of 336
1
181
PRACTICAL INFORMATION
Changing foglamp bulbs
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
)
Tilt the screwdriver to extract the
repeater and remove it.
)
Disconnect the repeater connector.
To r efi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.
Changing integrated direction
indicator side repeaters
To replace these bulbs consult a
PEUGEOT dealer.
Page 184 of 336
1
i
182
PRACTICAL INFORMATION
Rear lamps
1.
Brake lamps/sidelamps (P21/5W).
2.
Sidelamps (P21/5W).
3.
Foglamp,
offside
(P21W).
Reversing lamp,
nearside
(P21W).
4.
Direction indicators (P21W).
Changing bulbs
These fi ve bulbs are changed from out-
side the boot:
)
remove the two lamp fi xing nuts,
)
extract the lamp carefully from the
outside,
)
disconnect the lamp connector,
)
press the four tabs and remove the
bulb holder,
)
turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.
If the vehicle is fi tted with the JBL
audio system, on the right-hand
side, fi rst remove the three fi xing
bolts, then move the box.
)
on the right-hand side; remove the
access fl ap,
)
on the left-hand side; turn the fi xing
bolt a quarter of a turn and remove
the storage box cover,
)
unclip the storage box,
Page 185 of 336
1
183
PRACTICAL INFORMATION

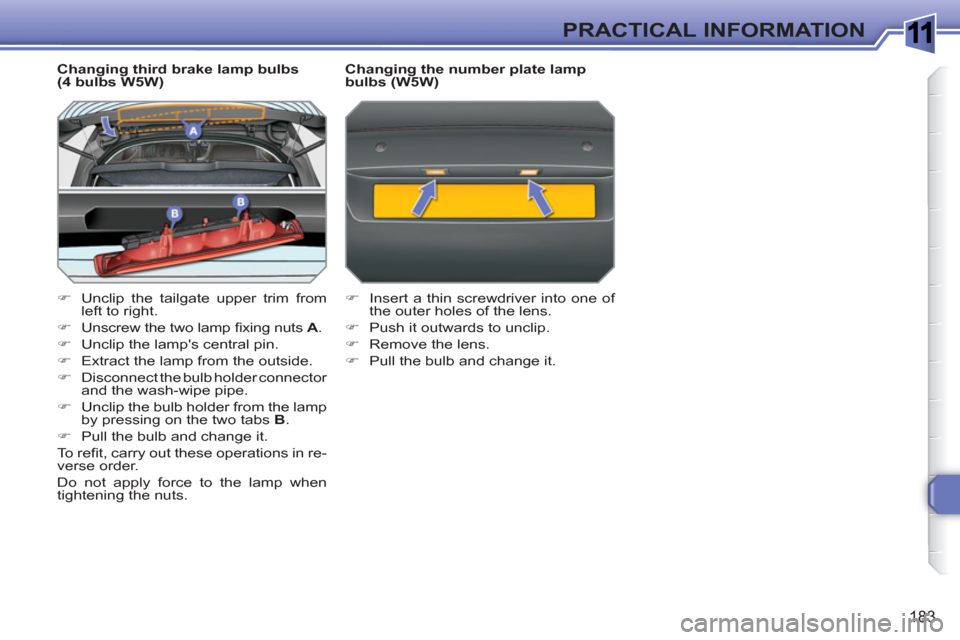

Changing third brake lamp bulbs
(4 bulbs W5W)
)
Unclip the tailgate upper trim from
left to right.
)
Unscrew the two lamp fi xing nuts A
.
)
Unclip the lamp's central pin.
)
Extract the lamp from the outside.
)
Disconnect the bulb holder connector
and the wash-wipe pipe.
)
Unclip the bulb holder from the lamp
by pressing on the two tabs B
.
)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Do not apply force to the lamp when
tightening the nuts.
Changing the number plate lamp
bulbs (W5W)
)
Insert a thin screwdriver into one of
the outer holes of the lens.
)
Push it outwards to unclip.
)
Remove the lens.
)
Pull the bulb and change it.
Page 186 of 336
1
184
PRACTICAL INFORMATION

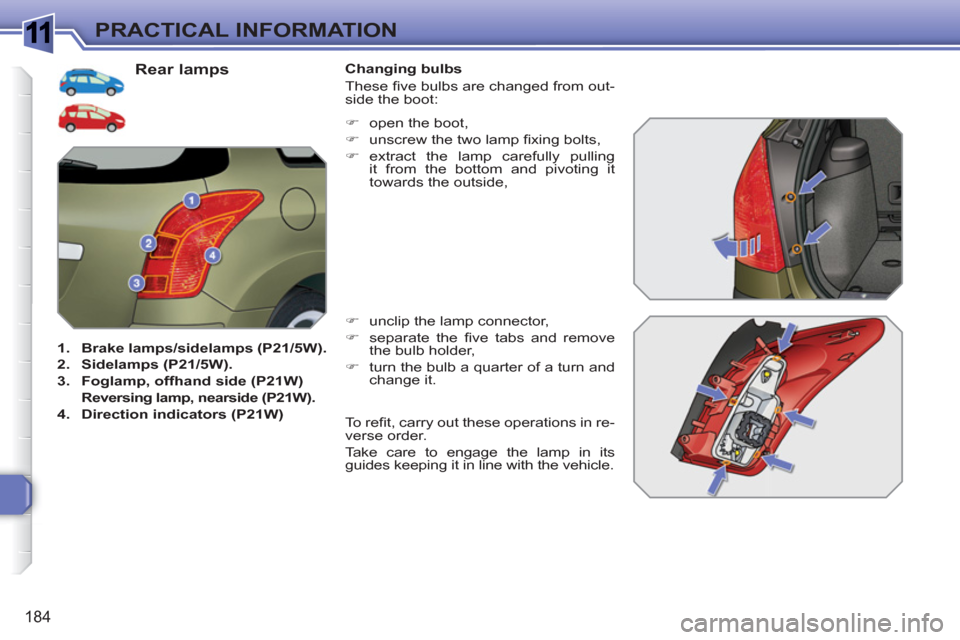

Rear lamps
1.
Brake lamps/sidelamps (P21/5W).
2.
Sidelamps (P21/5W).
3.
Foglamp,
offhand
side (P21W)
Reversing lamp,
nearside
(P21W).
4.
Direction indicators (P21W)
Changing bulbs
These fi ve bulbs are changed from out-
side the boot:
)
unclip the lamp connector,
)
separate the fi ve tabs and remove
the bulb holder,
)
turn the bulb a quarter of a turn and
change it.
)
open the boot,
)
unscrew the two lamp fi xing bolts,
)
extract the lamp carefully pulling
it from the bottom and pivoting it
towards the outside,
To r efi t, carry out these operations in re-
verse order.
Take care to engage the lamp in its
guides keeping it in line with the vehicle.
Page 187 of 336
1
185
PRACTICAL INFORMATION

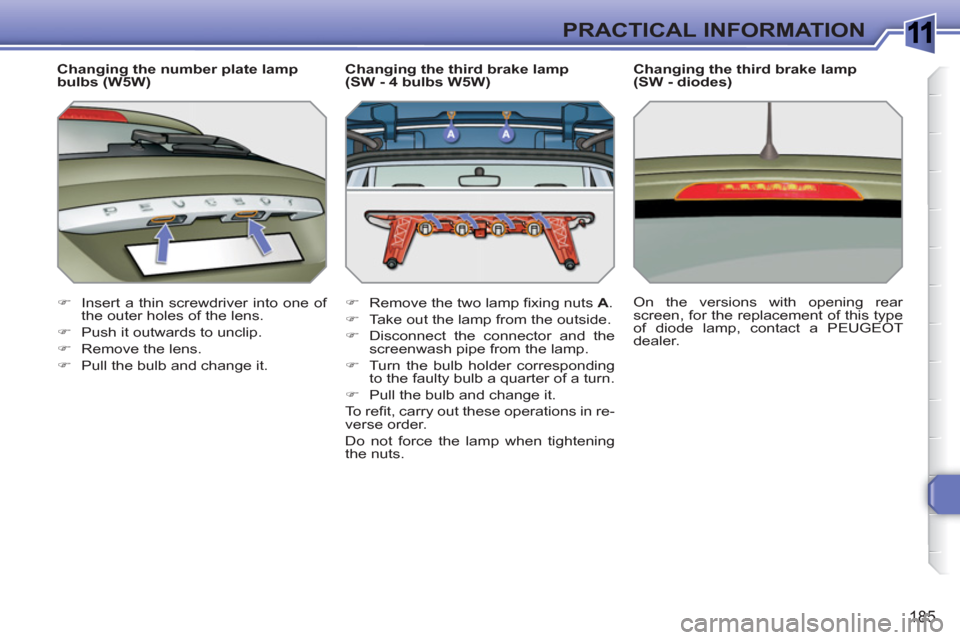

Changing the number plate lamp
bulbs (W5W)
)
Insert a thin screwdriver into one of
the outer holes of the lens.
)
Push it outwards to unclip.
)
Remove the lens.
)
Pull the bulb and change it.
Changing the third brake lamp
(SW - 4 bulbs W5W)
)
Remove the two lamp fi xing nuts A
.
)
Take out the lamp from the outside.
)
Disconnect the connector and the
screenwash pipe from the lamp.
)
Turn the bulb holder corresponding
to the faulty bulb a quarter of a turn.
)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Do not force the lamp when tightening
the nuts.
Changing the third brake lamp
(SW - diodes)
On the versions with opening rear
screen, for the replacement of this type
of diode lamp, contact a PEUGEOT
dealer.
