CONTENTS
FAMILIARISATION 4-26
INSTRUMENTS and
CONTROLS 27-41CHILD SAFETY 113-123
MULTIFUNCTION
SCREENS 42-57SAFETY 124-136 COMFORT 58-73
ACCESS 74-88
VISIBILITY 89-99FITTINGS 100-112
Instrument panels 27
Indicator and warning lamps 29
Indicators 37
Adjustment buttons 41Child seats 113
ISOFIX child seats 120
Child lock 123
Screen A without audio equipment 42
Screen A with audio equipment 44
Screen C
(Peugeot Connect Sound) 46
16/9 retractable colour screen
(Peugeot Connect Navigation
(RNEG)) 49
16/9 high definition retractable colour
screen (Peugeot Connect Media) 51
Trip computer 54Direction indicators 124
Hazard warning lamps 124
Horn 124
Tyre under-inflation detection 125
ESC system 126
Grip control 128
Front seat belts 130
Airbags 133 Heating and Ventilation 58
Manual air conditioning 60
Rear screen demist/defrost 61
Dual-zone digital air conditioning 62
Front seats 65
Rear seats 69
Mirrors 71
Steering wheel adjustment 73
Remote control key 74
Alarm 79
Electric windows 81
Doors 83
Boot 85
Lower tailgate 86
Fuel tank 87
Misfuel prevention 88
Lighting controls 89
Automatic illumination
of headlamps 92
Headlamp adjustment 92
Directional lighting 93
Wiper controls 94
Automatic rain sensitive wipers 96
Courtesy lamps 97
Interior mood lighting 98Interior fittings 100
Front armrest 102
Rear multimedia 104
Panoramic sunroof 106
Boot fittings 107
ECO-DRIVING 25

9
FAMILIARISATION

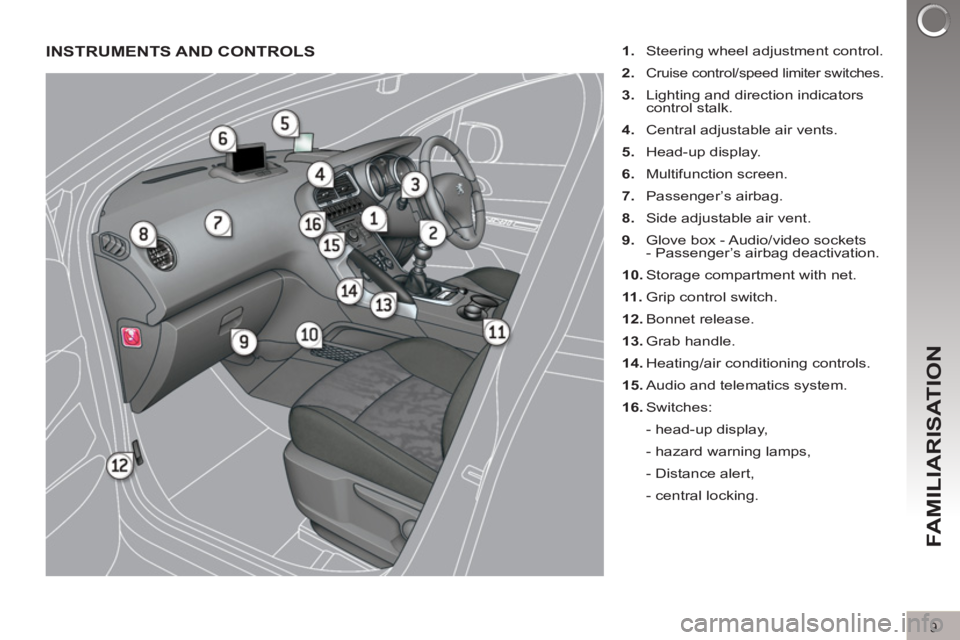

INSTRUMENTS AND CONTROLS


1.
Steering wheel adjustment control.

2.

Cruise control/speed limiter switches.


3.
Lighting and direction indicators
control stalk.

4.
Central adjustable air vents.

5.
Head-up display.

6.
Multifunction screen.

7.
Passenger’s airbag.

8.
Side adjustable air vent.

9.
Glove box - Audio/video sockets
- Passenger’s airbag deactivation.

10.
Storage compartment with net.

11 .
Grip control switch.

12.
Bonnet release.

13.
Grab handle.

14.
Heating/air conditioning controls.

15.
Audio and telematics system.

16.
Switches:
- head-up display,
- hazard warning lamps,
- Distance alert,
- central locking.

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Wiper/screenwash/trip computer
control stalk.

2.
Audio and telematics system
steering mounted control.

3.
Steering lock and ignition.

4.
Instrument panel.

5.
Driver’s airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
Front armrest - Peugeot Connect
USB and/or JACK auxiliary socket.

9.
12 V accessory socket.

10.
Driver’s storage compartment
(Handbook).

11 .
Alarm switch.
Parking sensors switch.
Dynamic stability control switch
(ESP/ASR).
Stop & Start deactivation switch.

12.
Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media Navigation (RT6).

13.
Door mirror controls.
Electric window controls.
Child lock.

14.
Front side window demisting vent.

15.
Windscreen demisting vent.

12
FAMILIARISATION

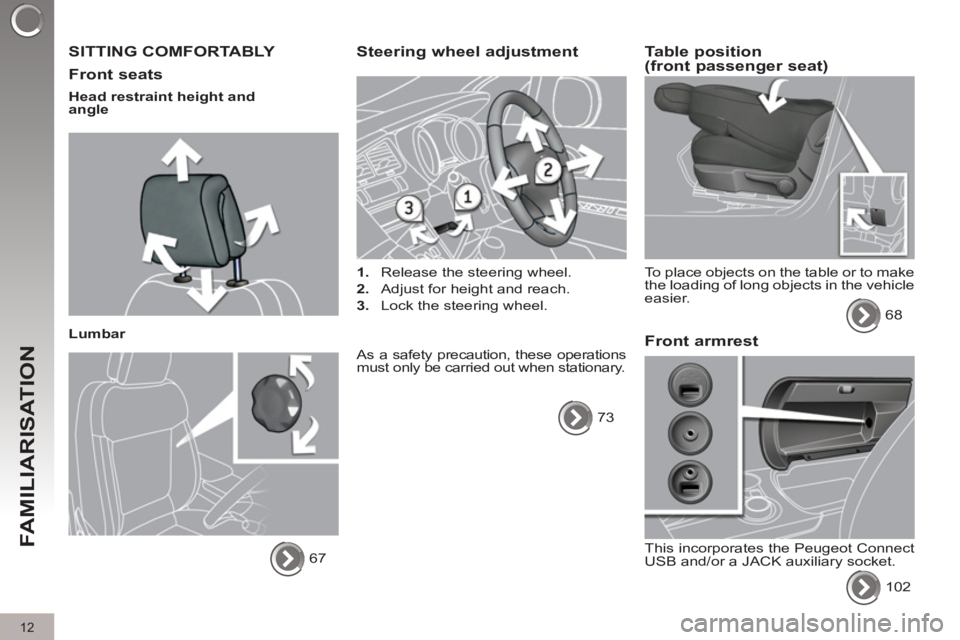

SITTING COMFORTABLY

Front seats


Head restraint height and
angle

Lumbar
67



Steering wheel adjustment



1.
Release the steering wheel.

2.
Adjust for height and reach.

3.
Lock the steering wheel.
As a safety precaution, these operations
must only be carried out when stationary.
73


Table position
(front passenger seat)
To place objects on the table or to make
the loading of long objects in the vehicle
easier.
68


Front armrest

This incorporates the Peugeot Connect
USB and/or a JACK auxiliary socket.
102

24
FAMILIARISATION
154

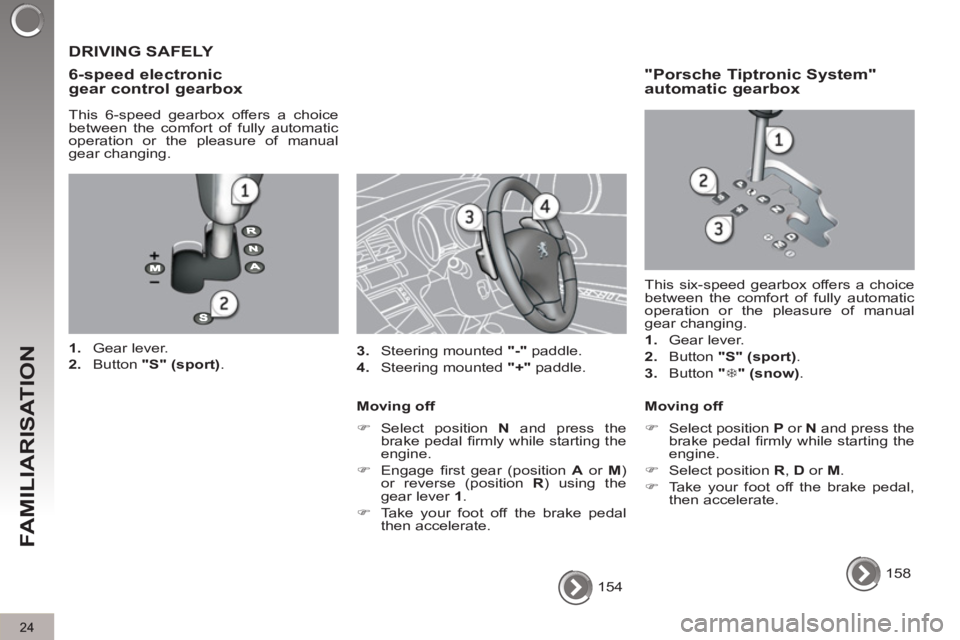

DRIVING SAFELY

6-speed electronic
gear control gearbox

This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.


1.
Gear lever.

2.
Button "S" (sport)
.


"Porsche Tiptronic System"
automatic gearbox

This six-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.


1.
Gear lever.

2.
Button "S" (sport)
.

3.
Button " 7
" (snow)
.


Moving off


)
Select position N
and press the
brake pedal fi rmly while starting the
engine.

)
Engage fi rst gear (position A
or M
)
or reverse (position R
) using the
gear lever 1
.

)
Take your foot off the brake pedal
then accelerate.

)
Select position P
or N
and press the
brake pedal fi rmly while starting the
engine.

)
Select position R
, D
or M
.

)
Take your foot off the brake pedal,
then accelerate.
3.
Steering mounted "-"
paddle.

4.
Steering mounted "+"
paddle.

158

Moving off
24

33
INSTRUMENTS and CONTROLS









Warning lamps
When the engine is running or the vehicle is being driven, the illumination of one of the following warning lamps indicates a
fault which requires action on the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in
the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer or a qualifi ed workshop.



Warning lamp



is on



Cause



Action/Observations








STOP




fi xed, alone or associated
with another warning
lamp, accompanied by
an audible signal and a
message in the screen.
Illumination of this warning
lamp is associated with a
serious braking system, power
steering, engine lubrication or
cooling system malfunction or
a punctured tyre. Stop as soon as it is safe to do so as there is
a risk that the engine will cut out while driving.
Park, switch off the ignition and contact
a PEUGEOT dealer or a qualifi ed
workshop.




Service


on temporarily. A minor fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown in the screen, such as, for example:


- the closing of the doors, boot or bonnet,

- the engine oil level,

- the screenwash level,

- the remote control battery,

- the tyre pressures,

- saturation of the particle emission
fi lter (Diesel).

- ...
For any other faults, contact a PEUGEOT
dealer or a qualifi ed workshop.

fi xed. A major fault has occurred
for which there is no specifi c
warning lamp.
Identify the fault by reading the message
shown on the screen and contact a PEUGEOT
dealer or a qualifi ed workshop.



(PEF:
particle
emissions
fi lter, Diesel)



fi xed, associated temporarily
with a message on the risk
of blockage of the PEF.
This indicates the start of
saturation of the particle
emissions fi lter.
As soon as traffi c conditions allow, regenerate the
fi lter by driving at a speed of at least 35 mph
(60 km/h) until the service warning lamp goes off.

fi xed. This indicates the low level in
the Diesel additive reservoir. Have the level topped up by a PEUGEOT dealer
or a qualifi ed workshop as soon as possible.

73
COMFORT

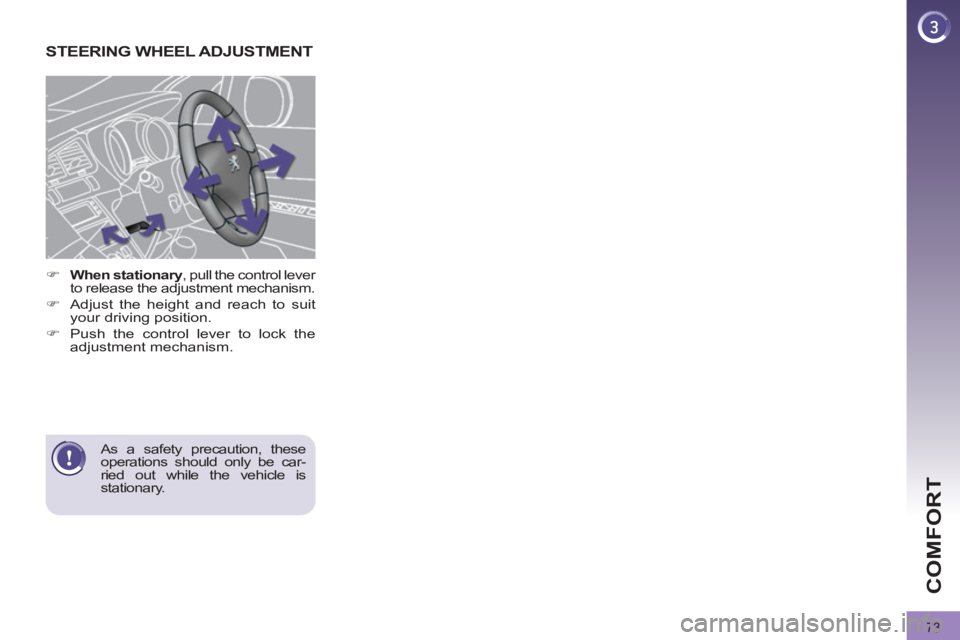

STEERING WHEEL ADJUSTMENT




)
When stationary
, pull the control lever
to release the adjustment mechanism.

)
Adjust the height and reach to suit
your driving position.

)
Push the control lever to lock the
adjustment mechanism.
As a safety precaution, these
operations should only be car-
ried out while the vehicle is
stationary.

100
FITTINGS

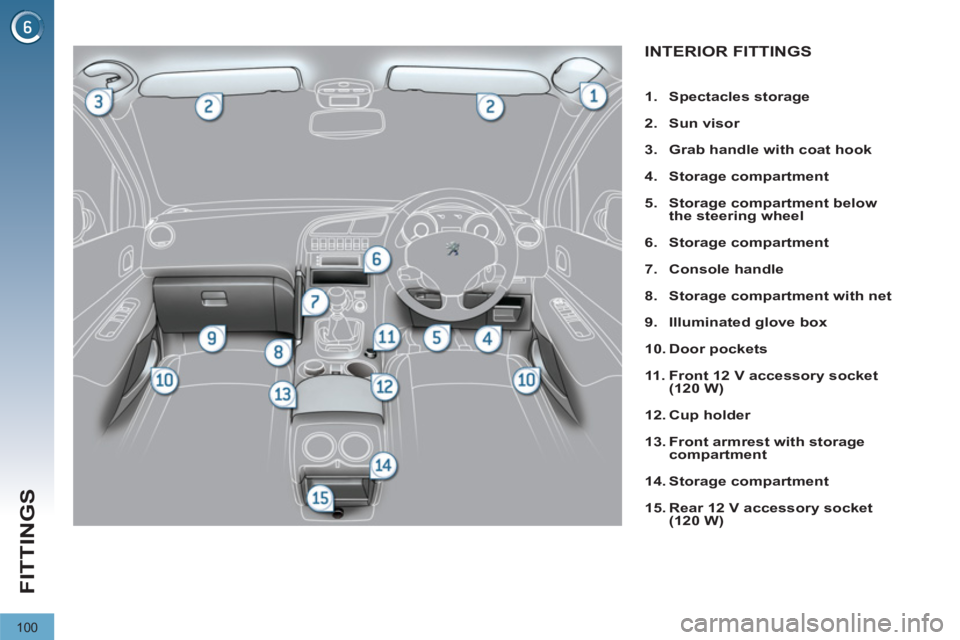

INTERIOR FITTINGS



1.
Spectacles storage


2.
Sun visor


3.
Grab handle with coat hook


4.
Storage compartment


5.
Storage compartment below
the steering wheel


6.
Storage compartment


7.
Console handle


8.
Storage compartment with net


9.
Illuminated glove box


10.
Door pockets


11 .
Front 12 V accessory socket
(120 W)


12.
Cup holder


13.
Front armrest with storage
compartment


14.
Storage compartment


15.
Rear 12 V accessory socket
(120 W)
