2011 PEUGEOT 308 MPG

29
INSTRUMENTS and CONTROLS

Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the "Ac-
cess" section),

- guide-me-home and welcome light-
ing (refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section).


Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and fuel consumption (l/100 km, mpg or
km/l).

Choice of language
This menu allows you to select the
display language: Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Türkçe * .
The main menu and its asso-
ciated functions can only be
accessed when stationary, via
buttons 1
to 4
.
A message appears on the screen,
above a certain speed threshold, in-
dicating that the main menu cannot
be displayed.
The trip computer displays can only
be accessed while driving, via but-
tons 2
and 3
(refer to the "Trip com-
puter" paragraph).

Main menu


)
Press button 1
for access to the
main menu and select one of the fol-
lowing functions:


- "Vehicle parameters",

- "Choice of language",

- "Choice of units".

)
Press button 2
or 3
to move in the
screen.

)
Press button 1
again to confi rm the
selection.


*
According to country.










Indicator and warning lamps

Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).

When the ignition is switched on
Certain warning lamps come on for a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.


Associated warnings
The illumination of certain warning
lamps may be accompanied by an au-
dible signal and a message in the multi-
function screen.
The warning lamps may come
on continuously (fi xed) or
fl ash.
Certain warning lamps may come on
in two different modes. Only by re-
lating the type of illumination to the
operating status of the vehicle can
it be ascertained whether the situa-
tion is normal or whether a fault has
occurred.

43
MULTIFUNCTION SCREENS

Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not active,
faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Türkçe, Deutsch, English, Espanol).

Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:


- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.
Units
Once the "Units" menu has been selected,
you can change the units for:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or km/l).



)
Once you have selected a setting,
press the "OK"
button to change its
value.

)
Wait for approximately ten sec-
onds without any action to allow
the changed data to be recorded or
press the "ESC"
button to cancel.
The screen then returns to the normal
display.

Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment (ac-
cording to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

-
"guide-me-home" and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...


For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

45
MULTIFUNCTION SCREENS

For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:


- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Türkçe, Deutsch, English, Espanol).


Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:


- temperature (°C or °F),

-
fuel consumption (l/100 km, mpg or km/l).


)
Once you have selected a setting,
press the "
" or "
" buttons to
change its value.

)
Press the "
" or "
" buttons to
switch respectively to the previous
or next setting.

)
Press the "OK"
button to record
the change and return to the normal
display or press the "ESC"
button to
cancel.

Vehicle confi guration

Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment (ac-
cording to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

- guide-me-home and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...


Options
Once the "Options" menu has been
selected, you can start diagnostics of
the status of the equipment (active, not
active, faulty).

50
MULTIFUNCTION SCREENS

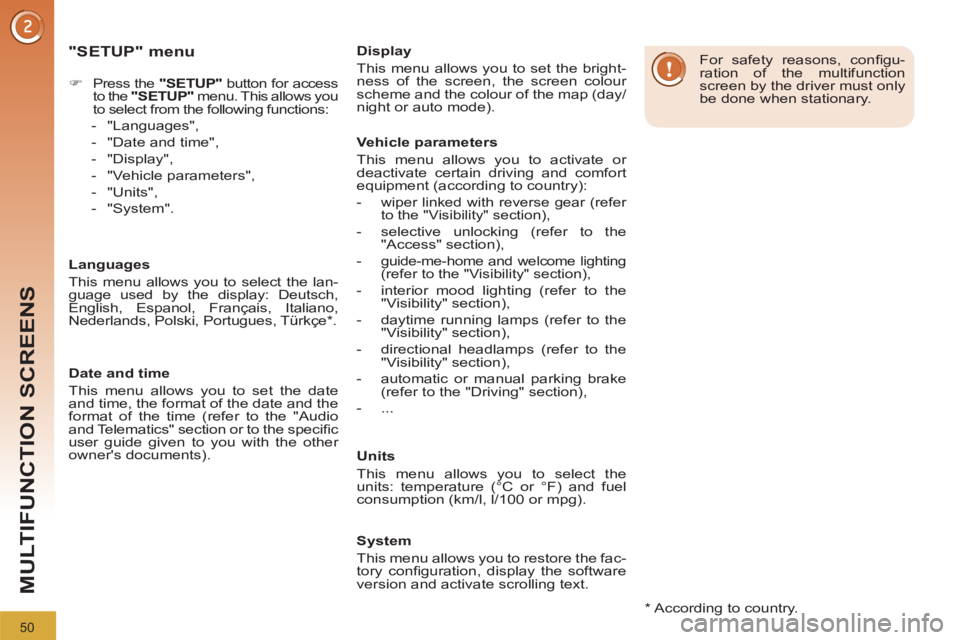

"SETUP" menu




)
Press the "SETUP"
button for access
to the "SETUP"
menu. This allows you
to select from the following functions:


- "Languages",

- "Date and time",

- "Display",

- "Vehicle parameters",

- "Units",

- "System".



Languages
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .

Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specifi c
user guide given to you with the other
owner's documents).

*
According to country.
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):


-
wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

-
guide-me-home and welcome lighting
(refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...


Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.

57
MULTIFUNCTION SCREENS

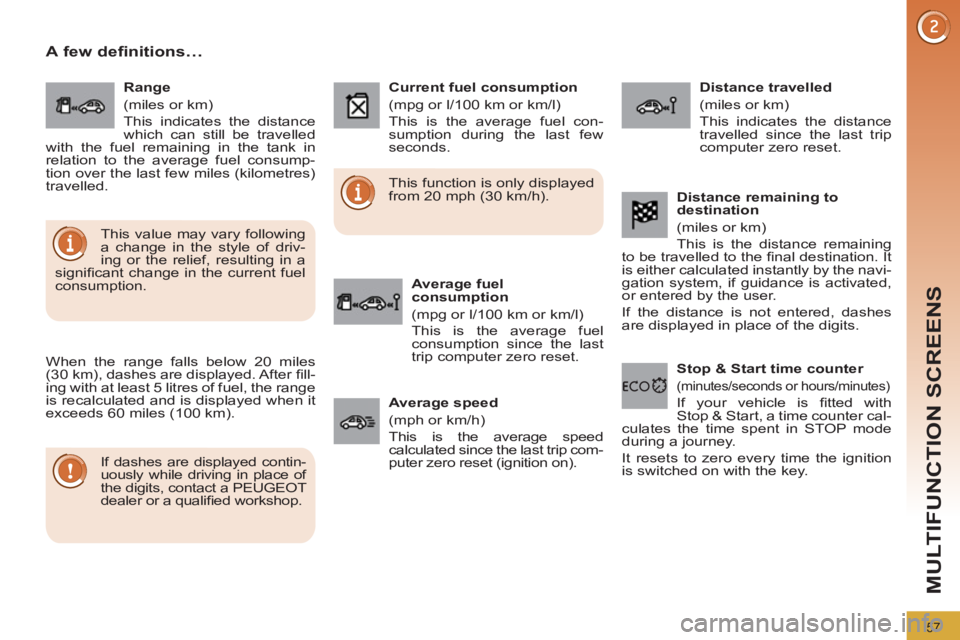

A few definitions…

When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed contin-
uously while driving in place of
the digits, contact a PEUGEOT
dealer or a qualifi ed workshop. This function is only displayed
from 20 mph (30 km/h).
This value may vary following
a change in the style of driv-
ing or the relief, resulting in a
signifi cant change in the current fuel
consumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.

Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last
trip computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.


Average speed
(mph or km/h)
This is the average speed
calculated since the last trip com-
puter zero reset (ignition on).

Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.








Stop & Start time counter

(minutes/seconds or hours/minutes)

If your vehicle is fi tted with
Stop & Start, a time counter cal-
culates the time spent in STOP mode
during a journey.
It resets to zero every time the ignition
is switched on with the key.

288

**

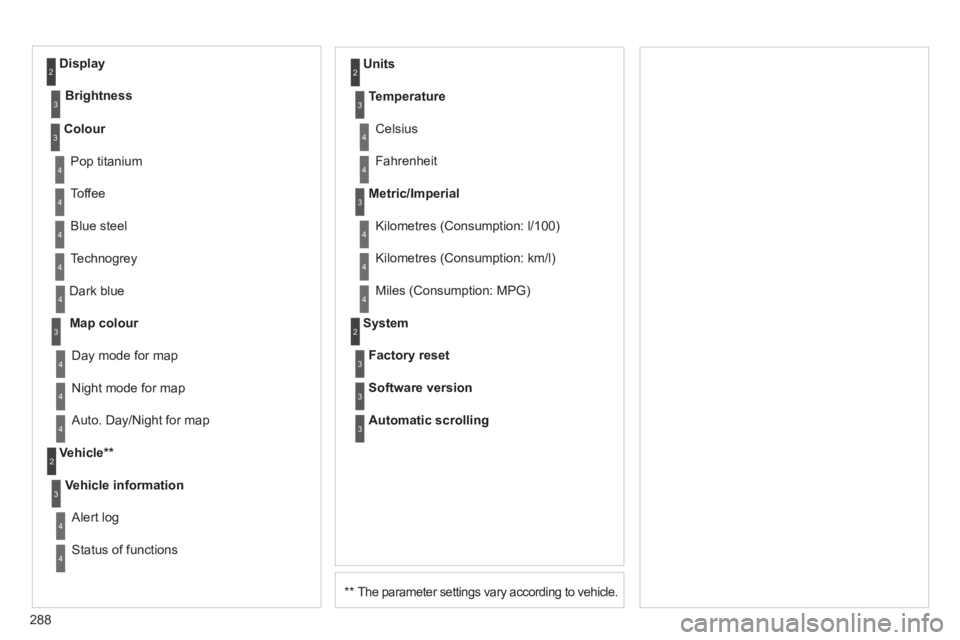

The parameter settings vary according to vehicle.

Dark blue

Map colour

Night mode for map
Units
Day mode for map

Vehicle **

Vehicle information

Alert log
Status of functions
Temperature

Celsius
Fahrenheit

Metric/Imperial

Kilometres (Consumption: l/100)
Kilometres (Consumption: km/l)
Miles (Consumption: MPG)

System
Auto. Day/Night for map
Factory reset


Software version


Automatic scrolling



3
4
4
2
4
3
4
4
2
3
4
4
3
4
4
4
2
4
3
3
3


Colour

Pop titanium
Toffee
Blue steel
Technogrey 3
4
4
4
4


Display

Brightness
2
3

308

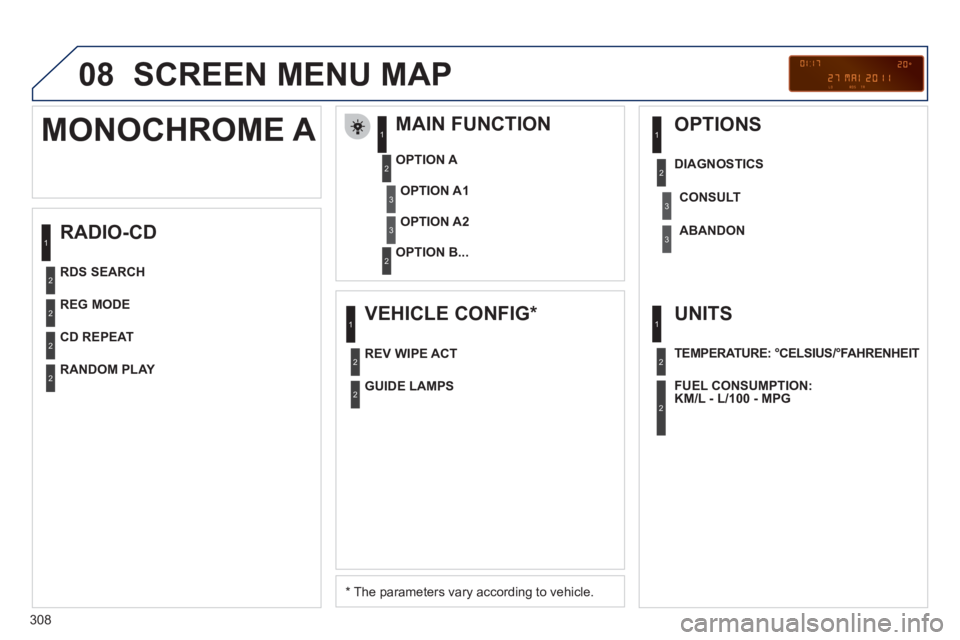

08 SCREEN MENU MAP


RADIO-CD
MAIN FUNCTION


* The parameters vary according to vehicle.
OPTION A

OPTION B...













MONOCHROME A


OPTION A1


OPTION A2



REG MODE

CD REPEAT

RANDOM PLAY



VEHICLE CONFIG *


REV WIPE ACT


OPTIONS


GUIDE LAMPS

DIAGNOSTICS

RDS SEARCH
CONSULT


ABANDON





UNITS



TEMPERATURE: °CELSIUS/°FAHRENHEIT



FUEL CONSUMPTION:
KM/L - L/100 - MPG

1
2
3
31
2
2
2
2
1
2
3
2
3
1
2
2
1
2
2

311
08

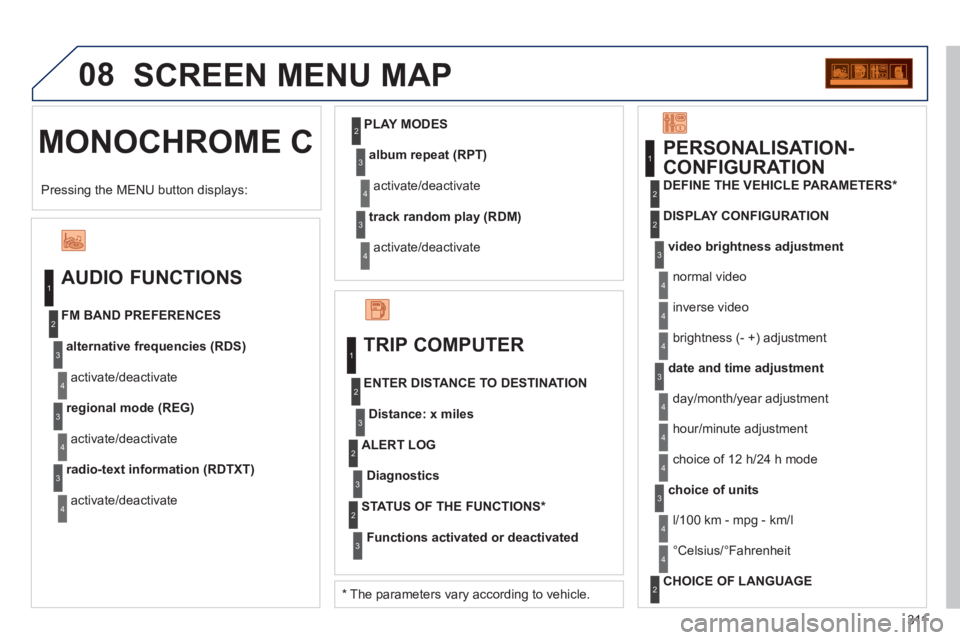

MONOCHROME C SCREEN MENU MAP


AUDIO FUNCTIONS


alternative frequencies (RDS)

activate/deactivate
FM BAND PREFERENCES

regional mode (REG)

activate/deactivate

radio-text information (RDTXT)


activate/deactivate
1
2
3
4
3
4
3
4


PLAY MODES

album repeat (RPT)

activate/deactivate

track random play (RDM)

activate/deactivate
2
3
4
3
4


TRIP COMPUTER


Distance: x miles


ENTER DISTANCE TO DESTINATION

Diagnostic
s

ALERT LOG

Functions activated or deactivated





STATUS OF THE FUNCTIONS *
1
2
3
3
2
3
2


video brightness adjustment

DISPLAY CONFIGURATION
DEFINE THE VEHICLE PARAMETERS *



PERSONALISATION-
CONFIGURATION
normal video
inverse video
brightness (- +) adjustment

date and time adjustment


day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode

choice of units

l/100 km - mpg - km/l
°Celsius/°Fahrenheit


CHOICE OF LANGUAGE

1
2
4
3
2
4
4
3
4
4
2
3
4
4


Pressing the MENU button displays:

*
The parameters vary according to vehicle.
4
