2011 PEUGEOT 308 remote control

97
VISIBILITY














COURTESY LAMPS



1.
Front courtesy lamp


2.
Map reading lamps


3.
Rear side reading lamps


4.
Rear courtesy lamp




Front and rear courtesy lamps

In this position, the courtesy
lamp comes on gradually:

Map reading lamps



)
With the ignition on, press the cor-
responding switch.


With the "permanent lighting"
mode, the duration of lighting
varies depending on the context:


- with the ignition off, approximately
ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- with the engine running, unlimited.

- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when a door is opened,

- when the remote control locking but-
ton is activated, in order to locate
your vehicle.
Permanently off.
Permanent lighting. When the front courtesy lamp
is in the "permanent lighting"
position, the rear courtesy
lamp will also come on, unless it is in
the "permanently off" position.
To switch off the rear courtesy lamp,
place it in the "permanently off" position.


Rear side reading lamps



)
With the ignition on, the fi rst press
of the reading lamp switch switches
on the reading lamp in "permanent
lighting" mode.

)

Following a second press, it comes on:


- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when a door is opened,

- when the remote control locking
button is pressed, in order to
locate your vehicle.

It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.
It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.
Take care not to place anything in con-
tact with the courtesy lamps.

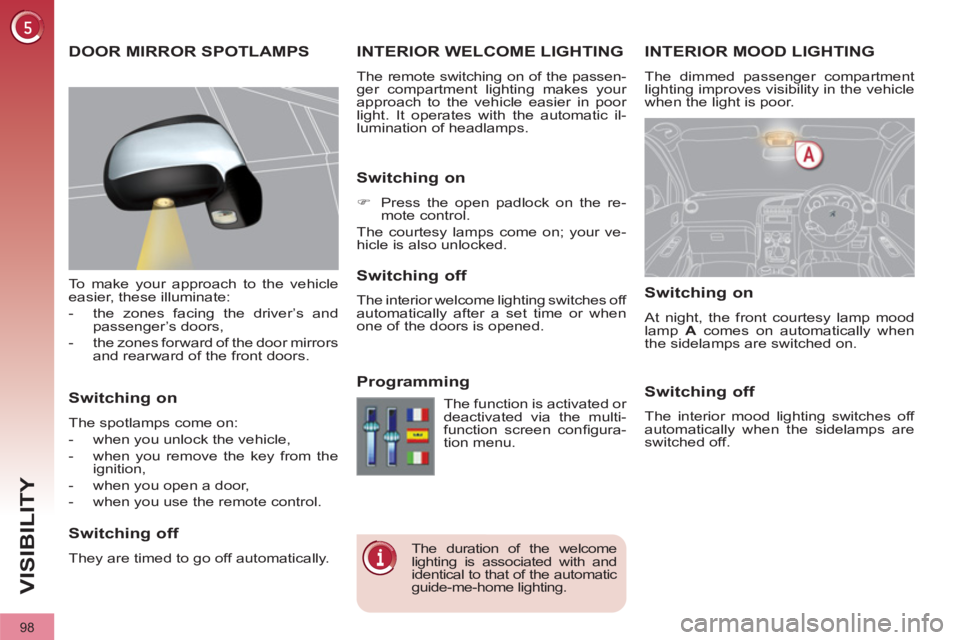

98
VISIBILITY








INTERIOR MOOD LIGHTING

The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.





INTERIOR WELCOME LIGHTING

The remote switching on of the passen-
ger compartment lighting makes your
approach to the vehicle easier in poor
light. It operates with the automatic il-
lumination of headlamps.

Switching on



)
Press the open padlock on the re-
mote control.
The courtesy lamps come on; your ve-
hicle is also unlocked.


Switching off

The interior welcome lighting switches off
automatically after a set time or when
one of the doors is opened.


Programming
Switching on

At night, the front courtesy lamp mood
lamp A
comes on automatically when
the sidelamps are switched on.


Switching off

The interior mood lighting switches off
automatically when the sidelamps are
switched off.
The duration of the welcome
lighting is associated with and
identical to that of the automatic
guide-me-home lighting. The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.







DOOR MIRROR SPOTLAMPS

To make your approach to the vehicle
easier, these illuminate:


- the zones facing the driver’s and
passenger’s doors,

- the zones forward of the door mirrors
and rearward of the front doors.


Switching on

The spotlamps come on:


- when you unlock the vehicle,

- when you remove the key from the
ignition,

- when you open a door,

- when you use the remote control.



Switching off

They are timed to go off automatically.

123

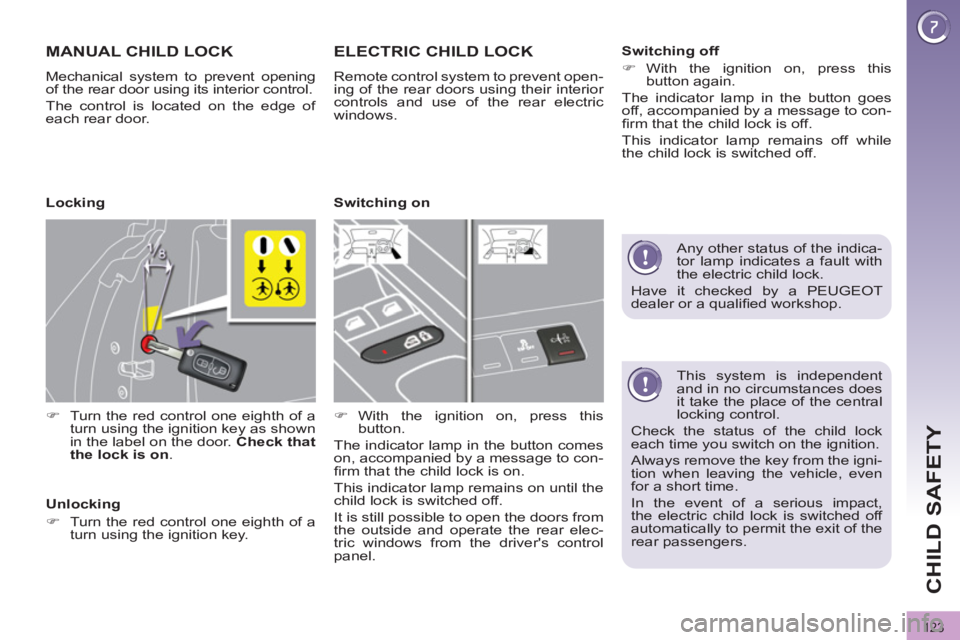

CHILD SAFETY

This system is independent
and in no circumstances does
it take the place of the central
locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the igni-
tion when leaving the vehicle, even
for a short time.
In the event of a serious impact,
the electric child lock is switched off
automatically to permit the exit of the
rear passengers.









MANUAL CHILD LOCK

Mechanical system to prevent opening
of the rear door using its interior control.
The control is located on the edge of
each rear door.


)
Turn the red control one eighth of a
turn using the ignition key as shown
in the label on the door. Check that
the lock is on
.







ELECTRIC CHILD LOCK

Remote control system to prevent open-
ing of the rear doors using their interior
controls and use of the rear electric
windows.


)
With the ignition on, press this
button.
The indicator lamp in the button comes
on, accompanied by a message to con-
fi rm that the child lock is on.
This indicator lamp remains on until the
child lock is switched off.
It is still possible to open the doors from
the outside and operate the rear elec-
tric windows from the driver's control
panel.
Locking

Unlocking


)
Turn the red control one eighth of a
turn using the ignition key.




Switching on
Switching off


)
With the ignition on, press this
button again.
The indicator lamp in the button goes
off, accompanied by a message to con-
fi rm that the child lock is off.
This indicator lamp remains off while
the child lock is switched off.

Any other status of the indica-
tor lamp indicates a fault with
the electric child lock.
Have it checked by a PEUGEOT
dealer or a qualifi ed workshop.

198
PRACTICAL INFORMATION


Disconnecting the cables


)
Raise the locking tab fully.


Reconnecting the cables


)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 1
to posi-
tion it correctly against the battery.

)
Lock the clip by spreading the position-
ing lug and then lowering the tab 2
.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries
without disconnecting the ter-
minals fi rst.
Do not push the vehicle to start the
engine if it is fi tted with a 6-speed
electronic gear control gearbox or an
automatic gearbox.

The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with regu-
lations and must not, in any circum-
stances, be discarded with household
waste.
Take used remote control batteries
and vehicle batteries to a special col-
lection point.

Charging the battery using a
battery charger


)
Disconnect the battery from the ve-
hicle.

)
Follow the instructions for use pro-
vided by the manufacturer of the
charger.

)
Reconnect starting with the negative
terminal (-).

)
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.


It is advisable to disconnect
the battery if the vehicle is to
be left unused for more than
one month.
Before disconnecting the battery
Wait 2 minutes after switching off the igni-
tion before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.

Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation
of the electronic systems. However, if
problems remain following this opera-
tion, contact a PEUGEOT dealer or a
qualifi ed workshop.
Referring to the corresponding section,
you must yourself reinitialise:


- the remote control key,

- the panoramic sunroof blind,

- the satellite navigation system.

Do not force the tab as locking will not
be possible if the clip is not positioned
correctly; start the procedure again.

A
CB
D
315
ALPHABETICAL INDEX
Accessories ................................204
Accessory socket,
12 V ........................ 100, 102, 109
Adjusting headlamps ..............92, 93
Adjusting head restraints ..............67
Adjusting seat
belt height ........................130, 131
Adjusting the steering
wheel .........................................73
Airbags .........................................36
Airbags, curtain...................135, 136
Airbags, front ......................133, 136
Airbags, lateral....................135, 136
Air conditioning .............................25
Air conditioning, digital............59, 62
Air conditioning,
manual .................................59, 60
Air fi lter .......................................172
Air fl ow ..........................................25
Air vents........................................58
Alarm ............................................79
Anti-pinch..............................81, 106
Anti-theft .......................................76
Armrest .......................................100
Armrest, front ..............................102
Armrest, rear ...............................105
Assistance call ............................214
Audible warning ..........................124
Audio/video sockets....................244
Audio streaming (Bluetooth) .......305
Automatic illumination
of headlamps .......................89, 92
Automatic operation of hazard
warning lamps .........................124
Automatic rain sensitive
windscreen wipers ...............94, 96
Auxiliary
socket ............. 244, 280, 300, 302Capacity, fuel tank ........................87
CD MP3 ..............................279, 299
Central locking ........................75, 84
Changing a bulb ........ 185, 188, 189
Changing a fuse .........................190
Changing a wheel ...............180, 182
Changing a wiper blade ........96, 200
Changing the date ..... 250, 284, 307
Changing the remote
control battery ............................77
Changing the time ..... 250, 284, 307
Checking levels ..................171, 172
Checking the engine oil level ........40
Checking tyre pressures
(using the kit) ...........................174
Checks............... 169, 170, 172, 173
Child lock ....................................123
Children ...................... 118, 121, 122Child seats ................................. 113
Child seats,
conventional .................... 116, 118
Closing the boot................75, 85, 86
Closing the doors....................75, 83
Cold climate screen ....................203
Colour screen,
retractable ......................49, 51, 53
Connectors,
audio ....... 101, 102, 280, 300, 302
Control for panoramic
sunroof blind ............................106
Coolant level .........................37, 171
Coolant temperature indicator ......37
Courtesy lamps.............................97
Courtesy mirror ...........................101
Cruise control .............................151
Cup holder ..................................100 Battery ................................172, 197
Battery, charging .........................197
Battery, remote control ...........77, 78
Blind for panoramic sunroof........106
Bluetooth (hands-
free) ......... 245-247, 281, 282, 303
Bluetooth
(telephone) ...... 245-247, 281, 282
Bonnet ........................................167
Bonnet stay.................................167
Boot fl oor, adjustable .................. 111
Boot lamp ............................. 99, 112
Boot lid..........................................86
Brake discs .................................173
Brake lamps................................188
Brake pads .................................173
Brakes ........................................173
Date (setting) ..... 250, 284, 306, 307
Daytime
running lamps ........... 91, 185, 187
Deactivating the passenger
airbag .......................................133
Deadlocking ..................................75
Defrosting ...............................60, 61
Demisting......................................60
Dials and gauges ..........................27
Diesel additive level ....................172
Dimensions .................................210
Dipped beam ............... 89, 185, 186
Dipstick .................................40, 171
Directional lighting ........................93
Direction indicators .... 124, 185, 188
Distance alert..............................147
Doors ............................................83
Doors emergency control .............85
Door trays ...................................100
Dynamic emergency braking ......140

NP
K
L
M
O
R
317
ALPHABETICAL INDEX
Navigation...........................228, 267
Number plate lamps ...................189Paint colour code ........................ 211
Panoramic glass sunroof ............106
Parking brake .............................173
Parking brake, electric ........137, 140
Parking sensors, rear .................164
Particle emission fi lter.........172, 173
Passenger compartment fi lter.....172
PEUGEOT call button .................215
PEUGEOT CONNECT
ASSISTANCE ..........................214
Peugeot Connect Media Navigation
(NG4 3D) ............... 28, 51, 53, 55,
217, 220, 223, 224, 226, 251
Peugeot Connect Navigation
(RNEG) ............... 49, 53, 264, 285
PEUGEOT CONNECT
SOS .................................214, 215
Peugeot Connect Sound
(RD5) ................ 46, 293, 308, 310
PEUGEOT services ....................215
PIN code .....................................248
Player, CD MP3 ..................279, 299
POIs (updating) ..........................235
Port, USB................... 102, 300, 302
Priming the fuel system ..............168
Protecting
children ..... 113, 118, 120-122, 133
Puncture .....................................174 Keeping children
safe .................. 113, 121, 122, 133
Key with remote control .... 74-76, 78Mat..............................................103
Menu, main .................................296
Mini fuel level ................................87
Mirror, rear view ............................72
Mirrors, door .................................71
Misfuel prevention ........................88
Motorway function (direction
indicators) ................................124
Mountings for ISOFIX seats .......120
MP3 CD ..............................279, 299
Multimedia, rear ..........................104
Music media players ...........240, 278
Labels, identifi cation ................... 211
Lamps, warning
and indicator ..................29, 32, 33
Level, brake fl uid ........................171
Level, headlamp wash ..........95, 171
Level, power steering fl uid ..........171
Levels and checks .............. 169-172
Lighting .........................................99
Lighting, guide-me home ........91, 92
Lighting, interior ......................97, 98
Lighting bulbs
(replacement) ......... 185, 188, 189
Lighting control stalk .....................89
Lighting dimmer ............................41
Loading .................................25, 203
Load reduction mode ..................199
Load space cover .......................108
Locating your vehicle ....................75
Locking from the inside.................84
Long objects, transporting ....68, 105
Luggage retaining net .................109
Luggage retaining strap ..............107
Main beam .................... 89, 185-187
Maintenance .................................25
Map reading lamps .......................97
Markings, identifi cation ............... 211Oil fi lter .......................................172
Oil level .................................40, 171
Opening the bonnet ....................167
Opening the boot ....................74, 85
Opening the doors ..................74, 83
Opening the panoramic
sunroof blind ............................106
Opening the retractable
screen ........................................53
Opening the tailgate ...............85, 86
Operation
indicator lamps ....... 29, 31, 32, 34Radio ......................... 239, 277, 297
RCA sockets ...............................244
Reading lamps, rear .....................97
Rear foglamp ......................188, 189
Rear screen (demisting) ...............61
Recharging the battery ...............197

T
U
318
ALPHABETICAL INDEX
Table of weights ......... 206, 208, 209
Tables of engines................205, 207
Tables of fuses............................190
Tank, fuel ......................................88
Technical data..................... 205-209
Telephone .... 215, 245-247, 281, 282
Telephone, hands-free ........ 245-247
Temperature, coolant ....................37
Temperature control
for heated seats .........................67
Temporary tyre repair kit .............174
Third brake lamp.........................189
TMC (Traffi c info) ................237, 275
Tools ...................................180, 182
Torch ..................................... 99, 112
Total distance recorder .................41
Towbar ........................................202
Towed loads............... 206, 208, 209
Towing another vehicle ...............200
Traction control (ASR) ........127, 128
Traffi c information
(TA) ................. 238, 276, 277, 298
Traffi c information
(TMC) ............. 237, 238, 275, 276
Trip computer ...................54, 55, 57
Trip distance recorder ...................41
Tyre pressures ............................ 211
Tyres .............................................25
Tyre under-infl ation detection .....125 Screen, multifunction
(without audio equipment) .........42
Screen-wash reservoir................171
Screen menu
map ................. 251, 285, 308, 310
Screenwash, front.........................95
Screenwash fl uid level ..........95, 171
Seat adjustment......................65, 66
Seat belts............................ 130-132
Seats, electric ...............................66
Seats, rear ....................................69
Serial number, vehicle ................ 211
Service indicator ...........................38
Servicing .......................................25
Setting
the clock ......... 250, 284, 306, 307
Short-cut menus .........................265
Sidelamps ..................... 89, 185-188
Side repeater ..............................187
SIM card .............................101, 248
Ski fl ap ........................................105
Spare wheel........................180, 182
Spectacles storage .....................100
Speed limiter...............................149
Speedometer ................................27
Spotlamps, side ............................98
Stability control (ESP).................127
Starting the vehicle ...... 76, 154, 158
Steering mounted
controls, audio .................222, 295
Stopping the vehicle .... 76, 154, 158
Stop & Start .............. 57, 61, 63, 87,
161, 167, 172, 197
Storage .............. 100, 102, 105, 107
Storage box ................................101
Storage wells ..............................107
Stowing rings ..............................107
Sun visor.....................................101
Synchronising the remote
control ........................................77
System, ASR ..............................128
System, navigation .............228, 267
Systems, ASR and ESP .............127 Reduction of electrical load ........199
Reinitialising the electric
windows .....................................81
Reinitialising the remote
control ........................................77
Remote control .................74, 75, 78
Removable screen
(snow shield) ...........................203
Removing a wheel ......................183
Removing the mat ......................103
Repair kit, puncture ....................174
Replacing bulbs ......... 185, 188, 189
Replacing fuses ..........................190
Replacing the air fi lter .................172
Replacing the oil fi lter .................172
Replacing the particle
emission fi lter ...........................173
Replacing the passenger
compartment fi lter ....................172
Replacing wiper blades ........96, 200
Resetting the service indicator .....39
Resetting the trip recorder ............41
Rev counter ..................................27
Reversing lamp...........................188
Risk areas (update) ............235, 274
Roof bars ....................................203
Routine checks ...................172, 173
Running out of fuel
(Diesel) ....................................168
Under-infl ation (detection) ..........125
Under fl oor storage ..................... 110
Unlocking ......................................74
Unlocking from the inside .............84
Update risk areas ...............235, 274
S
Safety for children......... 81, 118, 123
Screen, colour 16/9 ...........223, 224,
226, 251, 264, 285
Screen,
monochrome ........... 296, 308, 310
Screen, monochrome C................55
Screen, multifunction (with audio
equipment) ........ 44, 46, 49, 51, 53

320
VISUAL SEARCH
EXTERIOR


Exterior elcome lighting ................ 91
Door mirror spotlamps .................. 98
Directional lighting ............. 89-91, 93

Headlamp height adjustment ...... 92, 93
Changing
front bulbs ......................... 185-187
Wiper ....................................... 94-96
Changing a wiper blade ........ 96, 200

Boot, tailgate............................ 85-86


- opening/closing

- emergency release
Temporary puncture
repair kit ............................ 174-179
Changing a wheel ................ 180-184


- tools

- removing

Remote control key.................. 74-78


- opening/closing

- anti-theft protection

- starting

- battery


Parking sensors ................... 164-165
Towbar ........................................ 202
Towing ................................. 200-201

Changing bulbs.................... 188-189


- rear lamps

- 3rd brake lamp

- number plate lamps

- foglamps

Accessories ................................ 204
Roof bars .................................... 203
Panoramic sunroof ..................... 106

Fuel tank .................................. 87-88
Misfuel prevention ........................ 88
Door mirrors .................................. 71

Doors ....................................... 83-85


- opening/closing

- central locking

- emergency control
Alarm ....................................... 79-80
Electric windows ...................... 81-82

ESC, ABS,
EBA, ASR, CDS ................ 126-127
Grip control .......................... 128-129
Tyre under-infl ation detection ..... 125
Tyre pressures ............................ 211
Very cold climate screen............. 203

- front lamps

- foglamps

- direction indicator repeaters
