5
FAMILIARISATION
EXTERIOR
Temporary puncture repair kit
This kit is a complete system, consisting
of a compressor and an integral sealant
cartridge, for the temporary repair of a
tyre.
174
Visual and audible front and/or rear
parking sensors
This system warns you if an obstacle is
detected behind or in front of the vehicle
in reverse or forward gear.
164
When using an automatic car wash:
- unscrew the aerial,
- fold back the mirrors.
Lower tailgate
This lower tailgate permits remarkable
accessibility and makes the loading of
bulky objects easier.
86
Page 9 of 328
7
FAMILIARISATION
OPENING
Boot
Opening
)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and lift the tailgate.
Closing
)
After closing the lower tailgate, pull
the handle B
downwards to guide
the tailgate.
Lower tailgate
85
Opening
)
Push the handle C
to the right and
tilt the tailgate D
.
Closing
)
Raise the tailgate D
, push it fully to
close it, check that it is locked cor-
rectly.
86
Page 20 of 328
18
FAMILIARISATION
ARRANGE YOUR BOOT
3 position adjustable boot
Low position (150 kg max).
111
)
To release the fl oor, push
slightly forwards then
raise.
)
Use the stops A
, placed on each
side of the boot to change the
height of the fl oor more easily. Intermediate position (100 kg max). High position (50 kg max) with the lower
tailgate closed to isolate the lower part
of the boot.
From the high position, place the fl oor
in this position (at an angle), two stops
support it to allow access underneath it
or to the spare wheel.
Page 21 of 328
19
FAMILIARISATION
ARRANGE YOUR BOOT
Rear seats
)
Place the adjustable fl oor in the in-
termediate position
.
)
Check that nothing is preventing
the seat backs from folding (front
seats suffi ciently advanced, head
restraints, seat belts, ...).
)
Check also that no object on or under
the seat could hinder its movement. 69
)
Pull the control of the 1/3 section,
from the boot.
)
Pull the control of the 2/3 section,
from the boot.
The seats are aligned with the adjust-
able fl oor and the lower tailgate.
Page 38 of 328
36
INSTRUMENTS and CONTROLS
Warning lamp
is on
Cause
Action/Observations
Battery
charge
fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when
the engine is started.
If it does not go off, contact a PEUGEOT
dealer or a qualifi ed workshop.
Door(s)
open
fi xed if the speed is
below 6 mph (10 km/h).
A door, the boot, the lower
tailgate or the bonnet (with
alarm only) is still open. Close the door or boot.
fi xed and accompanied
by an audible signal if
the speed is above
6 mph (10 km/h).
Seat belt not
fastened/
unfastened
fi xed then fl ashing
accompanied by an
increasing audible
signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt. Pull the strap then insert the tongue in
the buckle.
Airbags
on temporarily. This lamp comes on for a few
seconds when you turn on
the ignition, then goes off. This lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT
dealer or a qualifi ed workshop.
fi xed. One of the airbag or seat belt
pretensioner systems has a
fault. Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Water in
Diesel
fi xed. The Diesel fuel fi lter contains
water. Risk of damage to the injection system
on Diesel engines.
Contact a PEUGEOT dealer or a
qualifi ed workshop without delay.
Page 87 of 328
85
ACCESS

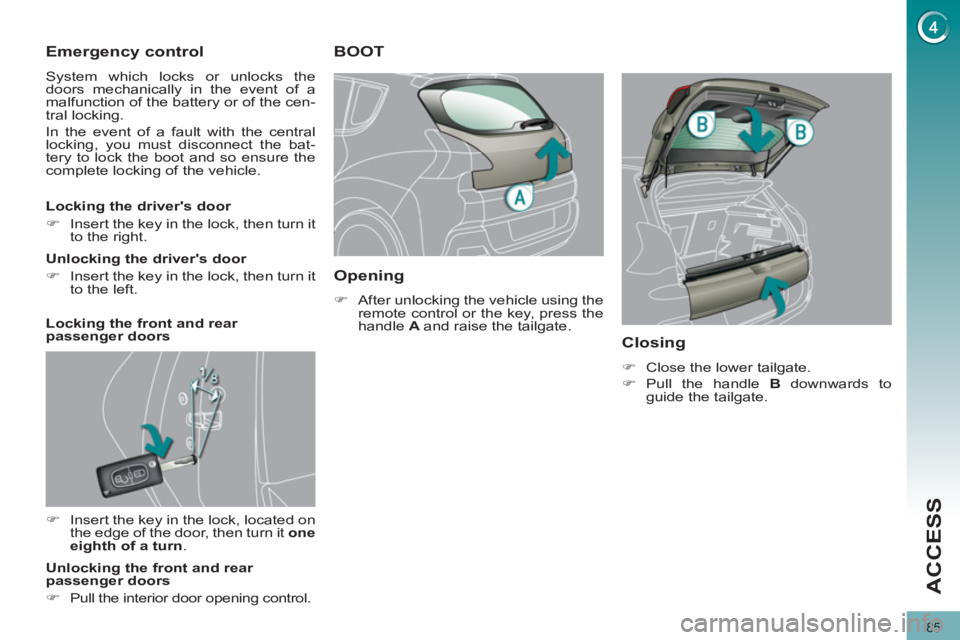

Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
In the event of a fault with the central
locking, you must disconnect the bat-
tery to lock the boot and so ensure the
complete locking of the vehicle.
)
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn
.
Locking the driver's door
)
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
)
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
)
Pull the interior door opening control.
Opening
)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and raise the tailgate.
BOOT
Closing
)
Close the lower tailgate.
)
Pull the handle B
downwards to
guide the tailgate.
Page 88 of 328
86
ACCESS
LOWER TAILGATE
Opening
)
Push the handle C
to the right and
tilt the tailgate D
gently.
Closing
)
Raise the tailgate D
, push it fully to
close it, check that it is secured cor-
rectly.
Before opening the boot, en-
sure that no one is within the
radius of opening.
For reasons of safety, correct opera-
tion and compliance with regulations,
do not drive with the boot and the
lower tailgate open.
If the battery is disconnected, the
boot cannot be opened.
Do not climb onto the lower tailgate
and do not subject it to heavy knocks,
it may be damaged.
Always close the lower tailgate and
check that it is secured correctly be-
fore closing the boot.
When closing the lower tailgate, en-
sure that no person or object is in the
proximity of the moving parts to avoid
any risk of injury or damage.
Do not open the lower tailgate
when a towbar is fi tted.
Maximum authorised weight
on the lower tailgate when
open: 200 kg
.
