2011 PEUGEOT 308 tailgate

111
FITTINGS

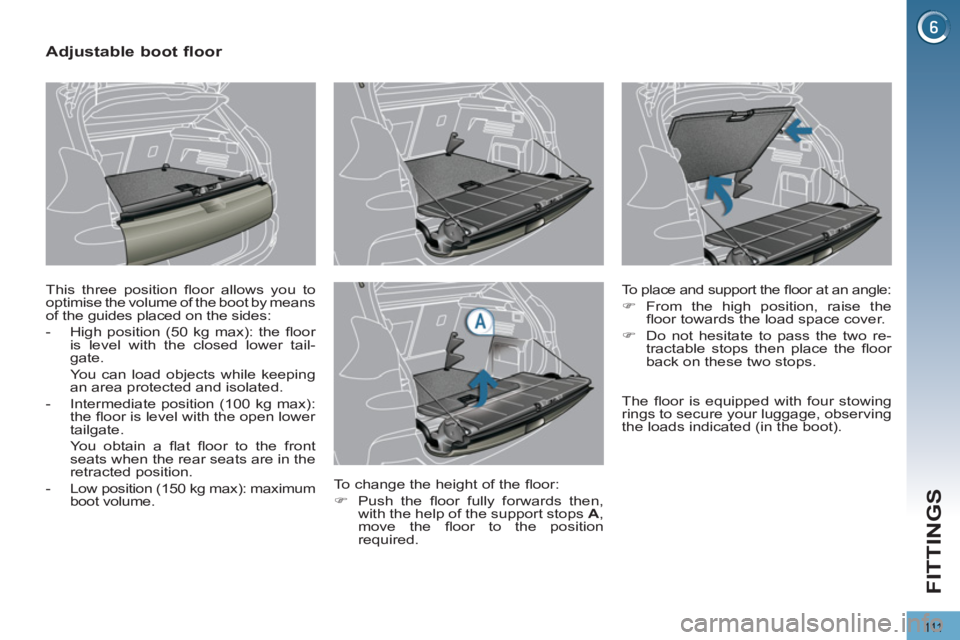

Adjustable boot floor

This three position fl oor allows you to
optimise the volume of the boot by means
of the guides placed on the sides:


- High position (50 kg max): the fl oor
is level with the closed lower tail-
gate.
You can load objects while keeping
an area protected and isolated.

- Intermediate position (100 kg max):
the fl oor is level with the open lower
tailgate.
You obtain a fl at fl oor to the front
seats when the rear seats are in the
retracted position.

- Low position (150 kg max): maximum
boot volume.

To place and support the fl oor at an angle:



)
From the high position, raise the
fl oor towards the load space cover.

)
Do not hesitate to pass the two re-
tractable stops then place the fl oor
back on these two stops.


To change the height of the fl oor:


)
Push the fl oor fully forwards then,
with the help of the support stops A
,
move the fl oor to the position
required.
The fl oor is equipped with four stowing
rings to secure your luggage, observing
the loads indicated (in the boot).

NP
K
L
M
O
R
317
ALPHABETICAL INDEX
Navigation...........................228, 267
Number plate lamps ...................189Paint colour code ........................ 211
Panoramic glass sunroof ............106
Parking brake .............................173
Parking brake, electric ........137, 140
Parking sensors, rear .................164
Particle emission fi lter.........172, 173
Passenger compartment fi lter.....172
PEUGEOT call button .................215
PEUGEOT CONNECT
ASSISTANCE ..........................214
Peugeot Connect Media Navigation
(NG4 3D) ............... 28, 51, 53, 55,
217, 220, 223, 224, 226, 251
Peugeot Connect Navigation
(RNEG) ............... 49, 53, 264, 285
PEUGEOT CONNECT
SOS .................................214, 215
Peugeot Connect Sound
(RD5) ................ 46, 293, 308, 310
PEUGEOT services ....................215
PIN code .....................................248
Player, CD MP3 ..................279, 299
POIs (updating) ..........................235
Port, USB................... 102, 300, 302
Priming the fuel system ..............168
Protecting
children ..... 113, 118, 120-122, 133
Puncture .....................................174 Keeping children
safe .................. 113, 121, 122, 133
Key with remote control .... 74-76, 78Mat..............................................103
Menu, main .................................296
Mini fuel level ................................87
Mirror, rear view ............................72
Mirrors, door .................................71
Misfuel prevention ........................88
Motorway function (direction
indicators) ................................124
Mountings for ISOFIX seats .......120
MP3 CD ..............................279, 299
Multimedia, rear ..........................104
Music media players ...........240, 278
Labels, identifi cation ................... 211
Lamps, warning
and indicator ..................29, 32, 33
Level, brake fl uid ........................171
Level, headlamp wash ..........95, 171
Level, power steering fl uid ..........171
Levels and checks .............. 169-172
Lighting .........................................99
Lighting, guide-me home ........91, 92
Lighting, interior ......................97, 98
Lighting bulbs
(replacement) ......... 185, 188, 189
Lighting control stalk .....................89
Lighting dimmer ............................41
Loading .................................25, 203
Load reduction mode ..................199
Load space cover .......................108
Locating your vehicle ....................75
Locking from the inside.................84
Long objects, transporting ....68, 105
Luggage retaining net .................109
Luggage retaining strap ..............107
Main beam .................... 89, 185-187
Maintenance .................................25
Map reading lamps .......................97
Markings, identifi cation ............... 211Oil fi lter .......................................172
Oil level .................................40, 171
Opening the bonnet ....................167
Opening the boot ....................74, 85
Opening the doors ..................74, 83
Opening the panoramic
sunroof blind ............................106
Opening the retractable
screen ........................................53
Opening the tailgate ...............85, 86
Operation
indicator lamps ....... 29, 31, 32, 34Radio ......................... 239, 277, 297
RCA sockets ...............................244
Reading lamps, rear .....................97
Rear foglamp ......................188, 189
Rear screen (demisting) ...............61
Recharging the battery ...............197

320
VISUAL SEARCH
EXTERIOR


Exterior elcome lighting ................ 91
Door mirror spotlamps .................. 98
Directional lighting ............. 89-91, 93

Headlamp height adjustment ...... 92, 93
Changing
front bulbs ......................... 185-187
Wiper ....................................... 94-96
Changing a wiper blade ........ 96, 200

Boot, tailgate............................ 85-86


- opening/closing

- emergency release
Temporary puncture
repair kit ............................ 174-179
Changing a wheel ................ 180-184


- tools

- removing

Remote control key.................. 74-78


- opening/closing

- anti-theft protection

- starting

- battery


Parking sensors ................... 164-165
Towbar ........................................ 202
Towing ................................. 200-201

Changing bulbs.................... 188-189


- rear lamps

- 3rd brake lamp

- number plate lamps

- foglamps

Accessories ................................ 204
Roof bars .................................... 203
Panoramic sunroof ..................... 106

Fuel tank .................................. 87-88
Misfuel prevention ........................ 88
Door mirrors .................................. 71

Doors ....................................... 83-85


- opening/closing

- central locking

- emergency control
Alarm ....................................... 79-80
Electric windows ...................... 81-82

ESC, ABS,
EBA, ASR, CDS ................ 126-127
Grip control .......................... 128-129
Tyre under-infl ation detection ..... 125
Tyre pressures ............................ 211
Very cold climate screen............. 203

- front lamps

- foglamps

- direction indicator repeaters
