2011 Peugeot 308 CC stop start

4
i
!
83
ACCESS

The key cannot be removed from
the lock until the cap is put back on
the tank.
Opening the cap may trigger an in-
rush of air. This vacuum, which is
completely normal, is caused by
the sealing of the fuel system.

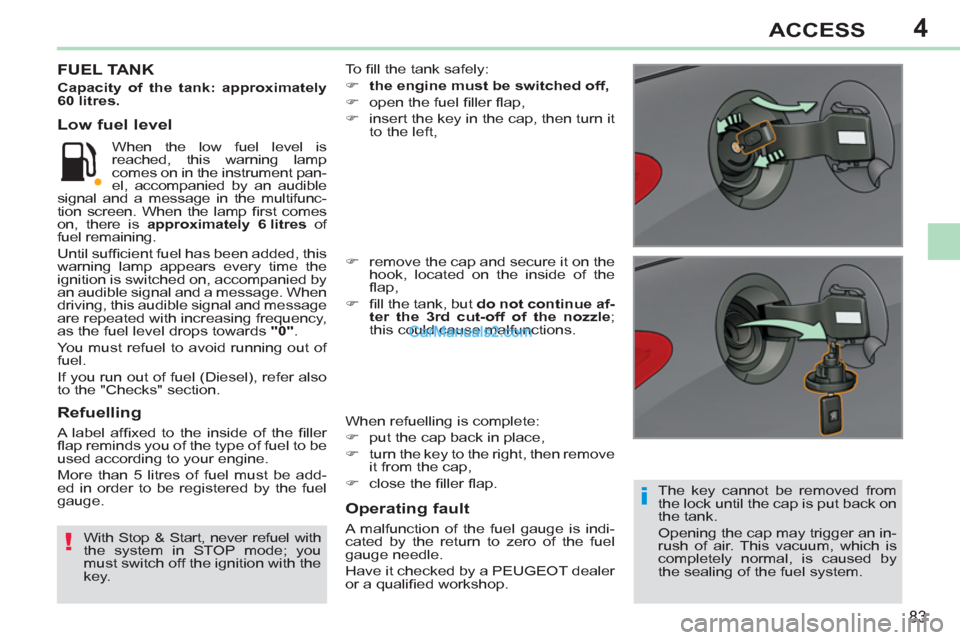

FUEL TANK


Capacity of the tank: approximately
60 litres.
To fi ll the tank safely:


)
the engine must be switched off,


)
open the fuel fi ller fl ap,

)
insert the key in the cap, then turn it
to the left,
When refuelling is complete:


)
put the cap back in place,

)
turn the key to the right, then remove
it from the cap,

)
close the fi ller fl ap.

)
remove the cap and secure it on the
hook, located on the inside of the
fl ap,

)
fi ll the tank, but do not continue af-
ter the 3rd cut-off of the nozzle
;
this could cause malfunctions.


Low fuel level

Refuelling

A label affi xed to the inside of the fi ller
fl ap reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge. When the low fuel level is
reached, this warning lamp
comes on in the instrument pan-
el, accompanied by an audible
signal and a message in the multifunc-
tion screen. When the lamp fi rst comes
on, there is approximately
6 litres
of
fuel remaining.
Until suffi cient fuel has been added, this
warning lamp appears every time the
ignition is switched on, accompanied by
an audible signal and a message. When
driving, this audible signal and message
are repeated with increasing frequency,
as the fuel level drops towards "0"
.
You must refuel to avoid running out of
fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.


Operating fault

A malfunction of the fuel gauge is indi-
cated by the return to zero of the fuel
gauge needle.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.





With Stop & Start, never refuel with
the system in STOP mode; you
must switch off the ignition with the
key.

8
!
i
!
122
DRIVING
When parking on a slope, direct
your wheels against the pavement,
apply the parking brake and en-
gage a gear.






PARKING BRAKE


Applying


)
Pull the parking brake lever fully up
to immobilise your vehicle.

When the vehicle is being driven,
if this warning lamp and the STOP
warning lamp come on, accom-
panied by an audible signal and a
message on the multifunction screen, this
indicates that the parking brake is still on or
has not been properly released.
Releasing


)
Pull the parking brake lever gently,
press the release button then lower
the lever fully.









6-SPEED MANUAL GEARBOX

As a safety precaution and to facili-
tate starting of the engine:


- always select neutral,

- press the clutch pedal.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.

Engaging reverse gear



)
Raise the ring under the knob and
move the gear lever to the left then
forwards.


Engaging 5 th or 6 th gear



)
Move the lever fully to the right to
engage 5 th or 6 th gear.

8
!
i
i
128
DRIVING








STOP & START

The Stop & Start system puts the en-
gine temporarily into standby - STOP
mode - during stops in the traffi c (red
lights, traffi c jams, etc...). The engine
restarts automatically - START mode -
as soon as you want to move off. The
restart takes place instantly, quickly and
silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions as well as offering
the comfort of silence when stationary.

Operation


Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and
the engine goes into standby:


- with a manual gearbox
, at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral, and
you release the clutch pedal.
A time counter calculates
the sum of the periods in
STOP mode during a jour-
ney. It rests itself to zero
every time the ignition is
switched on with the key. For your comfort when parking,
STOP mode is not available for a
few seconds after coming out of re-
verse gear.
STOP mode does not affect the
functionality of the vehicle, such
as braking, power steering, for ex-
ample.
Never refuel with the engine in
STOP mode; you must switch off
the ignition with the key.
Special cases: STOP mode
unavailable
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fas-
tened,

- the vehicle has not exceeded 6 mph
(10 km/h) since the last engine start
using the key,

- the engine is needed to maintain a
comfortable temperature in the pas-
senger compartment,

- demisting is active,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
The "ECO"
warning lamp fl ash-
es for a few seconds, then goes
off.

This operation is perfectly normal.



In STOP mode of Stop & Start, the
"AIRWAVE" system stops working.

8
i
i
!
129
DRIVING

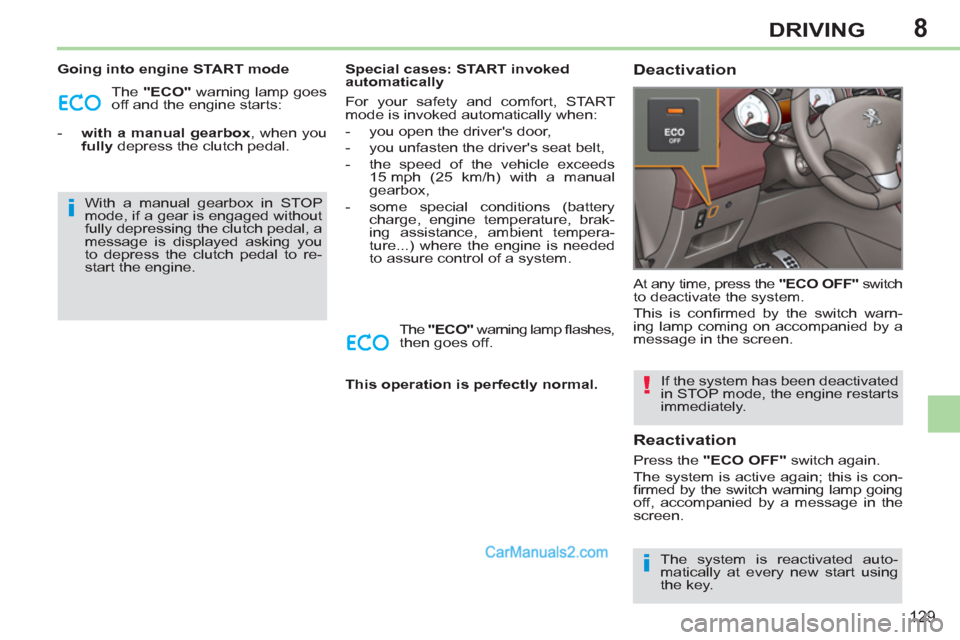

Going into engine START mode
The "ECO"
warning lamp goes
off and the engine starts:


- with a manual gearbox
, when you
fully
depress the clutch pedal.
Special cases: START invoked
automatically
For your safety and comfort, START
mode is invoked automatically when:


- you open the driver's door,

- you unfasten the driver's seat belt,

- the speed of the vehicle exceeds
15 mph (25 km/h) with a manual
gearbox,

- some special conditions (battery
charge, engine temperature, brak-
ing assistance, ambient tempera-
ture...) where the engine is needed
to assure control of a system.
The "ECO"
warning lamp fl ashes,
then goes off.

This operation is perfectly normal.




Deactivation

If the system has been deactivated
in STOP mode, the engine restarts
immediately. At any time, press the "ECO OFF"
switch
to deactivate the system.
This is confi rmed by the switch warn-
ing lamp coming on accompanied by a
message in the screen.

Reactivation

Press the "ECO OFF"
switch again.
The system is active again; this is con-
fi rmed by the switch warning lamp going
off, accompanied by a message in the
screen.
The system is reactivated auto-
matically at every new start using
the key. With a manual gearbox in STOP
mode, if a gear is engaged without
fully depressing the clutch pedal, a
message is displayed asking you
to depress the clutch pedal to re-
start the engine.

8
!
!
130
DRIVING

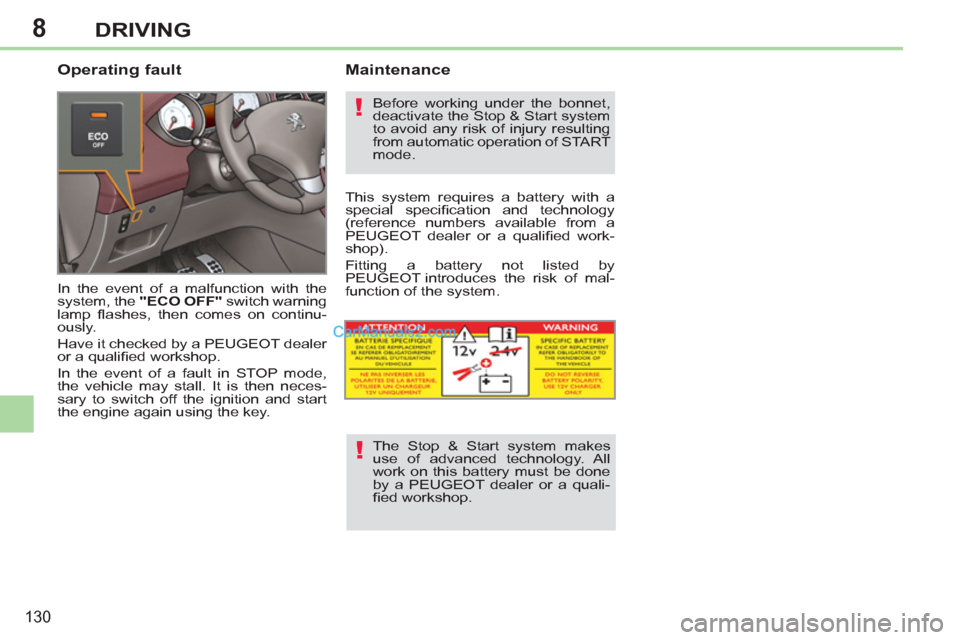

Operating fault

In the event of a malfunction with the
system, the "ECO OFF"
switch warning
lamp fl ashes, then comes on continu-
ously.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
In the event of a fault in STOP mode,
the vehicle may stall. It is then neces-
sary to switch off the ignition and start
the engine again using the key.


Maintenance

Before working under the bonnet,
deactivate the Stop & Start system
to avoid any risk of injury resulting
from automatic operation of START
mode.
This system requires a battery with a
special specifi cation and technology
(reference numbers available from a
PEUGEOT dealer or a qualifi ed work-
shop).
Fitting a battery not listed by
PEUGEOT introduces the risk of mal-
function of the system.
The Stop & Start system makes
use of advanced technology. All
work on this battery must be done
by a PEUGEOT dealer or a quali-
fi ed workshop.

9
i
!
!
138
CHECKS

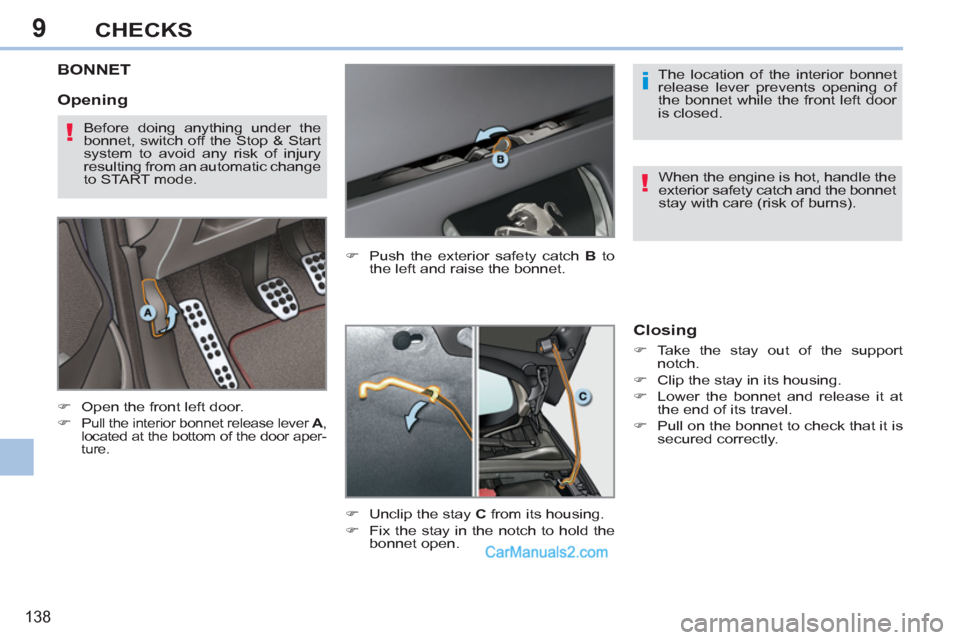

BONNET



)
Open the front left door.

)

Pull the interior bonnet release lever A
,
located at the bottom of the door aper-
ture.

)
Push the exterior safety catch B
to
the left and raise the bonnet.

Closing



)
Take the stay out of the support
notch.

)
Clip the stay in its housing.

)
Lower the bonnet and release it at
the end of its travel.

)
Pull on the bonnet to check that it is
secured correctly.



Opening

The location of the interior bonnet
release lever prevents opening of
the bonnet while the front left door
is closed.
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns).





Before doing anything under the
bonnet, switch off the Stop & Start
system to avoid any risk of injury
resulting from an automatic change
to START mode.

)
Unclip the stay C
from its housing.

)
Fix the stay in the notch to hold the
bonnet open.

9
i
144
CHECKS





























CHECKS

Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
PEUGEOT dealer or a qualifi ed workshop.


Battery

The battery does not require any
maintenance.

However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, re-
fer to the "Practical information" section for
details of the precautions to be taken before
disconnecting the battery and following its
reconnection.


Air filter and passenger compartment filter

Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environ-
ment (e.g. dusty atmosphere) and the
use of the vehicle (e.g. city driving), re-
place them twice as often if necessary

(refer to the "Engines" section).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours.


Oil filter

Replace the oil fi lter each time
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
val for this component.





The presence of this label, in particular
with the Stop & Start system, indicates
the use of a specifi c 12 V lead-acid bat-
tery with special technology and speci-
fi cation, for which the involvement of a
PEUGEOT dealer or a qualifi ed work-
shop is required when replacing or dis-
connecting the battery.
Failure to observe this recommendation
may shorten the life of the battery.










Particle emission filter (Diesel)


On a new vehicle, the fi rst particle
fi lter regeneration operations may
be accompanied by a "burning"
smell, which is perfectly normal.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, in exceptional cir-
cumstances, notice the emission
of water vapour at the exhaust on
acceleration. This does not affect
the behaviour of the vehicle or the
environment.
The start of saturation of the
particle emissions fi lter is in-
dicated by the temporary illu-
mination of this warning lamp,
accompanied by an audible
signal and a message on the risk of
blockage of the particle emissions fi lter.
As soon as the traffi c conditions per-
mit, regenerate the fi lter by driving at a
speed of at least 40 mph (60 km/h) until
the warning lamp goes off.
If the warning lamp stays on, refer to the
"Additive level" section.

10
i
!
i
166
PRACTICAL INFORMATION

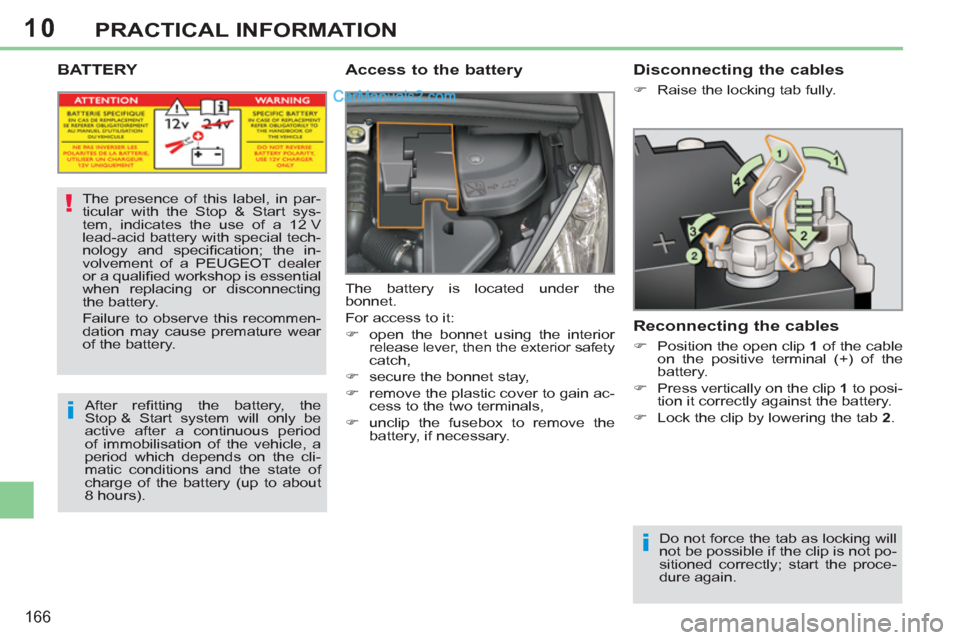

BATTERY

Access to the battery

The battery is located under the
bonnet.
For access to it:


)
open the bonnet using the interior
release lever, then the exterior safety catch,

)
secure the bonnet stay,

)
remove the plastic cover to gain ac-
cess to the two terminals,

)
unclip the fusebox to remove the
battery, if necessary.





Disconnecting the cables



)
Raise the locking tab fully.



Reconnecting the cables



)
Position the open clip 1
of the cable
on the positive terminal (+) of the
battery.

)
Press vertically on the clip 1
to posi-
tion it correctly against the battery.

)
Lock the clip by lowering the tab 2
.
Do not force the tab as locking will
not be possible if the clip is not po-
sitioned correctly; start the proce-
dure again.





The presence of this label, in par-
ticular with the Stop & Start sys-
tem, indicates the use of a 12 V
lead-acid battery with special tech-
nology and specifi cation; the in-
volvement of a PEUGEOT dealer
or a qualifi ed workshop is essential
when replacing or disconnecting
the battery.
Failure to observe this recommen-
dation may cause premature wear
of the battery.

After refi tting the battery, the
Stop & Start system will only be
active after a continuous period
of immobilisation of the vehicle, a
period which depends on the cli-
matic conditions and the state of
charge of the battery (up to about
8 hours).
