2011 Peugeot 308 CC buttons

263

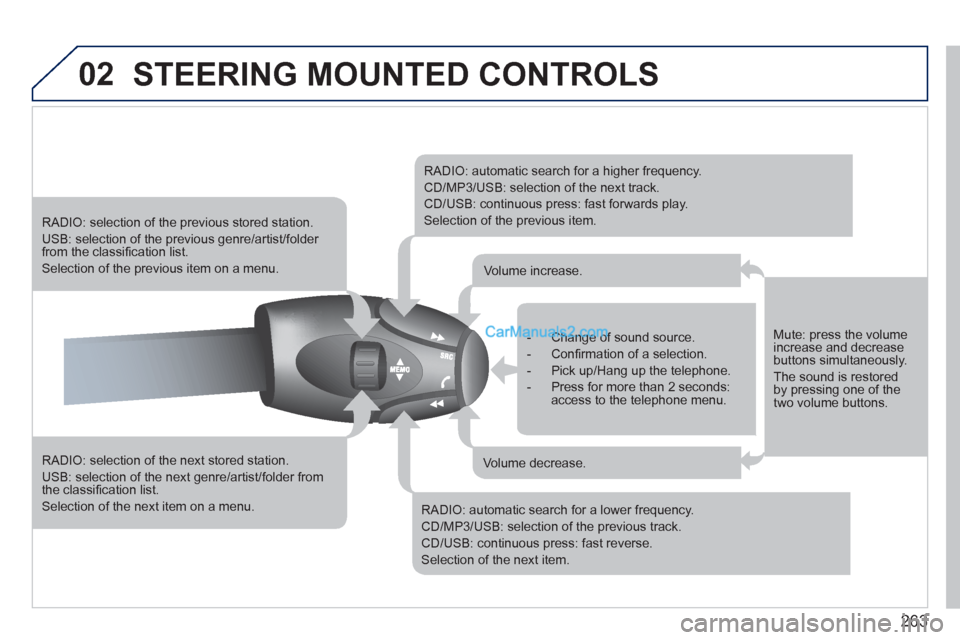

02 STEERING MOUNTED CONTROLS


RADIO: selection of the next stored station.
USB: selection of the next genre/artist/folder from
the classifi cation list.
Selection of the next item on a menu.








RADIO: selection of the previous stored station.
USB: selection of the previous genre/artist/folder
from the classifi cation list.
Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency.
CD/MP3/USB: selection of the next track.
CD/USB: continuous press: fast forwards play.
Selection of the previous item.

RADIO: automatic search for a lower frequency.
CD/MP3/USB: selection of the previous track.
CD/USB: continuous press: fast reverse.
Selection of the next item.



- Change of sound source.

- Confi rmation of a selection.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:
access to the telephone menu.

Volume increase.

Volume decrease.
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored
by pressing one of the
two volume buttons.

265
04
1
2
3
4
1
2
3
4

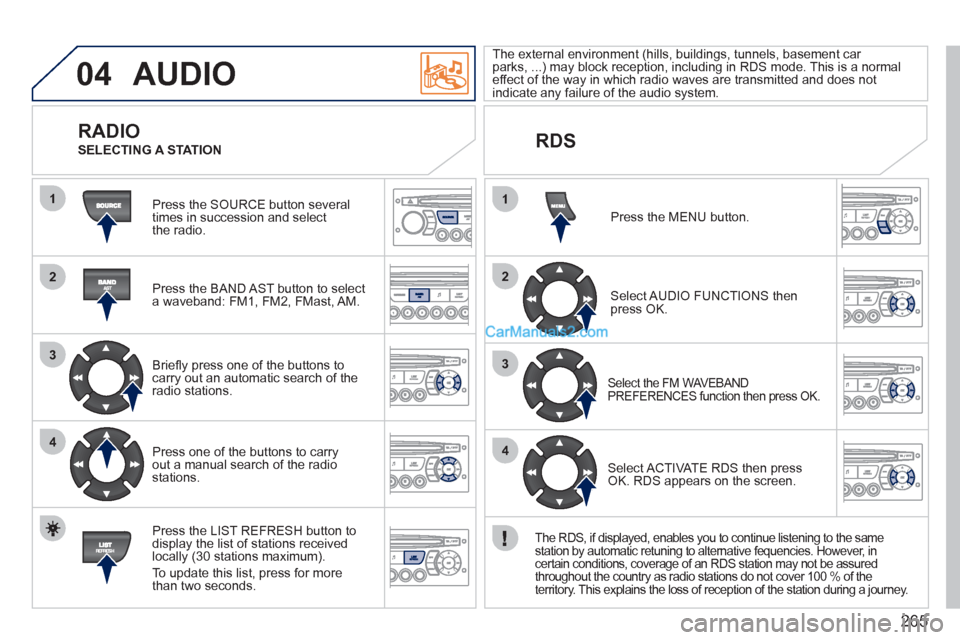

AUDIO

Press the SOURCE button several
times in succession and select
the radio.

Press the BAND AST button to select
a waveband: FM1, FM2, FMast, AM.

Briefl y press one of the buttons to
carry out an automatic search of the
radio stations.

Press one of the buttons to carry
out a manual search of the radio
stations.

Press the LIST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more
than two seconds.
The external environment (hills, buildings, tunnels, basement car
parks, ...) may block reception, including in RDS mode. This is a normal
effect of the way in which radio waves are transmitted and does not
indicate any failure of the audio system.

RDS





RADIO

SELECTING A STATION
Press the MENU button.
Select AUDIO FUNCTIONS then
press OK.
Select the FM WAVEBAND
PREFERENCES function then press OK.
Select ACTIVATE RDS then press
OK. RDS appears on the screen.
The RDS, if displayed, enables you to continue listening to the same
station by automatic retuning to alternative fequencies. However, in
certain conditions, coverage of an RDS station may not be assured
throughout the country as radio stations do not cover 100 % of the
territory. This explains the loss of reception of the station during a journey.

266
04
1
2
3
1
AUDIO


Insert circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using
a personal recorder, may cause faults which are no refl ection on
the quality of the original player.
Without pressing the EJECT button, insert a CD in the player, play
begins automatically.


CD
PLAYING A CD


To play a disc which has already been
inserted, press the SOURCE button
several times in succession and
select CD.

Press one of the buttons to select
a track on the CD.

Press the LIST REFRESH button to display the list of tracks on the CD.

Press and hold one of the buttons for
fast forward or backward.








RECEIVING TA MESSAGES


Press the TA button to activate or
deactivate traffi c messages.

The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of
a radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD, ...) is
interrupted automatically to play the TA message. Normal playback
of the audio source resumes at the end of the transmission of
the message.

267
04
1
2
3

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,
is an audio compression standard which permits the recording of
several tens of music fi les on a single disc.

In order to be able to play a recorded CDR or CDRW, when
recording, the ISO 9660 level 1.2 or Joliet fi le format is
recommended.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording format is always
used for an individual disc, with as low a speed as possible
(4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet format is
recommended.

The audio system will only play fi les with the extension ".mp3" with
a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le
(.wma, .mp4, .m3u...) can be played.

It is advisable to restrict fi le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displaying
problems.













MP3 CD


INFORMATION AND ADVICE

AUDIO


Empty CDs are not recognised and may damage the system.

Insert an MP3 compilation in the player.
The audio equipment searches for all of the music tracks, which
may take anything between a few seconds and several tens of
seconds, before play begins.










MP3 CD
PLAYING AN MP3 COMPILATION


On a single disc, the CD player can read up to 255 MP3 fi les spread
over 8 folder levels. However, it is advisable to keep to a limit of
two levels to reduce the access time before the CD is played.
While the CD is being played, the folder structure is not followed.
All of the fi les are displayed on a single level.

To play a disc which has already
been inserted, press the SOURCE
button several times in succession
and select CD.

Press one of the buttons to select a
track on the CD.

Press the LIST REFRESH button to display the list of directories of
the MP3 compilation.

Press and hold one of the buttons for
fast forward or backward play.

269
05
42
3
1
5

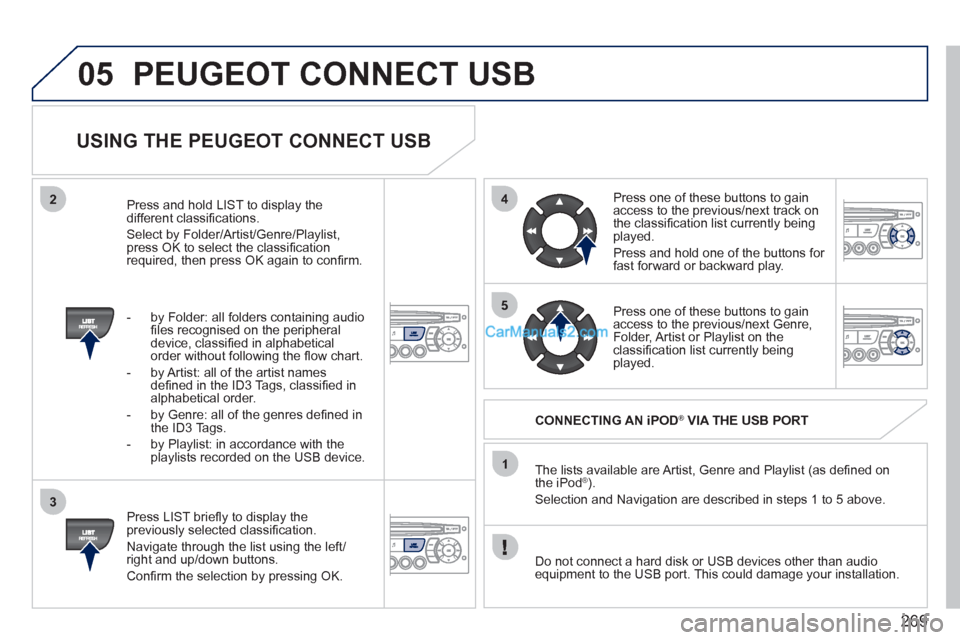

PEUGEOT CONNECT USB


USING THE PEUGEOT CONNECT USB


Press LIST briefl y to display the
previously selected classifi cation.
Navigate through the list using the left/
right and up/down buttons.
Confi rm the selection by pressing OK. The lists available are Artist, Genre and Playlist (as defi ned on
the iPod
® ).
Selection and Navigation are described in steps 1 to 5 above.

Do not connect a hard disk or USB devices other than audio
equipment to the USB port. This could damage your installation.

CONNECTING AN iPOD
®
VIA THE USB PORT
Press one of these buttons to gain
access to the previous/next track on
the classifi cation list currently being
played.
Press and hold one of the buttons for
fast forward or backward play.

Press one of these buttons to gain
access to the previous/next Genre,
Folder, Artist or Playlist on the
classifi cation list currently being
played.
Press and hold LIST to display the
different classifi cations.
Select by Folder/Artist/Genre/Playlist,
press OK to select the classifi cation
required, then press OK again to confi rm.


- by Folder: all folders containing audio
fi les recognised on the peripheral
device, classifi ed in alphabetical
order without following the fl ow chart.

- by Artist: all of the artist names
defi ned in the ID3 Tags, classifi ed in
alphabetical order.

- by Genre: all of the genres defi ned in
the ID3 Tags.

- by Playlist: in accordance with the
playlists recorded on the USB device.

272
06
1
2
1
2
1
2
3

RECEIVING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.

Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's keypad. See steps 1 to 10 on the
previous pages. During the pairing phase, the vehicle
must be stationary with the key in the ignition.

Select the telephone to be connected from the telephone function
menu.
The audio system connects to a newly paired telephone automatically.
Select the YES tab on the display
using the buttons and confi rm by
pressing OK.

Press the steering mounted control OK to accept
the call.








BLUETOOTH AUDIO STREAMING


Wireless transmission of the telephone's music fi les via the audio
equipment. The telephone must be able to manage the appropriate
bluetooth profi les (Profi les A2DP/AVRCP).

*
In certain cases, playing of the Audio fi les must be initiated from the
keypad.

** If the telephone supports the function.
Activate the streaming source by
pressing the SOURCE button * . The
tracks to be played can be controlled
as usual via the buttons on the
Radio control panel and the steering
mounted controls ** . The contextual
information can be displayed on
the screen.


BLUETOOTH


MAKING A CALL


From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the end of the steering mounted control for
more than two seconds to gain access to your
directory.
Or
To dial a number, use your telephone's keypad,
with the vehicle stationary.

281
VISUAL SEARCH
INSTRUMENTS AND CONTROLS


Multifunction screens .............42-49
Hazard warning lamps .............. 101
Switch panel ............................... 16
Emergency and
assistance call ................ 102, 181
Instrument panels ..................22-25
Warning lamps .......................26-35
Indicators ...............................36-39
Buttons ..................................40-41


- Check/service indicator/
trip distance recorder

- lighting dimmer


Lighting controls ....................85-89
Headlamp height adjustment ...89-90
Stop & Start .......................128-130

Speed limiter......................131-132
Cruise control ....................133-134
Door mirrors ...........................67-68
Electric windows ....................77-78

Dashboard fuses ...............160-162
Opening the bonnet .................. 138
Steering wheel adjustment ......... 69
Horn .......................................... 102
Courtesy lamps........................... 93
Seat belt/passenger's front
airbag warning lamps display ...107
Rear view mirror ......................... 69
Sun visor..................................... 96

Wiper controls........................91-93
Trip computer ........................50-52

Peugeot Connect Media ....185-228
Setting the date/time................. 218

Peugeot Connect Navigation ...229-260
Setting the date/time................. 252
Peugeot Connect Sound ...261-278
Setting the date/time................. 273

Ventilation ..............................53-54
Manual air conditioning..........55-56
Digital air conditioning ...........57-58

Parking brake ........................... 122
Manual gearbox .................122-124
Automatic gearbox.............125-127

"AIRWAVE" system controls ....... 65
Retractable roof control .............6-7
Control for all four windows ........ 78
