2011 Peugeot 308 CC buttons

2
CONTENTS
Instrument panels 22
Warning and indicator lamps 26
Indicators 36
Instrument panel buttons 40„
„
„
„
Ventilation 53
Manual air conditioning 55
Rear screen demist/defrost 56
Dual-zone digital air
conditioning 57
Windstop 59
Front seats 62
"AIRWAVE" system 65
Rear seats 66
Mirrors 67
Steering wheel adjustment 69„
„
„
„
„
„
„
„
„
„
COMFORT 53 Î 69
Remote control key 70
Alarm 75
Window controls 77
Doors 79
Boot 82
Fuel tank 83
Misfuel prevention 84„
„
„
„
„
„
„
ACCESS 70 Î 84
Lighting controls 85
LED lamps 87
Daytime running lamps 87
Automatic illumination of
headlamps 88
Welcome lighting 89
Headlamp adjustment 89
Directional lighting 90
Wiper controls 91
Automatic rain sensitive wipers 92
Courtesy lamps 93
Interior mood lighting 94„
„
„
„
„
„
„
„
„
„
„
VISIBILITY 85 Î 94 FAMILIARISATION 4 Î 19
INSTRUMENTS AND
CONTROLS 22 Î 41
Monochrome screen C
(Peugeot Connect Sound) 42
16/9 retractable colour screen
(Peugeot Connect Navigation) 45
16/9 high defi nition
retractable colour screen
(Peugeot Connect Media) 47
Trip computer 50„
„
„
„
MULTIFUNCTION
SCREENS 42 Î 52
Interior fi ttings 95
Lockable glove box 96
Lockable front armrest 97
Boot fi ttings 99„
„
„
„
FITTINGS 95 Î 100
15
43
26
ECO-DRIVING 20 Î 21

1
i
25
INSTRUMENTS and CONTROLS

*
According to country.









Instrument panel navigator associated
with the Peugeot Connect Media

Main menu


)
Press button 1
to open the main
menu and select one of the following
functions:


- "Vehicle parameters",

- "Choice of language",

- "Choice of units".

)
Press button 2
or 3
to move on the
screen.

)
Press button 1
again to confi rm the
selection.

Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:


- selective unlocking (refer to the
"Access" section),

- guide-me-home and welcome light-
ing (refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- rear parking sensors (refer to the
"Driving" section).


Choice of language
This menu allows you to select the lan-
guage used by the screen: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .

Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and fuel consumption (mpg, km/l or
l/100 km).
This group of buttons permits:


- when stationary
, confi guration of
the vehicle's equipment and the
central screen settings (language,
units...),

- while driving
, scrolling through the
active functions (trip computer, navi-
gation...).

Controls
There are four buttons to control the in-
strument panel large screen:


1.
access the main menu, confi rm the
selection,

2.
move up through the menu,

3.
move down through the menu,

4.
return to the previous screen, exit
from the menu. The main menu and its associated
functions can only be accessed
when stationary, via buttons 1
to 4
.
A message appears in the cen-
tral screen, above a certain speed
threshold, indicating that the main
menu cannot be displayed.
Trip computer information can only
be displayed while driving, using
buttons 2
and 3
(refer to the "Trip
computer" section).

2
42
MULTIFUNCTION SCREENS

Main menu

"Audio functions" menu



)
Press the "MENU"
button for ac-
cess to the main menu
:


- audio functions,

- diagnosis vehicle,

- personalisation-confi guration,

- telephone (hands-free kit).

)
Press the "
" or "
" buttons to se-
lect the menu required, then confi rm
by pressing the "OK"
button.

With the Peugeot Connect Sound
switched on, once this menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG, RadioText) or the CD
(introscan, shuffl e, CD repeat).
For more information on the "Audio func-
tions" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.















MONOCHROME SCREEN C (WITH
PEUGEOT CONNECT SOUND)

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature (this fl ashes if
there is a risk of ice),

- status of the openings (doors,
boot...),

- visual parking sensor information,

- audio sources (radio, CD...),

- telephone information and directo-
ries,

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the "ESC"
button.


Controls

From the control panel of your Peugeot
Connect Sound, you can:


)
press the "MENU"
button to gain
access to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the "MODE"
button to change
the permanent application (trip com-
puter, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the "OK"
button to confi rm,
or


)
press the "ESC"
button to abandon
the operation in progress.

2
!
44
MULTIFUNCTION SCREENS
For safety reasons, confi guration
of the multifunction screen by the
driver must be done only when sta-
tionary.


"Telephone" menu


Display confi guration
Once this menu has been selected, you
have access to the following settings:


- brightness-video setting,

- date and time setting,

- choice of units.


Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe * ).
Example: setting of the duration of the
"guide-me-home" lighting


)
Press the "
" or "
" buttons, then
the "OK"
button to select the menu
required.

)
Press the "
" or "
" buttons,
then the "OK"
button to select the
"Guide-me-home headlamps" line.

)
Press the "
" or "
" buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"

button to confi rm.
)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"

box and confi rm or press the "ESC"

button to cancel.
With the Peugeot Connect Sound
switched on, once this menu has
been selected you can confi gure your
Bluetooth hands-free kit (pairing), con-
sult the various telephone directories
(calls log, services...) and manage your
communications (pick up, hang up, call
waiting, secret mode...). For more information on the "Telephone" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.

* According to country.

3
!
!
66
COMFORT











STORING DRIVING POSITIONS

System which takes into account the
electrical settings of the driver's seat
and the door mirrors. It enables you to
store two positions using the buttons on
the side of the driver's seat.

Recalling a stored position

Storing a position

When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.


Using buttons M/1/2


)
Switch on the ignition.

)

Adjust your seat and your door mirrors.


)
Press button M
, then press button 1

or 2
within four seconds.
An audible signal is heard indicating
that the settings have been stored.
Storing a new position cancels the pre-
vious position.
















REAR SEATS

Fixed two-seat bench fi tted with roll-
over bars to guarantee your protection
should the vehicle roll over.
Do not place any article of cloth-
ing on the rear head restraints.
Contact a PEUGEOT dealer to see
the range of suitable covers. The rear head restraints are fi xed. They
incorporate the roll-over hoops (refer to
the section "Safety - § Roll-over hoops").
The bench rear seat may be fi tted with a
folding comfort armrest in the centre of
the seat back.
Using button 1 or 2


)
Press and hold button 1
or 2
until
the audible signal is heard indicat-
ing the end of the adjustment.

4
!
74
ACCESS














Lost keys

Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the trans-
ponder code required to order a replacement key.







Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.

Remote control

The high frequency remote control is a sensitive system; do not operate it
while it is in your pocket as there is a possibility that it may unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisation.


Locking the vehicle

Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.


Anti-theft protection

Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.


When purchasing a second-hand vehicle

Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.

8
!
132
DRIVING

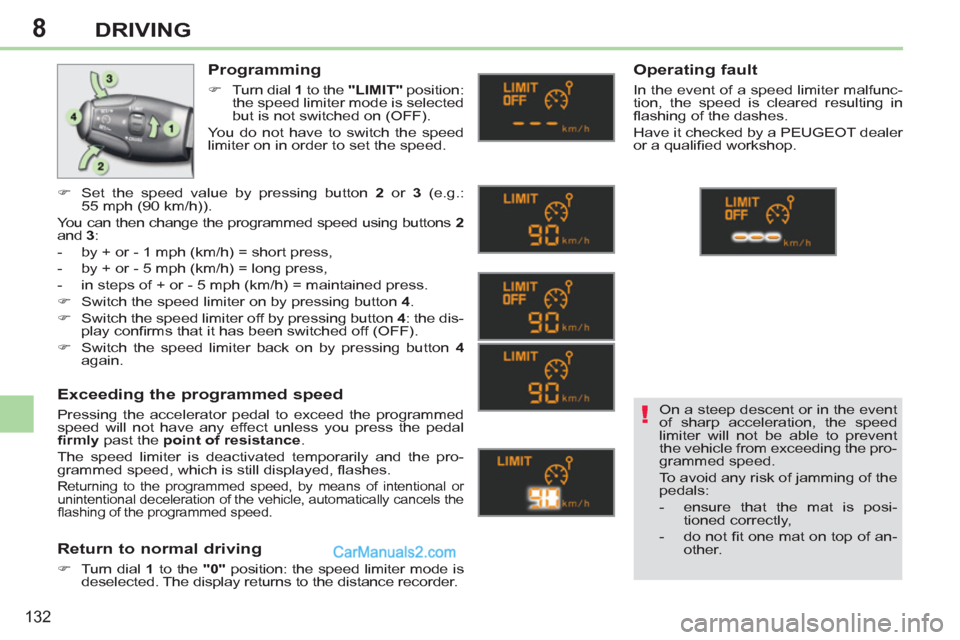

Programming



)
Turn dial 1
to the "LIMIT"
position:
the speed limiter mode is selected
but is not switched on (OFF).
You do not have to switch the speed
limiter on in order to set the speed.


)
Set the speed value by pressing button 2
or 3
(e.g.:
55 mph (90 km/h)).
You can then change the programmed speed using buttons 2

and 3
:


- by + or - 1 mph (km/h) = short press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.


)
Switch the speed limiter on by pressing button 4
.

)
Switch the speed limiter off by pressing button 4
: the dis-
play confi rms that it has been switched off (OFF).

)
Switch the speed limiter back on by pressing button 4

again.



Exceeding the programmed speed

Pressing the accelerator pedal to exceed the programmed
speed will not have any effect unless you press the pedal
fi rmly
past the point of resistance
.
The speed limiter is deactivated temporarily and the pro-
grammed speed, which is still displayed, fl ashes.

Returning to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels the
fl ashing of the programmed speed.


Return to normal driving



)
Turn dial 1
to the "0"
position: the speed limiter mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a speed limiter malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
On a steep descent or in the event
of sharp acceleration, the speed
limiter will not be able to prevent
the vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the
pedals:


- ensure that the mat is posi-
tioned correctly,

- do not fi t one mat on top of an-
other.

8
!

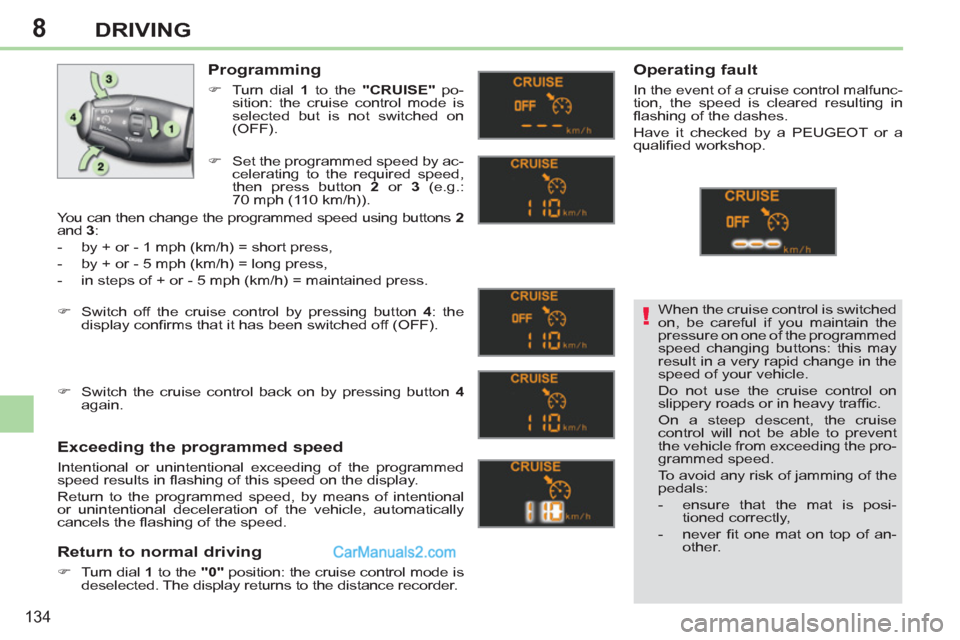

134
DRIVING
When the cruise control is switched
on, be careful if you maintain the
pressure on one of the programmed
speed changing buttons: this may
result in a very rapid change in the
speed of your vehicle.
Do not use the cruise control on
slippery roads or in heavy traffi c.
On a steep descent, the cruise
control will not be able to prevent
the vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the
pedals:


- ensure that the mat is posi-
tioned correctly,

- never fi t one mat on top of an-
other.



Programming



)
Turn dial 1
to the "CRUISE"
po-
sition: the cruise control mode is
selected but is not switched on
(OFF).

Exceeding the programmed speed

Intentional or unintentional exceeding of the programmed
speed results in fl ashing of this speed on the display.
Return to the programmed speed, by means of intentional
or unintentional deceleration of the vehicle, automatically
cancels the fl ashing of the speed.


Return to normal driving



)
Turn dial 1
to the "0"
position: the cruise control mode is
deselected. The display returns to the distance recorder.



Operating fault

In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a PEUGEOT or a
qualifi ed workshop.

)
Set the programmed speed by ac-
celerating to the required speed,
then press button 2
or 3
(e.g.:
70 mph (110 km/h)).


)
Switch off the cruise control by pressing button 4
: the
display confi rms that it has been switched off (OFF).

)
Switch the cruise control back on by pressing button 4

again.

You can then change the programmed speed using buttons 2

and 3
:


- by + or - 1 mph (km/h) = short press,

- by + or - 5 mph (km/h) = long press,

- in steps of + or - 5 mph (km/h) = maintained press.
