02 VOICE COMMANDS AND STEERING MOUNTED CONTROLS










STEERING MOUNTED CONTROLS


RADIO: selection of the previous stored station.
Audio CD: selection of the previous track.
If "MEDIA" is displayed on the screen:
MP3 CD/SD CARD/JUKEBOX: selection of the
previous folder.
Selection of the previous entry in the address book.
RADIO: selection of the next stored station.
Audio CD: selection of the next track.
If "MEDIA" is displayed on the screen:
MP3 CD/CARD/JUKEBOX: selection of the next folder.
Selection of the next entry in the address book.
RADIO: automatic search for a higher frequency.
CD/SD CARD/JUKEBOX: selection of the next track.
CD/SD CARD/JUKEBOX: continuous press: fast forward play.

RADIO: automatic search for a lower frequency.
CD/SD CARD/JUKEBOX: selection of the previous track.
CD/SD CARD/JUKEBOX: continuous press: fast backward play.



- Change the sound source.

- Make a call from the address
book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:
access to the address book.

Volume increase.

Volume decrease.
Mute: by pressing
the volume increase
and decrease buttons
simultaneously.
Restore the sound: by
pressing one of the
two volume buttons.
Wiper stalk: display of "RADIO" and "MEDIA".
Lighting stalk: activation of the voice command by means of a short press;
indication of the current navigation instruction by means of a long press.

207
06
11
2
NAV ESC TRAFFICRADIOMEDIA
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
RADIO
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

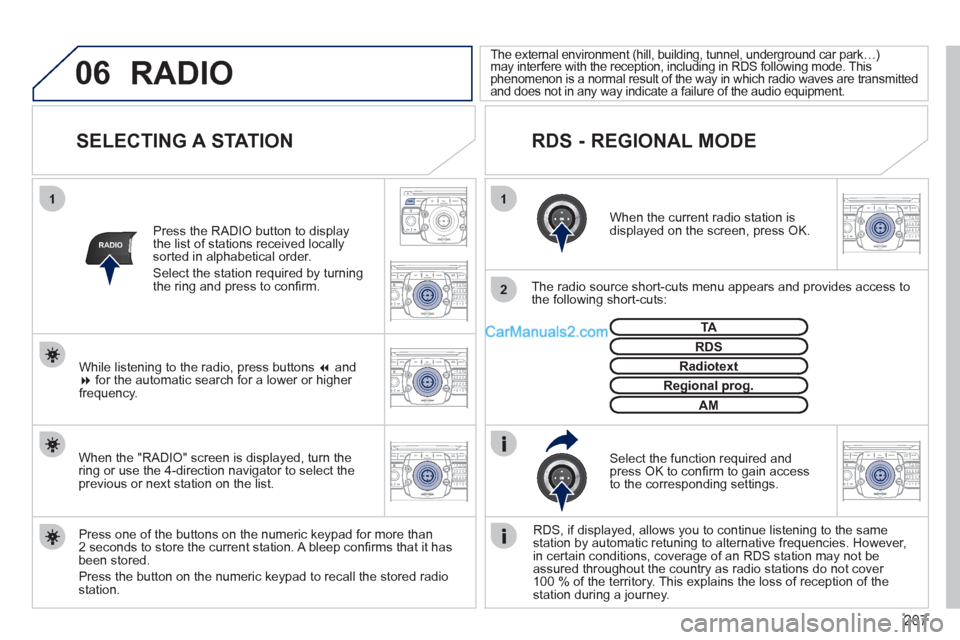

SELECTING A STATION


When the current radio station is
displayed on the screen, press OK.

The radio source short-cuts menu appears and provides access to
the following short-cuts:

Select the function required and
press OK to confi rm to gain access
to the corresponding settings.
TA


RDS, if displayed, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the country as radio stations do not cover
100 % of the territory. This explains the loss of reception of the
station during a journey.







The external environment (hill, building, tunnel, underground car park…)
may interfere with the reception, including in RDS following mode. This
phenomenon is a normal result of the way in which radio waves are transmitted
and does not in any way indicate a failure of the audio equipment.

RDS - REGIONAL MODE


Press the RADIO button to display
the list of stations received locally
sorted in alphabetical order.
Select the station required by turning
the ring and press to confi rm.


Press one of the buttons on the numeric keypad for more than
2 seconds to store the current station. A bleep confi rms that it has
been stored.
Press the button on the numeric keypad to recall the stored radio
station.



RDS



Radiotext



Regional prog.


AM



RADIO


When the "RADIO" screen is displayed, turn the
ring or use the 4-direction navigator to select the
previous or next station on the list.
While listening to the radio, press buttons
and

for the automatic search for a lower or higher
frequency.

228


QUESTION



ANSWER



SOLUTION


The system does not
receive SMS. The Bluetooth mode does not permit sending of the SMS to the system. Use your SIM card and the internal telephone.
The SIM card used is a twin card. Use the original SIM card to receive the SMS.
I cannot update the risk
area POIs. The Navigation Menu - "Update personal POI" is not displayed. Check that the medium used for the update (SD
card or USB memory stick) is inserted correctly.
An error message is displayed at the end of the procedure.

- Start the procedure again in full.

- Consult a PEUGEOT dealer if the problem
persists.

- Check that the data on the MEDIUM is
supplied by an offi cial partner of PEUGEOT.
The voice frequencies
(DTMF) are not
active when I am
communicating and I
press numbers on the
keypad. The numeric buttons on the keypad are only active for calls if the display
is in telephone mode. To activate them, press the MODE button until the
telephone is displayed on the screen.
An accident area which
does not concern me is
displayed on the screen. The accident areas are displayed near a point defi ned on the map and in
relation to a direction of travel. The alert may be triggered when travelling under a
road or near a road which has a speed camera.

230
01
1
5
10 234 6
1311
9
14 157812 16


1. Engine not running:
- Short press: on/off.
- Long press: CD pause, mute for the radio.
Engine running:
- Short press: CD pause, mute for the radio.
- Long press: reinitialisation of the system.

2. Volume adjustment (each source is
independent, including also navigation
messages and alerts).

3. Access to the "Radio" Menu. Display the list
of stations.

4. Access to the "Music" Menu. Display the tracks.
5. Access to the "SETUP" menu.
Long press: access to the GPS coverage
and the demonstration mode.

6. Access to the "Phone" Menu. Display
the call list.

7. Access to the "MODE" menu.
Selection of the successive display of:
Radio, Map, NAV (if navigation is in
progress), Telephone (if a conversation is in
progress), Diagnosis vehicle (alerts).
Long press: display of a black screen (DARK).

8. Access to the "Navigation" Menu. Display
the last destinations.

9. Access to the "Traffi c" Menu. Display the
current traffi c alerts.

10. ESC: abandon the operation in progress.

11. CD eject.
12. Selection of the previous/next radio station
from the list.
Selection of the previous/next MP3 folder.
Selection of the previous/next page of a list.

13. Selection of the previous/next radio station.
Selection of the previous/next CD or MP3 track.
Selection of the previous/next line of a list.

14. Buttons 1 to 6:
Selection of the stored radio station.
Long press: store the current radio station.

15. SD card reader (navigation SD card only).

16. Dial for selection of the screen display and
according to the context of the menu.
Short press: contextual menu or confi rmation.
Long press: contextual menu specifi c to
the list displayed.

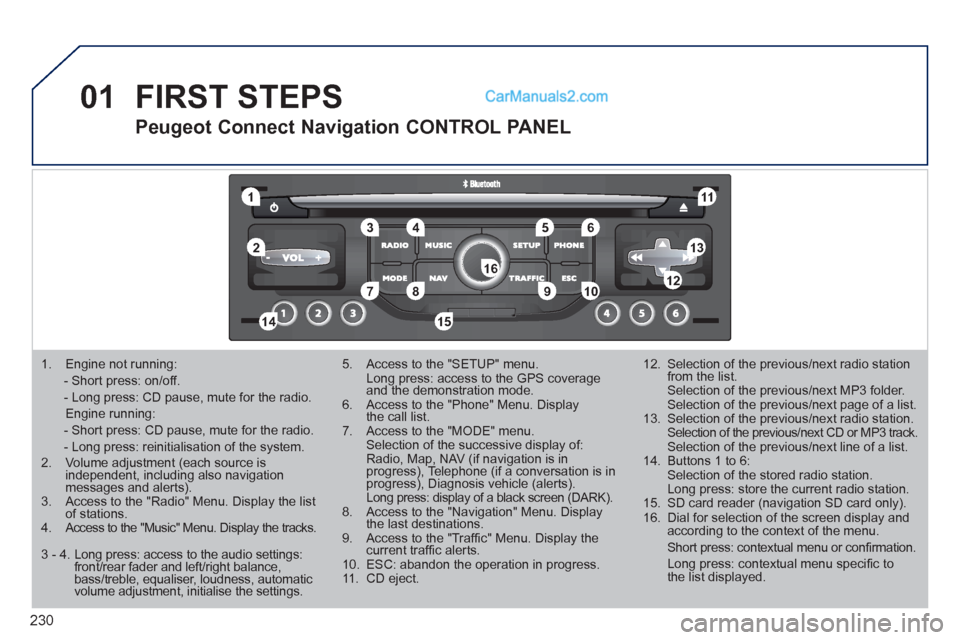

FIRST STEPS


Peugeot Connect Navigation CONTROL PANEL

3 - 4. Long press: access to the audio settings:
front/rear fader and left/right balance,
bass/treble, equaliser, loudness, automatic
volume adjustment, initialise the settings.

231

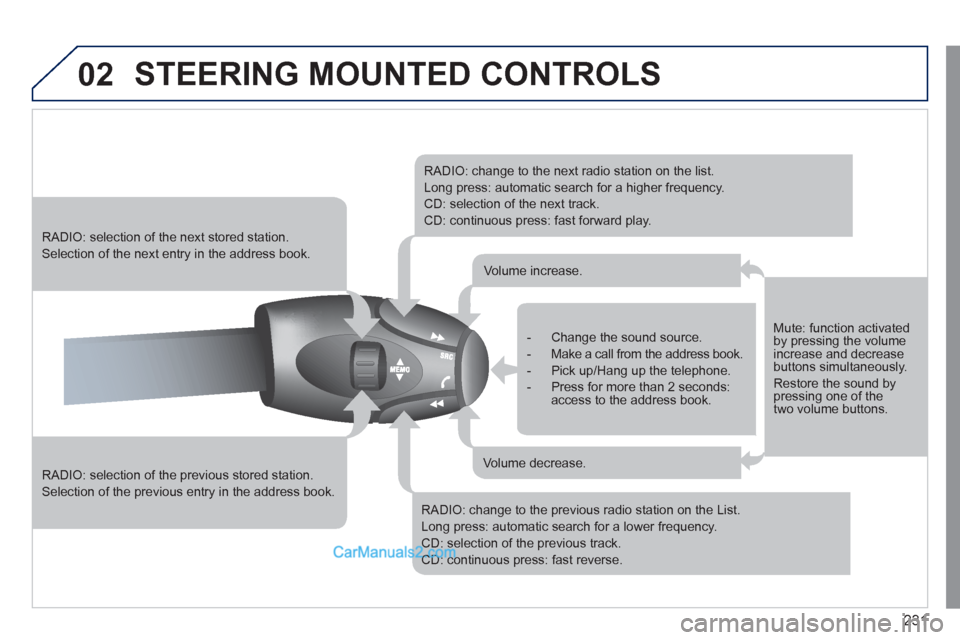

02 STEERING MOUNTED CONTROLS


RADIO: selection of the previous stored station.
Selection of the previous entry in the address book.

RADIO: selection of the next stored station.
Selection of the next entry in the address book.
RADIO: change to the next radio station on the list.
Long press: automatic search for a higher frequency.
CD: selection of the next track.
CD: continuous press: fast forward play.

RADIO: change to the previous radio station on the List.
Long press: automatic search for a lower frequency.
CD: selection of the previous track.
CD: continuous press: fast reverse.


- Change the sound source.

- Make a call from the address book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:
access to the address book.

Volume increase.

Volume decrease.
Mute: function activated
by pressing the volume
increase and decrease
buttons simultaneously.
Restore the sound by
pressing one of the
two volume buttons.

245
06
3 2 1 1

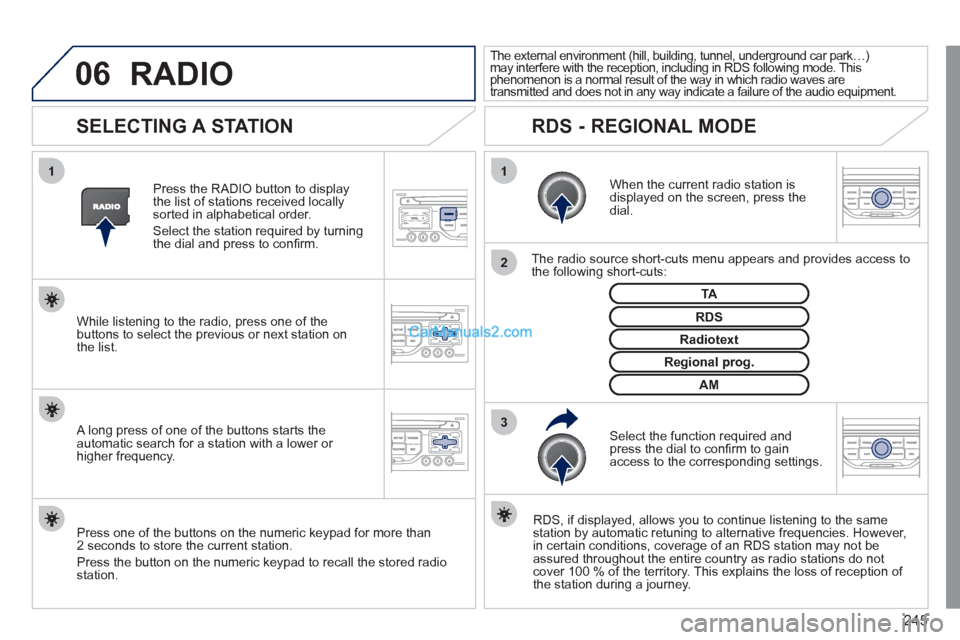

SELECTING A STATION


When the current radio station is
displayed on the screen, press the
dial.

The radio source short-cuts menu appears and provides access to
the following short-cuts:

Select the function required and
press the dial to confi rm to gain
access to the corresponding settings.
TA


RDS, if displayed, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not
cover 100 % of the territory. This explains the loss of reception of
the station during a journey.
The external environment (hill, building, tunnel, underground car park…)
may interfere with the reception, including in RDS following mode. This
phenomenon is a normal result of the way in which radio waves are
transmitted and does not in any way indicate a failure of the audio equipment.






RDS - REGIONAL MODE


Press the RADIO button to display
the list of stations received locally
sorted in alphabetical order.
Select the station required by turning
the dial and press to confi rm.

Regional prog.

Radiotext

RDS


While listening to the radio, press one of the
buttons to select the previous or next station on
the list.

Press one of the buttons on the numeric keypad for more than
2 seconds to store the current station.
Press the button on the numeric keypad to recall the stored radio
station.

AM



A long press of one of the buttons starts the
automatic search for a station with a lower or
higher frequency.

RADIO

247
07
3 2 1
6
4
5












SELECTING/PLAYING MUSIC
CD, MP3/WMA CD

The playing and displaying of an MP3/WMA compilation may
depend on the recording programme and/or the settings used.
We recommend the ISO 9660 fi le standard.

Press the MUSIC button.

Select the "Select music" function
and press the dial to confi rm.
Press the up or down button to select
the next/previous folder.
Select the music source required:
CD, MP3/WMA CD. Press the dial to
confi rm. Play begins.

Select music


Press the MUSIC button again or
select the Music Menu function and
press the dial to confi rm.
Press one of the buttons to select a
music track.
Press and hold one of the buttons for
fast forward or rewind play.

Music Menu


The list of tracks or MP3/WMA fi les appears under Music Menu.

MUSIC MEDIA PLAYERS

262
01
1 2
1011
13 14 153456 789
12
FIRST STEPS







1. On/Off and volume adjustment.

2. CD eject.

3. Selection of the display on the screen from
the following modes:
Audio (AUDIO), Vehicle Diagnostics and
Telephone (TEL) functions.

4. Selection of source:
radio, audio CD/MP3 CD, USB, Jack
connection, Streaming.

5.
Selection of FM1, FM2, FMast and AM wavebands.


6. Setting audio options: front/rear balance, left/
right balance, loudness, sound ambience.

7. Display the list of local stations, of the
tracks on the CD or of the MP3 folders.
8. Abandon current operation.

9. TA (Traffi c Announcement) function on/off.
Long press: access to the PTY (Types of
radio programme) mode.

10. Confi rmation.

11. Automatic search for a lower/higher
frequency.
Selection of previous/next CD, MP3 or USB
track.

12. Selection of a lower/higher radio frequency.
Selection of the previous/next MP3 folder.
Selection of the previous/next USB
equipment folder/genre/artist/playlist.
13. Display the main menu.

14. Buttons 1 to 6:
Selection of a stored radio station.
Long press: store a station.

15. The DARK button changes the display on
the screen to improve driving comfort at
night.
1st press: lighting the upper band only.
2nd press: display of a black screen.
3rd press: return to the standard display.
