2011 Peugeot 308 CC bluetooth

251
08
1
3 2
2 1
Select the "Yes" tab to accept or "No"
to refuse and confi rm by pressing
the dial.

RECEIVING A CALL
MAKING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.


Ye s

To hang up, press the PHONE button
or press the dial and select "End call"
then confi rm by pressing the dial.

End call



Press the PHONE button.
Select "Dial number", then dial the
telephone number using the virtual
keypad.
Select the Phone Menu function and
press the dial to confi rm.


The list of the last 20 calls made and received in the vehicle
appears under Phone Menu. You can select a number and press
the dial to make the call.



No




It is also possible to select a number from the address book.
You can select "Dial from address book". The Peugeot Connect
Navigation can record up to 1 000 entries (telephone numbers).
Press the end of the steering mounted control for more than two
seconds to gain access to the address book.


Phone Menu


Dial number



It is possible to make a call directly from the telephone; park the
vehicle as a safety measure.

BLUETOOTH TELEPHONE



Press the end of the steering mounted control to
accept the call or end the call in progress.

To delete a number, press the PHONE button then press and hold
on a call number to display a list of actions including:
Delete entry
Delete list

260

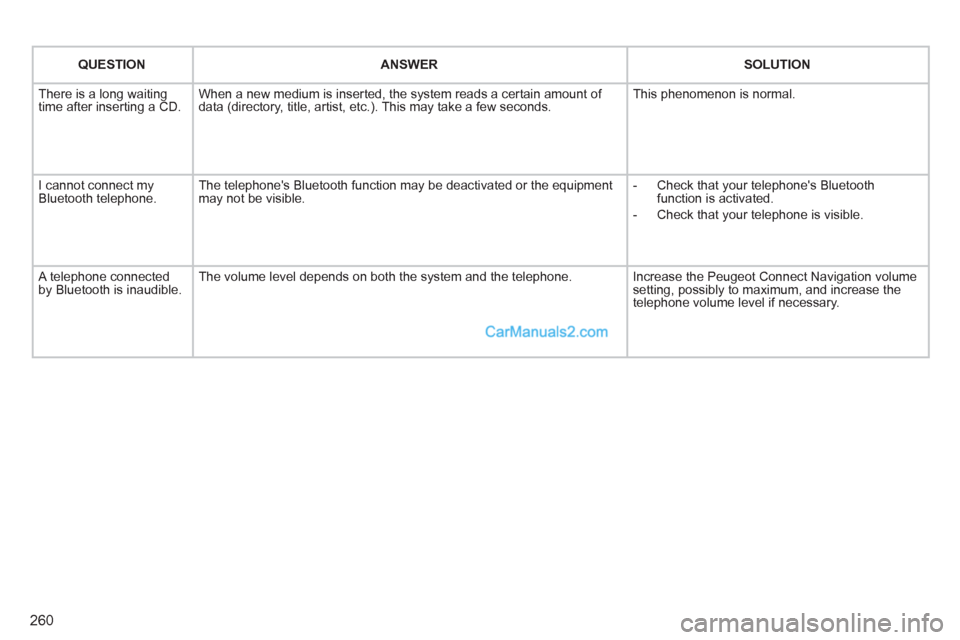

QUESTION



ANSWER



SOLUTION


There is a long waiting
time after inserting a CD. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be deactivated or the equipment
may not be visible.

- Check that your telephone's Bluetooth
function is activated.

- Check that your telephone is visible.
A telephone connected
by Bluetooth is inaudible. The volume level depends on both the system and the telephone. Increase the Peugeot Connect Navigation volume
setting, possibly to maximum, and increase the
telephone volume level if necessary.

261





PEUGEOT CONNECT SOUND


Your Peugeot Connect Sound is coded in such a way
that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer
for confi guration of the system.

For safety reasons, the driver should only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is off, and in order to prevent
discharging of the battery, the audio system may switch
off after a few minutes.



RADIO/BLUETOOTH

01 First steps

02 Steering mounted controls

03 Main menu

04 Audio

05 Peugeot Connect USB

06 Bluetooth

07 Configuration

08 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p. 262
263
264
265
268
271
273
274
277
CONTENTS

271
06
1
2
3
4
5
6
7
8
9
10
BLUETOOTH


For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing of the Bluetooth
mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.

Press the MENU button.

A window is displayed with "Searching...".
Activate the telephone's Bluetooth function.

In the menu, select:


- Bluetooth telephone function -
Audio

- Bluetooth confi guration

- Perform a Bluetooth search

The services offered depend on the network, the SIM card and the
compatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which services
are available to you. A list of mobile telephones which offer the best range of
services is available from the network. Consult a PEUGEOT dealer.










BLUETOOTH TELEPHONE

SCREEN C

The TELEPHONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.

The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the
screen: enter a code with at least 4 digits.
Confi rm by pressing OK.

"Pairing of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list. Only one
telephone can be connected at a time.

A message is displayed on the screen of the telephone
chosen: to accept the pairing, enter the same code on
the telephone, then confi rm by pressing OK.
The automatic connection authorised is only active after the
telephone has been confi gured.
The directory and the call list can be accessed after the
synchronisation period.
PAIRING A TELEPHONE

The pairing can also be initiated from the telephone.
(AVAILABILITY DEPENDS ON MODEL AND VERSION)

* If your telephone is fully compatible.

If pairing fails, the number of attempts is not limited.

272
06
1
2
1
2
1
2
3

RECEIVING A CALL


An incoming call is announced by a ring and a superimposed
display on the multifunction screen.

Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's keypad. See steps 1 to 10 on the
previous pages. During the pairing phase, the vehicle
must be stationary with the key in the ignition.

Select the telephone to be connected from the telephone function
menu.
The audio system connects to a newly paired telephone automatically.
Select the YES tab on the display
using the buttons and confi rm by
pressing OK.

Press the steering mounted control OK to accept
the call.








BLUETOOTH AUDIO STREAMING


Wireless transmission of the telephone's music fi les via the audio
equipment. The telephone must be able to manage the appropriate
bluetooth profi les (Profi les A2DP/AVRCP).

*
In certain cases, playing of the Audio fi les must be initiated from the
keypad.

** If the telephone supports the function.
Activate the streaming source by
pressing the SOURCE button * . The
tracks to be played can be controlled
as usual via the buttons on the
Radio control panel and the steering
mounted controls ** . The contextual
information can be displayed on
the screen.


BLUETOOTH


MAKING A CALL


From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the end of the steering mounted control for
more than two seconds to gain access to your
directory.
Or
To dial a number, use your telephone's keypad,
with the vehicle stationary.

276

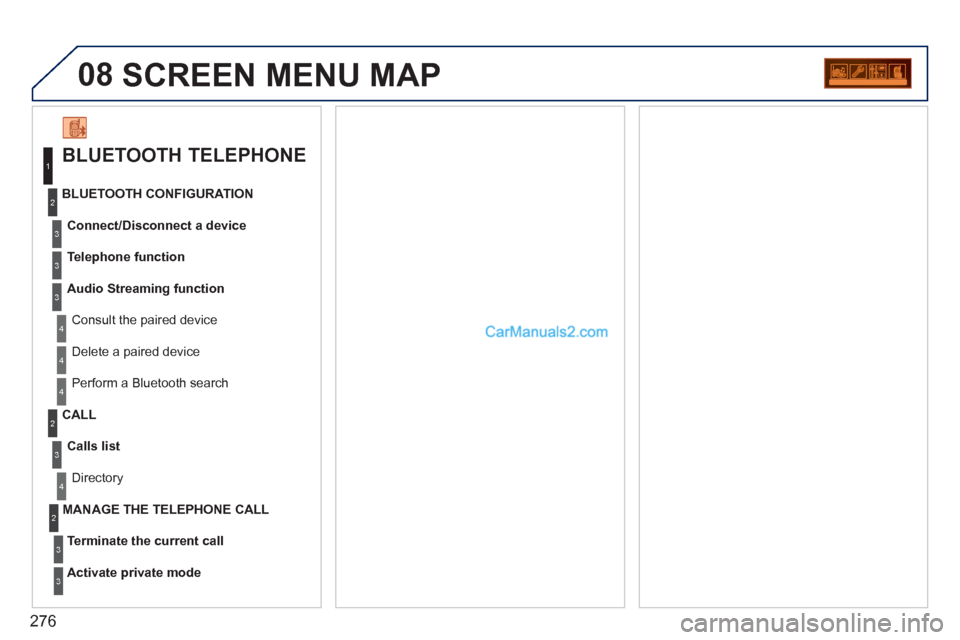

08 SCREEN MENU MAP


BLUETOOTH TELEPHONE


Connect/Disconnect a device

Consult the paired device
BLUETOOTH CONFIGURATION

Telephone function


Audio Streaming function

Delete a paired device
Perform a Bluetooth search

Calls list

CALL
Directory

Terminate the current call

MANAGE THE TELEPHONE CALL


Activate private mode



1
2
3
3
3
4
4
4
2
3
4
2
3
3

277
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


There is a difference in
sound quality between
the different audio
sources (radio, CD...). For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources, which
may result in audible differences when changing source (radio, CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to the
sources listened to. It is advisable to set the AUDIO
functions (Bass, Treble, Front-Rear Balance, Left-
Right Balance) to the middle position, select the
musical ambience "None" and set the loudness
correction to the "Active" position in CD mode or to
the "Inactive" position in radio mode.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.

283
ALPHABETICAL INDEX
ABS and EBFD systems ................ 104
Accessories .................................... 172
Accessories socket, 12 V ................. 98
Access to rear seats ......................... 64
Adjusting headlamps .................. 89, 90
Adjusting the steering wheel ............ 69
Airbags ........................................... 110
Air conditioning ..................... 20, 55, 57
Air conditioning (digital) .................... 57
Air conditioning (manual).................. 55
Air filter ........................................... 144
Air vents ........................................... 53
Alarm ................................................ 75
Anti-lock braking system (ABS) ...... 104
Anti-swirl net ..................................... 59
Anti-theft steering lock ...................... 72
Ashtray ............................................. 98
Assistance call ................ 102, 182, 183
Audible warning .............................. 102
Audio/video sockets ....................... 212
Audio streaming (Bluetooth) ........... 272
Automatic gearbox ................. 125, 145
Automatic illumination
of headlamps .......................... 85, 88
Automatic operation
of hazard warning lamps ............ 101
Automatic rain sensitive
windscreen wipers .................. 91, 92
Auxiliary socket .............. 212, 248, 270Battery .................................... 144, 166
Battery, remote control ............... 73, 74
Battery recharge ............................. 167
Bluetooth telephone
(hands-free) ................ 213, 249, 271
Bonnet ............................................ 138
Bonnet stay .................................... 138
Boot .................................................. 82
Boot (fittings) .................................. 100
Boot (opening) .................................. 70
Boot lamp ......................................... 94
Boot screen .................................... 100
Brake discs ..................................... 145
Brake lamps ................................... 158
Brake pads ..................................... 145
Brakes ............................................ 145
Braking assistance system ............. 104
ABChanging the date .......... 218, 252, 273
Changing the remote
control battery .............................. 73
Changing the time .......... 218, 252, 273
CHECK ............................................. 40
Checking levels ...................... 142, 143
Checking the engine oil level ........... 37
Checking tyre pressures
(using the kit) ............................. 150
Checks..................................... 138-145
Children ................... 109, 111, 114-121
Child seats .............................. 114-121
Closing the boot ............................... 82
Closing the doors ............................. 79
Closing the retractable roof ................ 6
Cold climate screen ........................ 172
Connectors,
audio ............97, 212, 248, 268, 270
Control for retractable roof ................. 6
Control for
the four windows .......................... 77
Control stalk, wipers ................... 91, 92
Coolant level ............................. 36, 142
Coolant temperature ......................... 36
Coolant temperature
indicator ........................................ 36
Courtesy lamps ................................ 93
Courtesy mirror ................................. 96
Cruise control ................................. 133 Capacity, fuel tank ............................ 83
CD MP3 .......................... 208, 246, 267
Central locking .................................. 80
Changing a bulb ...................... 155-159
Changing a fuse ...................... 160-165
Changing a wheel.................... 151-154
Changing a wiper blade ........... 93, 169
C
